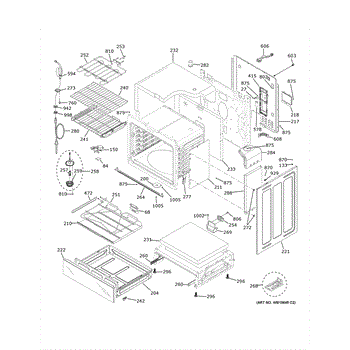

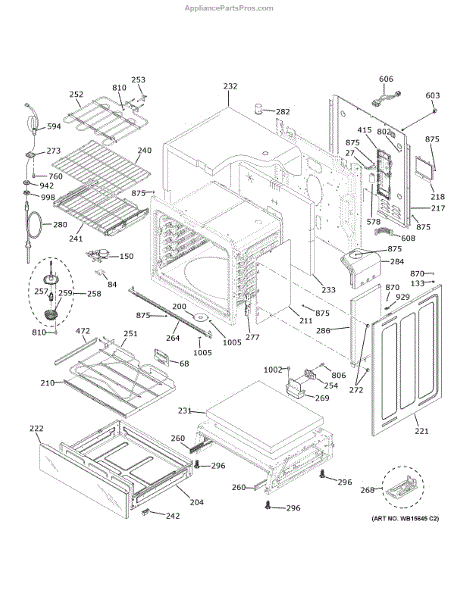

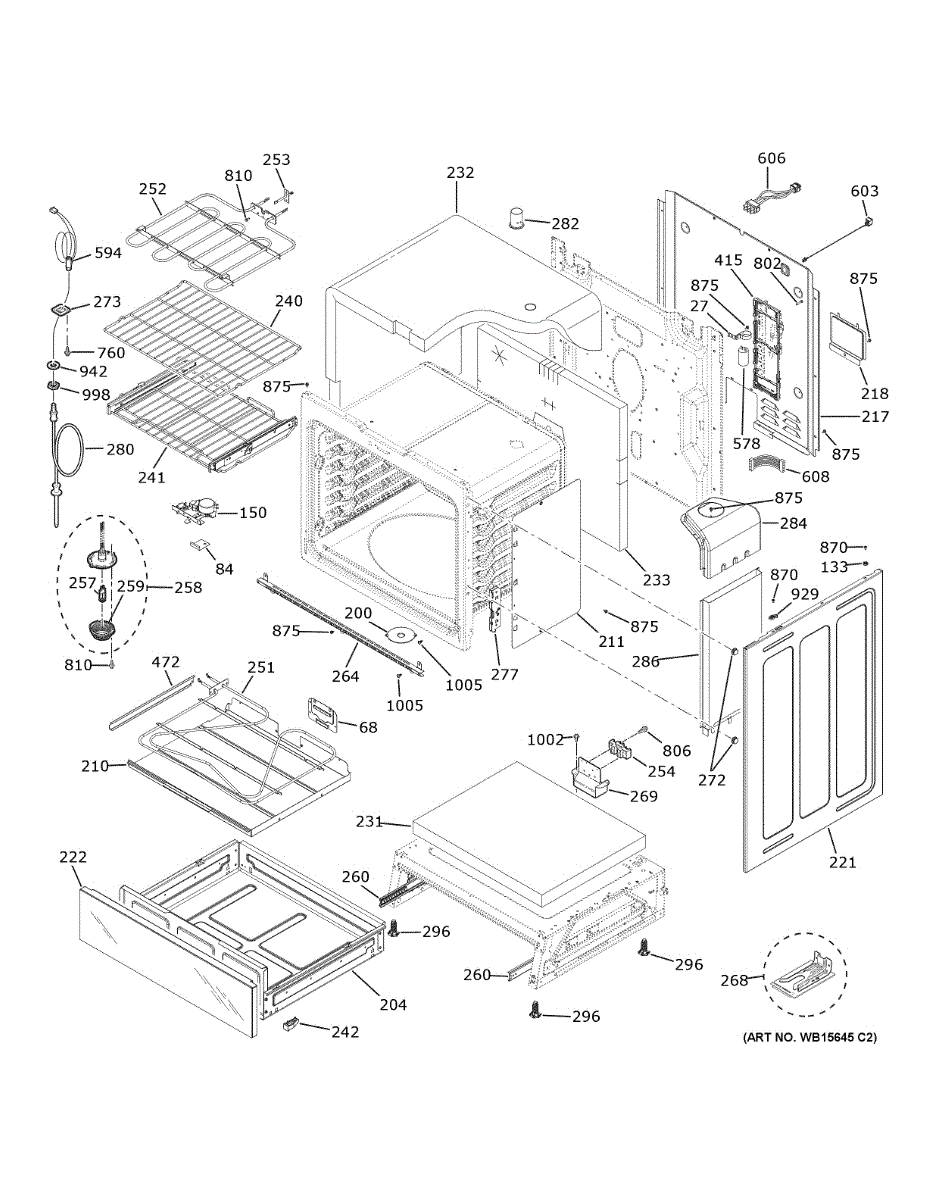

Parts for Ge CHS90XM2N1S5: Body Parts

Range not heating or burners not working? This terminal block connects power to your electric range elements. Common fix for heating failures on ovens and cooktops.

This rubber rangetop bumper cushions and supports the cooktop, reducing vibration and protecting the surface from metal-on-metal contact. It helps restore proper spacing and reduces rattling or chafing from loose or missing bumpers. What it does:

• Cushions the cooktop edge to prevent scratching and wear
• Keeps the cooktop and rangetop components properly spaced and stable
• Reduces rattling, vibration, and noise during use
• Commonly replaced when bumpers are cracked, flattened, missing, or allow movement

• Remove power to the appliance and allow all surfaces to cool before servicing.
• Access may require lifting or removing the cooktop; follow manufacturer instructions for your model.
• Replace with the same style bumper to maintain proper fit and spacing.
• Use care around sharp edges.

Fix an oven door that won't lock or close properly with this door latch assembly. Common repair for self-cleaning cycle issues on electric ranges.

Replace your electric range's drawer body and slides assembly. Restores smooth gliding operation when the original assembly is damaged, cracked, or worn.

Reflector pan sits under the bake element in your electric range oven cavity. Replace if cracked, warped, or rusted to restore proper heat direction.

Main wire cover for electric ranges. Protects and conceals internal wiring connections. Replace if cracked, broken, or missing to ensure safe operation.

Protects your range's electrical terminal block connections. This cover shields wiring from damage and prevents electrical shorts. Easy DIY repair.

Replace a cracked, dented, or missing side panel on your electric range. This structural cover panel installs on the exterior side of your appliance.

Insulation panel that installs at the bottom of your range oven cavity. Replace if cracked, damaged, or missing to restore proper heat retention.

Insulation that wraps around the oven cavity to retain heat and improve efficiency. Replace if torn, compressed, or missing to restore proper insulation.

Insulation panel that installs on the back of your range oven cavity. Replace if cracked, torn, missing, or damaged to maintain proper heat retention.

Wire oven rack restores shelf space inside your electric range. Replaces missing, bent, or worn racks. Slides on factory supports for stable cookware placement.

Oven rack slide assembly mounts inside the oven cavity to support and guide oven racks. Replace if cracked, broken, or no longer slides smoothly.

Aligns and stabilizes your range's lower storage or warming drawer for smooth sliding and flush closure. Replace if cracked, worn, or missing to restore fit.

Oven slow to heat or not heating at all? This hidden bake element delivers consistent bottom heat for proper baking. Moderate DIY, about 1 hour.

Broil element won't heat or glow? This upper heating element restores intense top heat for broiling. Moderate DIY repair—requires rear panel removal.

Fix F2 error codes and inaccurate oven temperatures by replacing a faulty temperature sensor. Simple 15-minute DIY repair with basic tools.

Fix burning smell or electrical arcing from loose terminal connections. This terminal block assembly connects your range's internal wiring to power supply.

Halogen light bulb illuminates your oven interior. Replace when burned out or if flickering. Push-in style bulb for easy installation. Confirm fit with your model.

Secures your range to the floor or wall to prevent forward tipping. Replace if bracket is bent, broken, or missing during appliance relocation.

Secures and organizes high-voltage wiring connections on your range chassis. Replace if cracked, broken, or missing to restore stable power contact points.

Secures the oven door hinge to the range cabinet frame. Replace if cracked, bent, or damaged to restore proper door alignment and closure fit.

Oven meat probe not working or wire exposed? This thermistor monitors interior temperature for accurate cooking. Common DIY fix, installs in minutes.

Convection fan won't run or oven bakes unevenly? This wall oven fan motor circulates hot air for even cooking. Moderate DIY repair, 1-2 hours.

This is a replacement 8-18 screw with a SKT25 drive used to secure panels and components on compatible appliances. It restores proper fastening and helps eliminate loose or rattling parts for safer, quieter operation. What it does:

• Fastens panels, brackets, and internal components where 8-18 thread hardware is required
• Replaces missing or stripped screws that cause loose panels or vibration
• Helps keep wiring and assemblies properly secured to prevent shifting during use
• Uses a SKT25 (Torx/socket) drive for a secure, tamper-resistant fit

• Use the correct SKT25 driver or bit to avoid cam-out and fastener damage
• Tighten securely but avoid over-torquing to prevent thread or component damage
• Disconnect power to the appliance before working on electrical panels or internal components
• If a screw is severely corroded or a hole is damaged, replace with the correct OEM fastener and repair the mounting point as needed

Replacement mounting screw for cooktops and ranges. Secures cooktop components to the frame. Replace if screw is stripped, missing, or damaged.

Replacement washer for ranges and ovens. Used to secure components and provide even fastening. Replace if cracked, worn, or missing during repairs.

Replacement mounting nut for ovens and ranges. Secures internal components and panels. Order a new nut if yours is stripped, missing, or damaged.
