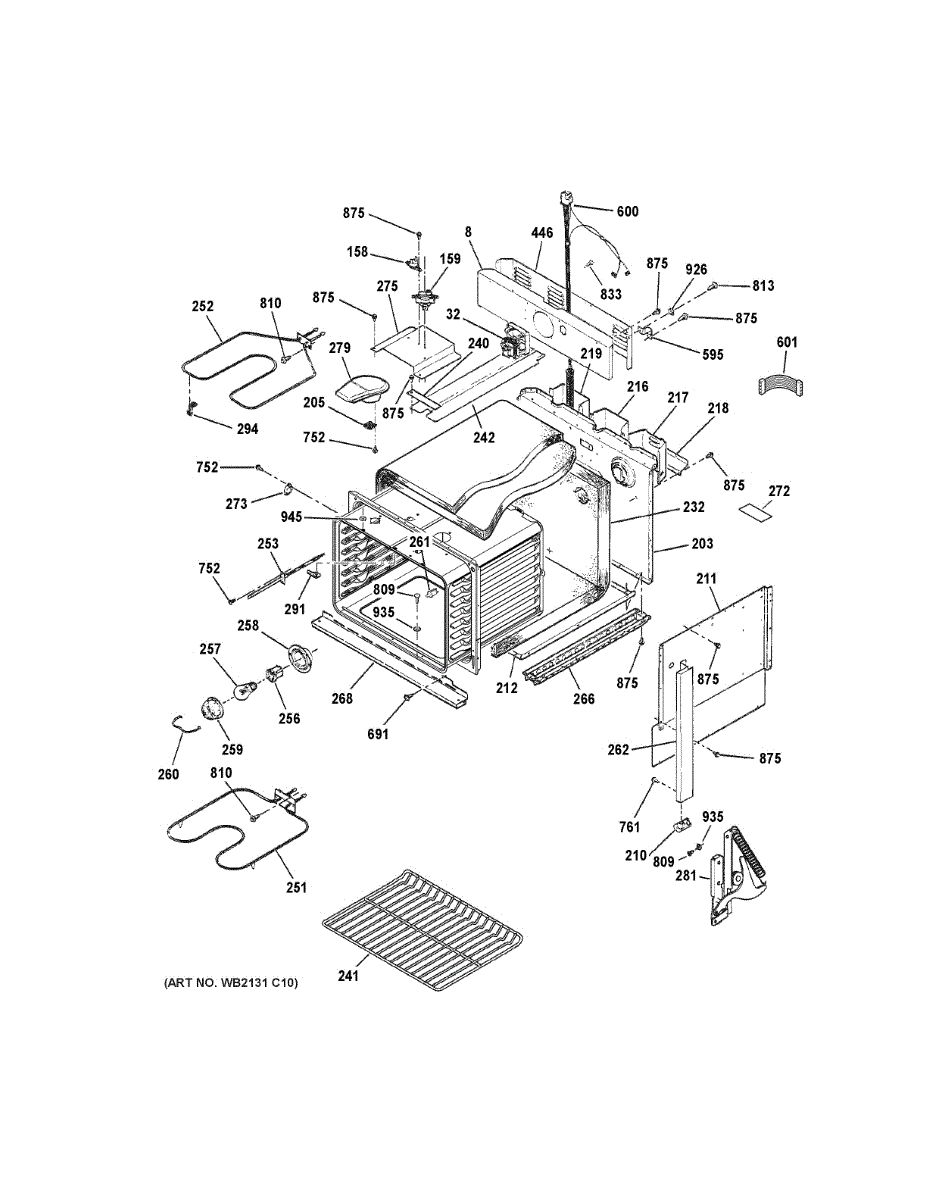

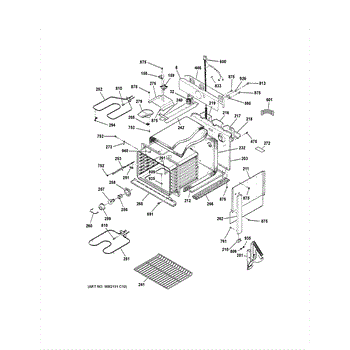

Parts for Ge JM250DT2BB: Body Parts

The Rack is an OEM part for GE ranges, designed to provide a sturdy and reliable surface for baking and roasting your favorite dishes. This high-quality metal rack fits perfectly inside GE ovens, allowing for optimal air circulation around the food for even cooking.

Causes of a bad Oven Rack can range from excessive weight placed on the rack, improper cleaning methods leading to rust, or general wear and tear over time.

Symptoms of a bad Oven Rack include:

• Difficulty sliding the rack in and out, which can be caused by warping or damage
• Rust or corrosion, which can contaminate food and affect the overall cleanliness of the oven
• Unstable positioning, leading to uneven cooking or the risk of dishes tipping over

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bake element heats the oven cavity for standard baking operations, restoring even heat when the original element fails. It installs at the rear or bottom of the oven cavity to provide the radiant heat needed for baking. What it does:

• Heats the oven cavity to maintain proper baking temperatures.
• Replaces a burned, broken, or visibly damaged element that won't glow or heat.
• Helps correct symptoms like insufficient heat, uneven baking, or an oven that won't reach set temperature.
• Works with the oven's control system and thermostat to deliver steady radiant heat.

• Disconnect power to the appliance before starting — turn off the circuit breaker or unplug the range.
• Allow the oven and old element to fully cool before handling.
• Handle the element carefully to avoid bending or damaging the terminals or ceramic insulators.
• After installation, restore power and test the oven on a bake cycle to ensure the element heats correctly.

This high-amp SPDT switch routes power between circuits in cooking appliances to control items such as locks, element relays, or fans. Replacing a worn switch restores dependable operation and helps eliminate intermittent on/off issues. What it does:

• Single-pole, double-throw action directs power between NO/NC circuits based on actuator position
• Used to signal or control a component per the model's design (e.g., latch/lock, relay, fan)
• Failure symptoms can include no activation, stuck-on/off behavior, intermittent operation, or heat-damaged terminals
• Electrical tests may show incorrect continuity between COM–NO/NC when pressed or released

• Includes: 1 SPDT high-amp switch

• Disconnect power at the breaker or unplug the appliance before servicing
• Label or photograph wiring; move leads to matching COM/NO/NC terminals on the new switch
• Mount with the correct actuator orientation and secure any bracket or screws
• Inspect connectors for heat damage; ensure tight spade fits, restore power, and test operation

This conduit wire assembly is a direct-replacement wiring harness that routes electrical power and signals between appliance components to restore reliable operation and safe connections. What it does:

• Provides a protected multi-conductor wiring path between controls and powered components.
• Replaces damaged or frayed wiring that can cause intermittent operation or component failure.
• Can resolve symptoms such as burners, elements, or controls not receiving power or operating inconsistently.
• Prevents exposed wires and reduces risk of shorting where conduit is required.

• Always disconnect power (unplug or switch off circuit breaker) before inspecting or replacing wiring.
• Match connector types and routing to the original harness; do not force connectors or alter wiring.
• Secure conduit and strain reliefs per the appliance layout to prevent chafing.
