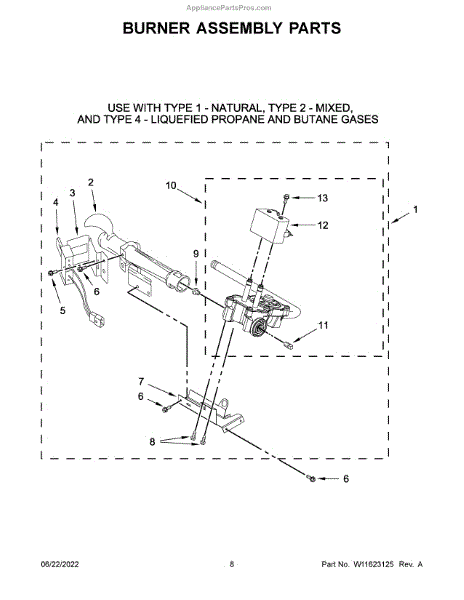

Parts for Maytag MGDC465HW2: Burner Assembly Parts

This burner tube channels the gas-air mixture to the burner and includes an adjustable air shutter to set proper combustion. Replacing a damaged assembly helps restore reliable ignition, stable flame, and consistent heating performance.

• Directs the fuel/air mixture from the gas valve to the burner port
• Integrated adjustable shutter regulates primary air for proper flame
• Helps maintain efficient heat output and reliable burner operation
• Failure can present as no or intermittent heat, burner that lights then goes out, yellow/lazy flame, or soot

• Disconnect power and shut off the gas supply; allow the appliance to cool before servicing
• Access the burner compartment and transfer any clips/brackets from the original tube
• Note the current shutter position; after installation, adjust for a steady blue flame
• After reassembly, leak-test gas connections with a soap solution and verify burner operation

The Igniter Kit and Bracket is an OEM replacement part for Whirlpool dryers. It is a kit that includes the igniter and bracket assembly, which work together to ignite the gas or electric heating element.

Causes of a bad igniter and bracket can include failure due to prolonged or repeated use, damage from impact or mishandling, or failure of integrated electronic components.

Symptoms of a bad igniter and bracket include:

• The dryer not heating or heating intermittently
• Repeated trips of the thermal fuse
• Smell of gas indicating improper ignition
• Visible damage or cracks in the igniter or bracket

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This replacement mounting screw secures appliance panels and small components to restore proper fit and reduce movement. It's a simple, direct part for repairing loose panels, trim, or interior assemblies. What it does:

• Fastens panels, brackets, or assemblies to prevent rattling and vibration
• Restores proper alignment for doors, control panels, or trim pieces
• Helps stop intermittent noise caused by loose hardware
• Use when original screw is missing, stripped, or corroded

• Disconnect power and unplug the appliance before beginning any repair
• Use the correct screwdriver bit and hand-tighten; avoid over-torquing which can strip threads
• Keep small parts away from children and pets; magnetic tray helps prevent loss
• If multiple screws are corroded or hardware threads are damaged, inspect mating parts and replace as needed

This 8-18 x 5/8-inch screw secures appliance panels, brackets, and covers. Replacing a missing or stripped fastener restores a tight fit and helps prevent vibration or loosening where this exact size is specified.

• Fastens sheet-metal or plastic components where a #8-18 x 5/8 screw is called for
• Helps maintain alignment and reduce rattling or vibration
• Replaces stripped, corroded, or missing screws of the same size
• Common symptoms: loose panels, gaps/poor fit, rattling noises, or visible missing hardware

• Disconnect power and shut off gas/water (as applicable) before service
• Match thread and length to the original; replace screws one at a time to keep parts aligned
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• If the receiving threads are damaged, additional repair (clip, insert, or new nut) may be needed

The Natural Gas Orifice is an OEM replacement part for Whirlpool gas dryers. Installed within the dryer burner assembly, it regulates gas fuel flow into the burner.

Common causes relate to natural deposits obstructing the small gas port, as well wear inducing intermittent ignition of flames during many years of laundering cycles.

Symptoms of a failed orifice include:

• Slow or inefficient drying times and extended cycles
• Uneven or incomplete drying of loads
• Changes in flame appearance like higher than normal yellow tips

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Gas Valve Coils are OEM parts for Whirlpool dryers. These coils are integral to the operation of gas dryers, controlling the flow of gas to the burner. When electrical signals are sent to the coils, they open the valve to allow gas to flow and be ignited, producing heat for drying clothes.

Over time, these coils can fail due to wear or electrical issues, leading to symptoms such as no heat or insufficient heating in the dryer, even though it runs.

Symptoms of faulty gas valve coils include:

• Inconsistent or intermittent heating ability
• Failure to ignite or irregular flame patterns
• Gas valve clicking noises without burner ignition
• Coil wires compromised, brittle or showing exposed conductors

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The LP Conversion Kit is an OEM part for Whirlpool dryers. It allows the dryer to be converted from natural gas to liquid propane (LP), ensuring safe and efficient operation with LP fuel.

Causes of needing an LP conversion kit can include relocating to an area where only LP gas is available or choosing LP gas due to its efficiency and lower environmental impact. It is essential to use the proper conversion kit to avoid potential safety hazards and ensure the dryer operates correctly.

Symptoms indicating the need for an LP conversion kit include:

• Moving to a location with only LP gas availability
• Decision to switch from natural gas to LP for efficiency or environmental reasons

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
