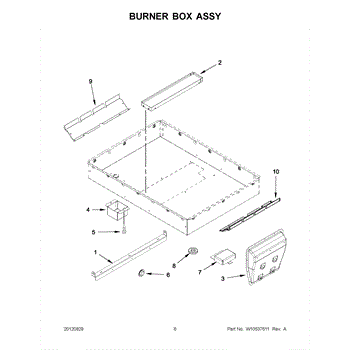

Parts for Jenn-Air JED4430WS02: 03 - Burner Box Assy Parts

This replacement drip tray catches and channels excess water beneath the appliance to help prevent puddles and floor damage. It restores the original drain path so condensate and minor leaks drain safely away. What it does:

• Collects and directs water away from the appliance base to prevent pooling on the floor
• Helps contain leaks from defrost or drain systems to limit damage to surrounding areas
• Can reduce musty odors and water stains caused by trapped moisture
• Fits into the appliance base to restore original water collection and drainage

• One drip tray

• Disconnect power to the appliance before servicing
• Remove lower access panels or kickplate as needed to access the tray
• Align the tray with the chassis rails or mounting tabs and slide or snap into place
• Inspect surrounding seals and drain paths; if you find corrosion or other damage, replace those parts as needed.

This wire cover is a protective sleeve that helps route and shield appliance wiring to reduce wear and prevent accidental contact. It restores a neater harness run and helps maintain safe electrical routing inside the appliance. What it does:

• Protects wires from abrasion and chafing against sharp edges or moving parts
• Helps prevent exposed conductors that can cause shorts, arcing, or burning smells
• Keeps wiring bundled and routed to reduce pinching and stress on connectors
• Reduces risk of intermittent electrical issues caused by damaged insulation

• Disconnect power before beginning any service to avoid shock or injury
• Inspect surrounding wiring and connectors for damage; replace any frayed or exposed wires
• Slide cover over the wiring harness or route harness through sleeve as needed; secure with existing clips or approved fasteners
