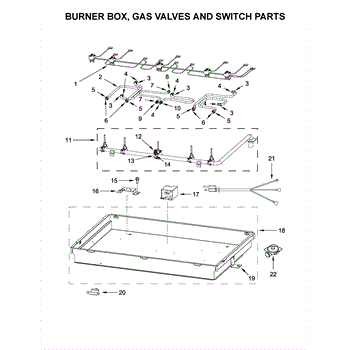

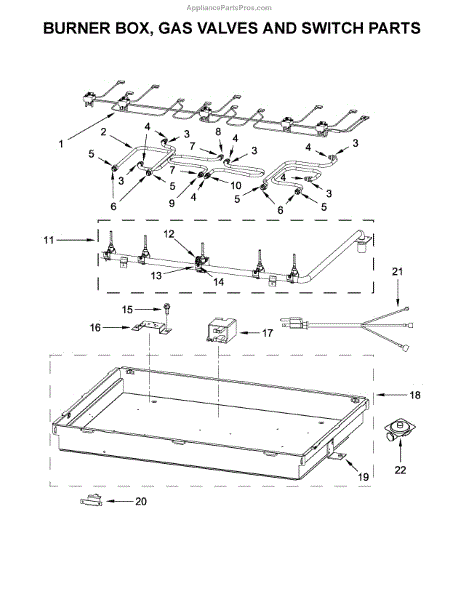

Parts for Jenn-Air JGC3530GS0: Burner Box, Gas Valves And Switch Parts

This genuine wire harness routes power and signals between the appliance control and internal components so controls, lights and motors can operate correctly. It restores reliable electrical connections for affected circuits. What it does

• Carries power and control signals between the control board and parts like switches, lights and motors
• Replaces broken, burnt or frayed wiring that can cause intermittent operation or total failure
• Restores loss of function where controls, displays or components do not respond
• Prevents shorting from exposed conductors when insulation is damaged

• One wire harness assembly as shown

• Disconnect all power before starting; verify no voltage at the appliance
• Inspect connector orientation and match keyed plugs to the mating sockets before seating
• Route harness along original wire channels and secure with clips to avoid pinch points or heat sources

The Spark Module is an OEM prat for Whirlpool brand gas ranges. Within the gas control, it functions to generate high-voltage sparks igniting the standing pilot lights and burner flames.

Causes of failure include normal wear of internal electronics from extensive temperature cycling. Contamination or damage over time also disrupts proper sparking.

Symptoms of a faulty module include:

• Standing pilots failing to remain lit between use
• Burners not igniting when the control knob is turned
• Inconsistent burner output or shutdowns during cooktop usage

This Whirlpool replacement ensures temperature adjustments and cooking functions operate reliably. Compatible replacements are suitable for Whirlpool, Maytag, KitchenAid, and some Kenmore appliances as well.


This regulator controls and stabilizes gas pressure to the burner assembly so the appliance heats evenly and operates safely. Designed as a direct-replacement service part to restore proper gas flow and oven/burner performance. What it does:

• Regulates incoming gas pressure to the appliance's burner manifold for consistent flame and cooking temperature.
• Helps stop symptoms like uneven heating, burners that won't light steadily, or fluctuating flame height.
• Works with the range/oven's gas valve system to maintain safe, steady fuel delivery.
• Replaces a worn or faulty regulator to restore proper appliance operation.

• One regulator (single unit as shown)

• Disconnect gas supply and power before servicing.
• Handle fittings and gaskets carefully to avoid leaks.
• After installation, perform a leak test and check burner operation per manufacturer instructions.
• No special tools beyond standard hand tools and a gas-line wrench are typically required.
