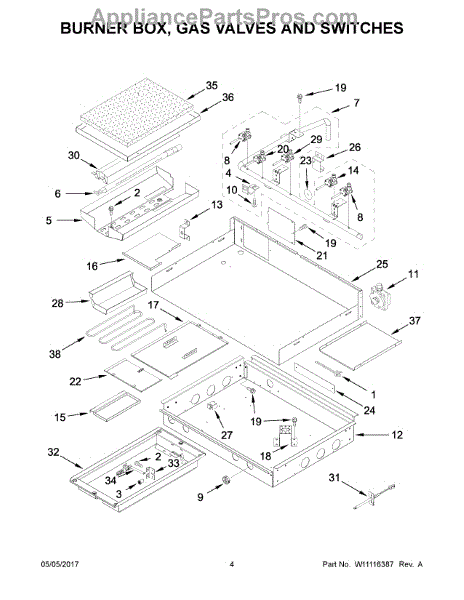

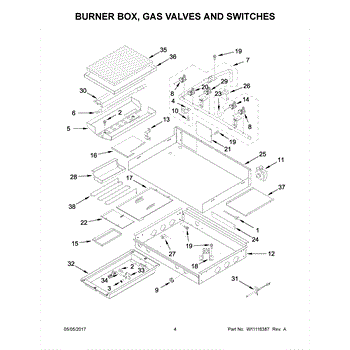

Parts for Kitchenaid KGCU484VSS02: 03 - Burner Box, Gas Valves And Switches Parts

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This heat deflector routes hot air inside the dryer cabinet to ensure proper airflow and heating performance. It helps maintain even drying and prevents hot spots that can reduce drying efficiency. What it does:

• Directs and channels heated air to the drum and exhaust pathways
• Helps maintain even drying and consistent heat distribution
• Can prevent localized overheating or restricted airflow when damaged
• Commonly replaced when dryer has uneven drying or internal airflow obstructions

• Disconnect power (unplug electric or shut off gas and unplug) before starting any repair
• Typically mounted with screws; basic hand tools (screwdriver/socket) are usually required
• Inspect surrounding seals and ducts for damage while replacing the deflector
• Handle carefully—edges may be sharp and panels can be fragile

This grill burner replaces the upper broil element in compatible gas ranges so the oven can brown and broil food evenly. Restores direct flame heating for proper broiling and searing performance. What it does:

• Provides the primary flame for the oven's broil/grill function
• Enables even browning and searing on the top rack
• Replaces damaged, warped, or non-lighting grill burners
• Helps correct weak or inconsistent broil heat and visible flame issues

• Turn off gas supply and power to the appliance before starting work
• Inspect and replace any damaged burner mounting hardware or gaskets as needed
• Handle with care to avoid bending the burner or damaging orifice fittings

This burner valve controls gas flow to a single surface burner, restoring proper ignition and flame control for your cooktop. It's the OEM-style valve used where a single valve failed or leaks. What it does:

• Regulates gas flow to one surface burner so the burner lights and maintains a steady flame.
• Replaces a worn, stuck, or leaking valve that can prevent a burner from igniting or holding a flame.
• Helps correct low or inconsistent flame height caused by valve malfunction.
• Works with standard gas cooktop valve assemblies compatible with the listed part number.

• Turn off the gas supply and unplug the appliance before beginning any repair.
• Use proper fittings and thread sealant where required; check manufacturer guidance for torque.
• After installation, test for leaks with a safe leak-detection method (soapy water or a gas sniffer).

This single simmer burner valve controls gas flow to a single low/simmer burner, restoring consistent low-heat operation and safe flame adjustment. Direct-fit replacement when the simmer burner won't light or holds only high flame. What it does:

• Regulates gas flow to the low/simmer burner for stable, low-heat cooking
• Replaces a worn or leaking valve that can cause an uneven or nonfunctional simmer flame
• Helps stop slow gas leaks at the control port when the valve is faulty
• Works with the range/stove valve assembly to restore normal burner control

• One burner valve (single simmer)

• Turn off gas supply and unplug the appliance before servicing
• Handle gas components carefully; inspect and replace any damaged seals or gaskets
• Installation may require disassembling the cooktop and/or valve manifold

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This dual burner valve controls gas flow to two cooktop burners, restoring reliable ignition and heat control for gas ranges. It replaces a worn or leaking valve assembly to help stop burner failure and gas odors. What it does:

• Regulates gas flow to two burners so burners light and hold a steady flame
• Stops common symptoms like burners not lighting or weak/intermittent flames
• Helps prevent gas leaks when seals and valve seats are functioning correctly
• Used when clicking/ignition occurs but burners fail to sustain flame

• Shut off gas supply and power to the appliance before starting any repair.
• Inspect and replace any damaged gaskets or fittings; use proper thread sealant where required by the manufacturer.
• Tighten connections to specified torque and test all fittings for leaks with a soapy water solution or approved detector.

The Spark Module is an OEM prat for Whirlpool brand gas ranges. Within the gas control, it functions to generate high-voltage sparks igniting the standing pilot lights and burner flames.

Causes of failure include normal wear of internal electronics from extensive temperature cycling. Contamination or damage over time also disrupts proper sparking.

Symptoms of a faulty module include:

• Standing pilots failing to remain lit between use
• Burners not igniting when the control knob is turned
• Inconsistent burner output or shutdowns during cooktop usage

This Whirlpool replacement ensures temperature adjustments and cooking functions operate reliably. Compatible replacements are suitable for Whirlpool, Maytag, KitchenAid, and some Kenmore appliances as well.


The Drip Tray is an OEM component designed specifically for Whirlpool ranges. Located underneath the range's bottom heating elements, the tray collects moisture, melted cheese, or other baked-on messes during cooking. Its indented surface area and angled drainage grooves route debris toward an easily removed drip cup.

Causes of a bad drip tray can include scorched grease that accumulation makes thorough cleaning difficult or impact dents that cause leakage.

Symptoms of a bad drip tray include:

• Excessive residue buildup outside the designated drainage path
• Stains or water marks appearing on surrounding cabinetry
• Drip cup overflowing due to impaired drainage route
• Difficulty removing tray for cleaning of hardened messes

This OEM Whirlpool part is compatible with KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore wall oven and range models.

This replacement grill (broil) heating element restores high, direct heat for broiling and browning in the oven. It lets you crisp and brown food quickly so broil functions work like new. What it does:

• Provides the intense direct heat required for broiling and grilling
• Replaces a burnt-out or broken upper oven element to restore broil performance
• Helps eliminate problems like food not browning or uneven broiling
• Visible breaks, blisters, or open circuits on the element are common failure signs

• Disconnect power to the appliance before starting any repair to avoid shock
• Handle element carefully to avoid bending or damaging the terminals
• Reconnect wiring securely
