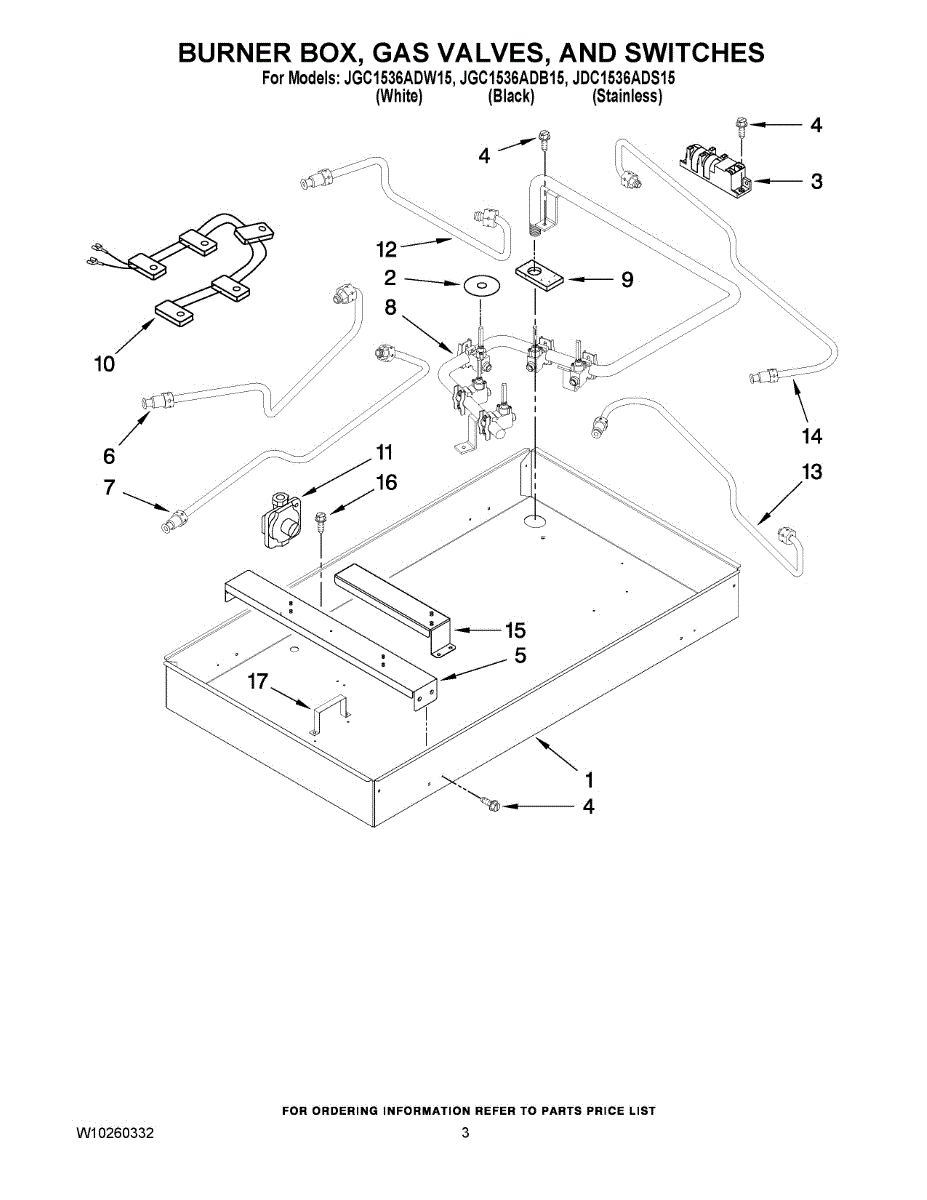

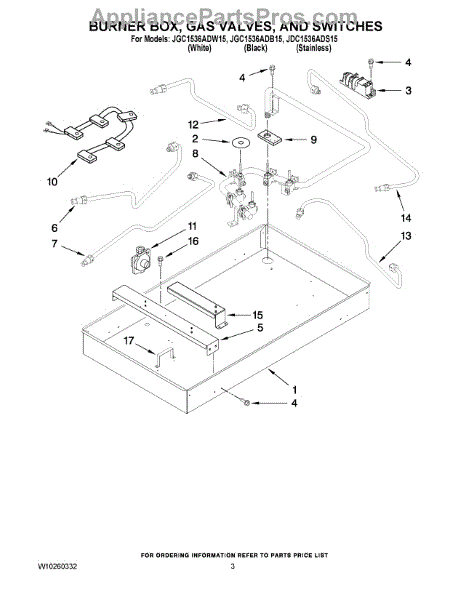

Parts for Maytag JDC1536ADS15: 02 - Burner Box, Gas Valves, And Switches Parts

This spark module controls the ignition spark for the cooktop burners so each burner lights reliably. Replacing a faulty module restores proper spark timing and helps the range ignite safely and consistently. What it does:

• Sends high-voltage sparks to the burner ignitors when the valve is opened
• Restores spark to burners that click but fail to light
• Can stop intermittent or no-spark conditions at one or more burners
• Works with the cooktop's control switches to coordinate ignition

• Disconnect power and shut off the gas supply before servicing
• Match wiring and connector positions exactly; take a photo before removal for reference
• Avoid touching ignition terminals; handle the module and wiring harness carefully

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement valve switch assembly restores proper electrical control to the refrigerator's valve, helping re-establish reliable water/ice dispensing. It replaces a worn or faulty switch so the valve responds correctly to dispenser or ice-maker commands. What it does:

• Routes electrical signals to the valve so it opens and closes when the dispenser or ice maker calls for water
• Helps stop symptoms like no water or ice dispensing, intermittent dispensing, or a valve that won't actuate
• Replaces a failed or corroded switch assembly that can prevent the valve from responding
• Works as the control interface between the fridge wiring and the valve solenoid

• Always disconnect power and turn off the water supply before beginning service
• Take a photo or label wire connections before removing the old assembly to ensure correct reassembly
• Use basic hand tools; avoid forcing connectors — inspect wiring and connectors for damage and replace if necessary
• After installation, restore power and water, then test dispenser and ice-maker operation for proper function
