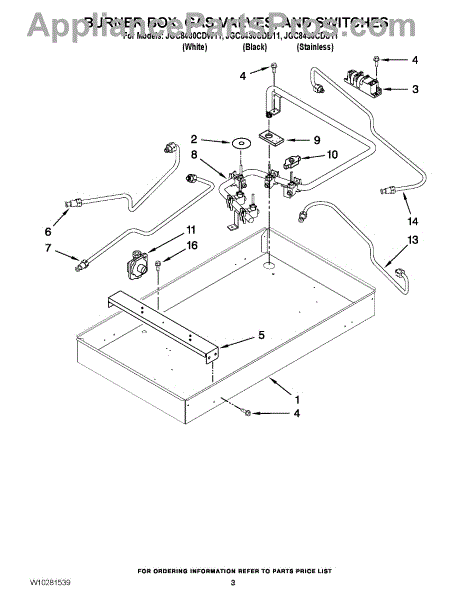

Parts for Maytag JGC8430CDW11: 02 - Burner Box, Gas Valves, And Switches Parts

This spark module controls ignition for four surface burners and provides automatic reignition if a flame goes out. It generates the high-voltage spark and monitors flame for dependable lighting and consistent cooktop performance.

• Generates high-voltage pulses to ignite up to four surface burners
• Senses flame presence and automatically re-sparks if a flame is lost
• Helps stop sparking once flame is detected to reduce clicking
• Symptoms this part is involved with include: no spark on any burner, intermittent or weak spark, or continuous clicking after lighting

• Disconnect power and shut off gas before servicing
• Access is typically under the cooktop or behind a panel; mount the module securely away from heat and moisture
• Transfer wires one at a time to matching terminals; ensure ground/neutral connections are secure for proper flame sensing
• After reassembly, restore power and test each burner for ignition and that clicking stops when flame is present

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This right-side burner switch controls heat output on the cooktop so burners respond correctly to your knob settings. It restores proper power and temperature control for a single right-side heating element. What it does:

• Replaces a worn or faulty right burner control to restore variable heat settings
• Enables proper on/off function and temperature regulation for the right cooktop element
• Commonly used when a burner won't heat, only works at certain settings, or cycles unexpectedly
• Works with ranges that use a separate switch for the right front/right rear heating element

• Disconnect power at the breaker before attempting any repair to avoid shock
• Handle wiring terminals carefully; verify connections match the original before reassembly
• Use proper tools and avoid overtightening mounting hardware to prevent damage

This burner switch controls the power and heat settings for a surface cooking element, restoring reliable on/off operation, accurate temperature selection, and consistent element cycling on compatible electric ranges. What it does

• Regulates electrical power to a surface burner so the element heats to selected settings and cycles to maintain temperature.
• Replaces a worn or failed switch that causes a burner to not heat, not respond to knob changes, or only work on certain settings.
• Stops intermittent operation or arcing at the switch caused by worn contacts.
• Helps resolve a burner that stays on or will not turn on when the switch is faulty.

• Always disconnect power at the breaker before starting any repair to avoid shock.
• Photograph and/or label wires before removal so you can reconnect terminals correctly.
• Handle terminals gently and ensure secure, tight connections; replace any damaged wiring or connectors.
• Test the range on all heat settings after installation; if you see arcing, burning smell, or continued malfunction, cut power.
