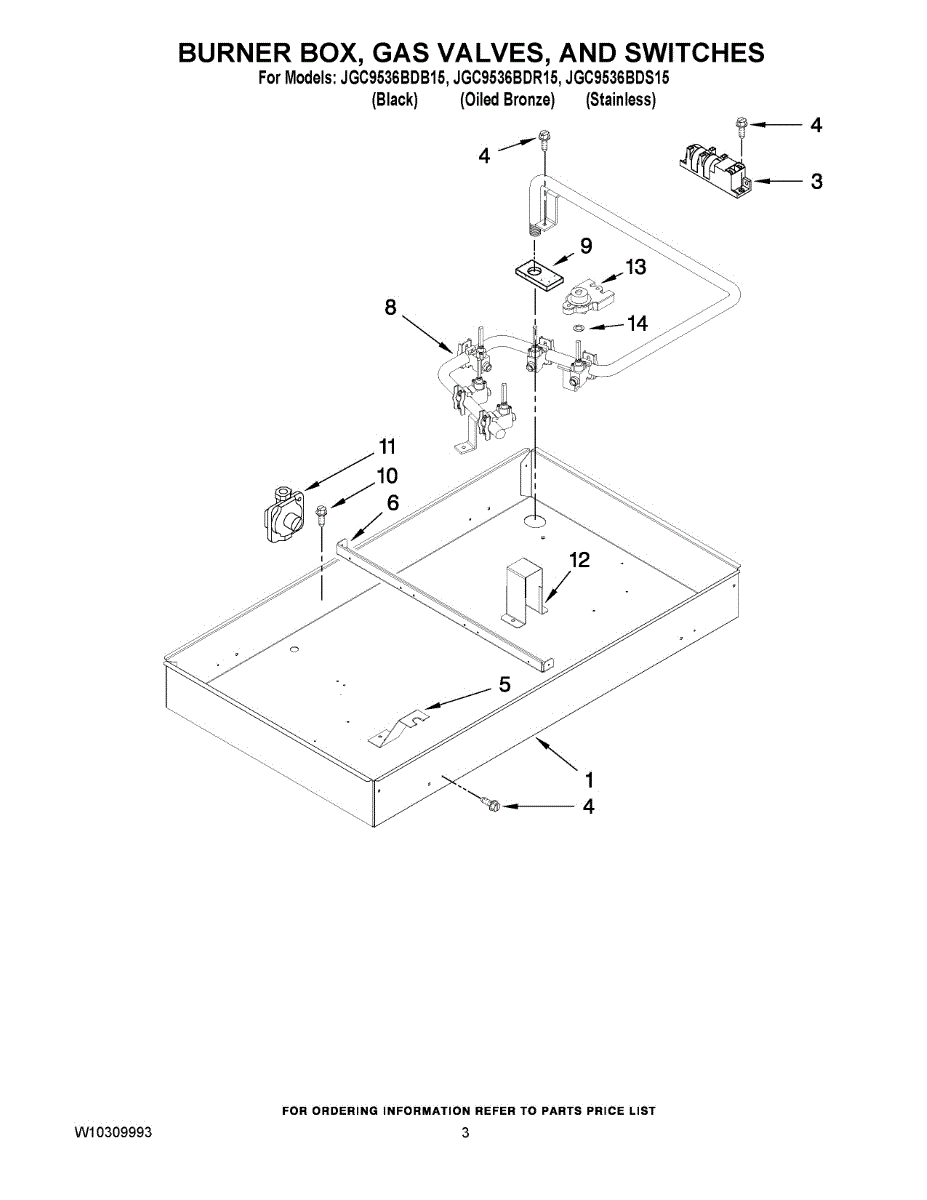

Parts for Maytag JGC9536BDR15: 02 - Burner Box, Gas Valves, And Switches Parts

This reignition spark module controls the surface-burner ignition system, sending high-voltage to the igniters and re-lighting the flame if it goes out. Replace a weak or failed module to restore dependable burner lighting and safety re-ignition.

• Sends high-voltage spark pulses to the surface burner igniters when a knob is turned on
• Stops sparking once flame is detected and re-ignites if the flame is lost
• Helps resolve symptoms such as no spark at the burners, intermittent ignition, or continuous clicking
• Central control for multiple burner ignition circuits

• Disconnect electrical power and shut off gas supply before servicing
• Handle electronics carefully; avoid static discharge
• Note wire locations and terminal labels; move connectors one at a time to the new module
• Mount securely and ensure a proper chassis ground before testing burner ignition

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
