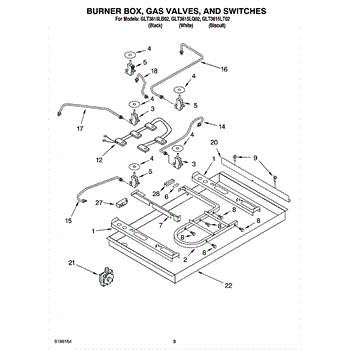

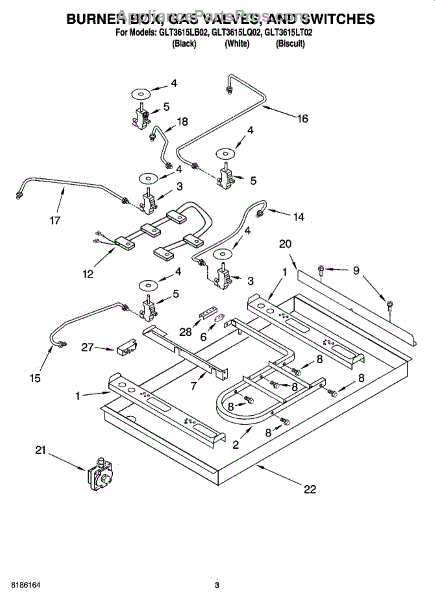

Parts for Whirlpool GLT3615LT02: 02 - Burner Box, Gas Valves, And Switches Parts

This small burner valve controls gas flow to a single cooktop burner, restoring reliable ignition and flame control. Use when a burner won't light, has weak or uneven flame, or fails to respond to the control knob. What it does

• Regulates gas flow to the burner for proper ignition and flame adjustment
• Replaces a worn or leaking valve that can cause no flame or low/irregular flame
• Helps restore consistent heat output and safe burner operation
• Works with the range's control knob mechanism to open and close gas flow

• One small burner gas valve

• Disconnect power and shut off the household gas supply before servicing
• Only install on compatible appliances; follow OEM diagram and torque specs when available
• If you smell gas during testing or installation, stop.

Gas valve shaft seal.

This replacement gas burner valve controls gas flow to a large surface burner, restoring proper flame control and reliable heating for gas ranges. Designed to match OEM fit and function for direct replacement. What it does

• Regulates gas flow to a large cooktop burner so the flame lights and holds steady
• Restores normal heat output when a burner won't light or produces a weak/uneven flame
• Works with the cooktop's control knob to adjust flame size safely and predictably
• Helps stop intermittent gas flow that can cause poor cooking performance

• Turn off the appliance's gas supply and electrical power before starting work.
• Replace only with the exact part; follow OEM instructions.
• Check all connections for proper seal after installation; test operation at low flame first.

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

This switch wire harness connects the appliance's switch assembly to the rest of the wiring, carrying power and control signals. Replacing a heat-damaged or brittle harness restores safe, reliable operation of the affected controls.

• Routes electrical power and control signals between the switch bank and other circuits
• Faults can cause controls to be unresponsive, work intermittently, or stop functioning
• Heat damage, discoloration, or melted connector housings indicate the harness should be replaced
• Ensures secure, properly keyed connections to prevent arcing and unreliable performance

• Disconnect power at the breaker or unplug the appliance before servicing
• Photograph existing routing and connector positions to aid reassembly
• Move one connector at a time and ensure each is fully seated and latched
• Inspect mating switches/terminals for heat damage and address any issues before reassembly

Location: Right front. Gas valve tubing.

Location: Left front. Gas valve tubing.

Location: Right rear. Gas valve tubing.

Location: Left rear. Gas valve tubing.

Location: Center.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

This hex-head sheet metal screw secures appliance panels, brackets, and trim for a tight, rattle-free fit. Replace missing or stripped fasteners to keep covers and components firmly in place and restore proper alignment.

• Fastens sheet-metal parts, brackets, and trim using a hex drive
• Replaces worn, rusted, missing, or stripped screws
• Helps reduce vibration and rattling from loose panels
• Common signs you need this fastener: head or threads stripped, screw won't tighten, panel or handle coming loose

• Unplug the appliance before service; turn off water supply if working near water lines
• Use the correct nut driver or socket to avoid rounding the head
• Replace one fastener at a time to maintain alignment; do not overtighten
• Match screw type/length to the original location as specified by the manufacturer

This spark module supplies the high-voltage pulses that ignite the surface burners on compatible gas cooktops/ranges. Replacing a failing module restores consistent burner spark and reliable lighting when you turn the knobs.

• Distributes ignition voltage to multiple burners; coordinates spark when a burner is turned on
• Common failure symptoms: no spark on any or multiple burners, intermittent clicking, or burners that won't ignite despite gas flow
• Click continuously if internal circuitry fails or senses a short in the ignition system

• Disconnect power and shut off gas before servicing; verify no residual voltage
• Label and transfer each spark wire and connector one at a time to maintain correct routing
• Mount securely and avoid pinching or stretching ignition leads
• If burners still won't spark after replacement, inspect electrode wires, switches, and grounds

Cooktop miscellaneous part.

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

This genuine wire harness routes electrical signals and power between components to restore proper operation and connectivity. It replaces damaged or frayed wiring to help eliminate intermittent power, control failures, or non-responsive functions. What it does:

• Carries power and control signals between appliance components to enable normal operation
• Replaces worn, burned, or broken wires and connectors that cause intermittent or no power
• Helps resolve issues like unresponsive controls, motors not running, or lights that won't turn on
• Preserves factory routing and connector fit for a secure, reliable connection

• One complete wire harness as shown

• Disconnect power at the breaker or unplug the appliance before inspecting or replacing the harness
• Compare connectors and wire colors to the old harness to ensure correct fit before installing
• Secure wires along original routing and fasten any clips or ties to prevent rubbing or pinching

This single-conductor replacement wire restores an electrical connection between components in compatible Whirlpool appliances. It's a straightforward part used when a damaged or broken wire prevents normal operation. What it does

• Carries electrical current between terminals or components to enable operation.
• Replaces frayed, broken, or heat-damaged wiring that can cause intermittent or no power to a component.
• Common symptom: affected circuit or component won't power on or works sporadically.
• Helps re-establish a reliable connection when the original wire is corroded or has a broken conductor.

• Disconnect power (unplug appliance or shut off circuit breaker) before starting any repair.
• Use proper wire connectors/crimping techniques and ensure secure, insulated connections.
• Verify correct routing and strain relief to avoid contact with moving parts or heating elements.

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

Includes 7 spuds.
