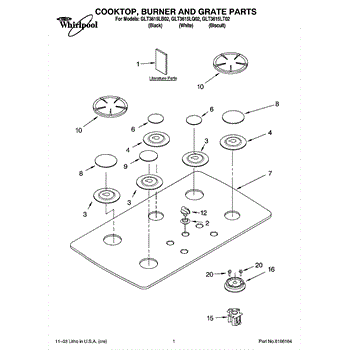

Parts for Whirlpool GLT3615LT02: 01 - Cooktop, Burner And Grate Parts

Color: Biscuit. This grommett is located between the glasstop and the knobs. For black order W10854242. For white order WP3180081.

This grommet is located between the glasstop and the knobs. Color: White. Measures about 2 inches in diameter. For black order W10854242. For biscuit order 3191817.

The Grommet is an OEM part for Whirlpool cooktops. This part provides a secure fit and cushioning for the control knobs on the cooktop, ensuring smooth operation and preventing damage to the control panel.

Causes of a bad knob grommet can include general wear and tear, exposure to high temperatures, or damage from frequent use.

Symptoms of a bad knob grommet include:

• Loose or wobbly control knobs
• Difficulty in turning the knobs
• Knobs not staying in place or falling off
• Visible cracks or wear in the grommet

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Biscuit.

This part is a genuine OEM drip pan that has been manufactured by Whirlpool for use with electric ranges. The drip pan fits underneath the burner to catch spills or drips from cooking food, and prevents spills from entering into the internal components of the appliance. Drip pans can become bent, dented, warped, corroded, lost, or excessively dirty over time, requiring replacement. No tools are required to replace this part. Simply remove the old drip pan, remove the burner, slide the replacement drip pan into place, and then put back the burner. Ensure the range is entirely cooled down and powered off before attempting this. This part is sold individually and is manufactured from high quality, durable, non-corrosive materials to ensure the best possible quality. It is sold individually. This drip pan is intended for use with different compatible electric range models that have been manufactured by brands that include, but are not limited to, Whirlpool, Maytag, Jenn-Air, Amana, Admiral, Kitchenaid, and Magic Chef.

Color: Biscuit.

Color: Espresso

Color: Gray. Size: Small. For black order WP3191898. For the large cap order WP3191905.

Color: black. Small size. Measures about 2-1/2 inches in diameter.

Color: Espresso

The Range Burner Cap is an OEM replacement part designed for Whirlpool ranges. This burner cap fits medium-sized burners and evenly distributes the flame from the burner, providing stable cooking heat. It also acts as a protective cover, preventing debris from clogging the burner and ensuring efficient operation.

Causes of a bad burner cap can include regular wear and tear, damage from high temperatures, or accidental impact during cleaning or cooking.

Color: Gray

Symptoms of a faulty burner cap include:

• Uneven or inconsistent flames
• Lost or missing
• Visible cracks or warping on the cap

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Medium. Color: Black. Measures about 2-1/2 inches in diameter.

Color: Expresso

Color: Gray. Size: Large. Matching small cap: WP3191899. Color options: Black WP3191904.

Color: Black. This large cap measures about 3 inches in diameter. For gray order WP3191905. For the small cap order WP3191898.

Color: Black

Color: Mouse Gray.

This orifice holder secures the burner orifice and helps direct gas to the burner for proper ignition. It replaces a worn or damaged holder to restore steady burner flame and reliable lighting. What it does:

• Holds and positions the burner orifice so gas flows correctly to the burner
• Ensures consistent gas delivery for stable ignition and flame shape
• Commonly used when a burner has weak or uneven flame or fails to light reliably
• Works with the factory orifice and valve components to maintain correct operation

• Turn off the appliance power and shut off the gas supply before servicing
• Inspect the orifice and surrounding seals; replace any damaged parts to prevent leaks
• Seat the holder fully and reassemble per the manufacturer's diagram
• After installation, check all connections for leaks and verify proper burner ignition

This orifice holder is the gas burner orifice assembly that secures the burner orifice to the valve and helps direct fuel to the cooktop burner for a steady, controllable flame. It replaces a worn or damaged holder to restore proper gas flow. What it does:

• Secures the orifice to the gas valve and aligns the orifice with the burner
• Directs and meters gas flow for consistent burner ignition and flame
• Commonly replaced when burners fail to light, flame is weak, or flame is uneven
• Works with the cooktop gas valve/orifice system to prevent misalignment or leaks when installed correctly

• One orifice holder assembly

• Turn off the gas supply and power to the appliance before servicing
• Only install the exact part specified for your model;
• Tighten fittings to the manufacturer's torque recommendations and test for leaks with a soap solution or approved gas leak detector

This G4 orifice holder mounts beneath the cooktop to secure the burner orifice and route gas from the valve to the burner head. Replacing a damaged holder helps restore proper gas flow and consistent burner performance.

• Holds and aligns the orifice for the G4-designated surface burner
• Channels metered gas from the valve to the burner head
• Supports stable, even flame and reliable ignition at that burner
• A worn, cracked, or stripped holder may cause weak/uneven flame, delayed ignition, or a gas odor near the burner

• Disconnect power and shut off the gas supply before servicing; allow the appliance to cool
• Remove burner caps/heads and access the holder
• Transfer the existing orifice spud if reusing, or install the correct orifice specified for your gas type
• Tighten fittings to spec and leak-test all gas connections with an approved solution before restoring service

The Burner Head is an OEM replacement part for Whirlpool gas ranges. This is the smaller burner head and it distributes gas evenly through the ports to produce a focused and consistent flame for temperature control during cooking.

Size: Small

Due to spills, grease buildup, corrosion, or wear and tear, the small burner head can deteriorate, clogging its ports and affecting gas distribution. When this occurs, the burner head may struggle to maintain a steady flame, impacting cooking performance.

Symptoms of a faulty Small Burner Head include:

• Uneven or low flames on the small burner
• Difficulty igniting the burner
• Clogged ports or visible rust/corrosion

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Burner Head is an OEM replacement part for Whirlpool gas ranges. This is the smaller burner head and it distributes gas evenly through the ports to produce a focused and consistent flame for temperature control during cooking.

Due to spills, grease buildup, corrosion, or wear and tear, the small burner head can deteriorate, clogging its ports and affecting gas distribution. When this occurs, the burner head may struggle to maintain a steady flame, impacting cooking performance.

Symptoms of a faulty Small Burner Head include:

• Uneven or low flames on the small burner
• Difficulty igniting the burner
• Clogged ports or visible rust/corrosion

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: Large.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.
