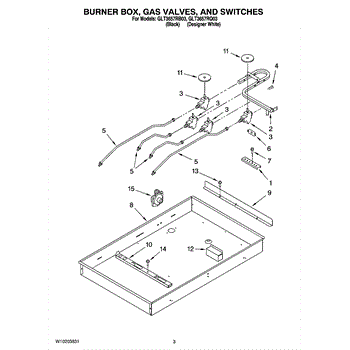

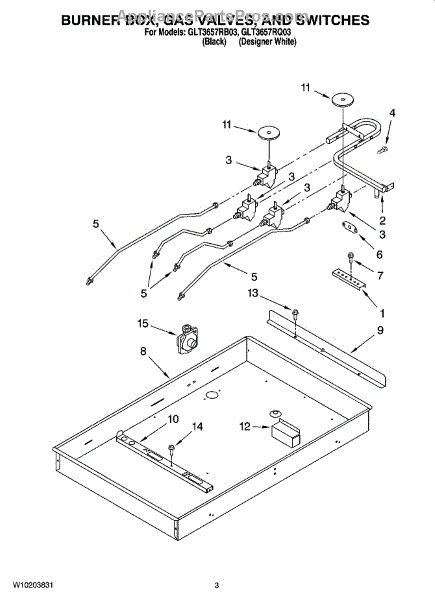

Parts for Whirlpool GLT3657RB03: 02 - Burner Box, Gas Valves, And Switches Parts

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This gas burner valve controls fuel flow to a single burner, restoring proper ignition and flame control for gas ranges and cooktops. Designed as a direct-replacement service part to replace a worn or leaking valve. What it does:

• Regulates gas supply to the burner so the burner lights and maintains a steady flame
• Helps stop leaks or unintended gas flow when the valve fails
• Addresses symptoms like burner not lighting, weak or uneven flame, or gas odor near the burner area
• Works as the control point between the supply line and the burner manifold

• Turn off the appliance and shut off the gas supply before any service; ventilate the area if you smell gas
• Use proper tools and a gas-rated connection; check all fittings for leaks after installation

This replacement gas burner valve controls gas flow to a large surface burner, restoring proper flame control and reliable heating for gas ranges. Designed to match OEM fit and function for direct replacement. What it does

• Regulates gas flow to a large cooktop burner so the flame lights and holds steady
• Restores normal heat output when a burner won't light or produces a weak/uneven flame
• Works with the cooktop's control knob to adjust flame size safely and predictably
• Helps stop intermittent gas flow that can cause poor cooking performance

• Turn off the appliance's gas supply and electrical power before starting work.
• Replace only with the exact part; follow OEM instructions.
• Check all connections for proper seal after installation; test operation at low flame first.

This gas tubing replacement routes fuel between the appliance gas manifold and control valve to restore safe, reliable fuel delivery. Use it when tubing is damaged, corroded, or leaking to help eliminate gas leaks and restore normal burner operation. What it does:

• Channels natural gas or LP from the manifold to the valve and burners for ignition
• Replaces cracked, corroded, or kinked tubing that can cause leaks
• Addresses symptoms like a gas smell near the appliance, burners that won't light, or intermittent flame
• Keeps fuel flow consistent so burners heat predictably when controls are on

• Shut off the appliance gas supply and disconnect power before starting work
• Tighten fittings to manufacturer torque; check all connections for leaks with a soap solution or approved gas leak detector
• If you smell gas during or after installation, stop and ventilate the area.

Gas valve shaft seal.

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

This factory replacement screw secures panels, brackets, and covers in your appliance. Replacing missing or stripped hardware restores a solid fit, reduces vibration and rattles, and keeps components properly aligned during everyday use. What it does:

• Fastens panels, trim, brackets, and internal components to the cabinet or chassis
• Helps maintain alignment and reduce vibration or rattling noises
• Replaces missing, rusted, or stripped screws discovered during service
• Matches the OEM spec for locations where this part is called out on your model's diagram

• Disconnect power (and gas or water, if applicable) before servicing
• Use the appropriate driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent stripping metal or plastic
• Replace hardware one screw at a time to keep parts aligned

NAT to LP gas conversion kit

This switch wire harness connects the appliance's switch assembly to the rest of the wiring, carrying power and control signals. Replacing a heat-damaged or brittle harness restores safe, reliable operation of the affected controls.

• Routes electrical power and control signals between the switch bank and other circuits
• Faults can cause controls to be unresponsive, work intermittently, or stop functioning
• Heat damage, discoloration, or melted connector housings indicate the harness should be replaced
• Ensures secure, properly keyed connections to prevent arcing and unreliable performance

• Disconnect power at the breaker or unplug the appliance before servicing
• Photograph existing routing and connector positions to aid reassembly
• Move one connector at a time and ensure each is fully seated and latched
• Inspect mating switches/terminals for heat damage and address any issues before reassembly
