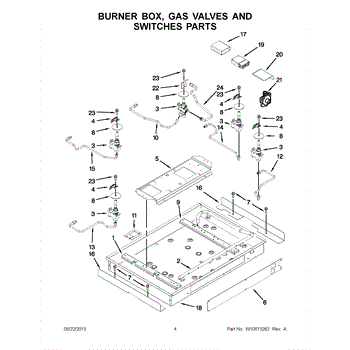

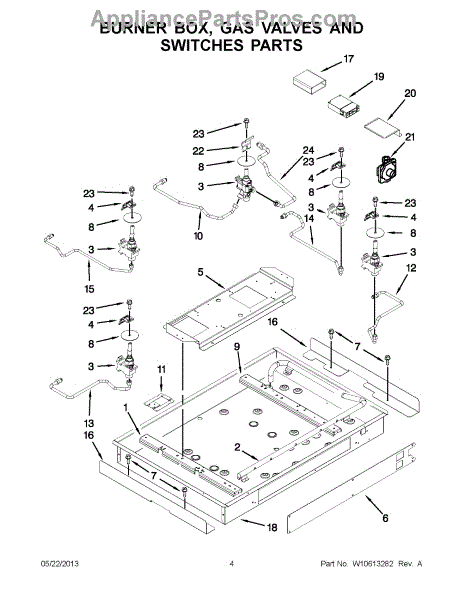

Parts for Kitchenaid KFGS306VSS04: 02 - Burner Box, Gas Valves And Switches Parts

This gas valve controls the flow of natural gas or propane to the oven/range burner, restoring reliable ignition and steady heat for baking and broiling. Direct replacement for failed or leaking valve assemblies. What it does:

• Regulates gas flow to the oven/range burner so the burner lights and maintains temperature.
• Stops gas flow when the safety system detects a fault, preventing unsafe conditions.
• Commonly replaces valves that leak, fail to open, or prevent the oven from heating.
• Helps resolve symptoms like no bake/broil heat, intermittent ignition, or continuous clicking/try-to-light cycles.

• One gas valve assembly.

• Turn off gas supply and electrical power before attempting service; follow local codes.
• Tighten gas fittings to manufacturer torque specs and perform a leak test after installation.
• Some installations may require removing the range/oven front or burner components for access.

A replacement gas valve that controls gas flow to the oven or range burner, restoring safe ignition and flame regulation so the appliance heats reliably. Designed to match OEM fit and restore proper gas delivery. What it does:

• Opens and closes to regulate gas flow to the burner or oven for ignition and sustained flame
• Helps resolve symptoms like no ignition, intermittent flame, or burners that won't stay lit when valve failure is confirmed
• Works with the appliance's safety and control systems to enable normal heating cycles
• Replaces a failed or leaking valve when diagnostics show the valve is the faulty component

• One gas valve

• Installation requires shutting off the gas supply and disconnecting power first; follow all local codes
• Tighten gas line connections to the manufacturer's torque specs and check for leaks with a soap solution or gas leak detector
• Verify valve part number and appliance compatibility before installation

This dual-way valve controls gas flow to a range's burners, restoring proper ignition and flame control for safe cooking. It replaces a faulty valve to stop gas leaks, weak flames, or burners that won't light reliably. What it does:

• Directs and regulates gas flow to burner ports for consistent flame strength
• Restores proper ignition when a burner won't light or has intermittent flames
• Helps stop gas flow when valve action is failed or leaking
• Works as the valve component that responds to control knob position for on/off and adjustment

• Turn off gas supply and unplug the appliance before beginning work
• Use soap-and-water test to check for leaks after installation; never use an open flame
• Follow all OEM instructions and local codes when installing

This switch seal is a replacement gasket that helps keep moisture and debris away from the appliance's door/control switch, protecting the switch assembly and helping restore reliable door detection and operation. What it does:

• Seals the area around the door/control switch to block water, lint, and grime.
• Helps prevent intermittent trips or failures caused by moisture or foreign material contacting the switch.
• Promotes consistent switch actuation and can extend the service life of the switch assembly.
• Useful when the existing seal is cracked, torn, flattened, or missing.

• Disconnect power before servicing to avoid electrical shock.
• Access typically requires removing the door trim or control panel—follow your model's service instructions.
• Inspect the switch and surrounding area for damage or corrosion and clean before installing the new seal.

This is the spark ignition module for gas cooktops and ranges. It generates the high-voltage pulses that light the surface burners, restoring consistent ignition when multiple burners won't spark or there's no clicking when a knob is turned. What it does:

• Sends high-voltage pulses to the surface igniters when a burner switch is turned on
• Distributes spark to ignite gas at the burners
• Failure may cause no spark at any burners, weak or intermittent sparking on several burners, or burners that only light with a match

• One spark module

• Disconnect power and shut off gas supply before servicing
• Access location varies by model
• Move wires over one at a time to maintain correct connections
• Secure the module and test all burners for proper spark before reassembly

• If only one burner won't spark while others work, check that burner's igniter electrode and the switch harness before replacing the module.

This gas pressure regulator controls and stabilizes incoming fuel supply to the appliance's burner system, helping ensure consistent flames and reliable operation. Replace it if pressure is unstable or burners/oven won't heat or ignite correctly. What it does:

• Reduces household gas supply to the appliance-rated pressure for proper burner performance
• Maintains steady pressure as burner demand changes to prevent over/under-firing
• Helps prevent yellow, lifting, or flickering flames and sooting caused by pressure issues

• 1 gas pressure regulator

• Shut off gas supply and disconnect power before servicing
• Observe flow-direction arrow on the regulator body; install between supply and appliance manifold
• Use approved gas-rated thread sealant on threaded connections; do not overtighten
• After installation, check all joints for leaks with a non-corrosive leak-detection solution; correct any leaks before use
