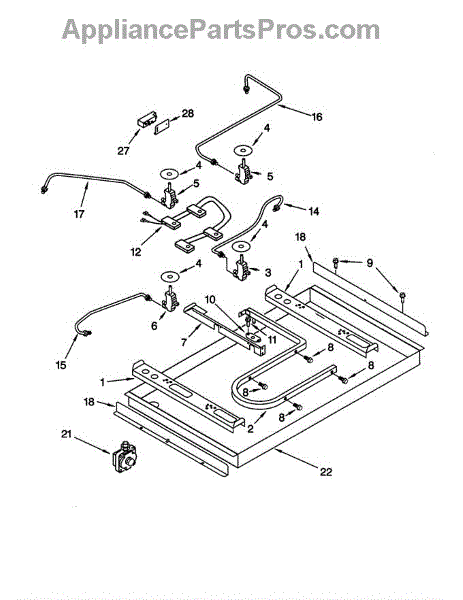

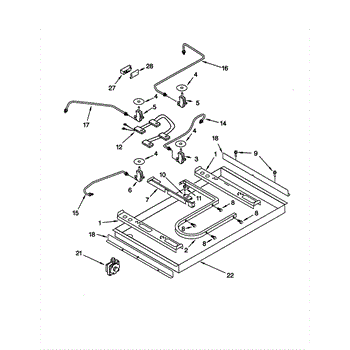

Parts for Kitchenaid KGCS105GBL2: Burner Box / Gas Valves / Switches Parts

Size: Small. Front gas burner valve.

Gas valve shaft seal.

Size: Large. Rear gas burner valve.

Location: Left front.

This ground screw secures the appliance grounding conductor to the chassis for a reliable electrical ground connection, helping maintain safety and proper operation. It's a direct-fit fastener used where a dedicated ground screw is required. What it does

• Fastens the grounding conductor to the appliance frame to maintain a secure earth/ground connection.
• Helps prevent electrical shock and reduces risk of stray voltage on the chassis.
• Addresses symptoms like intermittent or absent grounding and loose or corroded ground connections.
• Used wherever the original equipment grounding screw has been lost, damaged, or corroded.

• Disconnect power at the breaker and unplug the appliance before starting any work.
• Only attach to designated grounding points on the chassis; ensure the mating surface is clean and free of paint or corrosion.
• Use the correct driver and moderate hand torque—do not overtighten to avoid stripping threads.

The Range Screw is an OEM part for Whirlpool ranges. It is a small but essential component used to secure various parts and panels of the range. It is designed to fit securely into pre-drilled holes, holding components tightly in place.

There are a few factors that can lead to a bad Range Screw. Over time, screws may become loose or stripped due to frequent use or inadequate tightening. Accidental cross-threading or overtightening can also damage the screw or the surrounding components.

Symptoms of a bad screw may include loose or wobbly parts, rattling noises during operation, or difficulty in keeping components securely attached. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This is a replacement switch and wire harness assembly that restores the electrical connection for the associated appliance control. It provides a direct, plug-and-play solution to replace a worn or damaged switch harness and help return the affected function to normal. What it does:

• Routes power and control signals between the appliance wiring and the switch
• Completes the circuit when the switch is engaged so the controlled feature operates
• Eliminates intermittent or failed operation caused by broken wires, loose connections, or faulty switch contacts
• Helps address symptoms such as the related control or feature not powering on or responding reliably

• Disconnect power to the appliance before starting any repairs
• Handle connectors and wiring gently to avoid damaging terminals

Location: Right front. Gas valve tubing.

Location: Left front. Gas valve tubing.

Location: Right rear. Gas valve tubing.

Location: Left rear. Gas valve tubing.

This spark module generates the high-voltage pulses that ignite your gas surface burners. Replacing a failed module restores consistent clicking and lighting so burners ignite quickly and reliably.

• Supplies timed high-voltage pulses to each surface igniter when a burner knob is turned
• Coordinates ignition for four burners
• Common symptoms: no spark on any burner, only some burners sparking, continuous clicking after flame lights, or intermittent/weak spark
• Helps resolve burners that only light with a match

• Disconnect power and shut off gas before servicing
• Access location varies by model
• Label and transfer wires one at a time to the new module; ensure the ground connection is secure
• Reinstall in the original position, route wires away from heat/sharp edges, and test all burners
