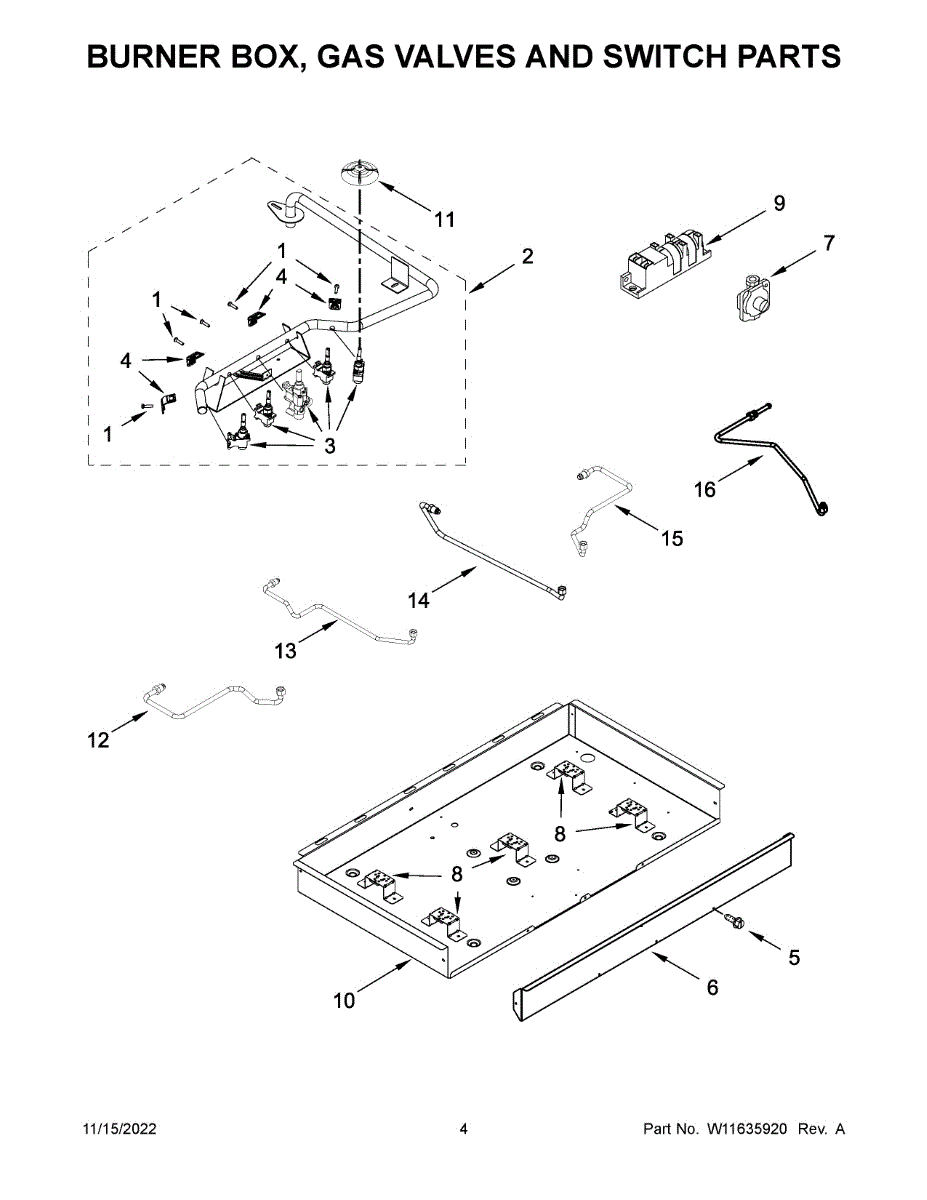

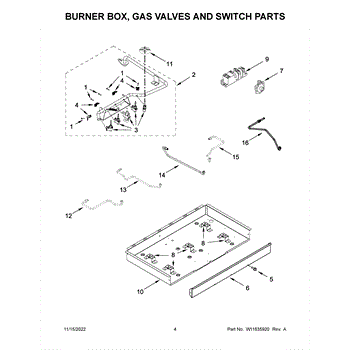

Parts for Whirlpool WCG77US0HS05: Burner Box, Gas Valves And Switch Parts

This gas valve assembly controls the flow of natural or LP gas to a range or oven burner, restoring proper fuel delivery for reliable ignition and cooking performance. Use as a direct replacement when the valve fails. What it does:

• Regulates gas flow to the burner(s) so the oven or range can ignite and maintain a flame
• Works with the appliance's safety and ignition systems to stop gas when the burner is off
• Commonly replaces valves when burners do not light, have no gas flow, or flame is intermittent
• Matches OEM function to restore normal operation without modifying existing controls

• Turn off gas supply and unplug the appliance before starting any work.
• Gas fittings must be leak-tested after installation.
• Do not modify the valve; follow appliance manufacturer instructions and local codes.

The Valve-Gas is an OEM part for Whirlpool gas cooktops. This valve is located underneath the cooktop and is responsible for controlling the flow of gas to each burner.

Symptoms of a bad gas valve can include:

• Inability to ignite or adjust certain burner flames
• Gas leaks or smells around the valve area
• Intermittent or irregular flame levels
• Yellow flames that pose a safety risk

Over time and with heavy usage, components inside the valve can wear down affecting proper gas regulation.

Compatible models also include KitchenAid, Jenn-Air, Magic Chef, Admiral, and some Kenmore units.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This gas pressure regulator controls and stabilizes incoming fuel supply to the appliance's burner system, helping ensure consistent flames and reliable operation. Replace it if pressure is unstable or burners/oven won't heat or ignite correctly. What it does:

• Reduces household gas supply to the appliance-rated pressure for proper burner performance
• Maintains steady pressure as burner demand changes to prevent over/under-firing
• Helps prevent yellow, lifting, or flickering flames and sooting caused by pressure issues

• 1 gas pressure regulator

• Shut off gas supply and disconnect power before servicing
• Observe flow-direction arrow on the regulator body; install between supply and appliance manifold
• Use approved gas-rated thread sealant on threaded connections; do not overtighten
• After installation, check all joints for leaks with a non-corrosive leak-detection solution; correct any leaks before use

This spark module supplies the high-voltage pulses that ignite the surface burners on a gas cooktop or range. Replacing a failing module helps restore consistent clicking and spark so burners light promptly and reliably.

• Supplies high-voltage to up to five surface igniters (5+0 configuration)
• Sends spark when a burner control is turned to Lite
• Failure symptoms can include no spark on all or multiple burners
• May also cause intermittent/weak spark or continuous clicking

• Disconnect power and shut off gas before servicing
• Note wire locations; move one connector at a time to matching terminals
• Mount securely in the original position and ensure proper grounding
• After replacement, if only one burner won't ignite, inspect that burner's switch and igniter

This burner box is the metal housing that holds the gas bake burner and related components in a gas oven. It protects internal parts and directs burner flames for consistent baking and broiling performance. What it does:

• Houses and secures the bake/broil burner and nearby components inside the oven cavity
• Directs and contains the burner flame for even heating when the oven is operating
• Helps prevent heat and flame from contacting other oven components
• Commonly replaced when the box is dented, corroded, cracked, or causing irregular oven heating

• For gas appliances, shut off gas supply and disconnect power before servicing
• Replacement may require removing oven racks and access panels; follow OEM service manual
• Inspect burner, igniter, and gaskets while replacing to ensure proper operation

This replacement griddle creates a flat, stable cooking surface on your range or cooktop. It sits on the designated grate area over the burner(s) to restore safe, even griddle cooking when the original is missing or damaged.

• Provides a flat griddle surface by resting on the designated grate/burner area
• Helps distribute heat across the cooking surface
• Restore safe operation when the original is cracked, warped, chipped, or missing
• Common signs to replace: rocking/unstable surface, visible damage, or the griddle no longer seats properly on the grate

• Turn off all burners and allow the appliance to cool completely before handling
• Remove the standard grate(s) from the griddle location
• Set the griddle on the designated grate area and ensure it is fully seated and stable over the burner(s)
• Preheat gradually and follow your Use & Care Guide for operation and cleaning
