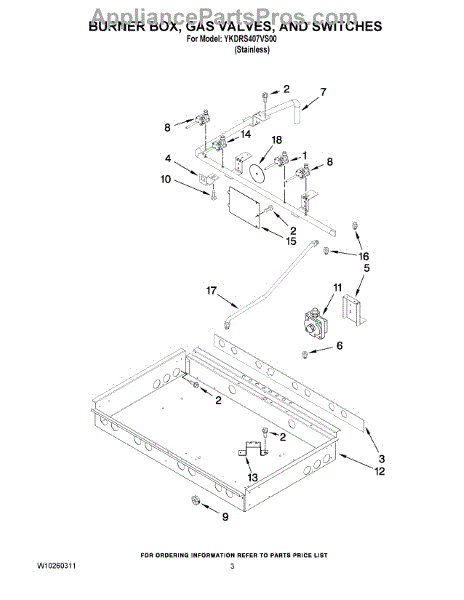

Parts for Whirlpool YKDRS407VS00: 02 - Burner Box, Gas Valves, And Switches Parts

This single simmer burner valve controls gas flow to a single low/simmer burner, restoring consistent low-heat operation and safe flame adjustment. Direct-fit replacement when the simmer burner won't light or holds only high flame. What it does:

• Regulates gas flow to the low/simmer burner for stable, low-heat cooking
• Replaces a worn or leaking valve that can cause an uneven or nonfunctional simmer flame
• Helps stop slow gas leaks at the control port when the valve is faulty
• Works with the range/stove valve assembly to restore normal burner control

• One burner valve (single simmer)

• Turn off gas supply and unplug the appliance before servicing
• Handle gas components carefully; inspect and replace any damaged seals or gaskets
• Installation may require disassembling the cooktop and/or valve manifold

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This gas pressure regulator stabilizes incoming supply to your range or oven, delivering consistent burner flames. Replacing a failed regulator can restore proper heat output and reliable ignition across surface, bake, and broil burners.

• Regulates household gas supply to the appliance manifold for stable burner operation
• Helps maintain consistent flame height and heat in the oven and on the cooktop
• Protects downstream gas components from overpressure
• Failure symptoms include weak flames on all burners, oven or broiler not heating, or repeated clicking with no ignition

• Disconnect power, shut off gas supply, and allow the appliance to cool before servicing
• Observe flow-direction/orientation arrows and connect inlet/outlet ports correctly
• Apply an approved gas-rated thread sealant to threaded joints; avoid overtightening
• After installation, leak-test all connections with an approved solution—never use an open flame

This dual burner valve controls gas flow to two cooktop burners, restoring reliable ignition and heat control for gas ranges. It replaces a worn or leaking valve assembly to help stop burner failure and gas odors. What it does:

• Regulates gas flow to two burners so burners light and hold a steady flame
• Stops common symptoms like burners not lighting or weak/intermittent flames
• Helps prevent gas leaks when seals and valve seats are functioning correctly
• Used when clicking/ignition occurs but burners fail to sustain flame

• Shut off gas supply and power to the appliance before starting any repair.
• Inspect and replace any damaged gaskets or fittings; use proper thread sealant where required by the manufacturer.
• Tighten connections to specified torque and test all fittings for leaks with a soapy water solution or approved detector.

This 1/2" female adapter is a threaded plumbing connector that lets a 1/2" male water line or fitting join the appliance inlet safely and securely. It provides a simple, durable connection to restore proper water flow. What it does:

• Adapts a 1/2" male threaded water supply to the appliance's inlet fitting
• Restores a secure, leak-free connection when the original fitting is damaged or missing
• Commonly used where a reliable, compact threaded coupling is needed
• Can help stop drips or leaks caused by worn or corroded connectors

• One 1/2" female adapter

• Turn off the water supply and unplug the appliance before installing
• Use plumber's tape on threads for a reliable seal unless the OEM instructions specify otherwise
• Hand-start threads to avoid cross-threading, then tighten with an appropriate wrench; avoid over-tightening
• Check connections for leaks after restoring water and operation
