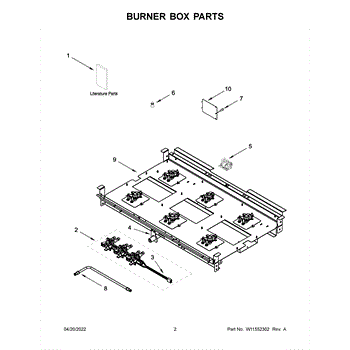

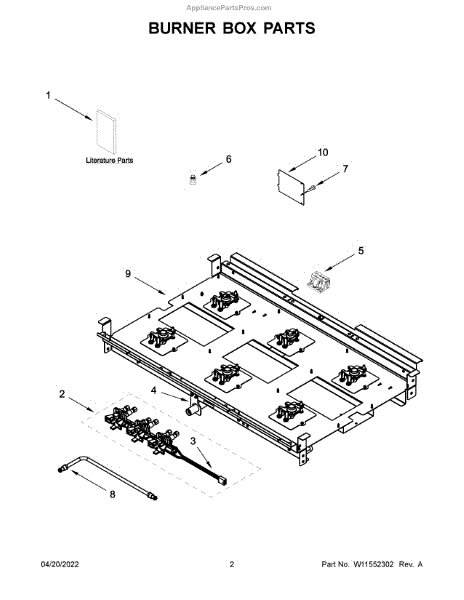

Parts for Kitchenaid KFDC506JSC01: Burner Box Parts

This replacement manifold routes gas from the cooktop's supply to the burner valves so the range can light and operate safely. It restores proper gas distribution for consistent burner performance. What it does

• Directs gas from the main supply to individual burner valves
• Helps maintain even gas flow for consistent flame strength
• Can address symptoms such as burners that ignite weakly or have uneven flame
• Needed when the manifold is damaged, cracked, or leaking

• One replacement manifold

• Turn off the gas supply and unplug the appliance before starting work
• Only connect using proper fittings and seals; test all gas connections for leaks after installation
• Follow the appliance manufacturer's service instructions and local codes

This manifold assembly routes water through the dispenser and related valve connections so your refrigerator can deliver water and ice. Replacing a worn or cracked manifold restores proper water flow and helps prevent leaks. What it does:

• Directs water from the household supply to dispenser and ice-maker valve connections
• Restores proper flow when leaks, reduced flow, or no water at the dispenser occur
• Replaces cracked, damaged, or corroded manifold passages that cause leaks
• Works with existing valve and tubing connections to maintain a sealed water path

• One manifold assembly only

• Turn off water supply and unplug the appliance before starting
• Follow OEM diagram for correct orientation and secure all fittings and clamps
• Inspect and replace O-rings or tubing as needed to ensure leak-free seals
• After installation, restore water and power, then check carefully for leaks

This speaker module provides audible tones and chimes used by the appliance to signal cycle progress and user alerts. It restores clear sound feedback so you can hear cycle completion, alerts, and error tones. What it does:

• Produces the appliance's audible chimes, beeps, and alert tones
• Signals cycle completion and user prompts with clear sound
• Helps indicate error codes and status changes through audible alerts
• Interfaces with the main control to provide user feedback

• Disconnect power to the appliance before servicing to avoid electrical shock
• Handle the module and wiring harness carefully; avoid static discharge and bent pins
• Reconnect the wiring harness fully and secure the module in its mounting location
• Test the appliance after installation to ensure audible tones function correctly

This 1/2" female adapter is a threaded plumbing connector that lets a 1/2" male water line or fitting join the appliance inlet safely and securely. It provides a simple, durable connection to restore proper water flow. What it does:

• Adapts a 1/2" male threaded water supply to the appliance's inlet fitting
• Restores a secure, leak-free connection when the original fitting is damaged or missing
• Commonly used where a reliable, compact threaded coupling is needed
• Can help stop drips or leaks caused by worn or corroded connectors

• One 1/2" female adapter

• Turn off the water supply and unplug the appliance before installing
• Use plumber's tape on threads for a reliable seal unless the OEM instructions specify otherwise
• Hand-start threads to avoid cross-threading, then tighten with an appropriate wrench; avoid over-tightening
• Check connections for leaks after restoring water and operation

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The range conversion kit is an OEM component specifically designed for Whirlpool ranges. This kit contains all the necessary parts to convert a range from natural gas to propane gas or vice versa.

Symptoms of an incompatible or incorrectly installed conversion kit include:

• Incomplete or unstable burning of the gas
• Yellow burner flame tips instead of blue
• Higher than normal gas usage
• Issues with ignition or flammability

Causes of a bad conversion kit could be improper installation, damaged or missing components, or using a kit not designed for the specific range model.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.
