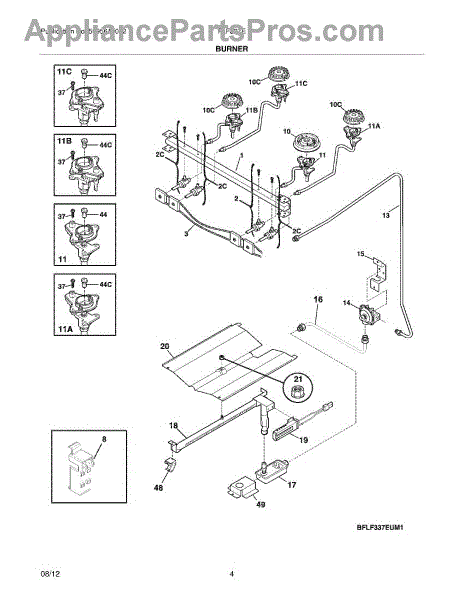

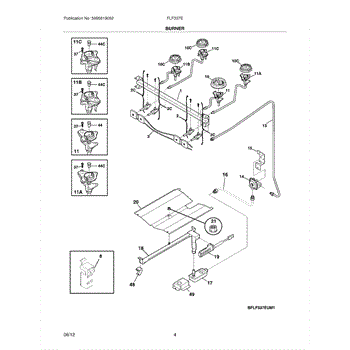

Parts for Frigidaire FLF337EUM: 05 - Burner Parts

This manifold pipe routes gas from the valve assembly to the oven or cooktop burners, restoring proper fuel distribution for reliable ignition and flame performance. Designed as a direct replacement to maintain safe burner operation. What it does:

• Distributes gas evenly from the main gas valve to individual burners
• Enables burners to light and maintain steady flames
• Helps eliminate weak or no-flame symptoms tied to a damaged or clogged manifold
• Works with the range/oven gas system components for proper combustion

• One manifold pipe

• Turn off the gas supply and power to the appliance before service
• Inspect fittings and replace any damaged gaskets or seals; use pipe sealant appropriate for gas connections if required
• After installation, check all connections for leaks with a gas leak detector or soapy water; do not use an open flame

The Spark Module is an OEM part for Frigidaire ranges and cooktops, designed to generate and control the ignition spark for the burners. This component ensures that each burner lights reliably and safely when the control knob is turned to the ignite position. By producing a high-voltage electrical spark, the spark module ignites the gas released by the burner, allowing for the cooking process to begin. It's a key part of the appliance's operation, ensuring both performance and safety.

The causes behind these issues can often be traced back to a malfunction within the spark module itself, which may result from normal wear and tear, moisture exposure, or electrical surges. A faulty spark module can lead to inefficient burner operation, potentially causing gas leaks or preventing the appliance from being used for cooking.

Symptoms of a failing Spark Module include:

• Burners not igniting when the control knob is turned
• Intermittent ignition or failure to maintain a flame
• Continuous sparking when the burner is on or off

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

Restore strong, even flame on your large burner. This sealed burner head replaces the 12K position on gas ranges/cooktops, helping recover reliable lighting and consistent heat when the original head is clogged, corroded, or damaged.

• Directs gas through calibrated ports to deliver a stable, even flame on the 12K burner position
• Helps address: burner won't light or lights intermittently; weak, uneven, or yellow flames; flame lifting or sputtering
• Replace when ports are clogged beyond cleaning, or the head is warped, cracked, or corroded
• Seats over the orifice and spark igniter in sealed-burner designs

• Disconnect power and shut off gas; allow the surface to cool completely
• Remove grate and cap; lift off or unthread the old head, retaining any mounting screw
• Clean the mating surface; align the new head over the orifice and igniter so it sits flat; if screw-retained, tighten snugly only
• Reinstall cap and grate; restore gas/power and confirm proper ignition and flame

This burner restores proper flame distribution and ignition performance in your gas cooking appliance, helping you achieve steady, even heat for reliable boiling, simmering, and searing. What it does:

• Directs gas from the orifice through burner ports for an even flame pattern
• Works with the igniter/electrode to light the burner
• Helps reduce symptoms like uneven or weak flame, delayed ignition, or flame that lifts or makes popping noises
• Can address issues where the burner won't light or only lights partially due to damage or blockage

• 1 burner

• Disconnect power and shut off gas before servicing
• Access the burner per your model's service instructions; transfer any required hardware from the old part
• Ensure proper alignment with the igniter and orifice; tighten fasteners securely
• Restore gas and power, then inspect flame; check for leaks if any gas fittings were disturbed

This is a replacement refrigerant/line connection tube that links the service valve to the regulator line, restoring a sealed pathway for proper cooling system operation. It fits systems using a 3/8" tube connection. What it does:

• Connects the service/stop valve to the regulator/line, maintaining a sealed refrigerant path
• Restores proper flow and pressure routing when the original tube is damaged, cracked, or leaking
• Commonly replaced for visible leaks, hissing at the valve area, or loss of cooling tied to a line break
• Works as a direct, single-piece tubing connector where a 3/8" connection is specified

• One tube to valve connector (3/8" tube)

• Installation requires appliance access and basic refrigeration line handling; tighten fittings to OEM torque specs and verify leak-free with an appropriate leak detector
• Wear safety glasses and gloves; avoid breathing refrigerant vapors and follow manufacturer service documentation

The Oven Safety Valve is an OEM replacement part for Frigidaire gas ranges. This valve controls gas flow to the oven burner.

Causes of a faulty oven safety valve can include wear of sealing surfaces due to prolonged heating and cooling during cooking cycles. Exposure to food or liquid residues over time may also affect valve function.

Symptoms of a bad oven safety valve include:

• The oven not heating up despite the igniter working correctly
• A smell of gas indicates a leak or uncontrolled release
• Inconsistent oven temperatures or heating patterns
• The oven failed to maintain the set temperature

This Frigidaire OEM replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

Restore reliable ignition and even oven heat. This oven burner channels gas from the safety valve and mixes air to produce an even flame across the bake area, helping your range preheat properly and maintain steady baking temperatures.

• Distributes the gas/air mixture for the bake cycle and ignites along the burner ports for a consistent flame
• Supports even heat across the oven cavity to reduce hot and cold spots while baking
• Common signs of failure: no bake flame or intermittent ignition, long preheat times, uneven baking, visible rust or holes in the burner
• Works in conjunction with the oven igniter; inspect the igniter if weak ignition persists

• Disconnect power and shut off the gas supply before servicing
• Remove oven racks, bottom panel, and flame spreader to access the burner
• Unfasten the burner, lift it off the orifice, and transfer the existing igniter and hardware to the new burner if needed
• Reinstall, ensure proper alignment over the gas orifice, restore gas/power, and verify a stable blue flame

The Oven Burner Ignitor is an OEM replacement part for Frigidaire ovens and ranges. This essential component is responsible for igniting the gas burners within the oven cavity, allowing for proper heating and cooking operations.

Causes of a faulty oven burner ignitor can include normal wear and tear over time, exposure to excessive heat or debris buildup, or electrical malfunctions preventing proper ignition.

Symptoms of needing to replace the oven burner ignitor include:

• Failure of the oven burners to ignite or light consistently
• Delayed ignition or inconsistent burner lighting
• Visible damage, deterioration, or discoloration of the ignitor element

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore ovens and ranges.

The Ignitor Screw is an OEM component for Frigidaire ranges and ovens. It secures the igniter, a critical heating element that sparks to ignite the gas burner.

Causes of a bad ignitor screw can include damage or stripping of the screw head from repeated removal/installation of the igniter component over time.

Symptoms of a bad ignitor screw include:

• The igniter shaking loose and becoming disconnected
• Inability to properly tighten the igniter securely in position
• Lost or stripped screw

This genuine Frigidaire replacement screw restores secure mounting of the igniter. Proper fastening is necessary for consistent and reliable ignition of cooking appliances.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This orifice is a replacement gas jet sized for a stovetop top burner to deliver approximately 8,000 BTU when used with liquid propane (LP), helping burners light and burn evenly. It's a direct-fit service part for compatible ranges and cooktops. What it does:

• Controls gas flow to a single top burner to produce the correct flame size for LP operation
• Restores consistent ignition and steady flame when a burner is weak or won't stay lit
• Helps maintain proper cooking temperatures by metering fuel to the burner
• Used when converting a burner or replacing a worn or damaged orifice

• One top burner orifice (8K, LP)

• Installation requires removing the burner cap and unscrewing the existing orifice; use appropriate fittings and tools
• Turn off the gas supply and power to the range before servicing; work in a well-ventilated area
• After installation, check for leaks with a soap solution and confirm proper ignition and flame characteristics

Size: 8-18ab x 0.5 inch.

This valve mounting screw secures refrigerator water/ice valve assemblies and their mounting brackets, helping keep the valve stable and properly aligned. A simple replacement to address loose or vibrating valve hardware. What it does:

• Secures the valve mounting bracket to the appliance cabinet or valve body
• Fits standard 1/4-20 threaded valve mounting points
• Restores secure mounting when original screw is loose, missing, or stripped
• Helps reduce vibration-related noise and the risk of valve movement that can lead to leaks

• Disconnect power and shut off the water supply before servicing
• Start the screw by hand to avoid cross-threading, then tighten until snug
• Do not over-tighten; replace if threads are stripped or damaged

A replacement hex-head screw used to secure appliance regulator brackets and similar small components. Restores proper fastener fit so panels and brackets stay firmly attached. What it does

• Fastens regulator bracket and related sheet-metal components
• Provides a secure threaded connection for components where an 8-18 thread is specified
• Helps eliminate looseness or rattling caused by a missing or damaged screw
• Matches the nickel/chrome finish commonly used on interior mounting locations

• One hex head screw (8-18 x 3/8), nickel finish

• Intended for use where an 8-18 x 3/8 hex screw is specified by the manufacturer
• Tighten to snug; avoid over-torquing which can strip sheet-metal threads
• Turn off power to the appliance before accessing internal components
• If the original screw used a lock washer or threadlocker, replace or reapply as appropriate
