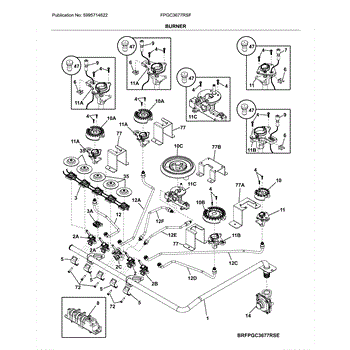

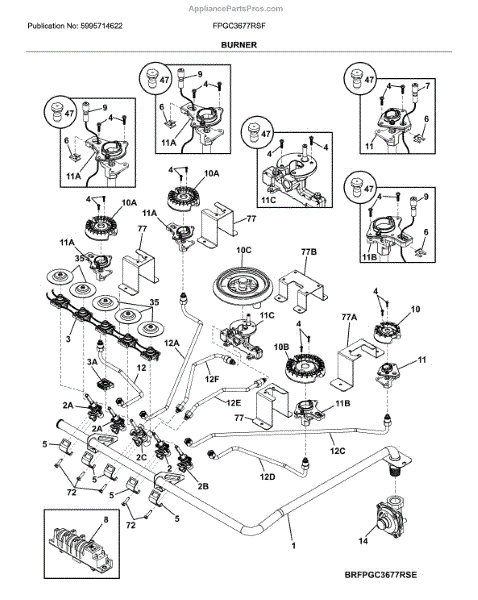

Parts for Frigidaire FPGC3677RSF: Burner Parts

The Surface Burner Valve is an OEM replacement part for Frigidaire cooktops. It is a crucial component that regulates the flow of gas to the individual surface burners on the cooktop. Each burner has its own valve, which allows precise control over the flame size and heat output.

Symptoms of a bad Surface Burner Valve include:

• Difficulty igniting or maintaining a consistent flame on the burner
• Uneven or flickering flame
• Burner not reaching desired heat levels
• Gas smell or leaks around the burner area

Causes of a bad surface burner valve can include general wear and tear over time, debris buildup or clogging, or physical damage to the valve or related components. Exposure to high heat or improper maintenance can also contribute to valve failure.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore cooktop models.

The Burner Valve is an OEM component specifically designed for Frigidaire cooktops. It controls gas flow to individual burners, providing a selection of different heat levels when operating the cooktop.

Symptoms of a bad burner valve can include:

• Inability to light specific burners or adjust the flame height
• Uneven or intermittent burner performance
• Gas leaks at burner valve connections
• Recurring error codes due to valve malfunctions

Causes of a bad burner valve include wear over extended usage periods, damage from water, or gas blockage impeding operation.

This OEM Frigidaire replacement is compatible with Electrolux, Gibson, Kelvinator, and Kenmore models. Replace before issues worsen.

The Valve is an OEM part for Frigidaire cooktops. It functions as an important component within the gas supply system that controls the flow of fuel between various points during each heating cycle. The valve works closely with the burner assembly and gas manifold to maintain consistent temperatures by facilitating proper circulation of gas throughout the system.

Symptoms of a bad valve include:

• Uneven or intermittent heating of burners
• Burners that are difficult to light or stay lit
• Smelly gas odor coming from the range when in use
• Damage to other gas supply components requiring replacement

Causes of a bad valve can include mineral buildup over time restricting flow, failure of internal rubber seals preventing a tight seal, or issues in the valve's opening and closing mechanism.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This replacement switch assembly restores the control switch that sends power to the appliance's heating element or circuit, helping return normal control and reliable operation to the unit. What it does

• Replaces a worn or faulty control switch that interrupts or delivers power to heating elements or control circuits
• Common symptom: element or circuit will not heat or respond when a control is set
• Common symptom: intermittent operation or loss of control at a particular setting
• Used to regain consistent power control without replacing larger control modules

• Disconnect power at the breaker or unplug the appliance before starting any repair.
• Handle terminals and wiring with care; avoid bending or stressing connector pins.

The Ignitor Screw is an OEM component for Frigidaire ranges and ovens. It secures the igniter, a critical heating element that sparks to ignite the gas burner.

Causes of a bad ignitor screw can include damage or stripping of the screw head from repeated removal/installation of the igniter component over time.

Symptoms of a bad ignitor screw include:

• The igniter shaking loose and becoming disconnected
• Inability to properly tighten the igniter securely in position
• Lost or stripped screw

This genuine Frigidaire replacement screw restores secure mounting of the igniter. Proper fastening is necessary for consistent and reliable ignition of cooking appliances.

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

Replacement mounting bracket that secures internal appliance components to the cabinet or frame, restoring proper alignment and support. Helps reduce rattling and prevents loose or sagging parts for safer, quieter operation. What it does:

• Secures components or assemblies to the appliance frame to maintain proper alignment.
• Reduces movement and vibration that commonly cause rattling or intermittent contact.
• Helps prevent sagging or misalignment of attached parts that can affect operation.
• Simple, passive part — no electrical function.

• Disconnect power (and water, if applicable) before starting any repair.
• Use appropriate hand tools; inspect mounting holes and fasteners for damage or corrosion.
• Replace only the damaged bracket; do not overtighten fasteners to avoid cracking.

This is a ceramic glow-bar igniter for gas ovens. It heats to ignite the gas for baking or broiling, restoring reliable oven lighting and even heating without repeated clicking or open flames.

• Heats up to light the gas burner in the oven cavity
• Common fix for oven not heating, long preheat times, or burner that lights then goes out
• Designed for ovens that use a glow-bar (hot surface) ignition system

• Disconnect power and shut off gas before servicing
• Handle the ceramic element carefully; avoid touching the carbide tip
• Test for proper ignition and observe a full heat cycle after installation

The Ignitor is an OEM part for Frigidaire cooktops. It provides the spark necessary to ignite the gas on your range's surface burners. It generates a spark to ignite the gas flowing to the burner, ensuring a consistent and safe flame.

A bad ignitor can be caused by wear and tear, damage, or electrical issues. Signs of a faulty ignitor include the burner not lighting or a weak or inconsistent spark.

Symptoms of a bad ignitor include:

• Burner not lighting or requiring multiple attempts to ignite
• Weak or inconsistent spark
• Visible damage to the ignitor, such as cracks or breaks

This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This is a surface burner head for a gas range/cooktop. It distributes gas from the orifice to the burner ports, helping deliver an even flame and reliable ignition when the original head is clogged, damaged, or corroded.

• Channels gas through precision ports to create a stable, even cooking flame
• Works with the burner cap and igniter for quick, consistent lighting
• Typical symptoms: burner won't light or takes multiple clicks, uneven/yellow flames, weak flame, or popping/flare-ups
• Physical issues may include blocked ports, heavy corrosion, or a warped/stripped casting

• Disconnect power and shut off gas; let the cooktop cool completely
• Lift off the burner cap; remove mounting screw(s) if present and lift off the old head
• Clean mating surfaces/orifice area; set the new head squarely and secure with existing hardware
• Restore gas and power; verify proper ignition and flame pattern

This replacement surface burner head restores a steady, even flame on your gas cooktop. It mixes gas and air and distributes the flame evenly to help ensure reliable ignition and consistent cooking performance.

• Mounts over the orifice and channels gas/air through flame ports for even heating
• Helps resolve weak, uneven, or yellow flames and delayed ignition
• Can address clicking without lighting or burners that won't stay lit
• Durable cast construction designed for repeated heating cycles

• Disconnect power and shut off gas; allow the appliance to cool completely
• Remove grates and access the burner per your model; transfer any mounting hardware from the old part if needed
• Seat the new burner head squarely over the orifice and ensure proper alignment
• Restore gas and power; test for proper ignition and flame. If any gas connections were disturbed, check for leaks with soapy water.

This burner restores proper flame distribution and ignition performance in your gas cooking appliance, helping you achieve steady, even heat for reliable boiling, simmering, and searing. What it does:

• Directs gas from the orifice through burner ports for an even flame pattern
• Works with the igniter/electrode to light the burner
• Helps reduce symptoms like uneven or weak flame, delayed ignition, or flame that lifts or makes popping noises
• Can address issues where the burner won't light or only lights partially due to damage or blockage

• 1 burner

• Disconnect power and shut off gas before servicing
• Access the burner per your model's service instructions; transfer any required hardware from the old part
• Ensure proper alignment with the igniter and orifice; tighten fasteners securely
• Restore gas and power, then inspect flame; check for leaks if any gas fittings were disturbed

This ignitor orifice assembly replaces the gas orifice that directs fuel to the oven igniter, helping restore reliable ignition and steady burner flame for consistent oven heating. What it does:

• Directs gas flow to the oven igniter so the burner can light
• Helps maintain a steady flame once the igniter opens the gas valve
• Commonly replaced when the oven fails to light or ignition is slow
• Improve weak or uneven burner flame behavior

• Turn off the appliance power and shut off the gas supply before beginning work
• Inspect surrounding seals and gas fittings; use a gas leak test after installation
• Follow the oven's service manual for disassembly and torque/spec guidance

The Tube is an OEM part for Frigidaire cooktops. It is responsible for delivering gas to the burners, allowing for efficient and controlled heat distribution during cooking.

A bad tube can be caused by wear and tear, damage, or clogs that obstruct the gas flow. Signs of a faulty burner tube include weak or uneven flames, gas leaks, or difficulty in igniting the burners.

Symptoms of a bad tube can include:

• Weak or inconsistent flames
• Smell of gas or hissing noises near the burners
• Difficulty in igniting the burners

Replace your worn-out or damaged tube with this genuine OEM part to restore your cooktop. This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


The Regulator is an OEM part for Frigidaire cooktops. It is responsible for regulating the flow and pressure of gas entering the appliance, ensuring safe and efficient operation.

A bad regulator can be caused by faulty internal components, wear and tear over time, or damage due to improper handling. Signs of a faulty regulator include uneven heating, weak flame, or gas leaks.

Symptoms of a bad regulator can include:

• Uneven heating of burners or oven
• Weak or inconsistent flame
• Gas leaks around the regulator

This Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

The Bushing is an OEM part for Frigidaire cooktops. This part serves as an interface between the control knob and the appliance, ensuring smooth operation and protecting both the knob and the control panel from wear and tear. The bushing fits snugly around the valve's stem, reducing friction and providing stability as the knob is turned to adjust the heat settings of the cooktop.

Causes of a bad Bushing can include degradation from frequent use, exposure to high heat, or accidental damage during cleaning or use, which can lead to the bushing becoming loose or worn out.

Symptoms of a malfunctioning Bushing include:

• Loose-feeling knobs that wobble or are difficult to turn
• Excessive wear or visible damage to the knob or panel area
• Difficulty in achieving precise temperature control
• Unusual noise when turning the knobs

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

A simple metal mounting bracket that secures appliance components and keeps them aligned for reliable operation. Replaces a worn or damaged bracket to restore proper support and reduce rattling or movement. What it does:

• Provides a secure mounting point for internal components such as panels, assemblies, or modules
• Keeps parts aligned to prevent rubbing, vibration, or noise during operation
• Restores proper support when an original bracket is bent, cracked, or broken
• Helps maintain safe spacing and positioning of components to avoid interference

• One mounting bracket

• Disconnect power to the appliance before beginning any repair
• Use basic hand tools (screwdriver, nut driver) as required; retain original fasteners unless replacement is specified
• Handle edges carefully—brackets and surrounding sheet metal can be sharp
