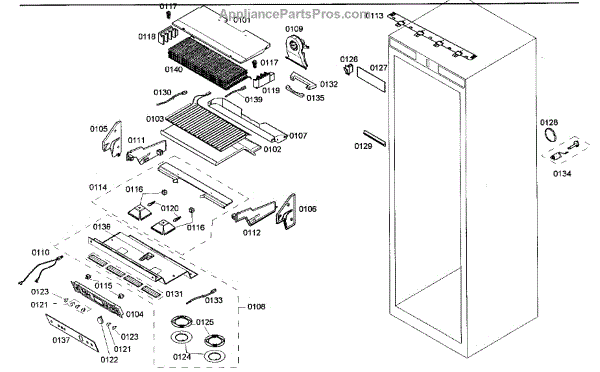

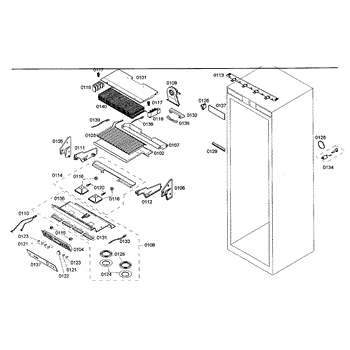

Parts for Bosch B30IF70NSP/06: Cabinet Assembly Parts

The Water Filter is an OEM part for Bosch refrigerators. This part removes impurities and contaminants from the water supply to your appliance. This part ensures that the water and ice dispensed by your refrigerator are clean, taste fresh, and are free of common waterborne particles and substances.

Over time, the water filter can become clogged with sediments and contaminants, reducing its effectiveness and potentially affecting the taste and quality of the water and ice. Regular replacement is essential for maintaining optimal performance.

Symptoms of a bad Water Filter include:

• Unpleasant taste or odor in the water or ice
• Decreased water flow to the dispenser or ice maker
• Visible particulate matter in the water or ice cubes

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This insulating part is a small thermal/electrical insulation pad used to protect surrounding components from heat and prevent electrical shorts. It helps maintain safe operation and component longevity by isolating heat and wiring. What it does

• Provides thermal separation between heated components and nearby parts to reduce heat transfer.
• Helps electrically insulate terminals or wiring from metal chassis to prevent shorts.
• Commonly replaced when burned, cracked, missing, or when nearby components overheat.
• Supports safe operation by keeping wires and sensors away from hot surfaces.

• Inspect mounting area and surrounding components for damage before installing.
• Replace only when device is powered off and disconnected from mains to avoid shock.
• Position the insulating pad exactly as the old piece to ensure proper clearance; secure any fasteners or clips as originally installed.
• If adhesive or clips are required, use OEM-recommended materials or equivalents rated for appliance temperatures.

This defrost heater melts frost and ice buildup on the evaporator to restore normal airflow and cooling performance in frost-free refrigerators. It replaces a failed heater to help prevent excessive frost accumulation and compressor overwork. What it does:

• Heats the evaporator coil during defrost cycles to remove frost and ice.
• Helps restore proper airflow and temperature consistency in the freezer compartment.
• Commonly replaced when the freezer has heavy frost buildup or reduced cooling.
• Works as part of the refrigerator's automatic defrost system; not a standalone thermostat or control.

• One defrost heater assembly.

• Disconnect power to the appliance before servicing to avoid electric shock.
• Access typically requires removing the evaporator cover/panel in the freezer; follow the OEM service manual.
• Inspect wiring and connectors for heat or corrosion damage and replace any compromised components.
• If defrost issues persist after replacement, check the defrost thermostat, timer/control board, and sensors per OEM troubleshooting.

This operating module is the dishwasher's electronic control board that interprets user inputs and manages cycle functions, restoring responsive controls and proper cycle sequencing when the original module fails. What it does:

• Receives touchpad or button commands and runs the selected wash cycles
• Controls timers, valve/relay signals, and cycle sequencing for normal operation
• Can cause unresponsive controls, incorrect cycles, or failure to start when faulty
• Works with the front control assembly to relay status and error feedback

• One operating module (electronic control board)

• Disconnect power before service to avoid electrical shock
• Handle the board by edges and avoid static discharge; wear an ESD strap if available
• Minor disassembly of the control panel or door is typically required; follow the OEM service manual

This operating module is the dishwasher's electronic control board that interprets user inputs and manages cycle functions, restoring responsive controls and proper cycle sequencing when the original module fails. What it does:

• Receives touchpad or button commands and runs the selected wash cycles
• Controls timers, valve/relay signals, and cycle sequencing for normal operation
• Can cause unresponsive controls, incorrect cycles, or failure to start when faulty
• Works with the front control assembly to relay status and error feedback

• One operating module (electronic control board)

• Disconnect power before service to avoid electrical shock
• Handle the board by edges and avoid static discharge; wear an ESD strap if available
• Minor disassembly of the control panel or door is typically required; follow the OEM service manual

This replacement heating element warms dishwasher wash water to help detergents dissolve and improve cleaning and drying performance. Designed to restore proper water temperature for normal wash cycles when the original heater fails. What it does:

• Heats wash water so detergents activate and soils break down during the main wash.
• Helps the rinse/dry phase reach higher temperatures for improved drying and sanitizing.
• Common symptoms: dishes not getting clean, poor drying, unusually long cycles, or no heat during cycles.
• Works as the direct replacement for a failed or damaged tub heater assembly.

• Always disconnect power to the appliance before starting work; verify power is off at the breaker.
• Access typically requires removing the lower kick panel or toe panel—handle internal components and wiring with care.
• Inspect mounting gaskets and wiring for damage; replace any corroded connectors or compromised seals.
• After installation, restore power and run a short test cycle to check for leaks.

The Motor-Fan is an OEM component specifically designed for Bosch refrigerators. It circulates air to optimize internal temperatures.

The motor-fan works continuously to push cool air from the freezer compartment and direct airflow throughout refrigerator shelves and bins. Strategically positioned vents help regulate temperature variances.

Symptoms of a bad motor-fan include:

• Inconsistent or fluctuating temps from section to section
• Frost or condensation building up unusually fast
• Abnormal sounds like grinding or squealing during the operation
• Complete lack of airflow

Causes can be a failed motor bearing, compromised fan blades off balance, or blockage preventing free rotation.

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore refrigerator models.


This holder is a small mounting bracket that secures internal components in place to prevent movement and wear. It restores proper alignment and helps stop rattling or loose parts inside the appliance. What it does

• Secures wiring, sensors, or small assemblies to the appliance chassis to prevent displacement.
• Helps eliminate vibrations, rattling noises, or intermittent contact caused by loose components.
• Maintains correct positioning so related parts can operate reliably.
• Protects fragile components from rubbing or impact damage during use.

• One holder / mounting bracket as shown

• Refer to the appliance's service manual or parts diagram for the correct location and orientation before installing.
• Disconnect power (and water if applicable) before servicing to reduce risk of shock or injury.
• Use appropriate hand tools; avoid overtightening fasteners that can crack plastic mounting points.
• Replace damaged clips or fasteners to ensure a secure installation.

The FIXTURE is an OEM replacement part for Bosch freezers. Typically located inside the fresh food compartment, fixtures hold slidable wire shelves, bins, crispers, and other removable storage accessories in precise positions.

Causes of a faulty fixture can include cracking or breaking of plastic rails from repeated impact or overloading. Clips and mounting attachments may also loosen over time.

Symptoms of a bad fixture include:

• Shelves, bins, and pans that no longer slide smoothly or feel insecure
• Storage accessories like crispers that tilt or are difficult to remove
• Interior rattles or banging noises coming from loose components

This replacement Bosch fixture returns stability and structure to the organization system. Realigning fixtures maintains consistent placement and secure engagement of accessories for tidy, accessible food storage.

Compatible with Thermador, Gaggenau, or Kenmore French door models utilizing consistent interiors.

This is an electrical on/off switch used to control power to an appliance circuit. It replaces a failed switch so controls respond normally and the appliance can be powered on and off safely. What it does

• Opens and closes an electrical circuit to enable or disable appliance power or a specific control function
• Commonly replaces a worn, stuck, or unresponsive switch that prevents controls or lights from operating
• Can resolve symptoms like no power to a control, intermittent operation, or a button that won't actuate
• Designed to mate with the appliance's existing wiring and mounting points

• One electrical on/off switch

• Disconnect power to the appliance at the breaker or unplug before working on wiring
• Verify proper wire locations and secure all terminal connections; replace only with the exact part specified by the manufacturer
• Handle the part carefully to avoid bending terminals or damaging the switch actuator

This foam piece is an appliance insulation/padding pad that cushions components and helps reduce vibration and noise for a quieter, more stable operation. It fits into a designated cavity to provide padding and minor thermal/noise dampening. What it does

• Cushions panels or components to prevent rattling and wear from vibration.
• Dampens noise by absorbing sound transmission from moving parts.
• Provides light insulation or spacing where specified by the manufacturer.
• Helps keep adjacent parts from making hard contact during operation.

• One foam piece as shown.

• Disconnect power (and water if applicable) before accessing the area.
• Install in the OEM location; ensure the foam sits flat without excessive compression.
• Use only the adhesive or fasteners specified by the manufacturer—do not substitute solvents or household glues unless directed.

This halogen light bulb restores bright, reliable illumination in your appliance so you can clearly see the cooking area or interior. Replace a burned-out or flickering bulb to maintain visibility and safe operation. What it does:

• Provides illumination inside the appliance or over the cooking surface
• Replaces a failed halogen lamp to restore proper lighting
• Typical symptoms: light won't turn on, is dim or flickers, or works intermittently
• Helps you monitor food and check progress without guesswork

• 1 halogen lamp

• Disconnect power/unplug and allow the bulb and surrounding area to cool completely before service
• Access the lamp per your model's instructions; remove any lens or cover carefully
• Handle the new halogen bulb with gloves or a clean cloth; avoid touching the glass capsule
• Match the bulb type and rating specified for your model; do not exceed the rated wattage

This is a replacement micro switch used in select Bosch-built appliances. It opens and closes an electrical circuit when actuated by a lever or cam, enabling functions like starting/stopping a cycle or detecting a position.

• Controls power or signals by opening/closing a low-voltage circuit when pressed
• Commonly used for on/off, door/lid, or position-sensing functions
• Failure may cause the unit not to start, intermittent operation, or features that won't engage
• May also present as unresponsive buttons or functions that only work when pressed a certain way

• Disconnect power before servicing; verify no voltage is present
• Access location varies by model; remove panels as needed to reach the switch
• Note wire positions and terminal orientation before removal
• Test continuity with a meter after installation to ensure proper operation

This sensor monitors operating conditions inside the appliance and reports to the control so cycles run correctly and safely. When the sensor fails, the control may receive inaccurate feedback, leading to irregular performance. What it does:

• Detects key conditions inside the appliance and sends a signal to the control
• Helps the control regulate heat and cycle progress
• Failure symptoms can include erratic cycle times, poor heating performance, or sensor-related error messages
• Can prevent the appliance from starting or completing a cycle if readings are out of range

• 1 sensor

• Disconnect power before servicing; shut off water supply if applicable
• Access the sensor and note wire orientation before removal
• Ensure any sealing surface is clean and the sensor is seated properly; check for leaks after reassembly where applicable
• Run a diagnostic or test cycle after installation to clear errors and verify operation

The Temperature Sensor is an OEM part for Bosch freezers. This sensor monitors and reports interior freezer temperatures to the control board.

Causes of a bad freezer temperature sensor can include damage from repeated temperature fluctuations within the freezer, over-exposure to extreme cold, or simple failure of internal electronic components over time.

Symptoms of a bad freezer temperature sensor include:

• Inability to maintain consistent set freezer temperature
• Temperature readings displayed incorrectly on control panel
• Defrost cycle not functioning properly
• Food freezing inconsistently or freezer too warm/cold

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This water inlet valve controls water flow into the appliance, restoring proper fill and preventing unwanted leaks. Replacing a faulty inlet valve returns normal water supply and helps the appliance fill reliably. What it does:

• Opens and closes the water supply to the appliance when a cycle calls for water
• Stops water flow when the fill is complete to prevent overfilling
• Common symptom: appliance won't fill or fills slowly
• Common symptom: continuous or intermittent leaking near the inlet area
• Works with the appliance's control signals to regulate fill volume

• Disconnect power and shut off the water supply before starting any repair
• Drain residual water from hoses and fittings to avoid spills
• Inspect and replace any worn inlet hoses or seals when replacing the valve

This temperature limiter safeguards the evaporator defrost heater by opening the circuit if temperatures rise too high. Replacing a failed limiter restores defrost safety and helps prevent frost buildup and inconsistent cooling performance.

• Protects the defrost circuit by cutting power to the evaporator heater when an over-temperature condition is detected
• An open/failed limiter prevents the heater from energizing, causing frost accumulation on the evaporator and warm refrigerator temps
• Designed to be installed in the original location and orientation for accurate temperature sensing

• Disconnect power before servicing; evaporator fins and sheet metal are sharp—use cut-resistant gloves
• Access the evaporator compartment and note the limiter's original mounting and wire routing before removal
• Transfer any clips/insulation sleeves and reconnect wiring to the same terminals; do not bypass this safety device
• Reassemble, restore power, and monitor for normal defrost operation
