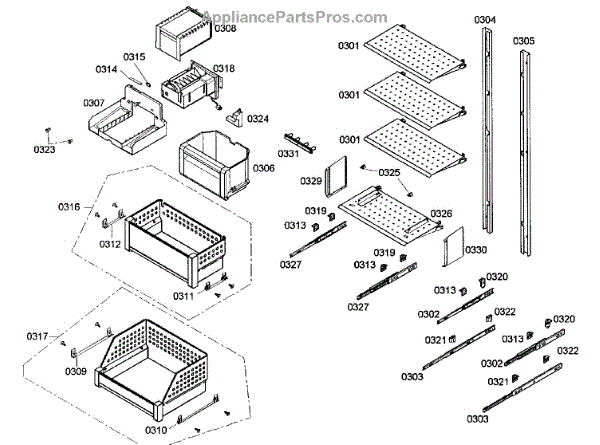

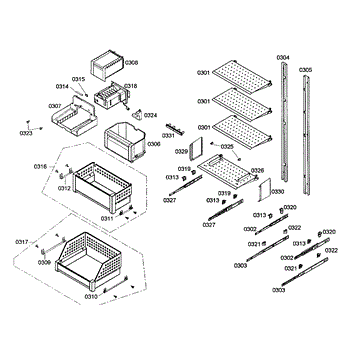

Parts for Bosch B30IF70NSP/06: Drawers Assembly Parts

The Water Filter is an OEM part for Bosch refrigerators. This part removes impurities and contaminants from the water supply to your appliance. This part ensures that the water and ice dispensed by your refrigerator are clean, taste fresh, and are free of common waterborne particles and substances.

Over time, the water filter can become clogged with sediments and contaminants, reducing its effectiveness and potentially affecting the taste and quality of the water and ice. Regular replacement is essential for maintaining optimal performance.

Symptoms of a bad Water Filter include:

• Unpleasant taste or odor in the water or ice
• Decreased water flow to the dispenser or ice maker
• Visible particulate matter in the water or ice cubes

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This rack rail guides a dishwasher lower rack for smooth sliding and proper alignment so dishes load and unload without catching. It restores stable rack motion and prevents derailment or noisy operation. What it does:

• Guides the lower rack along the tub rails for even, reliable sliding
• Keeps the rack aligned to prevent tipping or catching during cycles
• Reduces scraping, grinding, or clattering caused by damaged rails
• Helps ensure racks fully extend and retract without binding

• Disconnect power and turn off the water supply before starting any repair
• Remove the lower rack to access the rail; reinsert rack after installation to test movement
• Handle edges carefully; replace if bent, cracked, or worn

The Freezer Retainer Clip is an OEM part for Bosch refrigerators. It is designed to secure items within the freezer, preventing them from shifting or falling out when the door is opened.

Causes of a bad retainer clip can include regular wear and tear, accidental breakage, or exposure to extreme temperatures.

Symptoms of a bad Freezer Retainer Clip include:

• Items in the freezer falling or shifting easily
• The clip not staying in place or fitting securely
• Visible cracks or damage to the clip
• Difficulty in properly organizing freezer contents

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This ice maker assembly replaces the refrigerator's frozen-water harvesting module so your freezer can produce and dispense ice reliably. Restores automatic ice production when the original unit fails. What it does:

• Collects and freezes water, then cycles to eject ice cubes into the storage bin
• Triggers the fill valve to allow water into the mold during the harvest cycle
• Helps stop intermittent or complete ice production when the ice maker is worn or failed
• Can resolve issues like no ice production, small or misshapen cubes, or frequent cycling

• Disconnect power and shut off the refrigerator water supply before starting
• Handle the unit and connectors gently to avoid damaging the fill valve and wiring
• Confirm freezer temperature is within the manufacturer's recommended range for ice production after installation

This retaining clip secures small appliance panels and components to their mounting points, helping keep parts aligned and preventing rattles or loose fittings. A simple replacement to restore proper fit and reduce noise. What it does:

• Holds trim, panels, or wiring harnesses in place at designated mounting points
• Prevents parts from shifting, reducing rattling or intermittent contact
• Restores original alignment where a bent or broken clip caused loose fit
• Works as a direct-fit replacement for the corresponding factory clip

• Turn off power and unplug the appliance before starting any repair
• Access may require removing adjacent panels or trim; keep fasteners organized
• Use pliers or a screwdriver as needed to remove the old clip and snap the new clip into place
• Check surrounding mounting surfaces for deformation before installing

A small retaining clip that fastens a component or panel in place inside your appliance. Replacing a broken or missing clip restores a secure fit so parts stay aligned and don't rattle during operation.

• Holds a mating piece, trim, or cover securely in position
• Helps prevent vibration-related looseness, gaps, and rattling
• Restores proper fit when the original clip is cracked, bent, or missing
• Common signs: loose or wobbly part, misalignment, visible damaged/missing clip

• Disconnect power; shut off water or gas supply
• Note the original clip's orientation; take a photo before removal
• Use needle-nose pliers to release/install; avoid prying on brittle plastics
• Press until fully seated and verify secure engagement before reassembly

A replacement mounting clip that holds panels, hoses, or small components securely in place to reduce movement and rattling. Durable plastic construction restores proper fit and helps prevent parts from coming loose during operation. What it does:

• Secures panels, hoses, or wiring to chassis or mounting points
• Prevents rattling, vibration noise, and intermittent contact
• Keeps components aligned to avoid rubbing or wear
• Helps maintain reliable part placement after repairs or reassembly

• Disconnect power before accessing the appliance
• Remove any panels or trim needed for access; keep track of fasteners
• Press clip into the mating slot or bracket until it snaps; confirm a secure fit
• Inspect surrounding parts for damage and replace any worn mating tabs

This clip is a small mounting retainer that secures components inside the appliance, helping keep wiring and assemblies in place for reliable operation and reduced noise from loose parts. What it does:

• Secures panels, wiring, or small assemblies to prevent shifting during use
• Helps reduce rattles and vibration caused by loose components
• Keeps electrical harnesses routed and positioned to avoid wear
• Restores proper fit where a broken or missing clip allowed movement

• Clip as shown

• Disconnect power to the appliance before beginning any work
• Access may require removing a panel or cover; keep fasteners organized
• Replace with the same clip type and orientation; do not force into place
• If clips are brittle or damaged in multiple locations, inspect nearby mounts and harnesses for wear

This fixture is a small mounting piece that secures internal components in place to help maintain proper alignment and stable operation. It replaces worn or damaged hardware to reduce movement and related noise or misalignment. What it does:

• Secures and supports internal components or assemblies to the appliance cabinet or frame
• Prevents excess vibration and movement that can cause noise or part wear
• Restores correct component positioning if the original fixture is cracked or missing
• Alleviate symptoms such as rattling, shifting parts, or intermittent contact

• One fixture

• Disconnect power and water before starting any repair
• Inspect surrounding clips, screws, and mounting points and replace if damaged
• Simple hand tools may be required; handle plastic parts carefully to avoid cracking
