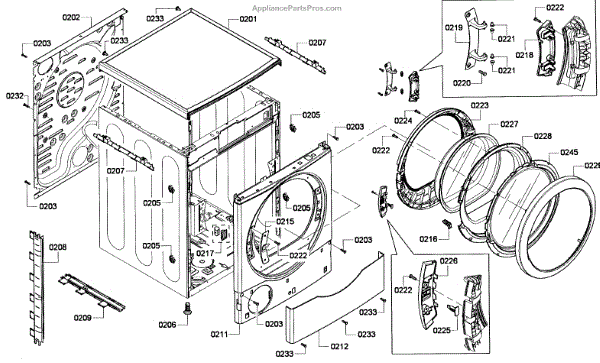

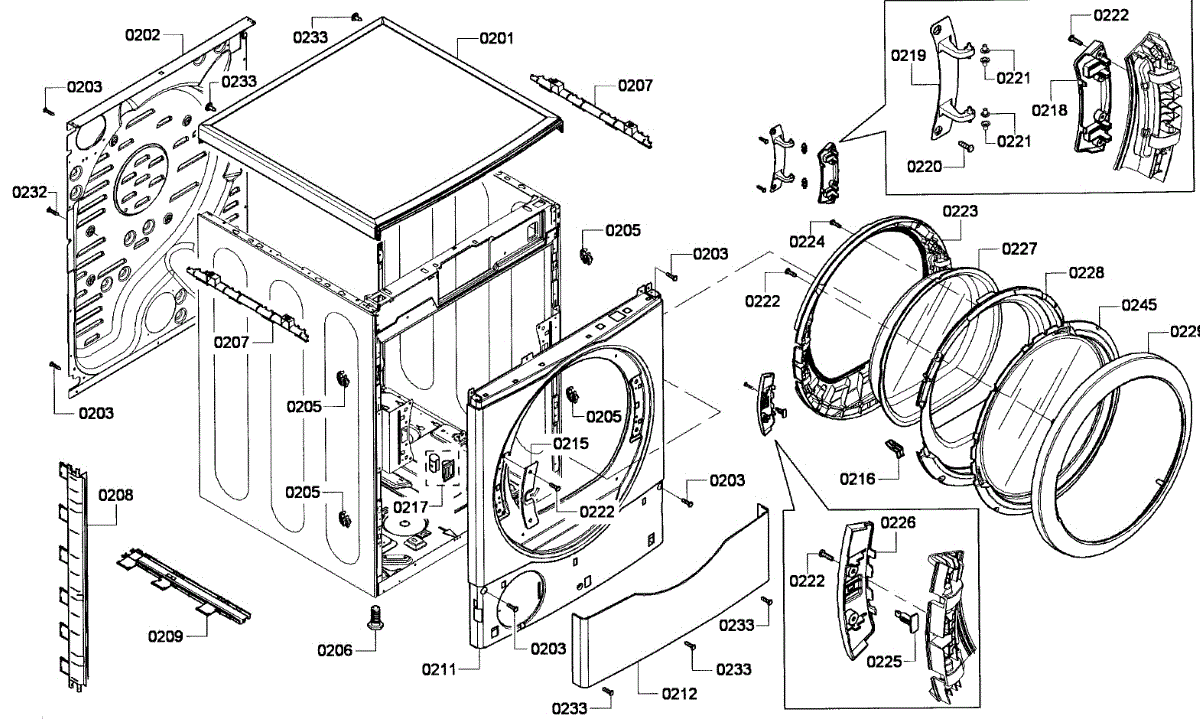

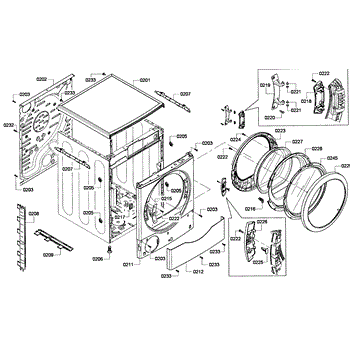

Parts for Bosch WTVC5330US/09: Cabinet Assembly Parts

This back panel replaces a damaged or missing rear housing piece to protect internal components and maintain proper airflow. It restores the appliance's rear enclosure so internal parts stay covered and secure. What it does:

• Covers and protects wiring, controls, and internal components from damage and debris
• Helps maintain designed airflow and cooling paths for reliable operation
• Provides anchor points for rear-mount components and fasteners
• Stops drafts and prevents small objects from entering the appliance cavity
• Addresses symptoms like exposed wiring, rattling or loose rear cover, and visible cracks or holes

• Disconnect power (unplug or shut off breaker) before beginning any work.
• Access the rear of the appliance and remove fasteners holding the old panel; save screws if reusable.
• Handle edges carefully—sheet metal may be sharp; wear gloves and eye protection.
• Follow OEM instructions for reassembly.

The Foot is an OEM component specifically designed for select Bosch vented dryers requiring balanced tumbling motions. As an anchor point, it supports revolving drum weights during operation.

Causes requiring replacement relate to cumulative use wearing down attached glides and compromising smooth rotations. Physical damage exposing reinforcement fibers risks accelerated failure.

Symptoms signaling the need for a new foot involve:

• Shaking or off-balanced drum movements from failed supports
• Loosened fasteners enabling unintended dislodging or displacement
• Cracked housings no longer stabilize intended weight distributions

This OEM Bosch replacement foot is also compatible with Thermador, Gaggenau and select Kenmore dryers relying on anchored rotational components. Correct installation restores intended weight balancing.


This replacement protective cover shields internal appliance components from dirt and moisture to help restore proper fit and reduce the risk of damage. Use it when the original cover is cracked, warped, or missing. What it does:

• Protects underlying components from moisture, debris, and accidental contact
• Helps prevent electrical shorts or corrosion caused by water intrusion
• Restores a secure enclosure and proper alignment where the original cover failed
• Fits the original mounting points to maintain intended part protection

• Disconnect power to the appliance before starting any repair
• Remove any fasteners or clips holding the old cover and replace with the new cover using the original hardware
• Verify the cover seats flush and secures to prevent gaps that allow moisture or debris
• If wiring or insulation under the cover is damaged, replace those components before reinstalling the cover

A small replacement screw used to secure panels, brackets, and other appliance components. Restores proper fastening to reduce rattling and prevent parts from becoming loose or detached during operation. What it does:

• Fastens panels, trim, brackets or assemblies in place to maintain structural fit
• Replaces missing, stripped, or corroded screws that cause rattling or loose parts
• Helps restore normal operation by keeping components aligned and secure
• Works wherever the OEM screw specification and thread fit this mounting point

• Disconnect power (and water, if applicable) before servicing the appliance
• Use the correct screwdriver and size to avoid stripping the head
• Tighten snugly but avoid overtightening, which can strip threads or crack plastic
• Verify threads and length match the original part before final installation

This factory fastener secures appliance components and panels so they stay aligned and quiet. Replacing a missing, stripped, or corroded screw restores a tight fit and helps prevent vibration, rattling, and premature wear.

• Secures brackets, covers, panels, or internal parts per your model's design
• Helps maintain alignment and reduce vibration/noise during operation
• Replaces lost, stripped, rusted, or damaged hardware
• Common signs include loose or shifting panels, rattling sounds, or a missing screw found during service

• Disconnect power before servicing; shut off water or gas if applicable to your appliance
• Match the screw to the original location/length; replace one at a time to avoid mix-ups
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening
• Use the correct driver for the head type on your model to avoid stripping

This inner door frame is the metal/plastic support that mounts behind the outer door panel to hold the inner liner, latch, and components in place. Replacing a damaged frame restores proper door alignment and sealing. What it does:

• Provides structural support for the dishwasher door assembly and mounting points for the inner liner and hardware
• Helps maintain proper door alignment so the latch closes securely
• Prevents gaps that can cause water to spray toward the control area or hinge
• Reduces door rattles and vibration from a loose or bent inner frame

• One door inner frame

• Disconnect power and water supply before beginning work
• Remove exterior door panel and any attached trim to access the inner frame; keep track of fasteners
• Handle edges and clips carefully to avoid cutting yourself or damaging the door finish

The Door Latch is an OEM part for Bosch dryers. It securely fastens the dryer door closed during operation to prevent heat loss and ensure optimal drying performance.

Causes of a bad latch include wear and tear over time, damage due to repeated use, or failure of the latch mechanism.

Symptoms of a bad door latch include:

• The door not fully closing or latching in the locked position
• The door popping or coming open during a cycle
• Decreased drying efficiency due to air leaks
• Safety issues from an unsecured door

This OEM Bosch part is also compatible with Thermador, Gaggenau, and some Kenmore models.

This chrome outer door ring replaces a scratched, dented or missing trim piece to restore the washer door's finished appearance and keep the door edge protected. It's a direct-replacement exterior trim ring. What it does

• Replaces damaged or bent chrome trim around the front-load washer door.
• Restores cosmetic finish and conceals the door edge.
• Helps maintain a uniform seal surface by keeping the door edge supported.
• Useful when trim is cracked, loose, or missing and detracts from operation or appearance.

• Disconnect power before beginning any door disassembly.
• Remove the outer door panel or bezel per OEM instructions to access the trim; handle door glass and bezel carefully to avoid breakage.
• Typical installation requires basic hand tools (screwdriver/torx) and alignment of the trim to the door bezel.
