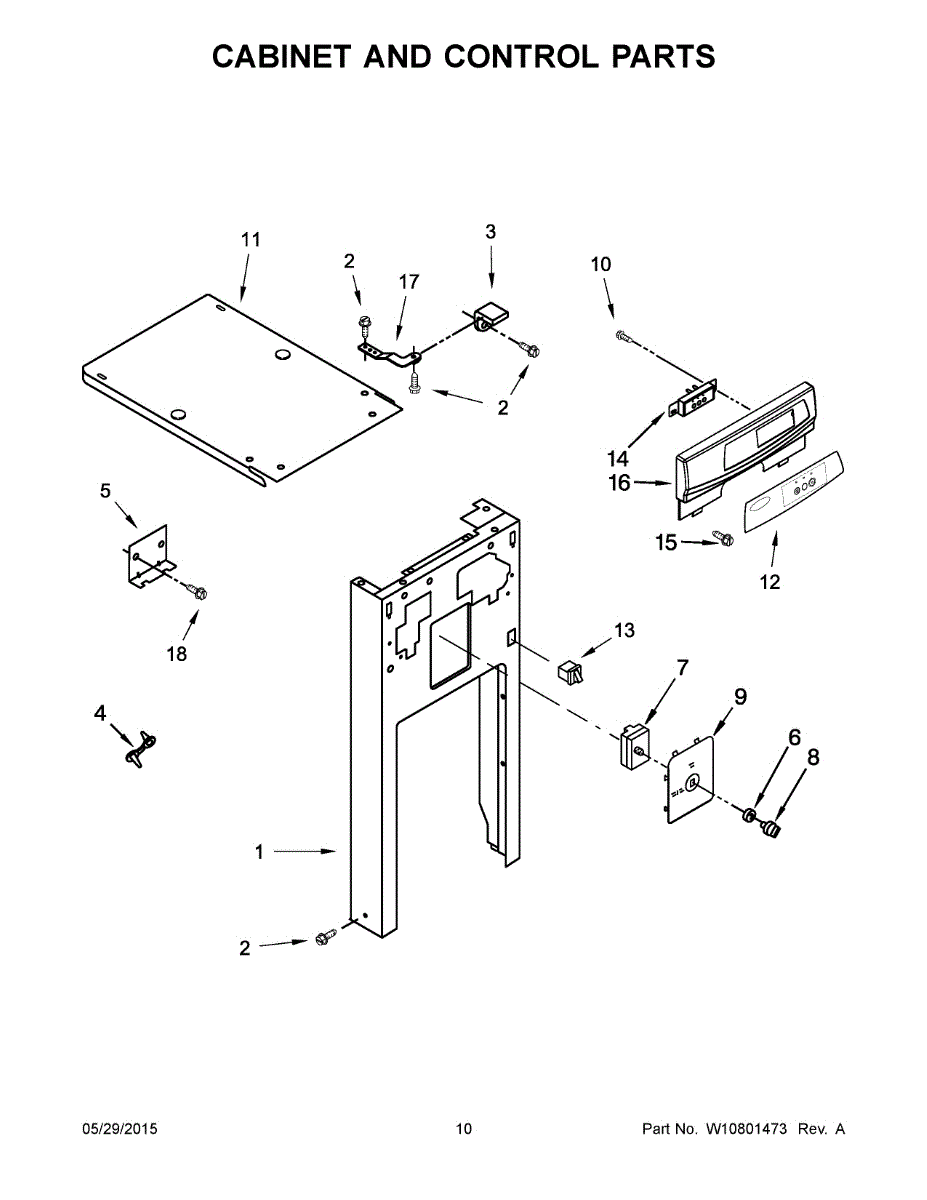

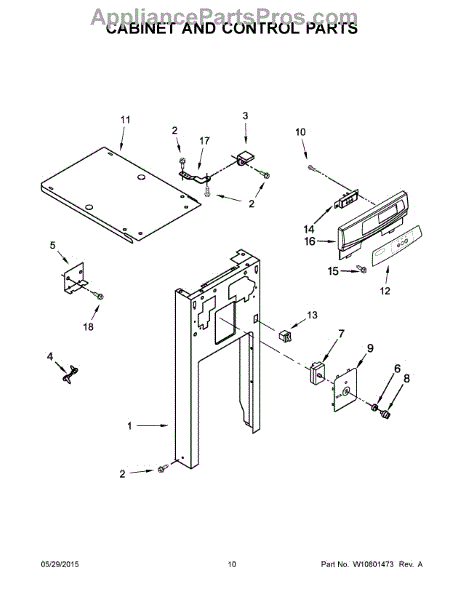

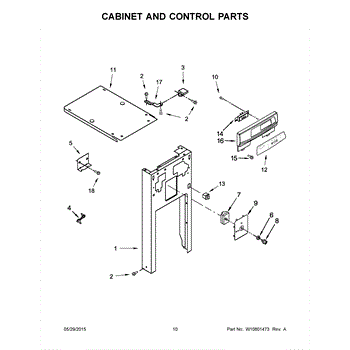

Parts for Whirlpool GX900QPPS5: 06 - Cabinet And Control Parts

Color: Black. This panel is without cut out for lower switch. For panel with cut out use W10342596.

Size: 8 x 1/2 ab.

This switch nut secures a rotary control or switch to the appliance's front panel. Replacing a stripped or missing nut keeps the control stable so the knob turns smoothly and the shaft stays properly aligned.

• Clamps the switch/control to the panel to prevent movement or rotation
• Helps maintain correct knob alignment with dial markings
• Common symptoms: loose or wobbly knob, switch rotates in the panel, missing/damaged nut
• Often needed after service if the original nut is stripped or lost

• Disconnect electrical power before servicing
• Remove the knob and any decorative escutcheon; thread the new nut onto the switch bushing from the front of the panel
• Support the switch from behind while tightening; do not overtighten to avoid panel or switch damage
• Restore power and test control operation

To order knob for this switch use WP4155141.

May also be called a key. Color: Red.

Color: Black

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

Color: Black

This off switch is a small electrical switch that opens the circuit to stop a function or cycle when triggered by the appliance's mechanism or control. Replacing a worn switch restores reliable shutoff and consistent operation. What it does:

• Interrupts power to stop operation when actuated by a lever, cam, or latch
• Sends an "off" signal to the control for proper shutdown
• Helps correct issues like a function that won't shut off or stops intermittently
• Can resolve situations where jiggling a door/lever is needed to make a function stop

• 1 off switch

• Disconnect power (unplug or switch off the circuit breaker) before servicing
• Access the switch, note wire positions, and transfer wires terminal-for-terminal
• Mount the new switch securely; avoid bending the actuator more than necessary
• Restore power and test operation before full reassembly

This sheet-metal pan-head screw secures appliance panels, brackets, and components to the cabinet or frame. Replacing a missing or damaged screw restores a tight fit and helps stop rattles, misalignment, and loosening.

• Fastens sheet-metal panels, covers, ducts, and brackets to the appliance chassis
• Helps keep components aligned and secure during operation
• Replace if the original is missing, rusted, stripped, or damaged
• Common symptoms: loose or vibrating panels, gaps or misaligned parts, hardware that won't tighten

• Disconnect power; shut off gas or water supply before servicing
• Support the panel or part being attached; hand-start threads to avoid cross-threading
• Use the correct driver bit; tighten snugly but do not overtighten into sheet metal
• If multiple matching screws secure a part, consider replacing them as a set for consistent hold

Escutcheon restores the finished look of your appliance while protecting control switches and openings from grease, spills and debris. Use it to replace cracked, damaged or missing trim. What it does:

• Covers and protects control components and switch openings from moisture, food and debris.
• Restores the appliance's cosmetic appearance and helps secure knobs and switches.
• Common repair for cracked, warped or missing trim that leaves controls exposed.
• Reduces rattling or loose-feeling control panels by providing a snug trim fit.

• Disconnect power (unplug or shut off breaker) before starting any repair.
• Handle the trim carefully to avoid scratching the finish; use proper screwdrivers and a trim tool as needed.

This retainer bracket secures internal components in place to restore proper alignment and support. It replaces a worn or broken bracket to help reduce rattling, misalignment, or loose parts during operation. What it does:

• Holds and supports internal assembly parts to maintain correct positioning
• Prevents movement that can cause noise, vibration, or rubbing
• Restores stability after bracket damage or wear
• Works as a direct-fit replacement when the original bracket is broken or bent

• High-level replacement — basic hand tools required;
• Disconnect power (and gas if applicable) before beginning any repair
• Inspect surrounding parts and hardware; replace any damaged fasteners for a secure fit

This is a replacement machine screw sized 8-18 x 3/8 that secures panels and components on compatible appliances. It restores proper fastening where a worn, stripped, or missing screw causes loose parts or rattling. What it does

• Fastens control panels, trim pieces, or brackets to the appliance chassis
• Replaces stripped, corroded, or missing screws that cause loose panels or vibrating noise
• Provides correct thread engagement for a secure hold in tapped holes
• Small hardware solution often used during door, console, or interior repairs

• One 8-18 x 3/8 machine screw (quantity: 1)

• Use the correct screw size and thread; do not force a different-size fastener into tapped holes
• Hand-start the screw to avoid cross-threading, then tighten with the appropriate screwdriver
• Disconnect power before accessing internal components or panels on electrical appliances
• If metal threads are damaged, repair with a helicoil or replace the damaged component rather than over-torquing
