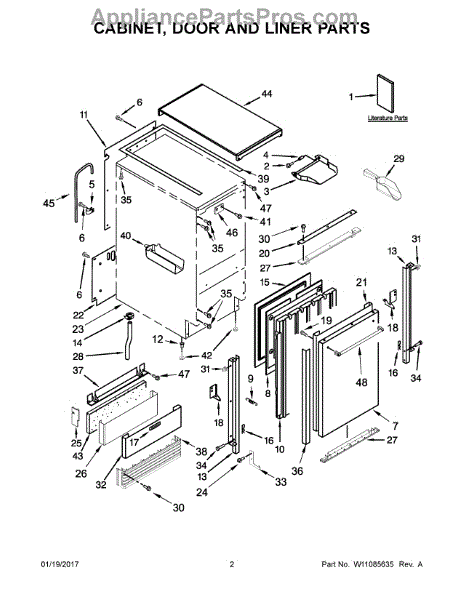

Parts for Kitchenaid KUID508ESS2: 02 - Cabinet, Door And Liner Parts

The Refrigerator Water Filter is an OEM part for Whirlpool refrigerators. It delivers clean, filtered drinking water and ice by effectively reducing contaminants, including chlorine taste and odor, particulates, and various other harmful substances that may be present in the water supply.

Causes of a bad Refrigerator Water Filter can include regular wear and tear over time leading to reduced efficacy in filtering out contaminants, as well as accumulation of contaminants and sediment.

Symptoms of a bad Refrigerator Water Filter include:

• Noticeable decrease in water flow rate.
• Unpleasant taste or odor in the water or ice.
• Discoloration of water or ice.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Size: 8-18 x 1 1/4 inch.

This replacement door bin restores inside-door storage on your refrigerator so bottles, condiments and small items stay organized and secure. Durable molded plastic matches the original fit and function. What it does:

• Provides a removable shelf inside the refrigerator door to hold bottles, jars and small containers
• Replaces cracked, broken or missing door storage that no longer secures items
• Restores original storage capacity and prevents items from falling when opening the door
• Fits into existing mounting ledges or rails and snaps into place for everyday use

• Empty contents from the damaged bin before removal
• Most installations are tool-free—lift out the old bin and snap the new one into the door ledges
• Inspect door ledges for damage before installing; replace any broken mounting clips if needed
• Handle carefully to avoid sharp edges on broken plastic and follow safety precautions

This spacer positions and supports appliance components to maintain correct clearance and alignment, helping parts fit securely and reducing wear. Replace damaged or missing spacers to restore proper component spacing and quiet operation. What it does:

• Keeps panels, brackets or assemblies properly spaced to prevent rubbing and misalignment
• Helps maintain correct clearance for moving parts and seals
• Reduces vibration and noise caused by loose or shifted components
• Restores fit when a broken or worn spacer allows parts to sit unevenly

• Disconnect power before servicing; follow all safety instructions in your owner's manual
• Confirm correct orientation and placement before tightening fasteners
• Inspect surrounding parts (brackets, fasteners, mounting points) and replace if damaged

This spring-style tube clamp secures flexible tubing to fittings, helping prevent leaks and maintain proper flow. It's a simple replacement that restores a firm seal on water or drain lines. What it does:

• Keeps flexible tubing firmly clamped to barbed or nipple fittings
• Helps stop or reduce leaks from loose or corroded connections
• Prevents tubing from slipping off under pressure or vibration
• Useful where a compact, spring-action clamp is required

• Disconnect power and shut off water to the appliance before replacing parts
• Use pliers to expand the clamp, position it over the tube/fitting, then release to secure
• Inspect connected tubing and fittings for damage; replace if cracked or severely corroded

Size: 8-18 x 1/2 inch.

This exterior door panel restores the dishwasher's front appearance and protects the inner door assembly from everyday wear. A factory-style replacement that matches original color and finish for a clean, finished look. What it does:

• Replaces a scratched, dented, or faded outer door surface to improve appearance.
• Covers and protects inner door components and trim from moisture and damage.
• Helps ensure the control panel and handle area have a proper mounting surface and alignment.
• Matches original color/finish so the appliance looks consistent with the rest of the cabinet.

• One exterior door panel

• Install requires removing the door trim and possibly the inner door liner; follow for panel removal and reassembly.
• Handle and control trim may need to be transferred; only the outer panel is listed as supplied.
• Use caution supporting the door during disassembly to avoid dropping or damaging the door or hinges.
• Disconnect power and water to the appliance and follow all safety procedures before beginning repair.

This hinge spring is the OEM replacement tension spring that helps support and balance the oven/range door for smooth opening, controlled closing, and proper door positioning. Restores stable door movement and reduces sudden drops. What it does:

• Provides tension to the door hinge so the door opens and closes smoothly
• Helps keep the door in the intended open or partially open position
• Reduces door sag, slipping, or sudden closing
• Can stop noisy or uneven hinge movement caused by a worn spring

• Disconnect power to the appliance before starting any repair.
• Use gloves and eye protection; springs are under tension and can snap back.
• Follow the manufacturer's removal/installation steps — you may need to partially or fully remove the door to access the hinge spring.

This 18" door gasket seals the appliance door to help maintain proper temperature and efficiency. It replaces a worn or damaged seal so the appliance can run normally and reduce energy loss. What it does:

• Creates a tight seal around the door to help prevent air leaks and temperature drift
• Helps reduce frost or moisture buildup caused by a failing gasket
• Can stop excessive cycling or longer run-times tied to seal failure
• Restores proper door closure for consistent performance

• Disconnect power to the appliance before starting any repair
• Remove the old gasket carefully; some adhesive or retainer clips may be present
• Inspect the door and retainer for damage or debris before installing the new gasket

This retainer clip secures the appliance axle in place to keep rotating parts aligned and running smoothly. Replacing a worn or broken clip helps reduce noise, vibration and drivetrain misalignment for reliable operation. What it does:

• Holds the axle/shaft in position to prevent lateral movement and maintain alignment
• Prevents excessive play that can cause noise, vibration or uneven wear
• Helps keep connected components (drum/rotor/wheel) tracking correctly
• Commonly replaced when clipped, bent or missing after repair or wear

• Disconnect power before starting any repair
• Removal may require pliers or a small punch to release the old clip; reinstall by snapping into the axle groove
• Inspect mating shaft and housing for wear or damage before installing the new clip

This name plate is the appliance's model and serial identification label—an easy way to restore clear product ID for service, parts ordering, and warranty records. Keeps your appliance information visible and readable. What it does:

• Displays manufacturer model and serial numbers and other factory ID details
• Restores a missing or damaged ID label so technicians can identify the correct parts and specs
• Helps when registering the appliance or filing warranty and service requests
• Prevents delays caused by unreadable or absent identification information

• Clean and dry the mounting surface before applying; remove old adhesive residue
• Align carefully and press firmly; some name plates use adhesive backing or mounting tabs
• Do not cover vents, controls, or safety labels when installing

This genuine replacement screw restores secure mounting of panels and components on Whirlpool appliances, helping stop loose or rattling parts and maintain proper fit. Small but essential fastener for routine repairs. What it does:

• Secures panels, trim, brackets or small components to appliance frames
• Replaces missing, damaged, or stripped screws that cause loose or misaligned parts
• Helps stop vibration noise and restore proper panel alignment
• Provides the correct thread and length for the original mounting location

• Use the correct screwdriver or bit to avoid stripping the head
• Tighten until snug; do not overtighten to prevent thread or part damage
• Turn off and unplug the appliance before accessing internal components
• Keep removed fasteners organized so you return them to the original locations

This cover assembly replaces a damaged or missing unit cover to protect internal components and keep wiring and assemblies secure. It restores the appliance's enclosure and helps maintain safe, reliable operation. What it does:

• Protects motors, wiring and internal components from dust, debris and accidental contact
• Helps reduce vibration-related movement of internal parts by keeping assemblies enclosed
• Restores the appliance's outer enclosure to prevent gaps that could allow foreign objects inside
• Addresses symptoms like cracked, broken or missing covers and loose or exposed internal parts

• Disconnect power to the appliance before starting any repair to avoid electrical shock
• Remove any obstructing panels or components to access the mounting points for the cover
• Align the cover with factory mounting locations and secure all fasteners; do not force or bend the part

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

This replacement hose routes water or ice between the refrigerator ice bin and the tub/dispensing area to restore proper flow and prevent leaks. It's a direct-fit repair part for worn, cracked, or clogged tubing. What it does:

• Carries water/ice between the ice bin and the tub/dispenser so the system can move ice or water as designed
• Prevents leaks and pooling caused by cracked or brittle tubing
• Restores proper ice dispensing when the original hose is blocked or split
• Helps maintain sanitary flow by replacing degraded, discolored tubing

• One replacement hose

• Disconnect power to the appliance and shut off the water supply before beginning
• Inspect routing and fittings; replace any damaged clamps or clips as needed
• Push tubing fully onto fittings and secure with clamps to prevent leaks

Size: 8-18 x 5/8 inch.

This screw grommet anchors a screw in thin appliance panels so trim, covers, or consoles stay tight. It provides a snug, vibration-damping fit where a standard screw could loosen or strip over time.

• Creates a captive insert so a screw can securely fasten to sheet metal or plastic panels
• Replaces a worn, cracked, or missing grommet to restore proper screw retention
• Helps reduce panel rattles and movement from vibration
• Typical signs of failure: screw won't tighten, panel or trim feels loose, grommet falls out

• Disconnect power and shut off gas/water as applicable before servicing
• Remove the screw and lift out the old grommet; clear debris from the opening
• Press the new grommet straight into the hole until fully seated and flush
• Reinstall the screw and tighten gently to avoid deforming the grommet

Size: 8-32 x 1/2 inch.

This edge guard grommet cushions and protects a cabinet or appliance panel edge to prevent wear and reduce chafing. It restores a finished look and helps keep adjacent parts from rubbing or vibrating. What it does:

• Provides a protective barrier along a sharp or exposed edge to prevent damage and wear
• Cushions panels and trim to reduce noise from vibration or movement
• Helps maintain a finished appearance where panels meet or overlap
• Can prevent metal-on-metal or metal-on-plastic contact that leads to abrasion

• One edge guard grommet

• Inspect the mounting area for damage or debris and clean before installing
• Press or slide the grommet into place along the edge until fully seated; trim excess if applicable
• If adhesives or clips are used, follow OEM recommendations for secure attachment
• Disconnect power and follow all safety precautions when working near electrical components

This front grille is the exterior trim piece that covers and protects the lower front of an 18-inch built-in ice maker, restoring appearance and allowing proper airflow. It replaces a cracked, faded, or damaged grille to keep the unit looking finished. What it does:

• Covers the ice maker's lower front opening and provides a finished appearance
• Protects internal components from debris while allowing ventilation
• Helps prevent drafts and keeps the trim line sealed and tidy
• Common symptom: grille is cracked, broken, loose, or discolored

• Designed for drop-in or snap-fit replacement at the front of the ice maker;
• Remove power to the appliance and empty nearby ice/water before beginning service
• Use basic hand tools; avoid excessive force to prevent breaking surrounding trim

This genuine fastener secures panels and components on compatible appliances so panels and parts stay safely in place during use. Small and simple, it restores proper fit where a missing or damaged screw causes loose or rattling parts. What it does:

• Fastens panels, brackets, or small components to restore secure attachment
• Helps eliminate loose panels, rattling, or misaligned parts caused by missing hardware
• Used wherever the OEM screw is specified for a clean, factory-fit repair
• Matches the original thread and head style for proper engagement

• Always disconnect power and water before starting appliance repairs
• Use the correct screwdriver or driver bit to avoid stripping the head
• Hand-start threads, then tighten snugly — do not overtighten to avoid damaging parts
• Keep small parts away from children and pets during repair

This adjustable leveling leg threads into the appliance base to set height and stabilize the cabinet. Replacing a worn or missing leg helps stop rocking and vibration and helps maintain proper alignment for reliable operation.

• Provides adjustable support at one corner of the appliance
• Helps level the unit for correct alignment with floor or cabinetry
• Reduces rocking, vibration, and rattling noises
• Replaces stripped, bent, cracked, or missing leg

• Disconnect power and, if applicable, shut off water before servicing
• Carefully support or brace the appliance to access the base safely
• Start the new leg by hand to avoid cross-threading; adjust height gradually
• Use a level to check side-to-side and front-to-back, then recheck after positioning

Size: 8 x 1-1/4 inch.

This refrigerator door handle provides a reliable grip for opening and closing the fridge door and restores a finished look after the original handle is cracked, loose, or damaged. It's a direct-fit replacement designed for easy swap-out. What it does:

• Restores secure, comfortable grip for normal door operation
• Replaces cracked, broken, loose, or cosmetically damaged handles
• Helps prevent door damage from continued use of a compromised handle
• Matches original mounting points for proper alignment and function

• Turn off power to the appliance or unplug before starting any service that may expose wiring or lights
• Use basic hand tools; save original screws and hardware when possible
• Support the door while removing/installing the handle to avoid stress on hinges
