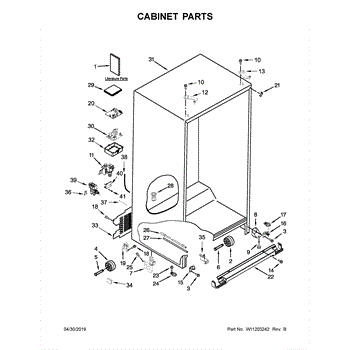

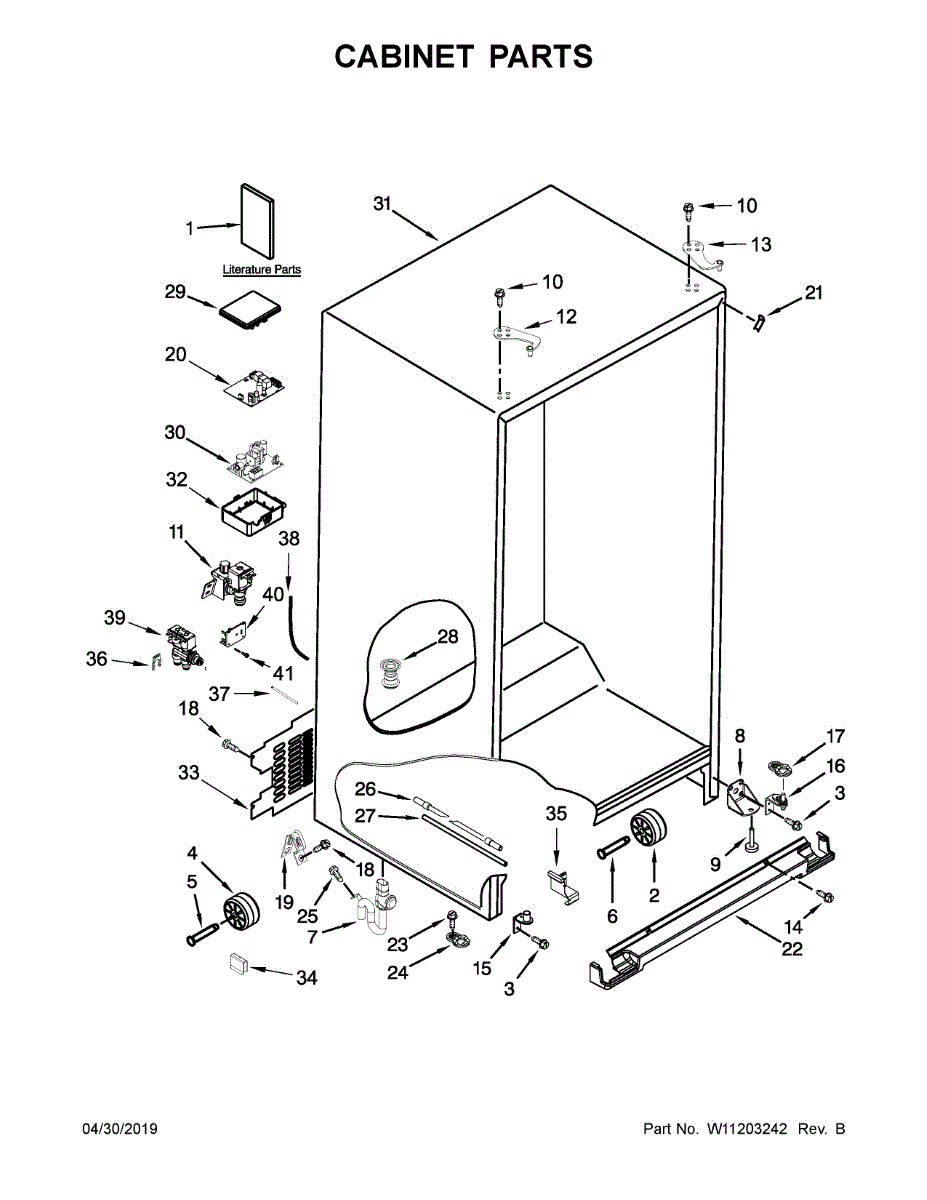

Parts for Kitchenaid KRSC503EBS01: Cabinet Parts

The FreshFlow Refrigerator Air Filter is an OEM component for Whirlpool and Maytag refrigerators. Located inside the ventilation system, this filter purifies circulated air. This air filter is 3" wide by 2" high and white in color. It should be replaced every 6 months to ensure the best performance.

Causes of failure relate to clogging from trapped dust, dander and other allergens despite regular replacement intervals. Performance decreases as filter media becomes saturated over months of use.

Symptoms of a dirty or blocked refrigerator air filter include:

• Reduced airflow causes higher compressor runtime hours
• Odors being pulled into the fridge from unfiltered vents
• Shortening of food storage life due to unpurified air exposure
• Reduced fan speeds or strange noises originating from the vents

This genuine Whirlpool filter is also compatible with Maytag, Jenn-Air, and Amana models as well.

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

This rear roller is a replacement for the rollers in a refrigerator. The rollers are not used often, but they have an important purpose. They make it easier to move the refrigerator from one area to another. If the roller had been damaged and is not working properly, it will be difficult to maneuver the refrigerator. Replacing the damaged roller with a new one before moving the refrigerator a long distance is a good idea.The rollers on the refrigerator are meant to handle a lot of pressure. However, they can still wear down and break eventually. They could also be damaged during a previous move. Before replacing the rear roller, unplug the refrigerator and remove the connection to the water supply. The replacement will require only a few tools, such as a screwdriver. It may require moving other parts of the refrigerator to get access to the rear rollers.The rear roller will work for certain models of refrigerators from Whirlpool, GE, KitchenAid, Inglis, Maytag, Admiral, International, Amana, Jenn-Air, Crosley, and Magic Chef. This is a genuine OEM replacement part that is sold individually.

This axle roller is the replacement support shaft that lets the appliance's rotating assembly turn smoothly and quietly. Installing a new axle roller corrects wobble and reduces grinding or squealing caused by a worn shaft. What it does:

• Supports the rotating drum or rack so it spins freely and stays aligned
• Helps prevent metal-to-metal contact that causes loud noise or scraping
• Stops uneven rotation and vibration that can lead to further wear
• Restores smooth operation when an original axle is bent, worn, or broken

• Disconnect power (and gas, if applicable) before starting any repair
• Access location and removal steps vary by model; follow the OEM service manual or diagram
• Inspect related parts (pulleys, idler, glides, bearings) and replace if they show wear
• Use basic hand tools; keep fingers and loose clothing clear of moving parts during testing

This steel rivet secures appliance panels and small components, restoring proper fit and preventing rattles or loose parts. It's a straightforward replacement when a worn or missing rivet causes instability. What it does

• Fastens sheet metal or trim pieces to the cabinet or internal brackets
• Restores secure mounting when a previous rivet has sheared or fallen out
• Stops panel vibration or rattling caused by a loose fastener
• Provides a permanent, non-threaded mechanical connection for components

• Replacement typically requires a rivet tool or rivet setter; drill-out may be needed to remove a broken rivet
• Match rivet type and length to the original for a secure fit
• Disconnect power and follow all safety precautions before accessing internal parts

This OEM Replacement Part is a single water inlet valve designed for use in Whirlpool refrigerators. Its key function is to supply water to the refrigerator's ice maker and water dispenser. When energized, this valve releases water from the supply line into the ice mold. If the water valve develops a crack, it will need replacement. The valve accommodates two different sizes of tubing: the smaller inlet measures 1/4", and the larger inlet measures 5/16".

By maintaining the integrity of this component, users can ensure the proper functioning of the refrigerator's ice maker and water dispenser. Always consult your appliance manual for accurate installation and replacement guidelines. This part is compatible
with select brands including Whirlpool, KitchenAid, Kenmore, and Maytag.

The Hinge-Door is an OEM part for Whirlpool refrigerators. The refrigerator door hinge is a crucial component that allows the door to properly open and close while securely holding it in place. These hinges are responsible for smooth and reliable door operation through thousands of openings and closings.

Causes of a bad hinge can include wear and tear from prolonged use, stress from overloading the door, or accidental impact damage.

Symptoms of a bad hinge include:

• The door not closing properly or staying fully shut
• Difficulty or resistance when opening/closing the door
• The door sagging or wobbling excessively
• Noise or grinding sounds coming from the hinge area

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black. For biscuit order 98008169. For white order WP98008544.

The Hinge Door is an OEM component specifically designed for Whirlpool refrigerators. It acts as the pivot point and support for the refrigerator door, controlling its movement on its hinges. The hinged door functions to securely hold the door in place while facilitating easy and reliable opening and closing.

Symptoms of a bad hinge door include:

• Loose or sagging refrigerator door that does not stay shut properly
• Difficulty smoothly opening and closing the door
• Excessive noise or vibration coming from the hinges
• Door alignment issues causing gaps around the door seal

Causes of a bad hinge door can include normal wear and tear over time, strain from heavy door usage, or damage from accidental impacts.

Color: Black

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

This black plastic corner cover replaces a damaged or missing exterior trim piece to restore the appliance's finished appearance and protect internal edges from dirt and wear. Fits the factory location and matches original styling. What it does:

• Covers and protects the appliance corner or trim area from chips, scuffs, and debris.
• Restores a clean, finished look where the original corner piece is cracked, broken, or missing.
• Helps keep moisture and grime from reaching internal seams at the corner.
• Matches the original color and shape to maintain the appliance's aesthetic.

• Install with the appliance powered off and unplugged for safety if cover removal exposes wiring.
• Remove any broken fragments and clean the mounting area before installing the new cover.
• May snap or screw into place depending on model; keep fasteners from the original cover for re-use.
