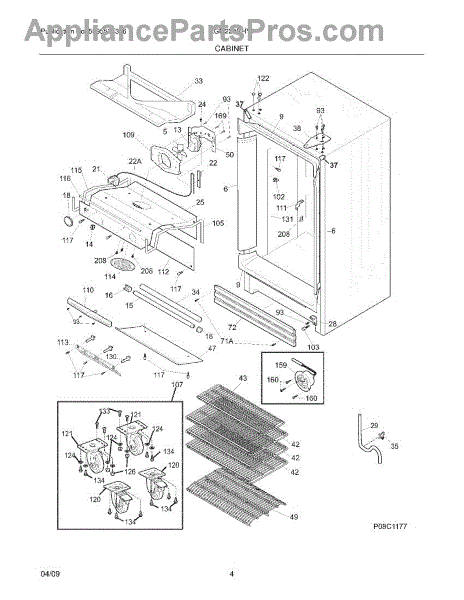

Parts for Kelvinator KGM220RHY1: 05 - Cabinet Parts

The Evaporator Fan Blade is an OEM part for Frigidaire refrigerators, designed to circulate air over the refrigerator coils and through the food compartment. The fan blade works in conjunction with the evaporator fan motor, and together, they play a key role in the cooling process by distributing cool air evenly throughout the refrigerator and freezer.

Causes of a bad evaporator fan blade can include physical damage, such as cracks or bends in the blade itself, which can occur over time due to wear and tear or during cleaning and maintenance.

Symptoms of a bad Evaporator Fan Blade include:

• Unusual noises coming from the refrigerator, such as humming or buzzing
• The refrigerator or freezer compartment is not cooling adequately

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This cabinet breaker kit forms the insulating trim around the appliance opening. It provides a proper surface for the door or lid gasket to seal against and helps minimize condensation along the edge for clean, reliable performance.

• Creates the thermal break and finished edge around the cabinet opening
• Supports correct seating of the door/lid gasket for a consistent seal
• Helps reduce sweating or moisture at the perimeter
• Replaces cracked, warped, or missing breaker trim components

• Disconnect power before servicing; wear cut-resistant gloves
• Remove the door/lid if required for access and retain all fasteners
• Carefully remove old breaker components and clean the mounting surfaces
• Install the new breaker and corners, align evenly, avoid overtightening, and verify the gasket seals all around

The Fan Motor Evaporator 115V is an OEM replacement part for Frigidaire refrigerators. It is a vital component responsible for circulating air and maintaining proper cooling and airflow within the refrigerator compartment.

Symptoms of a need to replace the fan motor evaporator:

• Inadequate cooling or uneven temperature distribution within the refrigerator
• Excessive frost buildup or ice accumulation on the evaporator coils
• Loud or unusual noises coming from the fan motor
• The fan not running or running intermittently

Causes of a faulty fan motor evaporator include wear and tear over time, bearing failure, electrical malfunctions, or obstructions preventing proper airflow.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

This replacement control knob restores simple, reliable operation for an appliance control so you can adjust heat, power or function settings with a secure grip. It replaces a cracked, loose or missing knob to make controls usable again. What it does

• Provides a secure grip to turn and set appliance controls.
• Replaces knobs that are cracked, worn, loose or missing.
• Restores basic user control over temperature, power or function settings.
• Helps prevent accidental slips when adjusting controls.

• Always disconnect power to the appliance before servicing electrical components.
• Remove the old knob by pulling it straight off the control shaft; align the new knob and push on until fully seated.
• Do not force the knob onto the shaft—if it won't seat easily, verify shaft type and orientation.

This cold control kit is the refrigerator temperature control assembly that helps regulate cooling cycles so your unit maintains the selected temperature. Replacing a failing control can restore more consistent cooling and user temperature adjustment. What it does:

• Regulates the appliance's cooling cycles and temperature setpoint to help keep food properly chilled
• Replaces a worn or erratic temperature control that can cause inconsistent temperatures
• Common symptom: appliance runs continuously, doesn't cycle off, or temperatures are too warm or fluctuate
• Works as the OEM replacement control assembly for models that use this kit

• Disconnect power to the appliance before starting any repair
• Take photos of wiring before removal to ensure correct reconnection
• Use basic hand tools; avoid forcing connectors or mounting tabs

A small metal clamp that secures the refrigerator's capillary (temperature sensing) tube to the cold control so the thermostat reads temperatures accurately. Replaces worn or missing clamps to keep the sensing tube stable and prevent movement-related issues. What it does:

• Holds the capillary/sensing tube firmly against the cold control or cabinet
• Helps maintain accurate thermostat sensing by preventing tube movement
• Reduces vibration or rattling from a loose sensing tube
• Stops intermittent temperature swings caused by a displaced capillary tube

• Disconnect power before servicing the appliance.
• Handle the capillary tube gently; avoid kinks or sharp bends.
• Install clamp over the tube and secure to the control or bracket using the factory hole or fastener; do not overtighten.

This replacement tube routes water from the refrigerator's defrost area to the drain pan to help prevent leaks and pooling. A simple, direct-fit part for restoring proper drain flow and reducing water buildup. What it does

• Channels defrost and condensation water to the drain pan to prevent interior pooling.
• Helps maintain normal drainage to avoid ice buildup or water leaks.
• Restores a damaged, cracked or clogged original tube where flow is restricted.
• Works as a service part when inspecting drain path during defrost/drain issues.

• One replacement tube.

• Disconnect power to the appliance before starting any repair.
• Remove access panels as needed and route tube along the factory path; avoid sharp bends or kinks.
• Inspect drain openings and heater components while replacing the tube.

This small plastic clip secures the dishwasher drain hose to the pump assembly or discharge fitting, keeping the hose in place and helping prevent leaks or disconnection during operation. What it does:

• Holds the drain hose firmly to the pump or outlet fitting to maintain a watertight connection
• Prevents the hose from slipping free during drain cycles
• Helps stop water leaks and washing chamber flooding caused by a loose hose
• Useful when replacing a cracked or broken retaining clip

• One drain hose retaining clip

• Disconnect power and water supply before accessing the dishwasher lower access area
• Remove the access panel or kickplate to reach the drain hose and pump connection
• Use pliers or a flat tool to remove the old clip and snap the new clip over the hose/fitting until fully seated
• After installation, run a short drain cycle and inspect for leaks; re-secure if necessary

This replacement screw fastens appliance panels and components to restore a secure fit and reduce vibration or rattling. Use when original hardware is missing, loose, or stripped to keep parts aligned and operating quietly. What it does:

• Secures panels, brackets, and trim to prevent movement and rattling.
• Replaces missing or damaged hardware that can cause loose or misaligned parts.
• Helps maintain proper component alignment for reliable operation.
• Small but essential fastener for safe, stable assembly.

• Disconnect power before servicing any electrical appliance.
• Use the correct screwdriver or bit to avoid stripping the head.
• Tighten until snug—do not overtighten, which can strip threads or crack panels.
• Keep removed hardware organized to ensure correct reinstallation.

This replacement screw secures appliance components so brackets, shelves, trim, or panels stay firmly in place. Install a new screw when the original is missing, stripped, or corroded to restore a tight, rattle-free fit.

• Fastens brackets, panels, trim, or covers to the cabinet or liner
• Helps maintain alignment and reduce vibration and noise
• Direct replacement for a missing, rusted, or stripped fastener
• Use wherever your model's parts diagram specifies this screw

• Disconnect power before servicing; shut off water if working near water lines
• Match thread and length to the original location as shown in your model's parts diagram
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening (especially into plastic)
• Retain and transfer any original spacers or clips used with this fastener

This is a genuine replacement shelf support that is designed for use in select freezers and refrigerators. The metal shelf support is installed on the side or back wall of the fridge or freezer unit and holds the shelf in place. It is made of durable metal, but it can become bent or otherwise damaged. In some cases, it may become detached and lost, which would also require a replacement. It's important to get an OEM part like this to ensure an identical fit. This OEM shelf support is manufactured to exact specifications by Frigidaire and can be used in select models from the brand, as well as those from Kelvinator and Gibson. This shelf support can have several applications on various models so it will be important to check the owner's manual parts diagram before installing this part. This genuine support is sold individually. Additional parts and hardware will require an additional purchase. Always wear gloves when performing appliance repairs, even when replacing accessories like this, to protect the hands.

This condensate drain pan sits at the base of the refrigerator to collect defrost water and allow it to evaporate over the warm compressor, helping prevent floor puddles, moisture damage, and musty odors around the unit.

• Collects and holds defrost condensate from the drain tube (also called a drain pan or drip tray)
• Stages water to evaporate safely using compressor/condenser heat
• Replace if the pan is cracked, warped, missing, or leaking
• Common symptoms: water under/behind the refrigerator, damp flooring, or persistent musty odors near the bottom rear

• Unplug the refrigerator and pull it away from the wall; shut off water supply if connected
• Remove the rear lower access panel to reach the pan near the compressor
• Lift out the old pan; clear any debris from the drain outlet; transfer original mounting hardware if needed
• Seat the new pan level under the drain tube; ensure it's secure and reinstall the access panel

The insert nut provides a durable threaded anchor in thin metal or plastic panels. It lets mounting screws tighten securely so covers, brackets, or trim stay fastened and aligned without loosening from vibration.

• Adds internal threads in a thin panel so a machine screw can be used
• Secures panels, brackets, or trim to the appliance cabinet or frame
• Replaces a stripped, damaged, or missing insert to restore screw retention
• Symptoms addressed: screws won't tighten, hardware falls out, panel rattles or shifts

• Disconnect power to the appliance before servicing; shut off water or gas supply if applicable
• Access the mounting location; remove the screw and the old insert if present
• Position the new insert squarely in the hole/slot and press or snap into place as designed
• Reinstall the screw and tighten snugly—do not overtighten to avoid stripping the insert or panel

A small black replacement plug button that restores a clean, finished appearance and helps keep controls and openings free from dirt and moisture. Designed as a direct-fit cosmetic and protective cap for compatible appliance openings. What it does

• Covers exposed holes or button openings to prevent debris and spills from entering internal areas
• Restores the original look where a worn or missing plug detracts from the appliance finish
• Holds in place to protect underlying components from accidental contact
• Useful when replacing control bezels or trim that require a matching push-in cap

• Disconnect power to the appliance before performing any service work
• Press the plug button squarely into the opening until it snaps into place; no special tools typically required
• Inspect the mounting hole for damage or debris before installing to ensure a secure fit
• If the part does not seat properly, do not force it; verify correct part and orientation

This support is a small mounting bracket used inside the appliance to hold an interior component, such as a shelf or basket. Replacing a cracked or missing support restores a secure, level fit and helps prevent wobbling or dropping.

• Provides a stable mounting point for a shelf, basket, rail, or panel
• Keeps interior components aligned and level
• Common symptoms: shelf/basket tilts, won't seat, or falls; visible cracks or missing support
• Replace if broken, deformed, or worn to restore proper fit

• Disconnect power and clear the work area before starting
• Remove the affected shelf/basket/panel to access the mounting point
• Release the damaged support (snap tabs or remove screw), align, and install the new support
• Reinstall the component and verify it sits level and secure

Specs: Hex head ,1/4-20 x 5/8

This ballast is the electrical control module for a refrigerator fluorescent light assembly, regulating current so the lamp starts and runs properly. Replaces a failed ballast to restore steady lighting and proper lamp operation. What it does:

• Regulates the electrical current to the fluorescent lamp so it starts and stays lit
• Can stop flickering or intermittent lighting caused by a failing ballast
• Prevents lamps from staying dim or not starting at all
• Works as part of the refrigerator's interior lighting system

• One light ballast (1 count)

• Disconnect power to the appliance before servicing to avoid shock
• Access is typically behind the interior light housing or access panel; remove bulbs and cover first
• Handle connectors gently and match wiring location; replace only with the same type of ballast

This cable clip secures a refrigerator's wire harness or control cables, keeping wiring routed and protected to prevent pinching or contact with moving parts. A small but important retainer for safe, tidy internal wiring. What it does:

• Holds and routes wire harnesses or cables to prevent interference with drawers, doors, or moving components
• Reduces wear and chafing on wires by keeping them away from sharp edges and heat sources
• Helps maintain reliable electrical connections by preventing strain on harnesses
• Commonly replaced when clips are broken, cracked, or missing and wires become loose or misrouted

• Turn off power to the appliance before accessing internal wiring
• Install by snapping clip onto designated frame or mounting boss and seating wire(s) into the clip
• Replace any damaged wiring or connectors discovered during installation

This hex head screw secures panels, brackets, and small components on appliances, restoring proper fit and stability. It's a direct replacement fastener when an original mounting screw is missing, loose, or damaged. What it does:

• Secures panels, brackets, trim, and internal components to prevent rattling or movement
• Replaces stripped, missing, or damaged mounting screws that cause loose parts or misalignment
• Restores reliable mechanical fastening so doors and panels sit flush and operate correctly
• Works as a general-purpose appliance mounting screw when original fasteners are worn

• Always disconnect power to the appliance before starting any repair
• Match the screw to the original location and thread engagement; start by hand to avoid cross-threading
• Use the correct driver or socket for the hex head and tighten until snug—do not overtighten
• If the original hole or threads are damaged, repair or replace the mating hardware before installing the screw

This replacement power cord delivers household electricity from the outlet to your appliance. Installing a new cord restores safe, reliable power when the original is damaged, worn, or causing intermittent operation.

• Supplies AC power from a household outlet to the unit
• Common fix for no power, flickering lights, or power loss when the cord is moved
• Replaces cords with cuts, cracks, burn marks, or melted areas
• Restores a secure electrical connection for safe, consistent operation

• Unplug the appliance and verify the wall outlet is working before replacing parts
• Access the cord routing and internal connections; note wire positions and routing before removal
• Transfer and secure any strain relief/clamp; keep wiring clear of sharp edges and hot surfaces
• After installation, ensure the cord isn't pinched and the plug seats fully in the outlet
