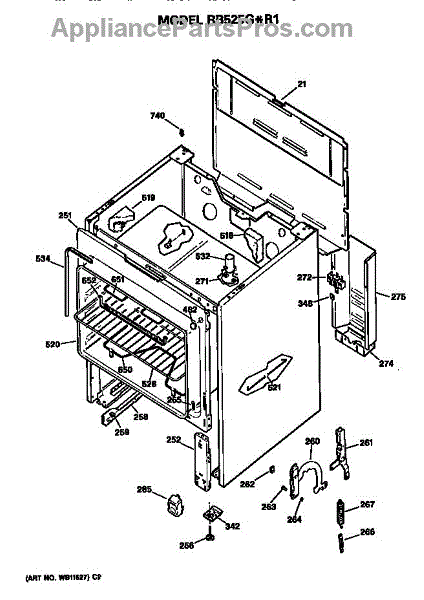

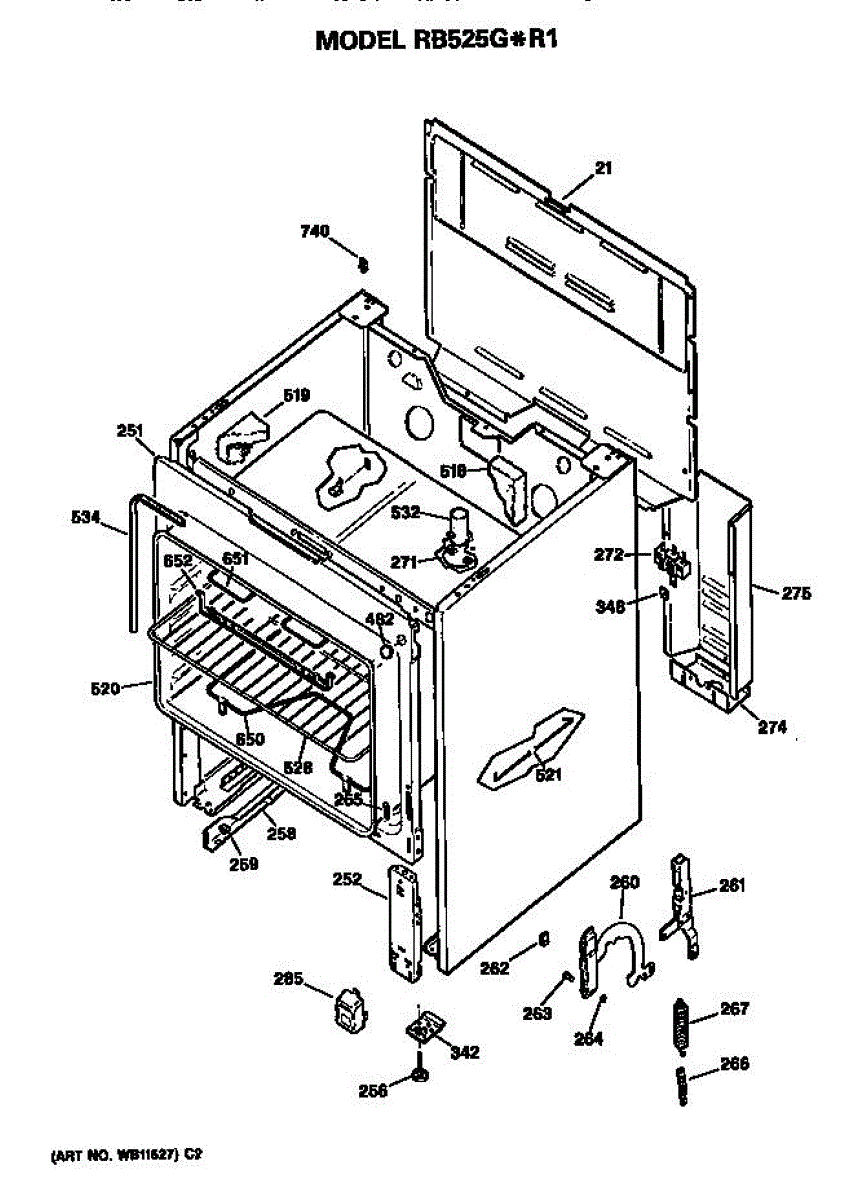

Parts for Hot Point RB525G*R1: Cabinet Parts

This part has been discontinued and is no longer available.

Decorative lens cover for range control panel indicator lights. Replace when cracked, faded, or missing to restore appearance. Verify fit by model.

Color: Black

Left side end cap for electric range control panels. Replaces cracked, broken, or missing trim pieces. Black finish secures panel edges for clean look.

Includes 12 speed nuts.

Range won't power on or heats intermittently? A faulty terminal block disrupts electrical connections. This double terminal block restores power flow.

Molded trim bezel for range control panel. Covers exposed edges and restores a finished look. Replace if cracked, broken, or missing for protection.

Clip for door hinge.

Black hex washer screw for securing range components like door trim, control panels, and internal brackets. Replace missing or stripped screws during repairs.

Cooktop chassis frame box that supports and encloses the burner assembly on your electric range. Replace if cracked, bent, rusted, or damaged.

Right hand side

Left hand side

Hardware washer kit for various appliances. Includes 12 washers for securing components during installation or repair. Replace worn or missing washers.

Replacement mounting screws for ranges and ovens. Secures panels, brackets, and components. Includes 12 screws. Order when original screws are missing.

Single speed nut fastener that provides threads for screws on appliances. Secures sheet-metal panels, brackets, or trim. Replace if missing or worn.

This mounting spacer keeps exterior panels and components properly separated for correct alignment and fit, helping prevent rubbing and vibration. It's a small, durable replacement used where original spacers have worn or been lost. What it does:

• Maintains correct gap and alignment between panels or assembly parts
• Prevents rubbing, noise, and premature wear from metal-to-metal contact
• Helps secure components in the intended position during operation
• Restores factory spacing after repair or disassembly

• Disconnect power or unplug appliance before servicing
• Replace only with the same spacer location and orientation as the original
• Require removal of trim or panels; keep fasteners and note placement
• If damaged hardware or fasteners are found, replace them to ensure secure fit

Replace the screw end cap for your electric range door handle. Essential when the original cap is missing, cracked, or damaged. Secures handle assembly.

Range oven door handle end cap kit includes left and right side caps. Replace cracked, broken, or missing end caps that secure your door handle to the trim.

Mounting bracket secures the cooktop or range top to the cabinet frame. Replace if bracket is bent, cracked, or missing to properly support the appliance.

Mounting screw secures panels, trim, and internal components in ranges and ovens. Replace if missing, stripped, or damaged to restore proper fit.

Replace your worn or missing range plug button. This small plastic bumper installs in the cooktop to fill holes and provide a finished appearance.

Thermal insulation blanket for the inner oven cavity. Replace if damaged, compressed, contaminated, or missing to restore heat retention and safety.

Metal oven rack provides stable support for cookware inside your range oven. Replace cracked, rusted, bent, or missing racks to restore proper function.

Replace your oven door gasket when it becomes brittle, cracked, or no longer seals properly. Restores heat containment and energy efficiency. Confirm fit.

Broiler won't heat or sparked out? This broil element restores high-heat broiling. DIY-friendly repair takes 20-30 minutes with basic tools.

A replacement wiring diagram sheet that shows the appliance's electrical schematic and component connections to help diagnose wiring and control issues. Clear, OEM-style schematic layout for accurate reference during troubleshooting. What it does:

• Shows the electrical schematic and connector locations so you can trace circuits and wiring paths
• Helps identify which components and terminals are tied to specific circuits during tests
• Useful for diagnosing intermittent or no-power symptoms tied to wiring or control failures
• Aids correct reconnection after servicing controls, switches, or harnesses

• Always disconnect power to the appliance before accessing electrical components
• Use the diagram as a reference—verify wiring and terminal labels against the appliance before making connections
• Handle the sheet carefully to avoid tears or marks that could obscure wiring details

Wall-mounted safety bracket that prevents range tip-over. Includes bracket, screws, and instructions. Replace missing or broken brackets required by code.
