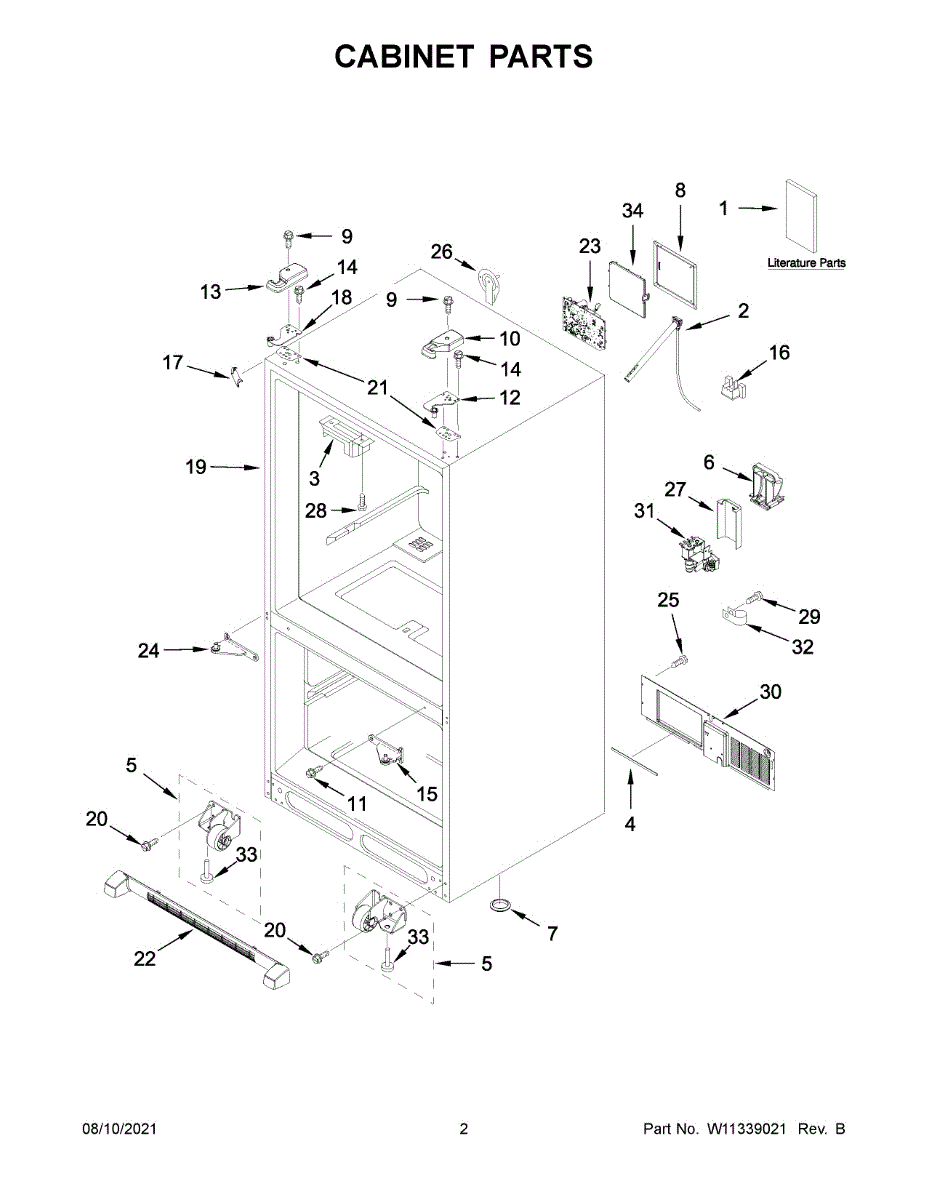

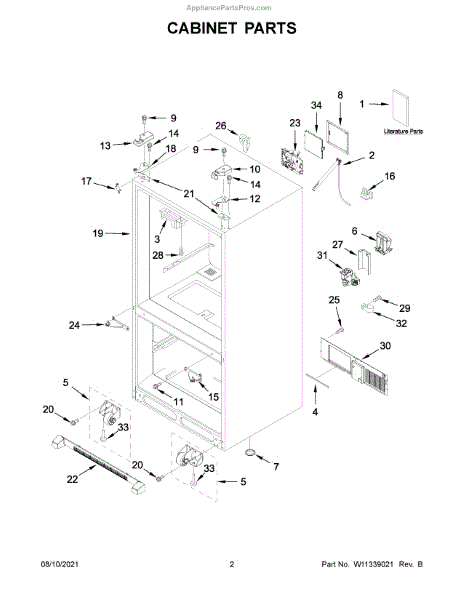

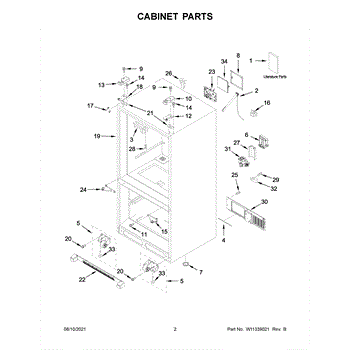

Parts for Kitchenaid KRFC300ESS03: Cabinet Parts

This replacement cover protects and conceals the appliance's control board and related electronics, helping prevent debris intrusion and accidental contact. It restores the appliance's original internal protection and appearance. What it does

• Shields the control board and wiring from dust, lint, and small debris
• Helps prevent accidental contact with electrical components
• Maintains proper component placement and internal airflow paths
• Useful when repairing or replacing control assemblies or wiring

• One replacement cover

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove access panels as needed to access the control area; handle panels gently to avoid breaking tabs
• Align the cover with mounting points and secure with original fasteners; do not overtighten
• If you see damaged wiring or connectors, stop and address electrical damage before reassembling

This cover hinge assembly secures and guides the appliance lid or top panel so it opens and closes smoothly. Replacing a worn hinge restores proper lid alignment and helps eliminate sticking, sagging, or uneven closure. What it does:

• Provides a pivot point for the lid/top cover, holding it in the correct position during use
• Restores smooth opening and closing when original hinge is bent, worn, or broken
• Helps eliminate lid sag, misalignment, or rubbing against the cabinet
• Works with the appliance's existing bracketry and fasteners to maintain fit and function

• One cover hinge assembly

• Basic hand tools required; keep fasteners organized for reassembly
• Disconnect power and follow appliance-specific safety guidelines before beginning repair
• Inspect mating surfaces and replace any damaged screws or brackets for a secure fit

This hinge cover assembly conceals and protects the door hinge area, providing a clean look while shielding wiring and moving parts from dust and moisture. It restores proper coverage if the original cover is cracked, missing, or loose.

• Covers the hinge area to protect components and improve appearance
• Helps prevent debris intrusion around the hinge mechanism
• Common fix for a broken, missing, or damaged hinge cover
• May help if the hinge area is exposed or rattling due to a loose cover

• Unplug appliance before service; shut off water if applicable
• Use a non-marring tool to release clips or tabs; avoid prying on finished surfaces
• Transfer any reusable screws or trim from the old cover
• Confirm secure engagement of tabs/screws to prevent vibration

This door hinge is a direct-fit replacement part that restores proper door alignment and smooth opening/closing for compatible Whirlpool appliances. Replacing a worn or damaged hinge helps prevent door sag, gaps, and uneven sealing. What it does

• Supports and pivots the appliance door so it opens and closes smoothly
• Restores correct door alignment to ensure an even seal and temperature retention
• Stops door sagging or misalignment that can cause rubbing or uneven wear
• Reduces noise or binding during door movement when the hinge is worn

• Unplug the appliance or disconnect power before beginning any repairs.
• Support the door while removing or installing the hinge to prevent damage or injury.
• Keep original mounting hardware; use proper tools and basic mechanical skills.
• After installation, check door alignment and operation; adjust as needed for a tight, even seal.

This door hinge is the replacement pivot that supports and guides a refrigerator or freezer door, restoring smooth opening and secure alignment. It helps stop sagging doors and prevents binding for reliable everyday use. What it does:

• Provides a stable pivot point so the door opens and closes smoothly
• Restores proper door alignment to improve sealing and prevent drafts
• Reduces door sag and uneven gaps that can cause rubbing or airflow loss
• Replaces worn or damaged hinge hardware that can cause noisy operation

• One door hinge pivot as shown

• Disconnect power to the appliance before starting and remove food from door shelves if needed
• Support the door while removing the old hinge to avoid drops or damage
• Use the original fasteners unless replacements are specified; tighten to secure but avoid over-torquing

This door hinge secures and guides the appliance door so it opens and closes smoothly and stays aligned. It replaces a worn or damaged hinge to restore proper door operation and prevent sagging or gaps. What it does:

• Provides pivot support so the door swings smoothly and stays in position
• Keeps the door aligned to form a proper seal when closed
• Prevents sagging, dragging, or uneven closing caused by a broken hinge
• Works as the mechanical connection between the door and cabinet/frame

• One door hinge

• Disconnect power (or unplug the appliance) before starting any repair
• Support the door while removing hinge fasteners to avoid injury or damage
• Use proper tools and tighten fasteners securely; avoid over-tightening

This hex-head sheet metal screw secures refrigerator panels, brackets, and other internal components. Replacing a missing, corroded, or stripped screw helps keep parts tight, reduces vibration noise, and maintains proper alignment of covers and assemblies.

• Fastens sheet-metal panels, ducts, brackets, and trim inside the cabinet
• Helps maintain a secure fit and reduce rattles or buzzing
• Restores alignment when an original fastener is missing or damaged
• Common signs include loose or vibrating panels, a stripped screw head, or a screw that won't tighten

• Unplug the refrigerator and shut off water supply if working near ice/water components
• Use the correct nut driver or socket for the hex head
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten
• Replace screws one at a time to help keep parts aligned

This base grille installs at the bottom front of the appliance to cover the lower opening and direct airflow through the ventilation area. Replace it to restore a clean, finished look when the original is damaged, loose, or missing.

• Finishes and protects the lower front of the cabinet
• Allows proper airflow through the front vent area
• Helps shield internal components from debris
• Replace if cracked, warped, broken tabs, rattling, or missing

• Disconnect power before servicing
• Remove the old grille by pulling outward at the top and lifting up, or by removing screws/clips if your model uses them
• Align tabs with slots and snap firmly into place
• Verify door clearance and secure fit, then restore power

The Kickpanel is an OEM part for Whirlpool refrigerators.This part provides a finished look while protecting internal components such as the condenser coils and compressor from dirt and debris.

Causes of a bad kickpanel can include physical damage from impacts, wear and tear from regular use, or breakage during cleaning or maintenance.

Symptoms of a bad kickpanel include:

• Visible cracks or breaks in the panel
• The panel not fitting securely or becoming detached
• Increased noise levels from the refrigerator
• Accumulation of dirt and debris around the exposed area

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Kickplate Grille is an OEM part for Whirlpool refrigerators. It is installed at the base of the refrigerator and serves to cover and protect the lower ventilation area, helping to ensure proper airflow to the condenser and other components. It measures approximately 37 inches wide, 2 inches high, and 4 inches deep.

You should replace the kickplate grille if it becomes damaged or broken. Causes of a bad kickplate grille can include accidental impacts, wear and tear over time, or exposure to cleaning chemicals that can weaken the material.

Symptoms of a bad kickplate grille include:

• Visible cracks or breaks in the grille
• Loose or unstable attachment
• Obstructions in airflow leading to poor refrigerator performance
• Accumulation of dust and debris behind the grille

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This electronic control board is the central module that runs your dishwasher's cycles. It controls power and timing so the unit fills, washes, drains, and dries correctly—restoring normal operation when the original board has failed.

• Manages cycle timing and options, routing power to the wash motor, drain pump, water inlet valve, and heating circuit
• Interfaces with sensors and the door latch to start and advance cycles
• Monitors faults to help protect components and ensure proper operation

• Disconnect power at the breaker and verify no voltage before service
• Access location varies by model
• Use ESD precautions; move connectors one at a time to the matching terminals
• After reassembly, run the unit's diagnostic/service cycle per the tech sheet to verify operation

This door hinge secures and guides a refrigerator door, restoring smooth opening, closing, and proper door alignment. It's a direct-fit replacement designed to help stop door sag, rubbing, or gaps that let cold air escape. What it does:

• Supports the refrigerator door and keeps it aligned on the cabinet
• Allows the door to pivot smoothly when opening or closing
• Helps maintain a proper seal to preserve internal temperature
• Common symptom: door droops, rubs, binds, or won't stay closed

• One door hinge

• Installation requires basic hand tools; follow OEM instructions for correct alignment
• Keep door supported or use a second person while replacing hinges to prevent injury or damage
• Inspect mounting screws and hinge mating surfaces; replace any damaged fasteners

This door hinge secures and guides the appliance door so it opens and closes smoothly and stays aligned. It replaces a worn or damaged hinge to restore proper door operation and prevent sagging or gaps. What it does:

• Provides pivot support so the door swings smoothly and stays in position
• Keeps the door aligned to form a proper seal when closed
• Prevents sagging, dragging, or uneven closing caused by a broken hinge
• Works as the mechanical connection between the door and cabinet/frame

• One door hinge

• Disconnect power (or unplug the appliance) before starting any repair
• Support the door while removing hinge fasteners to avoid injury or damage
• Use proper tools and tighten fasteners securely; avoid over-tightening

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

The Water Inlet Valve is an OEM part for Whirlpool refrigerators. It controls the flow of water to the ice maker and water dispenser, ensuring the appliance receives the right amount of water for ice production and dispensing. The valve opens and closes to regulate water flow, facilitating efficient operation of the refrigerator’s ice and water features.

You should replace this water inlet valve if it becomes clogged, damaged, or fails to operate correctly. Common causes of a bad valve include mineral buildup from hard water, wear and tear from regular use, or electrical issues that prevent the valve from opening or closing properly.

Symptoms of a bad water inlet valve include:

• No water to the ice maker or dispenser
• Slow or inconsistent water flow
• Leaks or drips from the valve area
• Ice maker not producing ice

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
