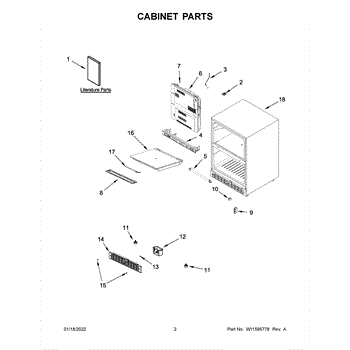

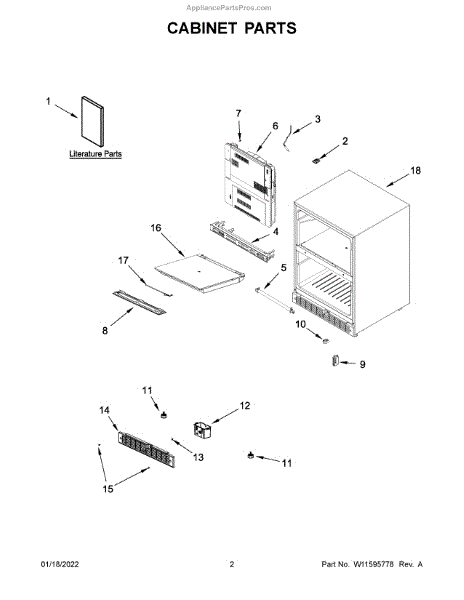

Parts for Kitchenaid KUDF204KSB00: Cabinet Parts

This bimetal defrost thermostat senses evaporator temperature and controls the defrost cycle so frost is removed reliably. It replaces a failed thermostat to help restore normal cooling performance and consistent defrost operation. What it does:

• Closes and opens with evaporator temperature to allow the defrost heater to run at the correct time
• Helps prevent excessive frost buildup on the evaporator
• A faulty unit can lead to long frost accumulation, reduced cooling, or inconsistent temperatures
• Works with the defrost heater and control to maintain proper defrost cycles

• Always unplug the appliance before attempting any repairs
• Access typically requires removing the evaporator cover; protect evaporator fins and wiring during replacement
• Verify electrical continuity of the old thermostat and replace with identical part number

This Leveler is the adjustable foot that supports and levels your appliance. Replacing a worn, cracked, or missing leg helps stop rocking and vibration, improving stability and ensuring smooth, quiet operation.

• Screws into the base to set height and keep the appliance level and secure
• Helps reduce rocking, vibration, and rattling that can cause excess noise
• Supports proper alignment and smooth door/closure operation when level
• Common symptoms: appliance wobbles, leg is stripped or broken, difficult to keep unit level

• Disconnect power and shut off gas/water if applicable before servicing
• With help, tip or lift the appliance slightly and protect the floor
• Thread the new leveler into the mounting boss and adjust height with a level
• Verify the unit is stable by gently rocking and recheck level after initial use

This electronic control box replaces a failed refrigerator control module to restore user-interface and cycle control. It manages electronic signals so your appliance can run selected cycles and settings reliably. What it does:

• Replaces the appliance's main electronic control module that governs cycle timing and interface commands
• Processes user inputs and sends signals to motors, valves, and compressors
• Can resolve symptoms like unresponsive controls, failure to start cycles, or erratic operation
• Restores proper communication between front panel and internal components when the original control is faulty

• One control box (electronic control board)

• Disconnect power to the appliance before servicing to avoid shock or damage
• Handle the board carefully and avoid static discharge; use grounding precautions
• Verify wire harness connections and mounting orientation before re-powering
