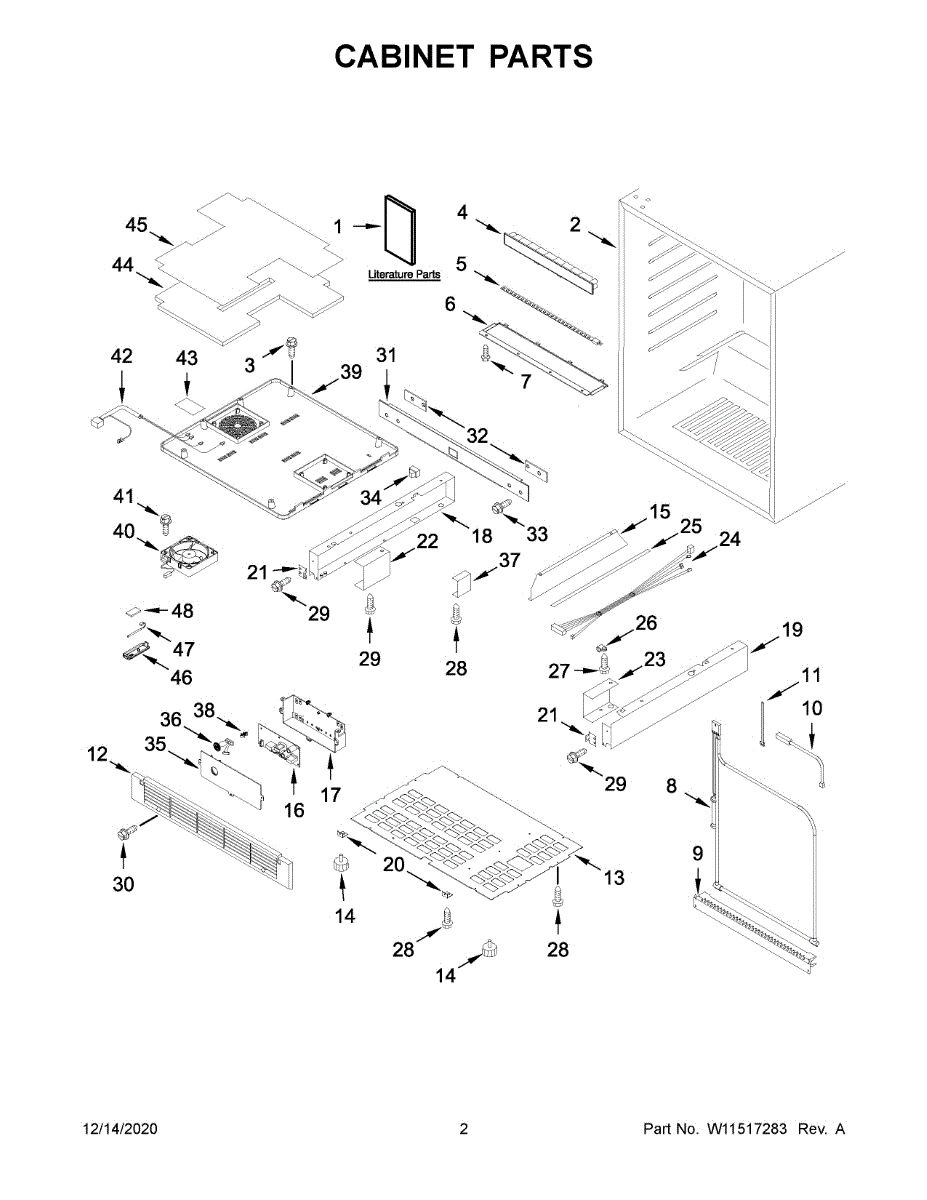

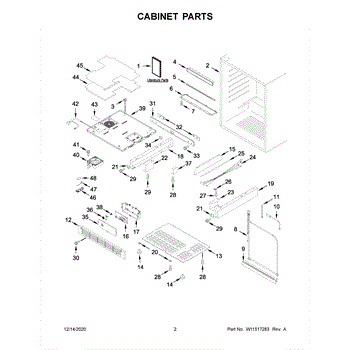

Parts for Kitchenaid KURL104EPA01: Cabinet Parts

This clip-mount bimetal defrost thermostat senses evaporator temperature and closes to allow the heater circuit during defrost cycles, helping prevent ice buildup on the evaporator. It restores proper defrost operation when the thermostat has failed. What it does:

• Opens and closes based on evaporator temperature to control the defrost heater circuit
• Allows the defrost heater to run when ice buildup requires melting
• Common symptom: excessive frost or ice on the evaporator coils
• Common symptom: defrost cycle not activating or freezer running intermittently

• One bimetal defrost thermostat with mounting clip

• Disconnect power to the appliance before servicing to avoid shock
• Replace only when the original defrost thermostat is faulty; handle the sensing element carefully
• Ensure the thermostat is securely clipped to the evaporator tube and wiring connections are tight

This defrost sensor monitors evaporator temperature so the fridge's defrost system runs when needed, helping prevent excessive frost and maintain efficient cooling. It replaces a faulty thermistor to restore proper defrost cycles and temperature sensing. What it does:

• Senses evaporator coil temperature and sends readings to the control board or defrost timer.
• Triggers defrost cycles when the evaporator reaches temperatures that indicate ice buildup.
• Commonly used when frost accumulates on the evaporator or the freezer runs too cold/too warm between cycles.
• Works with compatible refrigerator control systems that rely on a thermistor-style defrost sensor.

• One defrost sensor (thermistor) assembly.

• Disconnect power to the appliance before servicing to avoid electrical shock.
• Handle the sensor and wiring gently; avoid pulling on wires or bending the sensor probe sharply.
• Follow OEM routing and connector orientation; secure the sensor to the evaporator per the original mounting.

This Leveler is the adjustable foot that supports and levels your appliance. Replacing a worn, cracked, or missing leg helps stop rocking and vibration, improving stability and ensuring smooth, quiet operation.

• Screws into the base to set height and keep the appliance level and secure
• Helps reduce rocking, vibration, and rattling that can cause excess noise
• Supports proper alignment and smooth door/closure operation when level
• Common symptoms: appliance wobbles, leg is stripped or broken, difficult to keep unit level

• Disconnect power and shut off gas/water if applicable before servicing
• With help, tip or lift the appliance slightly and protect the floor
• Thread the new leveler into the mounting boss and adjust height with a level
• Verify the unit is stable by gently rocking and recheck level after initial use

This control box is the appliance's electronic control board assembly that manages cycle settings and power distribution. It restores keypad/console control so the appliance responds correctly to user inputs. What it does:

• Receives user commands and runs the appliance's control logic
• Switches power to motors, valves, heaters, and other components as required
• Communicates status to the console/display and coordinates timed cycles
• Common symptoms of a failing unit: unresponsive controls, error codes, or intermittent/no operation

• Disconnect all power before starting — observe lockout/tagout procedures
• Take photos of wiring and connector positions before removal for correct reassembly
• Handle the board carefully; avoid static discharge and contact with circuitry

This door-position switch detects whether the appliance door is closed and tells the control when it's safe to run, restoring normal safety interlock function. It replaces a worn or failed switch to help appliances start only with the door securely closed. What it does

• Senses door open/closed position so the appliance will operate only when the door is shut
• Restores safety interlock that prevents motor/startup with the door open
• Common symptom fix: appliance won't start or stops immediately when the door is closed/open
• Resolves intermittent start issues or machines that only run with the door held shut

• Disconnect power (unplug or shut off breaker) before beginning any repair
• Basic hand tools typically required; access panels or door trim may need removal
• Handle the switch and terminals gently to avoid damage; wiring matches original
• After installation, restore power and test door operation and normal cycle start

This spacer positions and separates components to maintain proper alignment and prevent rubbing or binding. It restores correct clearances so moving parts run smoothly and quietly. What it does

• Keeps parts spaced to prevent contact and wear
• Helps maintain alignment of rotating or stationary assemblies
• Reduces noise and vibration caused by rubbing or misaligned components
• Supports reliable operation of the surrounding parts

• One spacer

• Disconnect power (and gas if applicable) before servicing
• Use basic hand tools; avoid forcing the spacer into place

A single replacement mounting screw used to secure appliance panels and components for a stable fit and quiet operation. Use this screw to replace missing or damaged fasteners and restore proper panel alignment and function. What it does:

• Secures panels, trim, and internal brackets to prevent movement and rattling
• Restores proper alignment where a lost or stripped screw allowed gaps
• Helps maintain electrical and mechanical component positioning for safe operation
• Suitable as a direct replacement when the original screw is damaged or missing

• One replacement mounting screw

• Turn off and unplug the appliance before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug—do not overtighten to prevent thread or part damage
• If threads are damaged, replace the mating captive nut or insert as needed

This wire harness cover protects and organizes appliance wiring, helping prevent abrasion and accidental contact for safer, more reliable operation. It keeps wiring routed and out of the way of moving parts. What it does:

• Shields wiring from rubbing, chafing and heat exposure that can cause shorts
• Helps keep harnesses routed neatly to reduce strain and interference
• Can stop intermittent electrical issues when worn covers expose wiring
• Commonly replaced when cover is cracked, melted, or missing

• Disconnect power (unplug or shut off breaker) before starting work
• Remove access panels as required; secure the harness under the cover and fasten per factory locations
• Use basic hand tools (screwdriver/socket) and avoid forcing clips to prevent breakage
• Repair or replace the harness before reassembling

This thermistor is the refrigerator/freezer temperature sensor that reads internal air temperature and sends that signal to the control board so the appliance maintains correct cooling. Replaces a failed sensor to restore accurate temperature control. What it does:

• Senses cabinet or evaporator temperature and relays the reading to the control board
• Helps the control system cycle the compressor, fans, and defrost as needed
• Commonly fails when the fridge runs too long, runs constantly, or shows incorrect temperatures
• Can cause improper cooling or defrost control when damaged or disconnected

• One thermistor temperature sensor

• Disconnect power to the appliance before accessing components
• Handle the sensor and wiring gently; avoid pulling on wires or kinking the probe
• Reinstall in the same location and routing as the original to ensure accurate readings

This is the appliance control box — the electrical assembly that manages cycle selection, timing and power distribution so your appliance responds correctly to user commands. Replacing a faulty control box restores normal control and cycle operation. What it does:

• Receives inputs from the user interface and controls cycle timing and sequences
• Switches power to motors, valves, heaters or other components as directed
• Sends/receives signals to control indicators and status displays
• Can cause no-start, unresponsive controls, error codes, or incorrect cycles when faulty

• Disconnect all power before attempting replacement to avoid electrical shock
• Handle the board carefully and avoid static discharge; use ESD protection if available
• Reinstall all covers and wire connectors securely; test appliance functions after power is restored
