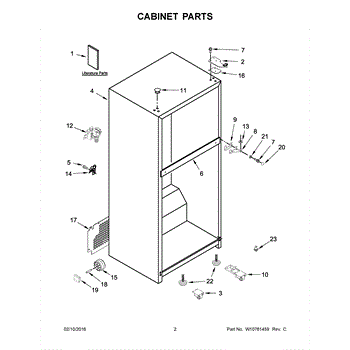

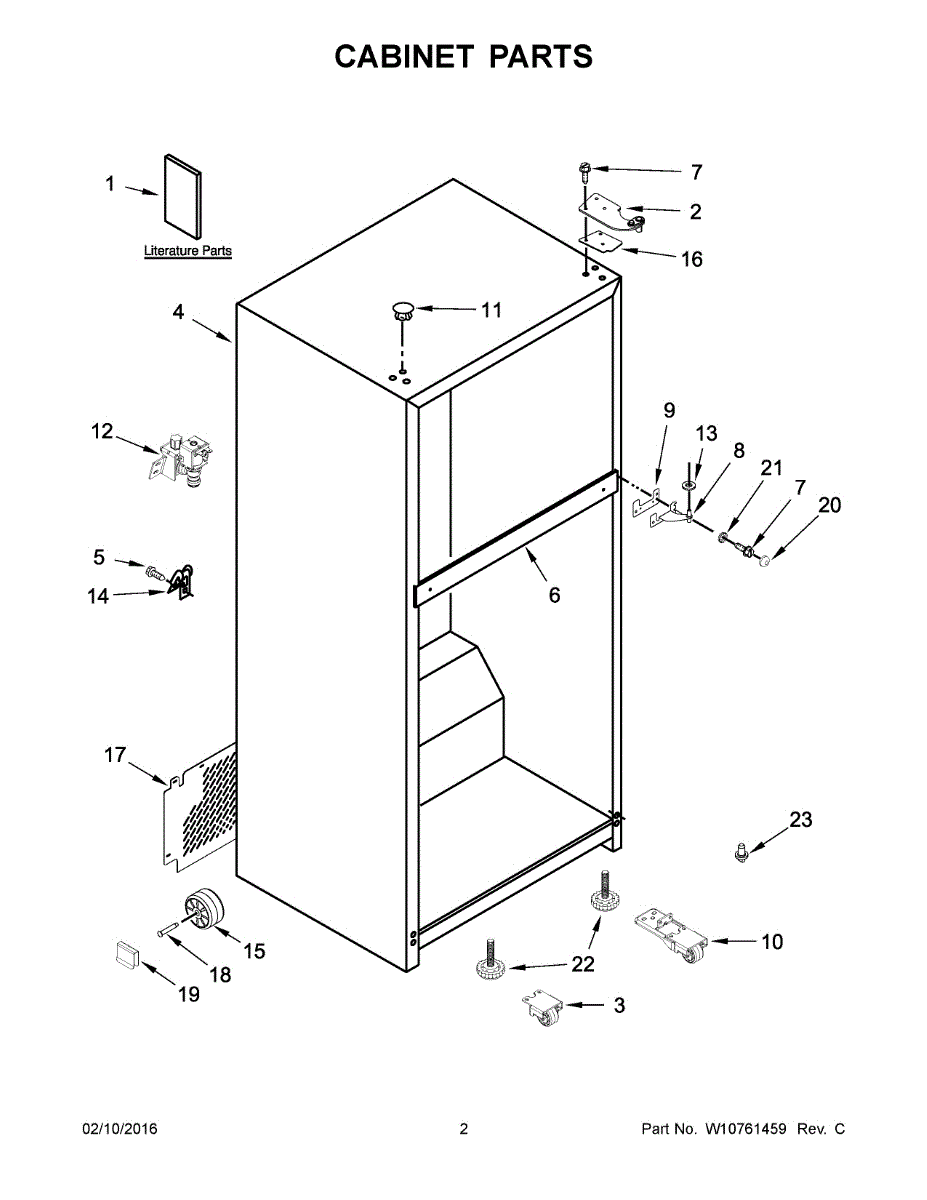

Parts for Maytag MRT519SZDE00: 02 - Cabinet Parts

This top door hinge assembly mounts at the upper corner of a refrigerator or freezer door to support the door and provide a smooth pivot. Replacing a worn hinge restores proper alignment, smooth closing, and an effective gasket seal.

• Supports the door at the upper pivot point and carries its weight
• Keeps the door square with the cabinet for proper sealing
• Enables smooth opening and closing without binding
• Common symptoms of a failing hinge include door sagging, rubbing, popping/creaking sounds, and poor sealing or condensation around the door

• Disconnect power; remove door contents for easier handling
• Support the door before removing the upper hinge screws and hinge
• Note hinge orientation and transfer any shims/spacers during reassembly
• Tighten screws securely, then verify door alignment and gasket seal

This roller-cab replacement roller helps support and guide a cabinet or slide assembly so doors or drawers move smoothly. It restores proper alignment and reduces sticking or uneven movement for affected cabinetry components. What it does:

• Supports cabinet/drawer movement by providing a low-friction rolling surface
• Keeps doors/drawers tracking straight and prevents sagging or binding
• Helps eliminate noisy or rough operation caused by worn rollers
• Works as a direct-fit replacement when the original roller is damaged or missing

• One replacement roller as pictured

• Inspect mounting clip/pin and surrounding track; replace any damaged hardware before installing the roller
• Remove power to any connected appliance before accessing internal cabinetry components when applicable
• Typical install requires removing the drawer or door to access the roller; keep fasteners handy and note orientation
• If movement problems persist after install, check adjacent rollers and track alignment

Size: 8-18 x 1/2 inch.

A factory fastener used to secure appliance components and panels. Replacing a missing, rusted, or stripped screw restores a solid, rattle-free fit and helps keep brackets, housings, and covers properly aligned for reliable operation.

• Fastens and holds panels, brackets, or internal components in place
• Helps maintain alignment and reduce vibration or rattling noises
• Direct replacement for a lost, corroded, stripped, or damaged fastener
• Restores proper fit when a component has loosened over time

• Unplug the appliance; also shut off gas and/or water supplies before servicing
• Match to the original screw and start threading by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• If multiple screws secure a part, start all screws before fully tightening to ensure even seating

The Center Door Hinge is an OEM replacement part for Whirlpool refrigerators. As one of several hinges supporting each refrigerator door panel, it works to guide opening and closing movements.

Causes of a faulty center hinge tend to be wear from years of continuous operation with near-daily door cycles. Complete failure could also occur in the event of physical damage sustained during a repair or installation issue.

Symptoms include:

• Looseness, wobbling, or misalignment of the associated door
• Increased effort required to open or close doors
• Potential for doors to fall off alignment, cease opening fully
• Risk of door detachment altogether without hinge support

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

This small shim installs on the refrigerator's center hinge pin to set door height and reduce excess play. Replacing a worn spacer can help restore smooth door movement and a reliable gasket seal. What it does:

• Maintains proper spacing at the center hinge to support door alignment
• Reduces door wobble, sagging, or rubbing against the cabinet
• Helps doors open and close smoothly with consistent gasket contact
• Can lessen clicking or squeaking from a worn hinge interface

• Includes the center hinge spacer only

• Unplug the refrigerator or switch off power at the breaker
• Remove items from the door; support the door before loosening center hinge screws
• Lift the door off; place the new spacer on the center hinge pin in the same orientation as the original
• Reinstall the hinge and door; tighten fasteners and verify door alignment and gasket seal

This cabinet roller replaces a worn or damaged roller to restore smooth, stable movement for drawers or cabinet doors. It reduces sticking, squeaking, and uneven travel so the cabinet operates quietly and reliably. What it does:

• Supports and guides a cabinet drawer or door along its track
• Restores smooth rolling action when rollers are cracked, missing, or worn
• Stops rubbing, scraping, or loud squeaks caused by damaged rollers
• Helps prevent uneven or stuck drawer/door movement

• Disconnect power (or remove items) and access the roller area before starting
• Inspect the mounting bracket and track for damage; replace any broken clips or guides
• Remove the old roller and press or screw the new roller into the same mounting location

Color: White

Color: Black

Color: Grey

The Hinge Washer is an OEM replacement part for Whirlpool refrigerators. This small washer plays a supports the refrigerator door hinge assembly. Center hinge plastic washer.

Causes of a bad hinge washer are generally normal wear and tear from extensive use. As the washer absorbs pressure each time the door is opened or closed, it can gradually deteriorate or crack. Physical damage is also possible if the door is accidentally struck or slammed.

Symptoms of a worn or damaged hinge washer include:

• sagging doors
• uneven gaps around the door seal
• doors that do not stay securely closed on their own
• Over time and repeated opening/closing stress, the hinge washer compresss which affects door alignment.

This is a genuine Whirlpool OEM replacement this part is also compatible with Maytag, Jenn-Air and some Kenmore models.

The Roller is an OEM part for Whirlpool refrigerators. It is designed to facilitate the smooth movement of your refrigerator, making it easier to position and clean underneath the appliance. The roller supports the weight of the refrigerator and allows for easy adjustments in placement.

Causes of a bad fridge roller can include wear and tear from frequent movement, exposure to heavy loads that can damage the roller, or accumulation of dirt and debris that can impede its function. When a roller is damaged, it can affect the stability and mobility of the refrigerator.

Symptoms of a bad Roller include:

• Difficulty moving the refrigerator
• Unusual noises when the refrigerator is moved
• Uneven leveling of the refrigerator
• The refrigerator not staying in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This hinge shim corrects hinge spacing to help doors sit square and reduce rubbing or uneven gaps. It's a simple replacement used to restore proper door alignment so the door closes and seals more reliably. What it does:

• Adjusts hinge spacing to realign doors; use when a door leans or shows uneven gaps.
• Helps the door close and seal better by restoring correct hinge clearance.
• Prevents binding or rubbing that can occur when a hinge or door is slightly out of position.
• Small, low-profile shim used as a targeted fix without replacing the entire hinge assembly.

• Disconnect power to the appliance before starting; if applicable, shut off the water supply.
• Support the door while loosening hinge fasteners to avoid sudden movement or injury.
• Install the shim between hinge components as shown in the service diagram; retighten fasteners evenly.

This rear unit compartment cover protects internal components and provides a finished steel shroud for the appliance, helping prevent debris contact and reducing exposure to wiring and electronics. Durable steel construction for reliable protection. What it does:

• Covers and shields rear compartment components from dust, debris, and accidental contact
• Helps maintain proper airflow routing and component separation inside the unit
• Reduces noise from internal parts and gives a finished appearance to the rear compartment
• Can prevent shorting or damage caused by foreign objects reaching wiring or electronics

• Disconnect power to the appliance before beginning any work
• Use appropriate hand tools to remove and reinstall mounting screws; retain any original hardware if reusable
• Align tabs and mounting holes carefully to avoid bending the cover or stressing adjacent components
• Wear gloves to protect hands from sharp edges

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This small pin clip secures the roller pin in a refrigerator drawer/track assembly, keeping the roller and pin from sliding apart. Replacing a missing or bent clip restores smooth drawer movement and helps prevent bins from tilting, binding, or dropping.

• Retains the roller on its pin to keep the drawer track assembly together
• Helps resolve drawers that tilt, bind, or fall when a clip is missing or damaged
• Prevents the pin from backing out, reducing scraping or popping noises
• Replaces clips that are missing, bent, or no longer hold securely

• Disconnect power and remove the drawer/bin to access the track and roller
• Support the roller; remove the old clip with small pliers while securing the pin
• Align roller and pin; press the new clip fully into the groove until seated
• Reassemble and verify the drawer glides smoothly without binding

Color: Black

Color: White

Color: Grey

This small fastener washer fits under a bolt or nut inside your washing machine, distributing clamping force and protecting surfaces. Replacing a worn or missing washer restores a secure fit and helps reduce vibration, rattling, and premature wear.

• Distributes load evenly under a bolt or nut to prevent damage and loosening
• Helps maintain correct spacing and alignment within the assembly
• Reduces metal-on-metal wear at the mounting point
• Can help address looseness, rattling/metallic noises, and excessive vibration

• Disconnect power and shut off water before servicing
• Note the original washer's position and orientation before removal
• Inspect the bolt/nut and mating surfaces; replace any damaged hardware
• Tighten to manufacturer guidance; avoid overtightening

This leveler is the adjustable foot that threads into the base to stabilize and level the appliance. Proper leveling reduces rocking and vibration and helps doors, drawers, or tubs align and operate smoothly.

• Supports the appliance and allows height adjustment to compensate for uneven floors
• Helps prevent rocking, rattling, or excessive vibration during use
• Aids in proper door/lid alignment and smooth closing
• Replace if the foot is cracked, stripped, or missing

• Disconnect power; turn off gas or water supply if applicable
• With a helper, carefully tilt or raise the appliance and protect the floor
• Unthread the old leveler; hand-thread the new leveler to avoid cross-threading, then tighten as designed
• Adjust to level side-to-side and front-to-back; the unit sits stable on all corners

A replacement hinge pin that secures and guides the appliance door hinge so the door opens, closes and stays aligned. Installs quickly to restore correct door pivot and reduce sag or binding. What it does

• Acts as the pivot point for the door hinge so the door swings smoothly.
• Restores proper door alignment to prevent gaps or doors that won't latch fully.
• Stops noisy or rough door movement caused by a worn or bent pin.
• Helps maintain seal performance by keeping the door flush with the cabinet.

• Disconnect power to the appliance and remove any items from the door area before starting.
• Support the door while removing/installing the pin to avoid damage or injury.
• Use appropriate hand tools and keep track of any retainers or fasteners removed.
