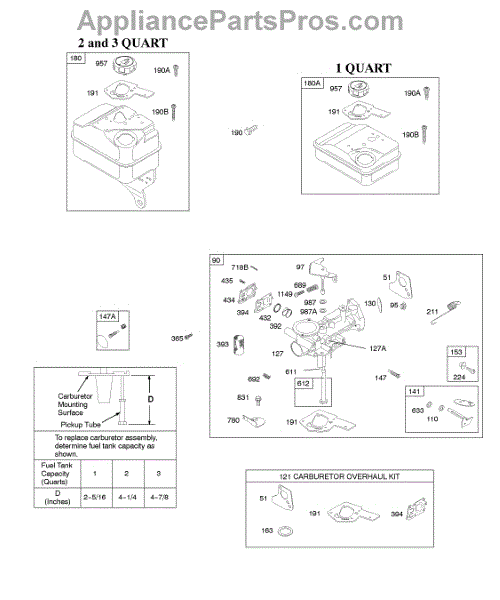

Parts for Briggs & Stratton 094202-0117-E1: Carburetor, Carburetor Overhaul Kit, Fuel Supply Parts

Seals the carburetor intake to prevent air leaks and dirt infiltration. Replace if you notice rough idling or performance issues. Confirm fit with your model.

Rebuild your small engine carburetor with this complete overhaul kit. Includes gaskets, seals, and diaphragm to restore proper fuel delivery and performance.

This genuine OEM welch plug manufactured for use in select Briggs & Stratton engines may be found in several locations in the carburetor. Its job is to seal air and fuel passages that help ensure that the proper air and fuel mixture gets to the engine. These plugs are exposed to constant vibrations, chemicals, and high temperatures. They can become worn, damaged, or break loose and get lost over time. If this occurs, a replacement will be necessary. It's often best to replace all of the welch plugs and other gasket components at the same time. This OEM welch plug is manufactured to specific standards for use in select engines manufactured by Briggs and Stratton and found in various lawnmowers and snow blowers from the brand, as well as select models from Lawn Boy and Toro. The plug is sold as an individual unit. Those who need more than one will have to order multiple quantities. Since this is an internal engine part, it is important to wear gloves and allow the engine to cool completely before doing any repairs.

Fix an engine that won't start or runs rough with a new choke shaft. Controls air intake to the carburetor. Simple DIY repair in under 30 minutes.

Durable composite gasket creates an airtight seal for air cleaner assembly. Replace when worn or deteriorated to maintain peak engine performance.

Seals the fuel tank to prevent leaks in small engines. Replace if you notice fuel odor, visible leaks, or during tank maintenance. Verify fit with your model.

This screw is designed by Briggs & Stratton as a mounting screw to attach the carburetor onto the engine body so the two can work in tandem. Over time, these screws can become damaged or broken, which requires replacement. A visual inspection of the carburetor mounting screws can help determine whether they need to be replaced. Cleaning the screws can make it easier to see if the screw has been broken or damaged in any way. In some cases, these screws can also become loose, which also indicates a replacement is required. Remove the old screw using the appropriate screwdriver and install the new screw before running the engine again. This is a genuine OEM replacement part directly from the manufacturer. It is sold individually. This screw is designed for use with Briggs & Stratton, Simplicity, Toro, and Cub Cadet lawnmowers, chipper shredders, leaf blowers, snowblowers, tillers, generators, and lawn tractors. A hex screwdriver and other tools may be needed to make a repair.

Replace your engine's pump diaphragm spring if fuel delivery is weak or inconsistent. Metal spring attaches to spring cap for proper diaphragm return.

Regulates fuel in the air-fuel mixture for 3-5 HP horizontal crankshaft engines. Replace if engine won't run or diaphragm becomes stiff or damaged.

Replacement carburetor spring cap for lawn and garden engines. Retains correct spring position between spring and diaphragm. Replace if cracked or worn.

This is an authentic diaphragm cover from the manufacturer Genuine Midwest Engine that is used for many different types of lawn and garden equipment. The diaphragm cover is used to provide an airtight seal for the carburetor. This, along with gaskets and filters, helps to ensure that there is not too much air getting into the carburetor. Over time, however, the cover could start to degrade and no longer provide the airtight seal that is needed. If this happens and more air gets into the carburetor, it could cause problems starting the engine and keeping it running. If this occurs, it will need to be replaced. The owner may also want to replace the gaskets when they replace the diaphragm cover. The high-quality replacement diaphragm cover is a genuine OEM part that is sold individually. The cover can be used for many models of small engines, generators, tillers, blowers, log splitters, and wood chippers. Certain models from the brands Briggs & Stratton, Toro, Craftsman, Cub Cadet, and Simplicity are compatible with the cover.

This screw is made of durable metal in a gold color. It is designed to be used in various lawn and garden equipment, including lawn mowers and leaf blowers. The screws can be used on their own or in tandem with a nut in a pre-drilled, threaded hole. If a nut is going to be used, it's best to choose a version with the same finish and threading as the screw. Over time, a screw can become damaged and may need to be replaced.Extremely hot temperatures, excess stress, and corrosion can all make the screw weaker, which can cause it to loosen, become brittle, and eventually break. Visually inspect the screw to see if any corrosion is present or the screw has become damaged or broken. If it needs to be replaced, a screwdriver can remove it and insert the replacement part. If the screw has been stripped, a bolt cutter can be used to take it out of its hole to screw in the replacement.This screw is compatible with Briggs & Stratton, Toro, Simplicity, Craftsman, and Cub Cadet lawn mowers, wood chippers, tillers, log splitters, leaf blowers, and generators. It is a single genuine OEM replacement part sourced directly from the manufacturer.

Transfers fuel from the carburetor float bowl to the main body. Replace if cracked, clogged, or causing fuel flow issues. Verify fit with your model number.

Fuel tank cap seals your engine's fuel system to prevent dirt and debris contamination. Replace if threading is damaged or cap won't tighten properly.
