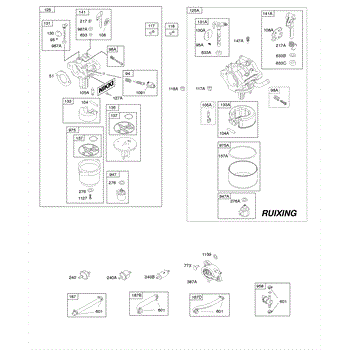

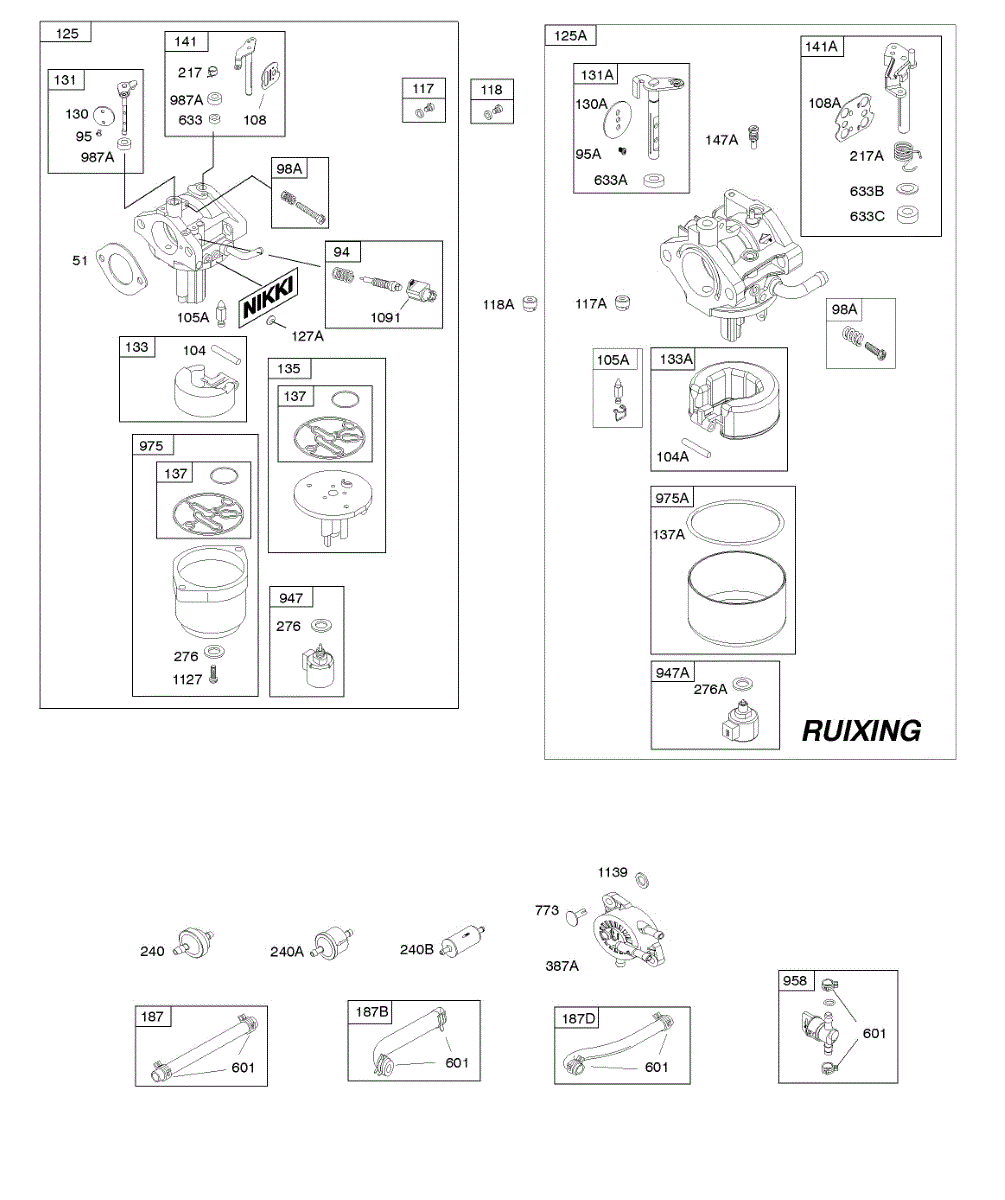

Parts for Briggs & Stratton 331777-0546-E1: Carburetor, Fuel Supply Parts

This genuine OEM replacement intake manifold gasket for a small gas-powered lawn appliance motor acts as a seal between two engine components, like any other gasket. However, the intake manifold gasket is one of the most necessary gaskets because it is responsible for sealing the engine vacuum and coolant. Intake manifold gaskets can be damaged because of their location in the engine. If the engine has been running hot for a while, the metal can expand and crush the gasket, causing it to fail. If this happens, the engine will begin overheating, as coolant can no longer reach the areas where it is needed. Replacing an intake manifold gasket will mean removing the air filter and its housing, the oil drain tube, blower housing, breather tube, and carburetor. Making this repair requires a set of socket wrenches and screwdrivers. This part is compatible with a wide range of mowers, chippers, and blowers from Briggs & Stratton, Toro, Cub Cadet, MTD, Simplicity, and Lawn Boy. It is sourced from the original manufacturer and ships individually.

This is a carburetor float that is used in a wide variety of lawn and garden equipment. The carburetor float is used in the engine to close and open the float needle valve. The main responsibility of the carburetor float is to open up to allow fuel into the carburetor when drained and to shut off the flow of fuel if the bowl is filled. If the float isn't working properly, the engine may not idle, the carburetor can flood, and the motor may stall while the tool is in use.Before replacing the carburetor float, put on work gloves and disconnect the spark plug wire. The carburetor will need to be removed from the equipment. The carburetor float and any other malfunctioning parts can be taken out and replaced with new components. While working on the parts, the jets can also be cleaned as a maintenance process.This carburetor float is sold as an individual item. It is an authentic OEM replacement part sourced directly from the manufacturer. The float is designed to be used with lawnmowers, lawn tractors, wood chippers, and snowblowers manufactured by Cub Cadet, Briggs & Stratton, MTD, Toro, and Simplicity.

When the fuel in a small, gasoline-powered engine moves up the fuel line, it must be mixed perfectly with air and together burn in just the right mixture and amount in order for engines to function properly. Because too much gas might be coming into the carburetor or because there might be a need for more gasoline than can readily move up the fuel line, the carburetor has a small device called the float bowl. The float bowl has a ready supply of gasoline for use as needed by the carburetor. To keep the gasoline in check while all this is happening, a device called the float bowl gasket keeps all the elements separate. With use and age, sometimes these gaskets crack or grow brittle and must be replaced. This causes air to leak into the mix and the engine will not operate smoothly. Replace this gasket with a genuine OEM replacement part like this one, manufactured to be exactly like the factory original that is being replaced. This part is compatible with engines sold by Toro, Simplicity, MTD, Briggs & Stratton, and Cub Cadet. Part sold individually.

This genuine Midwest Engine fuel line directs fuel into the carburetor, which creates the mixture of fuel and air that powers the lawn tractor or a lawn mower.Fuel lines are likely to suffer damage as a result of the dirt, debris, pebbles, and gravel that might be flung around in the air and onto the lawn mower or lawn tractor during use. If punctures, tears, rips, warping, or erosion of the part occurs, the fuel lines must be removed and replaced immediately. Operating a lawn mower or lawn tractor without a functional fuel line can impact fuel economy or even cause dangerous fuel leaks. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This fuel line is compatible with the following brands: Midwest Engine, Briggs & Stratton, Cub Cadet, Simplicity, and Toro. This part is sold individually.

This is a fuel line replacement intended to keep a lawnmower's engine running smoothly. It is long enough to make a couple of fuel lines, just cut the fuel line to the desired length and keep the rest as a spare. When a mower doesn't start easily or performs poorly when running, the fuel delivery system may have a problem and will need repair. The fuel line that supplies gas from the tank to the carburetor may be cracked or broken. When this occurs, it is best to replace the fuel line before it becomes a flammable hazard. This is an OEM replacement fuel line sourced from the manufacturer and is sold individually. This replacement part is compatible with different Briggs & Stratton mowers. Remember to use work gloves and drain the gas tank before the installation of this part.

This replacement part is a fuel line. This is a genuine replacement part made by Midwest Engine. This part is commonly found connected to fuel tanks and is able to provide the proper stunned for the fuel to travel through when needed. A new fuel line might be needed if the current one is no longer able to stay connected to the machine, if the current line is leaking in any way, or if the line has become damaged. This can be due to normal wear and tear over time and should be replaced if this is the case. Work gloves are recommended when working with parts that have touched fuel. This is a genuine OEM replacement part. This part is sold individually and is sourced directly from the manufacturer.

This is an inline fuel filter and is an essential part of a fuel system. This part can be found inside the fuel tank or fitted into the fuel line. The fuel filter is responsible for straining particles like water and debris in the fuel so that they won't reach and clog the combustion chamber and eventually reduce the engine's performance. Annoying sputters when starting equipment and uneven idling are incidents that may be related to a clogged fuel filter. To remove a fuel filter, first cut off the fuel supply and then slide the fuel clamps away to remove the filter. Remember to work in a well-ventilated area, with no open flame or fire source, when installing this component. This part works with lawn mowers, snowblowers, tillers, generators, wood chippers, and others with small engines. It is compatible with brands such as Briggs & Stratton, Craftsman, Toro, Cub Cadet, Murray, Lawn Boy, Snapper, and Simplicity. This is a manufacturer-supplied OEM replacement part and comes as an individual component.

This fuel filter is a genuine Midwest Engine part, sold individually. A fuel filter can be used as a replacement part for outdoor appliances including lawn mowers, snowblowers, generators, and wood chippers. This genuine OEM part is made out of durable, high quality materials.If the engine won't start, it is possible that the fuel filter has been clogged and is not allowing the flow of fuel into the carburetor, where it is mixed with air in order to ignite the spark plugs and power on the engine.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This fuel filter is compatible with the following outdoor appliance brands: Midwest Engine, Briggs & Stratton, Craftsman, Toro, Cub Cadet, Murray, Tecumseh, Snapper, MTD, and Simplicity.

This fuel pump is a genuine Midwest Engine part, sold individually. This fuel pump can be used as a replacement part or a lawn tractor. The purpose of a fuel pump is to provide a passageway for fuel to channel through the fuel line and into the fuel tank.The fuel pump of a lawn mower or a lawn tractor might eventually have to be replaced in the event that it suffers damage and cannot perform its crucial function. If the fuel pump has been torn, scraped, punctured, or eroded from general wear and tear with long-term use or as the result of a direct impact with a hard object such as a rock or a curb, the component should be removed and replaced by this genuine OEM replacement part. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer. It is sold individually. This fuel pump is compatible with the following outdoor appliance brands: Midwest Engine, Briggs & Stratton, Cub Cadet, Simplicity, and Toro.

A hose clamp serves the basic purpose of holding together two connecting hoses. This is a crucial job in an engine. Since there are so many connecting tubes and hoses transferring oil and fuel within an engine, a leak could prove catastrophic. It could not only cause the engine to malfunction but could also become a fire hazard. Replacing a hose clamp is an easy job, though the exact process will depend on where the connection is located. A pair of pliers may be needed. This is a genuine OEM replacement part and will work with a wide range of appliances, such as pressure washers, engines, generators, tractors, mowers, blowers, shredders, and chippers from Murray, Toro, Briggs & Stratton, Snapper, MTD, Lawn-Boy, or Simplicity. This part ships individually.
