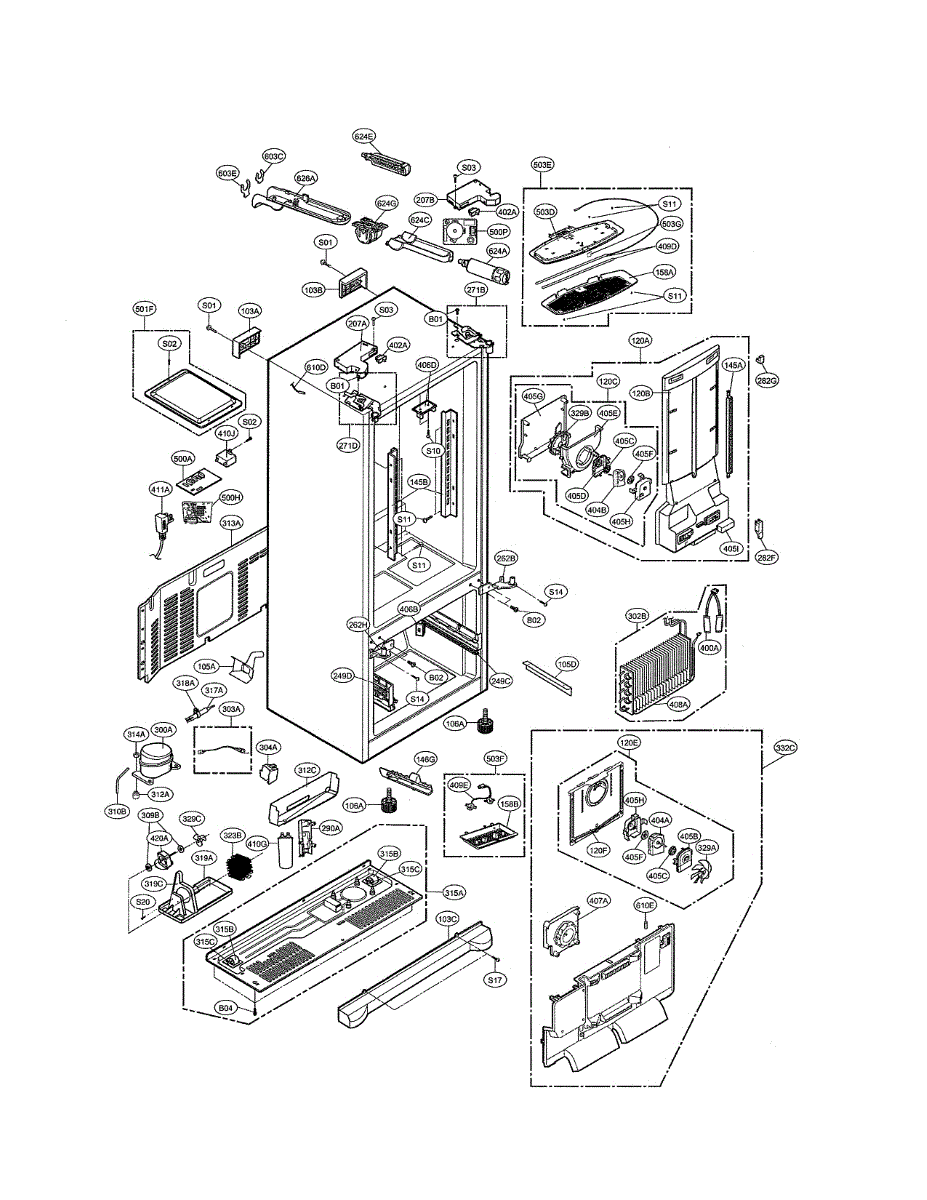

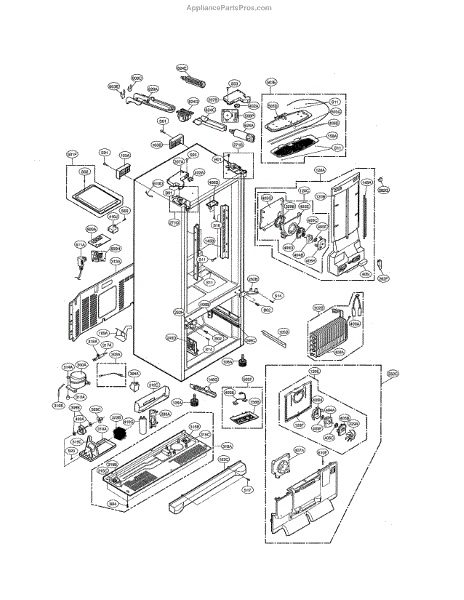

Parts for Kenmore 795.71063011 (79571063011, 795 71063011): Case Parts

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.

This lower cover assembly protects the appliance's lower cabinet area and helps keep internal components free from debris while supporting proper airflow. It restores the unit's finished appearance and helps prevent damage to wiring and controls. What it does:

• Shields lower cabinet components from dust, lint and accidental contact
• Helps maintain correct airflow routing under the appliance
• Prevents foreign objects from reaching motors, pumps or wiring
• Re-establishes the finished exterior where the lower panel is missing or damaged

• One lower cover assembly

• Disconnect power (and water, if applicable) before starting work
• Remove any exterior panels or trim as needed; basic hand tools required
• Handle edges carefully; wear gloves to avoid cuts
• Secure all fasteners; replace any damaged clips or screws

This adjustable leveling leg assembly supports and stabilizes your appliance by threading into the base frame. Replacing a worn or missing leg helps you level the unit for smoother, quieter operation on uneven floors.

• Provides height adjustment to level the appliance and distribute weight evenly
• Helps prevent rocking, wobbling, and excess vibration or rattling
• Can improve door alignment and smooth opening/closing when the cabinet is properly leveled
• Useful when a leg is missing, damaged, or threads are stripped

• Disconnect power; if applicable, shut off the water supply
• Use a helper to safely brace or tip the unit; protect flooring when accessing the leg
• Unthread the old leg and hand-thread the new one; tighten as needed
• Adjust front-to-back and side-to-side until stable; all legs bear weight evenly

This hinge cover fits over the door hinge to conceal and protect the mechanism. Replacing a cracked or missing cover restores a clean, finished look and helps keep hinge components shielded from dust, snags, and everyday wear.

• Conceals the door hinge for a finished, factory look
• Helps protect hinge hardware from dust and accidental contact
• Reduces snag points around the hinge area
• Typical failure signs: cracked plastic, broken tabs, missing cover, or a cover that won't stay attached

• Disconnect power before servicing; hinge areas can contain wiring
• Open the door and remove any retaining screw(s) or release the cover's tabs
• Lift off the old cover; align and snap or screw the new cover into place
• The door opens and closes freely with the cover installed

This hinge assembly replaces a worn or damaged refrigerator door hinge to restore proper door alignment and smooth opening and closing. It helps stop sagging doors, noisy movement, and improper sealing for better cooling performance. What it does:

• Supports and pivots the refrigerator door for correct alignment and even sealing
• Replaces broken, bent, or worn hinge hardware that causes door sag or misalignment
• Reduces rubbing, grinding, or noisy hinge movement when opening or closing
• Helps restore proper door closure to prevent cold air loss and temperature issues

• Unplug the appliance and support the door before removing hinge hardware to prevent injury or damage
• Transfer any mounting screws or brackets only if specified by the OEM; replace visibly damaged fasteners
• Tighten mounting fasteners to secure the hinge but avoid over-torquing; confirm door alignment after installation

This compressor damper is a vibration-isolating mount that sits between the sealed-system compressor and the chassis. It cushions the compressor to reduce noise, limit vibration transfer, and help keep refrigerant lines from being stressed.

• Isolates the compressor from the frame to absorb start/stop shock and vibration
• Helps reduce humming, rattling, or buzzing from the back/bottom of the appliance
• Replaces a damper that's cracked, flattened, hardened, or missing
• Can help if the compressor rocks or the unit vibrates excessively

• Disconnect power and pull the unit forward for access; remove rear/service panel if present
• Support the compressor to relieve load on the mounts before removing fasteners
• Match orientation; transfer any sleeves/spacers from the old damper to the new one
• Ensure the compressor sits level and that tubing is not strained before restoring power

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

A small retaining pin used to secure moving parts and keep components aligned for smooth operation. Replacing a worn or broken common pin can stop rattling and restore proper fit between linked parts. What it does:

• Holds or aligns two parts together so they move correctly and stay in position
• Helps prevent rattling, looseness, or parts slipping out of place
• Works as a simple mechanical fastener—no electronics involved

• One common pin

• Disconnect power to the appliance before beginning any service
• Keep track of small parts; lay out components in order to aid reassembly
• May require removal of trim or a hinge/retainer to access the pin—use basic hand tools
• If the pin is difficult to seat, do not force; inspect mating parts for damage

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This condenser assembly replaces the condenser wiring and support used in compatible refrigerators to restore proper condenser connections and airflow. It helps re-establish electrical routing and secure mounting so the cooling system can run reliably. What it does:

• Replaces damaged or corroded condenser wiring and associated mounting hardware
• Restores electrical connection between condenser components and the control circuitry
• Helps resolve symptoms such as cooling loss, intermittent compressor operation, or visible wiring damage
• Maintains proper condenser positioning for adequate airflow and heat dissipation

• Disconnect power and unplug the appliance before starting work
• Inspect surrounding components (fan, compressor, terminals) for related damage
• Use manufacturer-recommended torque and routing to avoid pinched wires

This fan grill assembly is the molded cover that protects the refrigerator/freezer fan and helps direct airflow for efficient cooling. It restores proper air movement and keeps debris away from the fan blade and motor. What it does:

• Covers and protects the evaporator/condenser fan from loose items and debris
• Directs airflow to support consistent cooling and efficient operation
• Reduces fan noise caused by damaged or loose grills
• Prevents accidental contact with the spinning fan blade

• Disconnect power to the appliance before servicing to avoid electrical shock or injury
• Typically secures with screws or retaining clips; keep all fasteners and align tabs before tightening
• Handle the plastic grille carefully to avoid cracking; confirm correct orientation before final install
• If fan or motor damage is present, inspect and replace those parts as needed

The Defrost Control Assembly is an OEM part for LG refrigerators, crucial for regulating the defrost cycle within the unit. This component plays a pivotal role in ensuring that the evaporator coils are periodically defrosted, preventing the build-up of ice that can impede airflow and cooling efficiency.

Causes of a bad Defrost Control Assembly can include electrical failures, sensor malfunctions, or damage to the assembly itself, which can disrupt the defrost cycle.

Symptoms of a bad Defrost Control Assembly include:

• The refrigerator or freezer compartment becoming too warm due to blocked airflow from ice accumulation
• A noticeable build-up of frost or ice on the evaporator coils or in the freezer compartment
• The refrigerator running continuously without cycling off
• Unusual noises coming from the refrigerator as ice builds up and interferes with the fan

This OEM LG part is also compatible with Sears/Kenmore.

The Door Switch is an OEM part for LG refrigerators. It is located near the door hinge and is activated by the door's movement. When the door is closed, the switch is engaged, allowing the interior light to turn off and other functions to operate normally. When the door is opened, the switch is released, triggering the interior light to turn on and potentially activating other features, such as the ice dispenser or cooling system.

Causes of a faulty door switch can include wear and tear over time, mechanical damage from excessive force, or electrical issues.

Symptoms of a bad door switch may include:

• The interior light not turning on when the door is opened
• The interior light remains on when the door is closed
• Issues with the dispenser or other functions associated with the door switch

This DC fan motor drives the appliance's internal circulation fan to keep air moving where it's needed. Replacing a failing motor restores proper airflow and can resolve noise, non-running, or intermittent fan operation. What it does:

• Powers the fan that circulates air through the appliance and across coils
• Helps maintain stable temperatures by keeping airflow consistent
• Supports defrost performance by preventing stagnant, frost-prone areas
• Symptoms of failure include the fan not running, running intermittently, or making grinding/rattling noises

• 1 DC motor

• Disconnect power before servicing; wear cut-resistant gloves
• Access the fan housing; remove covers/guards and clear any ice or obstructions
• Transfer the fan blade and any grommets/brackets from the old motor to the new one
• Note connector orientation; ensure the blade spins freely and clears the shroud before reassembly and testing

The DC Motor is an OEM part for LG refrigerators. This part circulates air throughout the refrigerator to ensure uniform cooling and maintain optimal temperatures.

Causes of a bad DC motor can include electrical issues such as short circuits or burnt-out windings, physical damage from impact, or wear and tear from regular use.

Symptoms of a bad DC motor include:

• Refrigerator or freezer not cooling properly
• Unusual noises such as buzzing or humming from the motor area
• Evaporator fan not spinning or spinning intermittently
• Increased frost buildup in the freezer

This OEM LG part is also compatible with some Kenmore models.

This motor bracket assembly secures the appliance motor to the cabinet, keeping the motor properly positioned for reliable operation and reducing vibration or rubbing. Replaces a worn or damaged motor mounting bracket to restore stability. What it does:

• Holds the motor in place to maintain proper belt alignment and drivetrain geometry
• Prevents motor movement that can cause loud noise, grinding, or rubbing
• Reduces excessive vibration that can transfer to the cabinet or other components
• Helps maintain safe, consistent motor operation during spin or drive cycles

• Disconnect power (and gas if applicable) before starting any repair
• Support the motor before removing mounting hardware to avoid strain on wires or components
• Tighten all fasteners to OEM torque specs; replace any damaged brackets or fasteners
• Test operation after installation and re-check for proper alignment and noise

A replacement cover motor that powers the refrigerator's dispenser cover, allowing the door to open and close so you can access ice and water. Replaces a worn or failed motor to restore normal dispenser cover operation. What it does:

• Drives the dispenser cover mechanism so the cover opens when dispensing and closes when idle
• Helps keep the dispenser sealed to reduce drafts and prevent pests or debris from entering
• Stops or fails to move when worn, causing a stuck, slow, or noisy dispenser cover
• Works with the dispenser linkage and gears to coordinate cover motion with user controls

• One cover motor

• Disconnect power to the appliance before beginning any repair
• Remove dispenser trim and access panel per your model's service instructions to reach the motor
• Handle gears and linkage carefully; ensure proper alignment during reassembly and test cover operation before finishing

The Rear Evaporator Motor Grommet is an OEM part for LG refrigerators. It's designed to secure and cushion the evaporator motor, ensuring it remains in place and operates quietly. This grommet plays a crucial role in minimizing vibrations and noise from the motor, which can otherwise lead to a disruptive refrigerator operation.

Causes of a bad Rear Evaporator Motor Grommet can result from deterioration due to cooling and thawing cycles in the refrigerator. Physical damage during cleaning or servicing may cause a loose motor fit.

Symptoms of a malfunctioning Rear Evaporator Motor Grommet include:

• Unusual noises or vibrations from the back of the refrigerator.
• The evaporator motor shifting out of place, which can affect cooling efficiency.
• Increased wear on the evaporator motor due to lack of proper cushioning and support.

This OEM LG part is also compatible with some Kenmore models.

The Front Evaporator Motor Grommet is an OEM part for LG refrigerators. This grommet cushions and secures the evaporator motor, reducing vibrations and noise during operation to ensure efficient cooling.

Causes of a bad grommet can include prolonged use leading to material fatigue, exposure to extreme temperatures, or physical damage from accidental impacts. A damaged grommet can result in increased noise and potential misalignment of the evaporator motor.

Symptoms of a bad evaporator motor grommet include:

• Increased noise from the refrigerator
• Vibrations or rattling sounds
• Poor cooling performance
• The evaporator motor becoming loose

This OEM LG part is also compatible with Sears/Kenmore.

The Door Bracket is an OEM part for LG refrigerators. This bracket supports the refrigerator door by providing stability and ensuring proper alignment during opening and closing. It plays a crucial role in maintaining the door’s secure fit, which is essential for maintaining the internal temperature and efficiency of the appliance.

Common causes of a bad door bracket include wear and tear from frequent use, impact damage, or corrosion due to moisture.

Symptoms of a bad door bracket include:

• The refrigerator door not closing properly
• The door sagging or being misaligned
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM LG part is also compatible with Sears/Kenmore.

The Refrigerator Door Switch is an OEM part for LG refrigerators, designed to signal the control system when the door is open or closed. This small but essential component plays a critical role in the overall operation of your refrigerator, including the activation of interior lights and the control of cooling functions.

Over time, the door switch can fail due to mechanical wear, accidental damage, or a buildup of debris that may prevent it from functioning correctly.

Symptoms of a bad Refrigerator Door Switch include:

• Interior lights not turning on or off appropriately with the door's position
• The refrigerator running longer than necessary, potentially leading to increased energy bills
• Unusual fluctuations in temperature inside the fridge, affecting food preservation

This OEM LG part can also be used on Kenmore/Sears appliances.

The Freezer Defrost Heater is an OEM part for LG refrigerators. It plays a crucial role in the defrost system by melting any frost or ice buildup on the evaporator coils. This helps maintain the efficiency of the cooling system and ensures the freezer operates properly.

Over time, the defrost heater can wear out or fail due to continuous heating and cooling cycles, electrical issues, or physical damage. Causes of a bad defrost heater include burnouts, electrical faults, and accumulation of frost that hinders its functionality.

Symptoms of a bad freezer defrost heater include:

• Excessive frost buildup in the freezer
• The freezer not maintaining the set temperature
• The refrigerator running continuously or cycling more frequently
• Water leaks inside the freezer from melting ice

This OEM LG part is also compatible with Sears/Kenmore models.

The Run Capacitor is an OEM part for LG refrigerators. It is located near the compressor in the appliance's cooling system. It stores electrical energy and provides a boost to the motor during startup, ensuring smooth and efficient operation. The capacitor helps maintain the required power levels, stabilizes voltage, and supports the proper functioning of the compressor.

Causes of a faulty run capacitor can include electrical issues, capacitor aging or degradation, or damage due to power surges. These factors can result in issues such as the compressor not starting, the appliance not cooling properly, or unusual noises coming from the appliance.

Symptoms of a bad run capacitor may include:

• Compressor failing to start or delayed startup
• Inadequate cooling or no cooling at all
• Unusual noises, such as buzzing or clicking sounds

This OEM LG part can also be used on Kenmore/Sears appliances.

The Compressor Run Capacitor is an OEM part for LG refrigerators. It plays a critical role in the operation of the refrigerator's compressor by providing the necessary electrical boost to start and maintain the compressor's operation.

Causes of a bad compressor run capacitor can include electrical surges, overheating, or simply wear and tear over time. When the capacitor fails, it can no longer deliver the required electrical charge, which impacts the compressor's ability to start and run efficiently.

Symptoms of a bad compressor run capacitor include:

• The refrigerator not cooling properly
• The compressor not starting or running intermittently
• Unusual humming or clicking noises from the compressor area
• The refrigerator cycling on and off frequently

This OEM LG part is also compatible with Sears/Kenmore models.

This power cord assembly supplies AC power from the wall outlet to your appliance. Replacing a frayed, heat-damaged, or loose cord restores safe, reliable operation and can eliminate intermittent power loss.

• Carries line voltage and ground into the unit to power controls and components
• Routes electricity safely into the cabinet to protect internal wiring
• Replace at the first sign of damage to reduce shock or fire risk

• Disconnect power at the outlet/breaker before servicing
• Compare the new cord to the original; transfer any clips or grommets from the old cord if needed
• Route and secure the cord exactly as original; keep clear of sharp edges and moving parts
• Ensure all connections are fully seated and the ground is properly secured before restoring power

This fan motor assembly circulates air across the evaporator coils to keep temperatures even inside the refrigerator. Replacing a worn or noisy motor restores proper airflow for consistent cooling performance.

• Drives the evaporator fan to move chilled air through the cabinet and vents
• Helps maintain stable temperatures and reduces frost from stagnant air
• Common symptoms: weak or no airflow, loud or intermittent fan noise, temperature fluctuations, refrigerator section warmer than expected
• Failures may result from worn bearings, moisture exposure, or an open motor winding

• Disconnect power before servicing; wear cut-resistant gloves and eye protection
• Access the fan behind the interior rear panel; remove shelves/drawers as needed and avoid bending evaporator fins
• Note wire connector orientation and mounting order; transfer any reusable hardware from the original assembly as needed
• After reassembly, verify the fan spins freely and confirm operation before reloading the compartment

This electronic control board regulates power and coordinates your appliance's operations. Replacing a failed board can restore reliable performance when the unit is unresponsive, behaves erratically, or repeatedly shows error conditions.

• Regulates and distributes power to key components per the control logic
• Processes signals from sensors and user controls to execute functions
• Coordinates timing and operation of cycles/features
• Common failure signs include: won't power on or start, unresponsive controls, intermittent shutdowns, blank/flickering indicators, or recurring error codes

• Disconnect power before servicing; verify no voltage is present
• Use ESD protection and handle the board by its edges
• Photograph wiring and move connectors one at a time to the matching keyed terminals
• Mounting points and setup can vary; some models may require service-mode checks or initialization after installation

The Clip is an OEM part for LG refrigerators. This clip secures the water tube in place, preventing it from moving or becoming disconnected. It plays a crucial role in maintaining the proper flow of water to the ice maker and water dispenser.

Causes of a bad water tube clip can include physical damage, wear and tear from regular use, or brittleness due to temperature fluctuations. If the clip fails, it can result in leaks or disconnections, disrupting the water supply.

Symptoms of a bad water tube clip include:

• Water leaks inside or outside the refrigerator
• The water tube becoming loose or disconnected
• Reduced or no water flow to the ice maker or water dispenser

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

This water filter head assembly holds the water filter and connects the water lines to the filter.

The Water Filter Bypass is an OEM part for LG refrigerators. It is used when you choose not to use a water filter in your refrigerator. This bypass plug allows water to flow directly to the dispenser and ice maker without being filtered, ensuring continuous operation even when a filter is not installed.

Causes of a bad water filter bypass can include damage to the bypass plug, clogging from debris, or wear and tear over time. If the bypass plug is not functioning properly, it can disrupt the water flow and lead to issues with the ice maker and water dispenser.

Symptoms of a bad water filter bypass include:

• Reduced water flow or no water flow to the dispenser
• Ice maker not producing ice
• Water leaks around the bypass plug area

This OEM LG part is also compatible with Sears/Kenmore.

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.
