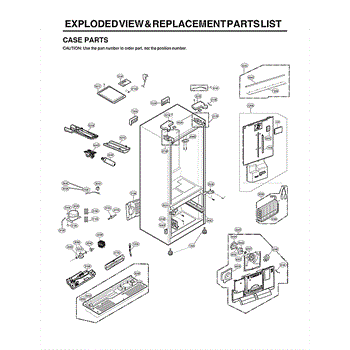

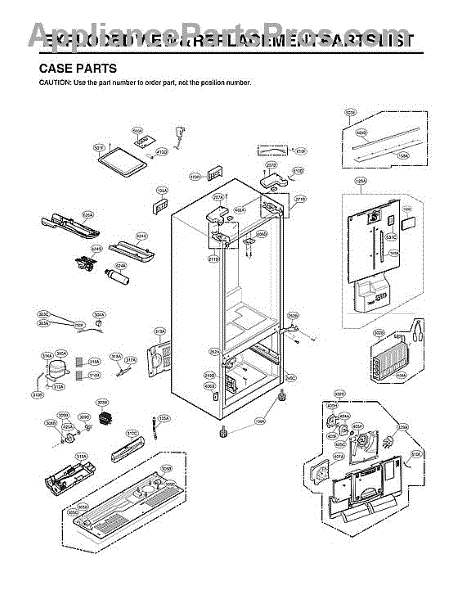

Parts for Lg LFXC22526S/00: Case Parts

This is a replacement screw designed to secure appliance components where the original customized fastener is required. It restores proper fit and stability for panels, brackets, or assemblies that use this specific fastener. What it does:

• Replaces a missing, stripped, or damaged customized screw to restore secure attachment of parts.
• Helps eliminate rattling, loose panels, or misaligned assemblies caused by a faulty fastener.
• Matches the OEM mounting point to maintain correct part alignment and function.
• Suitable where the appliance design calls for this specific customized screw type.

• Turn off and unplug the appliance before servicing to avoid shock or injury.
• Use the correct screwdriver or bit to avoid stripping the screw head; do not force.
• Keep track of small parts during disassembly and reassembly; work on a stable surface.
• If threads are damaged or the mounting hole is stripped, inspect the mating component for repair before installing the new screw.

The Handle Mounting Stud is an OEM replacement part for LG refrigerator doors. It provides a sturdy mounting point for the door handle assembly. Reliable handle connection and support is crucial for dependable door function and access.

Causes of a faulty stud can include damage from excess weight or impact over time rendering the stud loose or unstable.

Symptoms of a bad stud include:

• Loose or sagging door handle
• Difficulty opening and closing the refrigerator door
• Potential for the handle to detach completely
• Safety concerns if the handle connection fails

This OEM LG replacement stud is also compatible with Sears/Kenmore models.

This customized replacement screw secures appliance components and restores proper fit and function. It's a direct-fit fastener designed for use where the OEM specifies a tailored screw to replace a worn, stripped, or missing fastener. What it does

• Fastens panels, brackets, or assemblies that use a manufacturer-specified customized screw
• Stops rattling or loose parts caused by worn or missing hardware
• Restores secure mounting for affected components
• Matches the OEM shape and thread pattern to prevent damage when used as directed

• Disconnect power and water before starting any repair
• Use the correct screwdriver or bit to avoid stripping the head
• Install by hand initially, then tighten snugly—do not overtighten to avoid thread damage
• Keep removed hardware organized so you replace parts in their original locations

This rear door handle replaces a worn or damaged handle on compatible LG appliances, restoring a secure grip and smooth opening. It's a direct-fit exterior handle that keeps the appliance door operating and looking right. What it does

• Provides a secure gripping point to open and close the appliance door
• Replaces cracked, loose, or broken rear handle hardware
• Restores correct alignment and feel when the door is operated
• Helps prevent further damage to the door edge from makeshift handles

• Power off and unplug the appliance before starting work; remove food or shelves as needed for access
• Keep fasteners and mounting clips; transfer original hardware unless new hardware is explicitly included
• Test door operation and alignment after installation; tighten fasteners evenly to avoid stress

This funnel assembly directs detergent and rinse aid from the dispenser into the dishwasher wash chamber for proper cleaning. Replaces a cracked or clogged funnel to restore reliable dispensing and reduce leaks or pooling. What it does:

• Channels detergent and rinse aid from the dispenser to the wash chamber for even distribution
• Prevents splash-back and reduces the chance of detergent clumping or not reaching the wash arms
• Helps stop minor leaks or water pooling around the dispenser area when the original funnel is damaged
• Keeps the dispenser pathway clear so the detergent dissolves and dispenses as intended

• One replacement funnel assembly

• Disconnect power to the appliance before starting any repair
• Turn off the water supply and drain standing water from the unit if applicable
• Remove the dispenser bezel or control panel per OEM instructions to access the funnel; handle plastic clips and tabs gently to avoid breakage
• After installation, run a short cycle to check for leaks

The Drain Pipe Assembly is an OEM replacement part for LG refrigerators. It is a plastic tubing system that collects and removes liquid condensation from evaporator coils. Proper drainage is crucial to minimizing frost buildup and ensuring optimal cooling of food storage areas.

Symptoms of a bad drain pipe assembly include:

• Excessive frost or ice accumulation inside the refrigerator
• Puddling or leaks detected near evaporator housing
• Slow draining allowing water to pool versus emptying fully
• Cracks or breaks in the tubing prevent complete fluid removal

Causes are typically mineral sediment clogging drainage paths or deteriorating plastic from constant use. This OEM LG replacement pipe restores reliable condensate removal to maintain peak efficiency.

This OEM LG part is also compatible with Sears/Kenmore.

This adjustable leveling leg assembly supports and stabilizes your appliance by threading into the base frame. Replacing a worn or missing leg helps you level the unit for smoother, quieter operation on uneven floors.

• Provides height adjustment to level the appliance and distribute weight evenly
• Helps prevent rocking, wobbling, and excess vibration or rattling
• Can improve door alignment and smooth opening/closing when the cabinet is properly leveled
• Useful when a leg is missing, damaged, or threads are stripped

• Disconnect power; if applicable, shut off the water supply
• Use a helper to safely brace or tip the unit; protect flooring when accessing the leg
• Unthread the old leg and hand-thread the new one; tighten as needed
• Adjust front-to-back and side-to-side until stable; all legs bear weight evenly

The Roller Assembly is an OEM part for LG refrigerators. It comprises the set of rollers that suspends and aids the smooth gliding of refrigerator shelves. The rollers are designed with precision bearings to withstand the weight of shelf loads and years of use while providing quiet and frictionless movement.

Causes of a bad roller assembly include worn-out or damaged rollers due to heavy usage over time, or shelf loads that are too excessive.

Symptoms of a bad roller assembly are:

• Shelves that do not easily slide in and out
• Grinding or squeaking noises emanating from the shelf tracks
• Shelves that get stuck or do not smoothly glide

This OEM LG part is also compatible with Sears/Kenmore. Replace yours today and restore like-new shelf functionality to your refrigerator.


The Freezer Tray Roller is an OEM part for LG refrigerators. It is a dual roller wheel assembly located at the rear wall of the freezer compartment. The roller aids sliding shelf movement by reducing friction between trays and the liner wall.

Causes of a bad freezer tray roller include cracks, flat spots, or separated roller pieces from wear over years of use.

Symptoms of a bad tray roller are:

• Difficulty sliding shelves smoothly in and out of position
• Excessive force required to access stored items
• Noisy operation or rattling noises within the freezer

This genuine LG OEM replacement part is also compatible with some Kenmore models.

Note: Shelf is on the RIGHT side.

This TV cover assembly replaces a damaged or cracked rear cabinet panel to restore the TV's exterior protection and ventilation. It helps secure internal electronics and maintain proper airflow while improving the TV's appearance. What it does:

• Replaces the TV's rear cabinet panel to protect internal components from dust and impact
• Restores mounting points for internal boards, speakers, and external connections
• Maintains designed ventilation paths to help prevent overheating under normal use
• Eliminates loose or rattling panels and improves overall exterior fit and finish

• High-level replacement: remove the TV from power and detach all cables before starting
• Handle carefully to avoid damaging clips, screw bosses, and internal components
• Use appropriate screwdriver and keep track of all screws and fasteners for reassembly

This tray cover protects the appliance tray from spills, debris and everyday wear while restoring a finished appearance. Replacing a damaged or missing cover helps contain messes and keeps internal tray areas accessible for service. What it does:

• Covers and protects the tray area from food, water and debris
• Restores a clean appearance and helps prevent buildup on underlying components
• Stops small spills from spreading into the tray cavity
• Commonly replaced when cracked, warped, broken or missing

• Disconnect power to the appliance before beginning any service
• Remove nearby parts or trays as needed to access the cover
• Do not force the cover; align tabs and fasteners to avoid damage

The Deli Drawer Front Cover is an OEM part for LG refrigerators. It provides an attractive facia that protects the internal components of the deli drawer. This cover is designed to integrate with the style and finish of the refrigerator interior.

Symptoms of a bad Deli Drawer Front Cover include:

• Cracks, chips, or other visible cosmetic damage
• Discoloration that detracts from the aesthetics
• The cover is loose, misaligned, or missing
• Difficulty opening or closing the deli drawer

Causes of a bad cover can be normal wear and tear over time from repeated use, as well as accidental drops or impacts that cause cracks or breaks.

This OEM replacement part is also compatible with select LG models.

The Refrigerator Air Filter Cover is an OEM replacement part for LG refrigerators. It provides a protective casing for the refrigerator's air filter. The air filter cover makes filter replacement easy while allowing uniform airflow distribution for optimal cooling and freshness.

Causes of a bad air filter cover can include cracks or breaks from normal use over time. Screws or securing mechanisms may also become loose.

Symptoms of a bad air filter cover include:

• Cool air escaping without circulating properly
• Inability to easily access the air filter for replacement
• Excessive refrigeration coil or evaporator fan noise

This OEM LG part is also compatible with Sears/Kenmore models.

Restore a tight seal on your freezer by replacing a worn gasket. A fresh, pliable gasket keeps cold air in, limits frost and moisture around the door, and helps your freezer maintain stable, food-safe temperatures.

• Creates the air-tight seal between the freezer door and cabinet frame
• Helps maintain correct freezer temperature and energy efficiency
• Reduces frost/ice buildup and condensation near the door opening
• Symptoms include tears, warping, gaps, excessive frost, or the door not closing flush

• Disconnect power before servicing
• Warm the gasket in hot tap water or with low heat to improve flexibility
• Clean and dry the door channel; press the gasket fully into the retainer, starting at the corners
• Close the door and check the seal all around; adjust as needed and allow time for the gasket to conform

This decor handle is a cosmetic and functional door handle designed to replace a cracked, broken or worn handle and restore a secure grip and finished look to the appliance door. It installs in place of the original trim handle. What it does:

• Provides a finished grip for opening and closing the appliance door
• Replaces damaged, cracked or loose handles that affect use and appearance
• Restores proper alignment and user control when the original handle is worn
• Matches the appliance's exterior trim for a cohesive look

• Disconnect power to the appliance before starting any repair
• Remove any door trim or fasteners as needed to access mounting points
• Use the original screws or OEM-replacement fasteners; do not overtighten

This hinge cover protects and conceals the appliance door hinge, keeping the hinge area clean and improving the door's finished appearance. It helps prevent debris buildup and keeps moving parts shielded from accidental contact. What it does:

• Covers the door hinge to protect pivot components from dust and grime
• Helps maintain a neat, factory-finish look around the hinge area
• Reduces risk of snagging or accidental contact with the hinge
• Compatible replacement for worn, cracked, or missing hinge trim

• One hinge cover

• Remove power and open the door per your appliance's safety instructions before servicing
• Installation typically requires removing a few screws or clips; retain fasteners from the original cover if possible
• Use common hand tools and avoid forcing plastic tabs to prevent breakage

The Hinge Cover Assembly conceals and protects the door hinge area on your refrigerator. It safeguards wiring harnesses while restoring a clean, finished appearance, helping keep the hinge area secure and free of dust and damage.

• Protects the hinge mechanism and wiring for a clean, finished look
• Helps keep harnesses routed correctly and prevents snagging/abrasion near the hinge
• Replaces cracked, broken, loose, or missing hinge covers
• Helps reduce rattling or vibration noise from a loose/damaged cover

• Disconnect power before servicing.
• Support the door as needed; remove any screws or clips securing the old cover.
• Transfer and reuse existing hardware or clips if required; align the new cover and secure in place.
• Ensure wiring is not pinched; ensure smooth door movement before restoring power.

The Name Plate is an OEM part for LG refrigerators. It is the printed decorative plate used to label the model and serial numbers for individual refrigerator components and the refrigerator itself. This nameplate adheres or attaches to the visible exterior of the appliance for identification purposes.

Causes of a bad nameplate include damage, aging, or removal of the original nameplate. Over time, nameplates can become faded, stained, cracked, or removable.

Symptoms of a bad nameplate include:

• Missing or illegible model/serial numbers
• Inability to accurately identify appliance components
• Substandard aesthetic appearance

This OEM LG replacement nameplate will allow you to correctly label your refrigerator should the original nameplate become damaged or unusable. This LG part is also compatible with Sears/Kenmore.

The Handle Assembly is an OEM part for LG refrigerator freezer compartments. It includes the handle and mechanical components that operate the freezer drawer.

Causes of a bad handle assembly can include fatigue from repeated opening and closing motions, damage sustained from heavy loads, or exposure to harsh chemicals over years of use.

Symptoms of a bad handle assembly include:

• Handles detaching from the drawer front
• Difficulty smoothly opening and closing the freezer drawer
• Inability to fully open or close the drawer
• Excessive play, wobble, or loose motion in the handle

Replace yours today with this genuine OEM LG assembly to restore effortless operation. This replacement handle is compatible with Frigidaire, Samsung, Whirlpool, and some Kenmore models.

This door foam assembly replaces the insulation inside a refrigerator door to help restore proper temperature retention and reduce condensation. It fits into the door liner to replace damaged or missing foam for improved cooling performance. What it does:

• Replaces deteriorated or compressed door insulation to help maintain consistent cabinet temperature
• Reduces interior condensation and frost buildup caused by broken or missing door foam
• Improves energy efficiency by restoring the door's thermal barrier
• Helps eliminate cold spots on the door that can affect stored items

• One door foam assembly

• Unplug the appliance before beginning any repairs.
• Installation typically requires removing the door liner or inner panel; keep track of fasteners and clips.
• Handle edges and clips carefully to avoid damage to the liner or gasket; use appropriate trim tools.
• If adhesive or sealant is present, carefully remove old material and clean surfaces before installing the new foam.

Left side

The Door Gasket Assembly is an OEM part for LG refrigerators. This part creates a tight seal around the refrigerator door, preventing warm air from entering and cool air from escaping.

Causes of a bad door gasket assembly can include regular wear and tear, damage from frequent door openings and closings, or exposure to temperature fluctuations that degrade the material.

Symptoms of a bad door gasket assembly include:

• Visible cracks, tears, or deformities in the gasket
• The refrigerator door not closing properly
• Increased condensation or frost buildup inside the refrigerator
• Higher energy bills due to the refrigerator working harder to maintain temperature

This OEM LG part is also compatible with some Kenmore models.

The Refrigerator Flipper Assembly is an OEM part for LG refrigerators. This assists in the smooth opening and closing of the refrigerator door. It ensures an airtight seal when the door is closed, preventing cool air from escaping and maintaining the refrigerator's internal temperature.

Causes of a malfunctioning Refrigerator Flipper Assembly can range from physical damage, such as cracks or breakage, to wear and tear from regular use.

Symptoms of a bad Refrigerator Flipper Assembly include:

• Difficulty in opening or closing the refrigerator door
• A noticeable gap when the door is supposed to be sealed shut
• Increased energy consumption as the refrigerator works harder to maintain its temperature
• Spoilage of food items quicker than expected due to poor temperature regulation

This OEM LG part is also compatible with some Kenmore models.

The Basket Assembly is an OEM component specifically designed for LG Door-in-Door refrigerators containing bottom-mounted crisper drawers. This integral assembly organizes stored items within the refrigerator doorway.

Symptoms of a bad basket assembly include:

• Cracked or broken perforated shelves
• Detached mounting brackets failing to secure basket
• Warped contours no longer fitting base compartment
• Missing attachments inhibiting proper installation

Causes of failure involve stresses from repeated loading/unloading cycles, mineral buildup weakening plastic brackets over time, or impact damage compromising structural integrity.

Replace yours today with this genuine OEM LG assembly to maintain tidy organizational capacity. Precision slots provide adjustable shelf positioning optimized for produce, snacks, and beverages. Compatible across Samsung, Frigidaire, and GE models featuring removable door crisper baskets.

The Door Basket is an OEM part for LG refrigerators. It is used to organize small items and provide additional storage directly on the refrigerator door.

Symptoms of a bad door basket include:

• Items no longer stay securely in place during opening and closing
• Sagging or misshapen basket that no longer organizes properly
• Detached basket that no longer mounts firmly on the door

Causes of a bad door basket can include warped or broken plastic, cracks or fractures in the plastic construction, or failure of the mounting brackets over time.

This OEM LG replacement is also compatible with select Sears/Kenmore models.

STOPPER ASSEMBLY,DOOR

This hinge cam fits the door hinge and provides the lift/settle action that helps the door open and close smoothly. Replacing a worn cam can reduce clicking and restore consistent door movement and alignment.

• Provides cam action at the hinge for smooth door travel
• Helps the door seat closed and maintain alignment
• Common symptoms include clicking/knocking at the hinge, rough or uneven door movement, or slight door sag
• Visual wear such as flat spots or grooves on the cam is a typical failure sign

• Disconnect power to the appliance before servicing
• Support the door to prevent injury; remove hinge cover and hardware as needed
• Note the cam's orientation and any washers/spacers and transfer them to the new part
• After installation, verify door operation and gasket alignment; adjust hinge if needed

The Lower Refrigerator Door Hinge is an OEM part for LG refrigerators. This hinge supports the refrigerator door, allowing it to open and close smoothly while maintaining proper alignment. It is designed to handle the weight of the door and ensure a secure and stable operation over time.

Causes of a bad lower refrigerator door hinge can include regular wear and tear, physical damage from overloading or impacts, and gradual loosening over time. A faulty hinge can lead to misalignment, difficulty in opening or closing the door, and potential damage to the door seal.

Symptoms of a bad lower refrigerator door hinge include:

• The door not closing properly or staying open
• Sagging or misaligned door
• Unusual noises when opening or closing the door
• Gaps in the door seal, causing cooling inefficiency

This OEM LG part is also compatible with Sears/Kenmore models.

The Door closer is an OEM part for LG refrigerators, this part prevents the refrigerator door from swinging open too widely. By limiting the door's range of motion, the Door Stop ensures that the door opens smoothly and safely, contributing to the longevity of the appliance and maintaining the aesthetic integrity of your kitchen space.

Causes of a bad Door closer can stem from physical damage, wear and tear over time, or loosening of the component due to repeated use.

Symptoms of a bad Door closer include:

• The refrigerator door swinging open too far
• Damage or marks on adjacent walls or furniture from the door hitting them
• Increased wear on the refrigerator's hinges due to uncontrolled door movement

This OEM LG part is also compatible with some Kenmore models.

Replace a worn, loose, or broken refrigerator door handle with this complete handle assembly. It restores a secure, comfortable grip so you can open and close the refrigerator door easily while maintaining the unit's original look. What it does:

• Attaches to the refrigerator door to provide a sturdy handhold
• Replaces cracked, broken, or missing handles
• Helps correct a loose or wobbly handle that won't stay secure
• Restores the factory appearance of the door

• 1 refrigerator door handle assembly

• Disconnect power and protect the door surface with tape or a cloth before starting
• Remove any trim/caps as needed and loosen the hidden set screws or mounting bolts on the old handle
• Position the new handle, then tighten fasteners evenly—do not overtighten
• Reinstall any caps/trim and ensure the handle is secure

This connector rail secures and routes electrical connections in the appliance, keeping wiring organized and supporting reliable connections for proper operation. It helps prevent loose harnesses and reduces strain on wiring during use. What it does:

• Provides a stable mounting point for wire harness connectors and plugs
• Maintains correct alignment and spacing of electrical connections
• Reduces stress on wiring to help prevent intermittent connections
• Commonly used when loose or damaged connector mounts cause power or control issues

• Disconnect power and unplug the appliance before starting any work
• Handle connectors and wiring gently to avoid damaging pins or insulation
• Reinstall in the original orientation and secure mounting fasteners snugly

This connector rail is a small mounting piece that holds and aligns a connector assembly inside the appliance, helping maintain a secure electrical or structural connection for reliable operation. It replaces a worn, cracked, or damaged rail to restore proper fit and alignment. What it does:

• Provides a secure mounting point and alignment for the appliance connector assembly
• Helps maintain stable electrical/contact connections by preventing connector movement
• Common symptom indicators: intermittent connections, loose harness fit, or related component misalignment
• Prevents wear on mating connectors by keeping components properly supported

• One connector rail

• Disconnect power (unplug appliance or shut off circuit breaker) before starting
• Access may require removing trim, panels, or nearby components
• Inspect mating connectors and harnesses for damage and replace if needed
• Use common hand tools; handle plastic parts gently to avoid cracking during installation

This slide rail guides and supports a rack or drawer as it moves in and out of your appliance. Replacing a worn rail restores smooth, stable operation and keeps the rack or bin aligned on its track.

• Provides the track and support for a sliding rack, bin, or drawer
• Maintains alignment to prevent tilting, binding, or derailing
• Helps ensure smooth, quiet motion during opening and closing
• Common symptoms: hard to open/close, uneven travel, scraping/clicking noises, rack/drawer popping off the track

• Disconnect power (and water, if applicable) before servicing
• Remove and empty the rack/bin/drawer to access the rail
• Note orientation and transfer any stops/end caps or screws from the old rail if reused
• Secure the new rail and test for smooth travel before reassembly

The Rail, Slide is an OEM part for LG refrigerators. These rails are responsible for allowing shelves and drawers to smoothly glide in and out of the refrigerator compartment. They are designed with precise tolerances and durable materials to withstand frequent use while retaining their smooth operation over time.

Causes of bad rails can include dents, scratches, or damage accumulated from years of use and repeated opening and closing of shelves/drawers. Wear and tear of moving parts can also cause rails to malfunction.

Symptoms of bad rails include:

• Shelves or drawers that don't slide smoothly
• Items getting stuck or jammed when trying to remove them from the fridge
• Gapping or misalignment of shelves/drawers in their tracks
• Noisy or grinding sounds coming from rail areas

This OEM LG part is also compatible with Kenmore models.

This harness assembly is a factory-style wiring harness that routes power and control signals between the dispenser, ice maker and main control—restoring electrical connections for reliable dispenser and ice-maker operation. What it does

• Carries power and signal lines between the refrigerator control board, dispenser and ice maker
• Restores lost or intermittent dispenser power and control communication
• Helps stop intermittent ice-maker cycling or dispenser failures caused by damaged wiring
• Eliminates loose, corroded or broken connector problems on the original harness

• One harness assembly as shown

• Disconnect power to the appliance before starting any repair
• Handle connectors gently and match keyed plugs to their mating sockets
• Inspect connector pins and wiring routing; replace any damaged clips or grommets

This connector assembly secures and drives the freezer drawer bar so the drawer opens and closes smoothly. Replaces a worn or broken bar/gear assembly to restore proper drawer movement and alignment. What it does:

• Transfers drawer motion to the slide mechanism so the freezer drawer glides correctly
• Replaces worn or stripped gears that cause slipping, grinding, or uneven movement
• Secures the drawer bar to the internal slide/track to prevent misalignment or sagging
• Useful when a drawer won't open/close smoothly, catches, or rattles during operation

• Disconnect power before servicing and remove stored items from the drawer
• Generally replaces with basic hand tools; support the drawer while detaching and installing the assembly
• Inspect surrounding slide components for wear and replace if needed for reliable operation

This is a service spanner designed for appliance maintenance, giving a secure grip for loosening and tightening service fittings and retaining nuts. It helps access and remove service components safely and efficiently. What it does

• Provides the correct fit and leverage for specific appliance service fittings and retaining nuts.
• Helps free seized or over-tightened fittings that cause vibration or poor connections.
• Allows safe removal and reinstallation of components during repairs or routine maintenance.
• Reduces risk of damaging fasteners compared with improper or makeshift tools.

• Disconnect power and gas before servicing the appliance.
• Use proper hand protection and eye protection; hold the tool securely and apply steady force.
• Refer to the appliance service manual for the correct access points and torque specifications.
• Do not use as a substitute for other specialty tools unless specified by the manufacturer.

This center hinge assembly secures and allows smooth pivoting of the refrigerator's center door, restoring proper door alignment and closing. It replaces a worn or damaged hinge to reduce sagging and improve sealing. What it does:

• Provides the pivot point for the refrigerator's center door, maintaining correct door movement and alignment
• Helps the door close evenly to preserve the gasket seal and internal temperature
• Replaces broken, bent, or worn hinge hardware that can cause door sag or rubbing
• Works with existing hinge pins and mounting points to restore original function

• One center hinge assembly

• Requires basic hand tools; follow manufacturer instructions for removal and installation
• Support the door while removing or installing the hinge to prevent injury or damage
• Ensure all fasteners are tightened securely and door alignment is checked after installation
• Disconnect power if required by the appliance manufacturer before servicing

This center hinge assembly secures and pivots the upper/center refrigerator door, restoring proper door alignment and smooth opening. Designed to replace a worn, bent or broken center hinge to improve sealing and operation. What it does:

• Provides a mounting pivot for the upper/center refrigerator door to ensure correct swing and alignment
• Helps maintain an even door gap for a proper seal and consistent cooling
• Replaces damaged, bent or worn hinge components that cause rubbing, sagging, or noisy door movement
• Works with factory hinge pins and covers to restore original door function

• One center hinge assembly

• Installation requires removing the door and supporting it; have a helper to prevent damage or injury
• Use appropriate hand tools; avoid overtightening fasteners which can bind the hinge
• Inspect adjoining hinge pins and mounting screws; replace if worn for best results
• Disconnect power or follow manufacturer safety steps if working near electrical components

Left side upper hinge.

Right side upper hinge.

This cap assembly replaces a damaged or worn dryer exhaust duct cap to restore proper venting and help keep pests and debris out of the ductwork. Fits the dryer's exterior duct outlet and guides hot, moist air outside. What it does:

• Seals and covers the dryer exhaust opening to reduce air leaks and backflow
• Directs exhaust airflow out of the home for proper drying performance
• Helps block pests, leaves and debris from entering the vent system
• Reduces moisture buildup and associated odor or lint accumulation near the duct opening

• One cap assembly

• Disconnect power (and gas supply on gas dryers) before beginning any work
• Remove the old cap and clean the surrounding duct and mounting surface before installing
• Secure with the existing fasteners or compatible screws and seal edges with foil HVAC tape if needed
• Inspect the connected ducting and lint trap while replacing the cap; replace damaged duct sections for best performance

This lever return spring restores proper tension to the lever assembly so the control or latch returns smoothly. A direct-fit replacement designed to restore normal lever movement and function. What it does:

• Provides return tension for the lever to ensure reliable latch or control movement
• Helps stop the lever from sticking or remaining engaged after use
• Restores smooth, consistent operation when the original spring is worn or broken
• Commonly replaced when lever movement feels loose or fails to return

• One spring lever

• Disconnect power (or unplug) and follow appliance safety procedures before servicing
• Access may require removing panels or the control/door assembly; keep fasteners organized
• Inspect mating lever and pins for wear; replace damaged components to prevent repeat failure

The Cover Assembly is an OEM part for LG French door refrigerators equipped with electronic display panels. This assembly protects the critical control components governing refrigerator functions.

Causes of a bad cover assembly include cracks or breaks from impact damage, discoloration or warping due to heat/cold exposure over time, or failure to mount leaving the display vulnerable.

Symptoms of a bad cover assembly include:

• Gaps allowing dust or liquid ingress near electronics
• Difficulty reading displays clearly through clouded plastic
• Loose or misaligned fit reducing aesthetic appeal
• Cover unable to fulfill its protective function

Replace yours today with this genuine OEM LG assembly to safeguard temperature controls and programming features. A snug, durable cover maintains dependable performance access. This replacement part is also compatible with Samsung, KitchenAid, and GE French door models to restore usability and presentation.

The Link is an OEM part for LG refrigerators. It serves as an integral connector between the refrigerator door and cabinet, facilitating smooth opening and closing of the door. With durable construction and precise engineering, the link is designed to withstand the rigorous motion of hundreds of door openings without compromising functionality.

Symptoms of a bad link include:

• Doors that do not close or seal properly
• Excessive noise or vibration from the door area
• Damage, bending, or breakage of the connecting pieces
• Misalignment impairing proper door operation

Causes can stem from normal wear and tear over many years of use. Replacing a faulty link restores the refrigerator door's designed motion for convenient access to the interior.

This OEM LG part fits seamlessly while extending the product's useful life. This part is also compatible with Kenmore models featuring LG's refrigerator link assembly design.

This lever button is the push-style control used to activate a specific function on the appliance's control panel. It restores tactile control and makes it easy to trigger the associated feature without replacing the whole panel. What it does:

• Acts as the user-facing push lever that completes the button action on the control assembly
• Replaces a cracked, worn or unresponsive lever that won't depress or return properly
• Helps resolve intermittent or failed button activation when the switch and contacts are otherwise good
• Matches the OEM shape so the button aligns and engages cleanly with the underlying switch

• High-level swap: remove the front/control bezel to access and replace the lever; keep screws and clips organized
• Power safety: disconnect power (unplug or shut off breaker) before servicing control area
• Inspect underlying switch and mounting clips during replacement; do not force parts into place

This compressor set assembly restores the sealed refrigeration system's heart so your refrigerator can cool again. Durable replacement for systems that fail to start, run loudly, or no longer maintain cold temperatures. What it does:

• Compresses refrigerant to circulate cooling through the appliance
• Replaces a failed or seized compressor that prevents cooling
• Addresses symptoms like warm compartments, frequent cycling, or unusual compressor noise
• Works as a complete sealed-system assembly when matched to correct model

• Disconnect power before servicing and follow lockout/tagout procedures
• Use proper torque and mounting to avoid vibration and noise; follow OEM service manual
• Dispose of old compressor and refrigerant per local environmental laws

The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

This molded fan guide positions and supports the evaporator/air-circulation fan to keep airflow steady and reduce noise for proper refrigerator cooling. Replaces a cracked or broken guide to restore stable fan movement. What it does:

• Holds the fan blade or motor shaft in the correct position for consistent airflow
• Prevents rubbing, wobble, and vibration that cause noise or premature fan wear
• Helps maintain even cooling through unrestricted circulation in the freezer/refrigerator
• Common symptom: rattling, scraping, or noisy fan; reduced airflow or uneven temperatures

• One fan guide

• Disconnect power to the appliance before starting any repair
• Part typically installs behind interior panels; remove cover panels and the fan assembly to access
• Handle plastic tabs and clips gently to avoid breakage; use appropriate tools if clips are tight

Replacement front cover that restores your appliance's exterior finish and helps protect controls and internal components from everyday wear, spills, and minor impacts, delivering a clean, finished look and proper front-panel fit. What it does:

• Covers and protects the appliance's front area, helping shield controls and wiring from dirt and moisture.
• Restores damaged or cracked front trim for improved appearance.
• Helps maintain proper alignment and fit of the front assembly.
• Common symptom: cracked, chipped, warped, or loose front panel that exposes internal parts or looks worn.

• Disconnect power (unplug or switch off breaker) before starting any repair.
• Basic hand tools (screwdriver set) may be required to remove the old cover and install the replacement.
• Handle edges carefully to avoid cuts; align tabs/clips and secure fasteners snugly but do not overtighten.

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

This cabinet roller supports the refrigerator and lets the unit roll in and out of place for cleaning or service. Replace a worn or broken roller to restore smooth movement and help keep the appliance properly positioned.

• Supports the base of the refrigerator and enables rolling movement
• Helps with safe positioning and service access without dragging
• Common failure signs: appliance is hard to move, scraping or rolling noises, a flat-spotted/cracked wheel, or a wheel that won't turn
• Replace when the roller is damaged, seized, or missing

• Disconnect power and shut off water supply; protect flooring before moving the appliance
• With help, pull the refrigerator forward and safely support it to access the roller
• Remove mounting fasteners, install the new roller, and reuse original hardware
• Confirm level and smooth movement before returning the unit to its location

The Drier Assembly is an OEM part for LG refrigerators. This part removes moisture and contaminants from the refrigerant, ensuring the system operates efficiently and effectively. The drier assembly helps maintain the proper function of the compressor and other cooling components, contributing to the longevity and performance of the refrigerator.

Causes of a bad drier assembly can include clogs from debris, wear and tear over time, or contamination from moisture or refrigerant leaks.

Symptoms of a bad drier assembly include:

• The refrigerator not cooling properly
• Frost or ice buildup on the evaporator coils
• Increased noise from the compressor
• Reduced efficiency and higher energy consumption
• You should replace the drier assembly if it becomes faulty or damaged.

This OEM LG part is also compatible with select Sears/Kenmore models.

This replacement drip tray catches and channels water beneath the appliance to prevent leaks and pooling. It helps maintain proper drainage and reduces the chance of water damage under your refrigerator or freezer. What it does:

• Collects condensation, defrost water, or minor leaks to keep the cabinet floor dry
• Directs water to the evaporator or drain system so it can safely evaporate
• Helps prevent pooling that can lead to odors or mildew
• Restores a damaged or missing tray to stop water from dripping onto the floor

• For safety, unplug the appliance and shut off water supply (if applicable) before installing
• Slide or snap the tray into the designated location; ensure it seats fully and aligns with the drain path
• Inspect surrounding seals and drain channels for blockages or damage while the tray is accessible

Restore proper airflow with this replacement fan assembly. It circulates air across the coils and through the cabinet so your refrigerator can move heat effectively and maintain consistent temperatures throughout. What it does:

• Drives airflow to support heat exchange at the coils
• Helps maintain stable, even temperatures inside the compartments
• Supports proper cooling performance and system reliability
• Common symptoms: fan not running or intermittent, unusual rattling/scraping noise, reduced airflow, warmer-than-normal temps or extended run times

• 1 fan assembly

• Disconnect power before servicing; wear cut-resistant gloves
• Access the fan compartment; remove covers/panels as designed
• Note wire orientation and transfer any reusable hardware from the old unit
• Secure the assembly; ensure the blade spins freely before restoring power and testing

The Evaporator Fan Blade is an OEM replacement part for LG refrigerators. It is a key component located inside the refrigerator that works to circulate cold air evenly throughout. The fan blade spins rapidly to distribute chilled air from the evaporator coil and refrigeration system, ensuring proper airflow and consistent temperatures across all shelves and compartments.

Symptoms of a bad evaporator fan blade include:

• Inconsistent or improper interior cooling temperatures
• Hot or warm spots developing inside the refrigerator
• Strange noises such as clicking or grinding emanating from the rear wall

Causes of a bad evaporator fan blade can be wear and tear over time, an accumulation of dust or debris on the blades restricting airflow, or accidental damage like dents or cracks to the blades affecting their ability to spin smoothly.

This OEM LG part is also compatible with select Sears/Kenmore brand models.

This sheath-style heater melts frost from the evaporator during automatic defrost cycles to keep airflow clear and temperatures stable. Replacing a failed heater helps stop recurring ice buildup and restore consistent cooling performance.

• Heats the evaporator to melt accumulated frost/ice during defrost
• Keeps air passages clear to maintain proper temperatures
• Helps prevent frost-packed evaporator covers and reduced cooling
• Common symptoms: heavy frost behind the freezer panel, fan noise from ice contact, weak cooling, long run times

• Disconnect power before servicing; allow any sharp edges to be avoided with cut-resistant gloves
• Access is typically behind the freezer's rear interior panel; remove shelves/drawers and panel to reach the evaporator
• Transfer any clips/sensors attached to the heater in the same positions; avoid bending fins or puncturing refrigerant lines
• Ensure connectors are fully seated and the heater is secured before restoring power and monitoring operation

This magnet-activated switch is a small sensor that tells the appliance when a door or lid is open or closed. Replacing a faulty switch restores proper lighting, door-ajar alerts, and safety interlocks for normal operation.

• Senses a nearby magnet to report door/lid open/closed status to the control
• Helps control interior lights, alarms, fans, and dispenser/ice interlocks on applicable units
• Failure symptoms can include lights staying on or off, false door-ajar beeps, or dispenser/ice disabled
• Common causes: moisture intrusion, damaged leads, or stuck internal contacts

• Disconnect power before servicing
• Access the switch at the door opening (behind trim/control housing or liner, location varies by model)
• Release locking tabs/fasteners, move wiring carefully, and install the new switch in the same orientation
• Restore power and verify operation by bringing a magnet near the switch to toggle

The Dispenser Micro Switch is an OEM part for LG refrigerators. It is a component of the ice and water dispensing system, responsible for activating the dispenser when the lever is pressed.

Causes of a bad Dispenser Micro Switch can include mechanical wear from frequent use, failure due to moisture or debris affecting the switch’s contacts, or electrical faults that prevent proper signaling.

Symptoms of a bad Dispenser Micro Switch include:

• The dispenser not releasing ice or water when the lever is pressed.
• Continuous dispensing or dripping after the lever is released.
• Intermittent or no response from the dispenser controls.

This OEM LG part is also compatible with Sears/Kenmore.

The Evaporator Fan Motor Assembly is an OEM replacement part for LG refrigerators. This assembly is responsible for circulating cold air from the evaporator coils throughout the refrigerator and freezer compartments. By doing so, it ensures that both compartments maintain the desired temperatures and that the cooling process is efficient.

Causes for a malfunctioning Evaporator Fan Motor Assembly can include motor wear from continuous operation, electrical issues like faulty wiring, obstructions preventing the fan blades from turning, or damage to the fan blades themselves.

Symptoms of a bad Evaporator Fan Motor Assembly include:

• Inconsistent temperatures in the refrigerator or freezer compartments
• Unusual noises, such as humming or buzzing, coming from the back of the refrigerator
• Reduced cooling efficiency, leading to food spoiling faster
• Frost buildup in the freezer due to poor air circulation

This OEM LG part is also compatible with Sears/Kenmore model refrigerators.

A replacement cover motor that powers the refrigerator's dispenser cover, allowing the door to open and close so you can access ice and water. Replaces a worn or failed motor to restore normal dispenser cover operation. What it does:

• Drives the dispenser cover mechanism so the cover opens when dispensing and closes when idle
• Helps keep the dispenser sealed to reduce drafts and prevent pests or debris from entering
• Stops or fails to move when worn, causing a stuck, slow, or noisy dispenser cover
• Works with the dispenser linkage and gears to coordinate cover motion with user controls

• One cover motor

• Disconnect power to the appliance before beginning any repair
• Remove dispenser trim and access panel per your model's service instructions to reach the motor
• Handle gears and linkage carefully; ensure proper alignment during reassembly and test cover operation before finishing

Damper motor support secures the damper motor assembly inside the refrigerator, keeping the air-control damper aligned so it opens and closes correctly. Replacing a damaged support restores proper airflow control and reduces noise. What it does:

• Secures and positions the damper motor assembly so the air-control damper moves smoothly.
• Keeps the motor and damper aligned to help prevent rattling, grinding, or loose motor noise.
• Supports consistent airflow between compartments to assist with even cooling.
• Resolve damper movement problems like the damper not opening or closing fully.

• Disconnect power to the appliance before starting work; remove food and shelves as needed for access.
• Remove the interior access panel to reach the damper assembly; handle plastic tabs and clips gently to avoid breakage.
• Align the motor and damper during reassembly and secure all fasteners; test damper operation before replacing panels and shelving.

This damper motor support replaces a broken or warped mount for the refrigerator's air damper assembly. It holds the damper motor and door securely so the system can meter freezer air into the fresh food compartment.

• Secures and aligns the air damper motor/door within the duct
• Helps ensure proper opening/closing of the damper to regulate airflow and temperature
• Damage can contribute to a warm or too-cold refrigerator and inconsistent temperatures
• May cause clicking or buzzing from the damper area or a visibly loose assembly

• Disconnect power to the refrigerator before servicing
• Access the damper behind the fresh food compartment duct/cover; remove shelves as needed
• Note wiring and orientation; transfer the existing damper motor and door to the new support and reuse fasteners
• Ensure the door moves freely and seals before reassembly; restore power and verify airflow

The Door Bracket is an OEM part for LG refrigerators. This bracket supports the refrigerator door by providing stability and ensuring proper alignment during opening and closing. It plays a crucial role in maintaining the door’s secure fit, which is essential for maintaining the internal temperature and efficiency of the appliance.

Common causes of a bad door bracket include wear and tear from frequent use, impact damage, or corrosion due to moisture.

Symptoms of a bad door bracket include:

• The refrigerator door not closing properly
• The door sagging or being misaligned
• Unusual noises when opening or closing the door
• Gaps in the door seal leading to temperature inconsistencies

This OEM LG part is also compatible with Sears/Kenmore.

This LED assembly is a backlight strip used to illuminate the display for clear, even picture brightness. Replacing a faulty strip restores proper screen illumination and can eliminate dark spots or missing segments. What it does:

• Provides the LED illumination source behind the LCD panel for even brightness
• Restores lost or uneven backlighting caused by failed LEDs or damaged strips
• Commonly replaces parts that cause dimming, flickering, or no light on power-up
• Connects to the display's LED driver board to receive power and signals

• Disconnect power and remove the display panel before replacing
• Handle the strip and connector carefully to avoid bending or damaging LEDs and flex cables
• Observe ESD precautions and avoid touching LED surfaces or circuit traces
• Reassemble panels and test before finalizing to ensure proper alignment and function

Power cord assembly that restores the appliance's connection to household mains. Replaces a damaged or worn cord to help stop power loss, sparking, or intermittent operation and restore a safe power feed. What it does:

• Provides the main electrical connection from the wall outlet to the appliance so internal components receive line voltage.
• Replaces cords with visible damage, frayed insulation, exposed wires, or broken plug prongs.
• Can resolve symptoms such as no power, intermittent power, sparks at the plug, or breaker trips caused by a faulty cord.
• Restores the original style of power connection and strain-relief routing for a secure fit.

• Always disconnect power at the wall before attempting service.
• Basic hand tools may be required; secure the cord firmly with the appliance's strain relief and tighten screws.

This DC motor assembly powers a fan inside your appliance to move air where it's needed. Replacing a weak or failed motor restores proper airflow for stable temperatures and reliable performance. What it does:

• Drives a fan blade to circulate air within the appliance
• Supports consistent temperatures and efficient airflow
• Common failure signs: fan not running, intermittent operation, or grinding/squealing noises
• Contribute to poor cooling/heating and fan/motor-related error codes

• Includes: 1 DC motor assembly

• Disconnect power to the appliance before servicing
• Access the fan area, note wire routing/orientation, and remove mounting fasteners
• Transfer the fan blade and any mounting hardware from the original motor if needed
• Ensure the blade spins freely and connectors are fully seated before reassembly and power-up

This Service Power Control Board is the replacement control module that manages power distribution and service/onboarding functions for the appliance. It restores control functions used during diagnostics and setup. What it does:

• Supplies and routes power to service-mode electronics and enables onboarding/service routines
• Allows the appliance to enter service/diagnostic mode for setup and troubleshooting
• Works as the direct replacement PCB assembly designed for service-control functions

• One Service Power Control Board (SVC PCB) assembly

• Disconnect all power before starting and follow lockout/tagout procedures
• Handle the PCB by the edges and avoid static discharge; use an ESD strap if available
• Reconnect all wiring harnesses to their original locations; secure, fully-seated connectors

This cover assembly protects a control board's printed circuit board (PCB) by shielding it from dust, moisture, and accidental contact. It helps keep the PCB secured and reduces the chance of shorting or damage during normal use. What it does:

• Shields the PCB from dirt, splashes, and foreign objects that can cause shorts or corrosion
• Secures the board in place to prevent movement and stress on connectors
• Helps maintain safe separation between live circuitry and user-accessible areas
• Reduces intermittent electrical issues caused by debris or loose components

• Always disconnect power to the appliance before starting any repair
• Handle the PCB and cover with care to avoid static discharge; use proper ESD precautions if available
• Align the cover to the board and fasten using the existing mounting points; do not overtighten screws
• After installation, restore power and verify normal operation

This ice maker lever is the mechanical arm that controls ice production by interacting with the ice maker's on/off and level-sensing mechanism. Replacing a broken or missing lever restores proper operation and helps prevent overfilling or no-ice conditions.

• Acts as the ice maker's shut-off arm to regulate ice production
• Lowers to allow ice making; raises to stop when the bin is full
• Common symptoms: ice maker won't stop making ice, no ice when arm is stuck up, broken/missing lever, lever won't stay in position
• Helps ensure consistent, reliable ice production control

• Disconnect power and shut off water before service
• Remove the ice bin to access the ice maker; gently release the lever from its pivots/linkage
• Note lever orientation; transfer and reuse any original springs, clips, or fasteners
• Reinstall components, restore power, and verify free up/down movement of the arm

The Ice Maker Assembly is an OEM replacement part for LG refrigerators. It contains the complete ice-maker.

Causes of a bad Ice Maker Assembly can include issues with proper ice ejection, ice cube size or shape inconsistencies, decreased ice production over time, mineral or sediment buildup affecting performance, or wear and tear from extended use.

Symptoms include:

• Incomplete or inconsistent ice filling of the ice tray
• Cracked, pitted, or misshapen ice cubes
• Ice cubes not ejecting from the tray properly
• Slowed or ceased ice production

This OEM LG ice maker assembly is also compatible with some Kenmore refrigerator models.

The Clip is an OEM part for LG refrigerators. This clip secures the water tube in place, preventing it from moving or becoming disconnected. It plays a crucial role in maintaining the proper flow of water to the ice maker and water dispenser.

Causes of a bad water tube clip can include physical damage, wear and tear from regular use, or brittleness due to temperature fluctuations. If the clip fails, it can result in leaks or disconnections, disrupting the water supply.

Symptoms of a bad water tube clip include:

• Water leaks inside or outside the refrigerator
• The water tube becoming loose or disconnected
• Reduced or no water flow to the ice maker or water dispenser

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

The Air Cleaner Filter Assembly is an OEM part for LG refrigerators. This part ensures the air within the appliance remains fresh and free of contaminants. This part minimizes odors and filtering out particulates, thereby maintaining the quality of the air circulating through the refrigerator and its contents.

Over time, the effectiveness of the air cleaner filter can diminish due to the accumulation of particles and odors it has trapped. A decrease in air quality within the refrigerator, persistent odors despite cleaning, and an increase in the spoilage rate of food items can all be signs that the filter assembly may need replacement.

Symptoms of a bad Air Cleaner Filter Assembly include:

• Persistent unpleasant odors inside the refrigerator
• Increased spoilage of food items
• Noticeable reduction in air freshness or quality

This OEM LG part is also compatible with some Kenmore models.

This sensor PCB assembly detects and relays sensor signals to the appliance control system, restoring accurate sensor feedback and communication when the original sensor board fails or malfunctions. Designed as a direct replacement board. What it does:

• Reads sensor inputs and converts them to signals the main control board can interpret.
• Replaces a failed or intermittent sensor board that causes incorrect readings or sensor-related error codes.
• Can resolve symptoms such as unexpected sensor faults, control errors, or appliances not responding to sensor changes.
• Matches the OEM board function; verify model compatibility before ordering.

• Always disconnect power before servicing to avoid shock or shorting the board.
• Use ESD precautions and handle the PCB by its edges to prevent static damage.
• Ensure all connectors are fully seated and the board is mounted in the original orientation.

The Temperature Sensor is an OEM part for LG refrigerators. Also known as a thermistor, is responsible for sensing the temperature changes and providing the necessary feedback to the refrigerator's control board. It helps maintain accurate and consistent temperature levels, ensuring optimal food preservation and efficient cooling.

Causes of a faulty temperature sensor can include wear and tear over time, damage due to electrical issues or exposure to extreme temperatures, or sensor calibration issues. These factors can result in temperature inconsistencies, inaccurate readings, or improper cooling performance of the refrigerator.

Symptoms of a bad temperature sensor may include:

• Incorrect temperature readings on the control panel
• Temperature fluctuations inside the refrigerator
• Overcooling or inadequate cooling of food items

This OEM LG part can also be used on Kenmore/Sears appliances.

The Water Tank Assembly is an OEM part for LG refrigerators. It stores and supplies water for the refrigerator's dispenser and ice maker, ensuring a steady and clean water flow for these features.

Causes of a bad water tank assembly can include mineral buildup from hard water, leaks due to cracks or punctures, or contamination from mold or bacteria if the tank is not regularly cleaned. Over time, wear and tear from repeated use can also lead to failure.

Symptoms of a bad water tank assembly include:

• Water dispenser not functioning properly
• Reduced or no ice production
• Leaks or puddles inside the refrigerator
• Unpleasant taste or odor in the water

This OEM LG part is also compatible with Sears/Kenmore refrigerators.

This water valve assembly controls water flow to the refrigerator dispenser and ice maker, restoring reliable water delivery for dispensing and ice production. It replaces a worn or leaking inlet valve to stop drips and restore normal water fill cycles. What it does:

• Opens and closes to route household water to the dispenser and ice-maker fill tube
• Stops water flow when the appliance signals a fill cycle is complete
• Commonly used to address intermittent dispensing, slow fills, or visible leaks at the valve
• Works with the refrigerator's solenoids and water lines to maintain proper water delivery

• One water valve assembly as shown

• Disconnect power and shut off the water supply before beginning work
• Handle water lines and electrical connectors carefully; verify tight seals on hose fittings
• Replace mounting hardware and gaskets only if explicitly provided or specified by the OEM

This water tank assembly is the refrigerator's internal reservoir that stores and delivers water to the dispenser and ice-making system, restoring proper water flow and reducing service calls for lost dispensing or poor ice production. What it does:

• Holds and routes fresh water from the household supply to the dispenser and ice maker
• Replaces cracked, warped, or leaking reservoirs that cause visible leaks or loss of water pressure
• Restores normal dispensing when the original tank is blocked, damaged, or failing
• Works with the refrigerator's water pump/valve system to maintain steady water delivery

• Disconnect refrigerator power and shut off the water supply before beginning work
• Drain remaining water from lines and tank to avoid spills; keep towels handy
• Inspect and replace any worn gaskets, hoses, or clamps for a complete seal

This mechanical mounting band secures a bracket assembly inside the appliance to keep components aligned and reduce vibration. It restores proper bracket positioning so moving parts run quietly and reliably. What it does:

• Holds a bracket or component assembly in place to maintain proper alignment
• Dampens movement and reduces vibration-related noise or rattling
• Prevents excess wear by keeping parts from shifting during operation
• Helps maintain correct clearances to avoid interference or rubbing

• Disconnect power before inspecting or replacing internal parts
• Remove only the fasteners necessary to access the bracket; keep track of hardware
• Secure all fasteners to the manufacturer's torque or snug specification
• Replace the band if bent, cracked, or missing to restore proper fit and function

This water filter assembly replaces the refrigerator's water filtration module to help restore clear-tasting water and steady flow. Fits models that use the AGF80300705 assembly and installs at the refrigerator water inlet. What it does:

• Filters sediment and common taste/odor contaminants to improve drinking water quality
• Restores reduced water flow caused by a clogged or failing filter module
• Helps reduce visible particulates and cloudiness in dispensed water
• Prevents unfiltered water from reaching the dispenser/ice maker when installed

• Turn off refrigerator water supply before replacing the assembly to avoid leaks
• Hand-tighten connections; avoid overtightening fittings to prevent damage
• Run and discard the manufacturer-recommended initial volume of water after install to flush the system

The Filter Head Assembly is an OEM replacement part for LG French door refrigerators. The component that houses the built-in water filter responsible for cleaning water delivered through the refrigerator’s internal dispenser and ice maker. With its precise fit, the filter head assembly ensures the water filter is securely held in place to do its job properly.

Symptoms of a bad filter head assembly include:

• Water dispensing or ice making issues
• Water leaks around the filter area
• Error messages related to filter replacement
• Inability to change or install a new filter

Causes of failure can be cracks, cracks, mineral buildup, or normal wear over time. Filter head assemblies in continuous use may need periodic replacement.

This OEM part is also compatible with some Kenmore side-by-side refrigerators.

This replacement pipe holder secures a small appliance pipe or tube in place, reducing movement and vibration to help prevent noise, wear, or accidental disconnection. It restores proper routing and support for the pipe. What it does:

• Secures a pipe or tubing to the appliance frame or chassis to keep it from shifting
• Reduces rattling or vibration caused by loose plumbing or tubing
• Helps maintain proper alignment to avoid chafing or contact with other components
• Useful when a cracked, broken, or missing clip allows pipe movement

• Turn off and unplug the appliance before accessing internal components
• Remove any panels or covers to reach the pipe clip location
• Snap the clip over the pipe into the existing mounting tab; replace any damaged mounting hardware

This lower ice bank door hinge secures and pivots the freezer's ice bank door so it opens and closes smoothly, helping maintain proper sealing and ice dispensing alignment. Designed as a direct replacement for the original hinge. What it does:

• Supports the ice bank door, providing a stable pivot point for opening and closing
• Keeps the ice bank door aligned to maintain an effective seal and proper operation
• Prevents sagging or binding that can interfere with ice dispensing or door function
• Restores correct door movement after hinge wear or damage

• Use basic hand tools; keep power to the appliance off and unplug before starting
• Handle the ice bank and door carefully to avoid damaging the trim or ice chute
• Reuse original fasteners only if undamaged; replace damaged screws to ensure secure mounting

This door gasket assembly replaces a worn or damaged refrigerator door seal to help restore an airtight seal and maintain proper cooling. A properly seated gasket reduces drafts, moisture intrusion, and energy loss. What it does:

• Seals the refrigerator door to keep cold air in and warm air out.
• Helps prevent frost buildup and moisture accumulation inside the compartment.
• Reduces compressor run time and energy usage caused by a leaking seal.
• Addresses symptoms such as warm spots, visible gaps around the door, or condensation on the door edges.

• Disconnect power to the appliance and remove food from the door area before starting.
• Inspect the door flange for damage and clean the mounting surface to ensure a proper seal.
• Seat the gasket fully into the channel; some models require loosening or removing trim screws to install.
• If the door does not close evenly after installation, check hinge alignment and adjust per the OEM instructions.

This ice bank door gasket is the flexible door seal that keeps the ice bin compartment closed to limit warm air and moisture intrusion. Replacing a worn or torn gasket restores a tighter seal and helps reduce frost buildup and ice clumping. What it does:

• Forms an airtight seal around the ice bank/ice bin door to help prevent warm air and moisture from entering the compartment
• Reduces frost buildup, ice clumping, and excessive condensation inside the ice bin area
• Helps stop water or drips that can occur when the door seal is cracked or deformed
• Restores even door contact for proper closing and retention of ice quality

• Disconnect power to the refrigerator and remove the ice bin and any loose items before beginning.
• Inspect the door mounting channel; clean residue and old adhesive so the new gasket seats fully.
• Press the gasket evenly into the door channel, aligning any tabs or locator features; avoid stretching the gasket excessively.
• Use only non-sharp tools to ease the gasket into place; if the model uses clips or adhesive, replace or reapply per the manufacturer's instructions.

This lever cover is a molded trim/protective piece that fits over a user-operated lever on the appliance. Replacing a damaged or missing cover helps protect the mechanism and restores a clean, finished appearance. What it does:

• Shields and guides the lever mechanism to help ensure smooth operation
• Helps keep internal components covered and aligned
• Restores the finished look when the original cover is cracked or missing
• Common symptoms: cracked or broken cover, loose/wobbly lever feel, sticking or misaligned lever action

• Includes 1 lever cover

• Disconnect power before servicing; if working near a dispenser, shut off water supply as applicable
• Remove any screws or clips and release locking tabs carefully to avoid breaking adjacent plastics
• Transfer any reusable hardware from the original part
• Check lever movement and engagement before final reassembly
