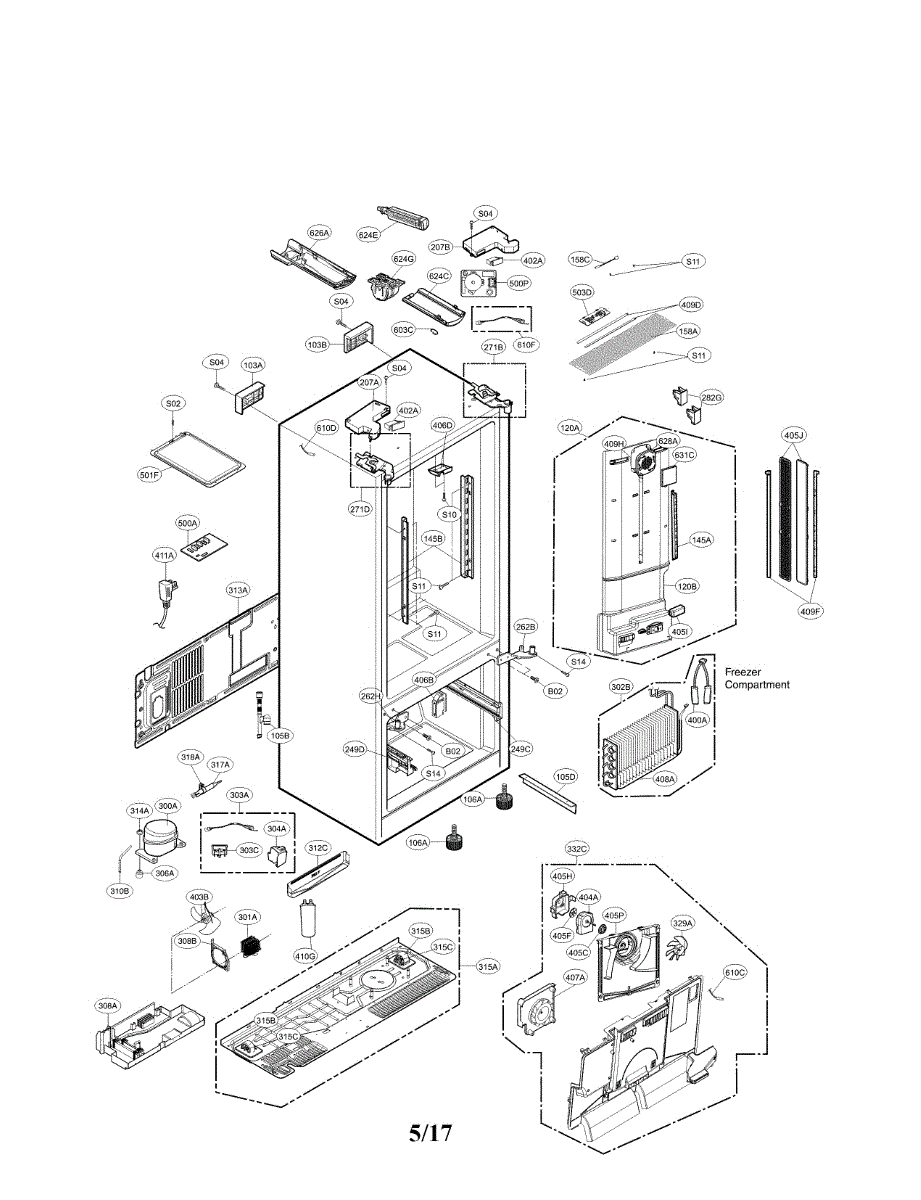

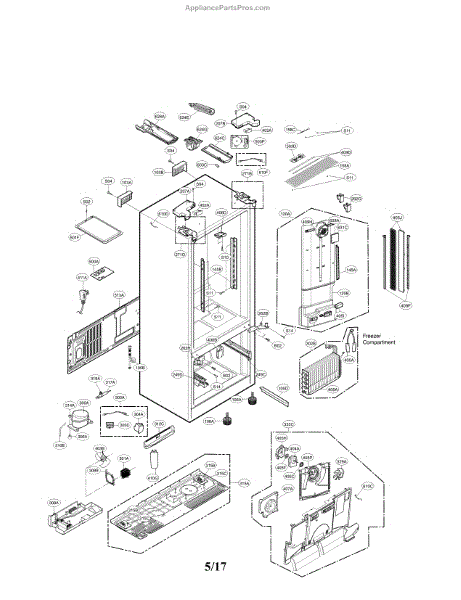

Parts for Lg LFXS29766S/01: Case Parts

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.

This drain tube assembly channels defrost water from the evaporator to the drain pan, preventing leaks and water buildup. Replace a cracked or clogged tube to restore proper drainage and reduce puddles or ice inside your refrigerator.

• Directs defrost water from the drain outlet to the drain pan
• Helps prevent water leaks inside the fresh food or freezer compartment
• Addresses issues from a tube that is cracked, kinked, or obstructed by debris/ice
• Common symptoms: water under crisper drawers, puddles beneath the unit, or ice forming at the freezer bottom

• Unplug the refrigerator before servicing
• Access the drain outlet and remove any ice or debris from the drain path
• Fully seat the tube at both ends to ensure a secure, leak-free fit
• Test by pouring a small amount of warm water into the drain to confirm proper flow to the pan

This adjustable leveling leg assembly supports and stabilizes your appliance by threading into the base frame. Replacing a worn or missing leg helps you level the unit for smoother, quieter operation on uneven floors.

• Provides height adjustment to level the appliance and distribute weight evenly
• Helps prevent rocking, wobbling, and excess vibration or rattling
• Can improve door alignment and smooth opening/closing when the cabinet is properly leveled
• Useful when a leg is missing, damaged, or threads are stripped

• Disconnect power; if applicable, shut off the water supply
• Use a helper to safely brace or tip the unit; protect flooring when accessing the leg
• Unthread the old leg and hand-thread the new one; tighten as needed
• Adjust front-to-back and side-to-side until stable; all legs bear weight evenly

This duct assembly channels exhaust air from the appliance to the external vent, helping maintain proper airflow and reduce moisture buildup. Replace a damaged or misaligned duct to restore safe, efficient venting. What it does:

• Directs exhaust air from the appliance to the vent outlet to support proper airflow
• Helps reduce backflow, moisture buildup, and lint bypass when properly sealed
• Fits multiple positions/configurations to accommodate different cabinet or wall locations
• Restores worn, torn, or crushed ducts that can restrict airflow or cause odors

• Disconnect power and unplug the appliance before beginning work; if gas-equipped, turn off the gas supply.
• Use appropriate clamps or screws and high-temperature foil tape where recommended.
• Inspect surrounding venting and replace any crushed or obstructed sections for best performance.

The Temperature Sensor is an OEM part for LG refrigerators. It monitors the internal temperature and sends this information to the control board, ensuring that the refrigerator maintains the correct temperature for optimal food preservation.

Over time, temperature sensors can fail due to electrical issues, exposure to moisture, or wear and tear from continuous use.

Symptoms of a bad temperature sensor include:

• Inaccurate temperature readings
• The refrigerator or freezer being too warm or too cold
• The refrigerator running constantly or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.

This guide assembly rail is the replacement drawer slide that restores smooth, stable movement for a refrigerator or appliance drawer. It keeps the drawer aligned and reduces sticking or uneven operation for everyday use. What it does:

• Guides and supports the drawer as it opens and closes to maintain proper alignment.
• Reduces sticking, scraping, and uneven travel caused by worn or damaged rails.
• Helps prevent drawer sagging and improves load stability when pulling out the drawer.
• Works with the factory mounting points and keeps the drawer tracking true.

• One guide assembly rail.

• Disconnect power or follow appliance-specific safety procedures before servicing.
• Remove the drawer or access panel to reach the existing rail; keep fasteners for reuse unless replacement required.
• Compare the new rail to the old part to ensure fit and orientation before installing.
• If fasteners are damaged or missing, replace with OEM-specified hardware.

This guide assembly keeps a sliding appliance drawer or rack aligned for smooth, reliable movement and helps prevent sagging or derailment. It restores proper tracking so the drawer/rack opens and closes without binding. What it does:

• Guides and supports a sliding drawer or rack so it stays aligned during use
• Reduces binding, sagging, or derailment when loading or pulling the drawer/rack
• Eliminates scraping or grinding noises caused by a worn guide
• Helps restore smooth, even motion and proper engagement with the slide mechanism

• One guide assembly

• Disconnect power before starting any repair
• Remove the affected drawer/rack to access the guide; keep track of fasteners
• Align the guide with the slide channel and secure per the OEM fastening points; some designs snap in while others use screws
• If mounting hardware is worn or missing, replace with OEM-specified fasteners for safe operation

This center hinge assembly secures and guides the refrigerator doors, restoring correct door alignment and smooth opening. Replaces worn or damaged center hinge hardware to help stop sagging and improve door sealing. What it does:

• Provides the central pivot point between the refrigerator doors for proper alignment and operation
• Restores smooth, even door movement when original hinge is worn or bent
• Helps the doors close fully to maintain the appliance seal and consistent internal temperature
• Fits the factory mounting points and matches OEM form for direct replacement

• Basic removal of trim and temporary support of the doors is required; have a helper to steady doors during replacement
• Use appropriate hand tools; avoid overtightening fasteners to prevent damage
• Disconnect power only if removing electrical components nearby; this part replacement is typically mechanical
• Inspect surrounding hinge screws and door hardware and replace if worn for best results

This center hinge assembly supports the refrigerator door at the mid-hinge position and allows smooth, reliable pivoting. Replacing a worn hinge restores proper alignment so the door closes and seals as designed.

• Provides the pivot point at the center hinge location
• Supports door weight to maintain alignment and clearance
• Helps ensure even gasket contact for an effective seal
• Common symptoms: door sagging or rubbing, squeaking at the hinge, difficulty closing, visible play or damage at the hinge pin

• Unplug the appliance and remove items from the door to reduce weight
• Support the door while removing the center hinge fasteners
• Note and transfer any spacers/washers in the same order and orientation
• After installation, align the door and verify the gasket seals evenly

This upper hinge assembly supports the refrigerator door at the top, providing a smooth pivot and proper alignment. Replacing a worn hinge restores even gaps and a tight seal to help maintain consistent cooling performance.

• Supports the door's weight and provides the top pivot point
• Maintains alignment for correct gasket compression and a tight seal
• Helps the door open and close smoothly without rubbing or binding
• Common signs of wear: door sagging or misalignment, rubbing/clicking noises, and poor sealing or condensation around the gasket

• Unplug the refrigerator before servicing.
• Remove the top hinge cover; retain screws and any shims for reuse.
• Support the door with a helper while removing and installing the hinge.
• Position the new hinge, align the door, then tighten screws and verify smooth swing and full gasket contact all around.

NOTE: This part also requires software update kit CJT30000002. DO NOT INSTALL WITHOUT UPDATING SOFTWARE. Call for more information.

This evaporator assembly circulates refrigerant inside the freezer compartment to absorb heat and enable your refrigerator's cooling cycle. Replacing a damaged or corroded evaporator helps restore proper cold production and reduce ice buildup. What it does:

• Absorbs heat from the freezer compartment so the system can maintain low temperatures
• Enables proper refrigerant flow through the cooling circuit
• Common symptom indicators: persistent warm temperatures, excessive frost or ice buildup, or frequent compressor runtime
• Works with the appliance's defrost cycle to prevent long-term frost accumulation

• Disconnect power to the appliance before starting any repair
• Replacing this part may require removing panels, evacuating/recharging refrigerant, or accessing sealed refrigeration lines; have a certified HVAC/appliance technician handle refrigerant work
• Use proper tools and follow the manufacturer's service manual for torque and fastening details

The Thermistor Assembly is an OEM part for LG refrigerators. It serves a crucial function in monitoring and regulating the temperature within the appliance. By sensing temperature changes, the thermistor sends information to the refrigerator’s control board, ensuring the system adjusts cooling to maintain the desired temperature settings.

Symptoms of a failing thermistor assembly include:

• Inconsistent temperatures in the refrigerator or freezer
• Refrigerator running longer than usual or not cooling efficiently
• Frequent fluctuations in temperature readings

Causes of thermistor assembly failure typically involve electrical faults, damage from moisture or frost, or simple wear over time, which can impact its ability to accurately measure and report temperatures.

This OEM LG part is also compatible with Sears/Kenmore.

The Overload Compressor is an OEM part for LG refrigerators. This part protects the refrigerator's compressor from overheating and potential damage by acting as a safety device. It works by monitoring the compressor's electrical current and temperature. If the compressor operates under conditions that could lead to overheating or overcurrent, the overload protector will cut off the power to the compressor, allowing it to cool down before potentially restarting.

Causes of damage to the Overload Compressor can include power surges, electrical faults within the refrigerator, or a malfunctioning compressor that requires more current than usual to operate.

Symptoms of a bad Overload Compressor include:

• The refrigerator not cooling properly or not cooling at all
• The compressor failing to start, indicated by a clicking sound coming from the back of the refrigerator where the compressor is located.
• The refrigerator or freezer section warming up

This OEM LG part is also compatible with some Kenmore models.

The Defrost Control Assembly is an OEM part for LG refrigerators. It is designed to regulate the defrost cycle, ensuring that frost buildup on the evaporator coils is periodically melted away. This helps maintain efficient cooling performance and prevents excessive ice accumulation, which can hinder the refrigerator's functionality.

You should replace the defrost control assembly if it becomes faulty. Causes of a bad defrost control assembly can include electrical failures, regular wear and tear, or damage from power surges. A malfunctioning defrost control can lead to issues such as inadequate defrosting, which results in excessive frost buildup and affects the cooling efficiency of the refrigerator.

Symptoms of a bad defrost control assembly include:

• Frost buildup on the evaporator coils
• The refrigerator not cooling properly
• The defrost cycle not initiating or running too frequently
• Increased energy consumption due to the refrigerator working harder to maintain temperature

This OEM LG part is also compatible with Sears/Kenmore models.

The Defrost Heater is an OEM part for LG French door refrigerators. It is an electrical heating element located inside the fridge compartment or freezer that automatically activates to melt frost and ice buildup during defrost cycles. Subject to temperatures cycling between warm and cold, the heater coil must withstand expansion stresses.

Symptoms of a bad defrost heater include:

• Accumulating frost that decreases available storage space over time
• Extended defrost periods not fully melting all accumulated ice
• Buzzing or clicking coming from the refrigerator compartment

Causes can be cracks in the heater coil's insulation allowing moisture to penetrate over many years of use. Replace with this new OEM LG defrost heater to ensure automatic removal of frost for fresher food storage. It is also compatible with Sears/Kenmore French door models.

Main control PCB assembly that manages the appliance's electronic controls, timing and user-interface signals to run cycles and communicate status. Replacing this board can restore proper control when electronics are unresponsive or erratic. What it does:

• Acts as the appliance's central control board, coordinating cycles, sensors and motor control signals.
• Processes user inputs from the control panel and sends status to displays and indicators.
• Regulates timing and sequence of operation for wash/dry/heating functions.
• Common symptoms of a failing board: unresponsive controls, error codes, random cycle starts/stops, or a unit that won't start.

• One main PCB assembly.

• Disconnect power (unplug or switch off circuit breaker) before servicing to avoid shock.
• Photograph or label connector locations before removal to ensure correct reassembly.
• Avoid touching circuit traces and components; use ESD precautions when available.

The Water Filter Bypass is an OEM part for LG refrigerators. It is used when you choose not to use a water filter in your refrigerator. This bypass plug allows water to flow directly to the dispenser and ice maker without being filtered, ensuring continuous operation even when a filter is not installed.

Causes of a bad water filter bypass can include damage to the bypass plug, clogging from debris, or wear and tear over time. If the bypass plug is not functioning properly, it can disrupt the water flow and lead to issues with the ice maker and water dispenser.

Symptoms of a bad water filter bypass include:

• Reduced water flow or no water flow to the dispenser
• Ice maker not producing ice
• Water leaks around the bypass plug area

This OEM LG part is also compatible with Sears/Kenmore.

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.
