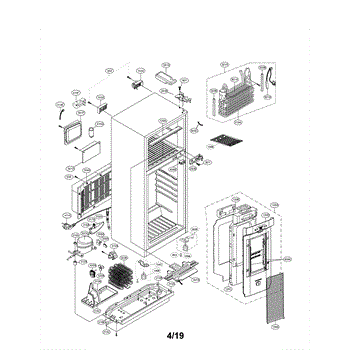

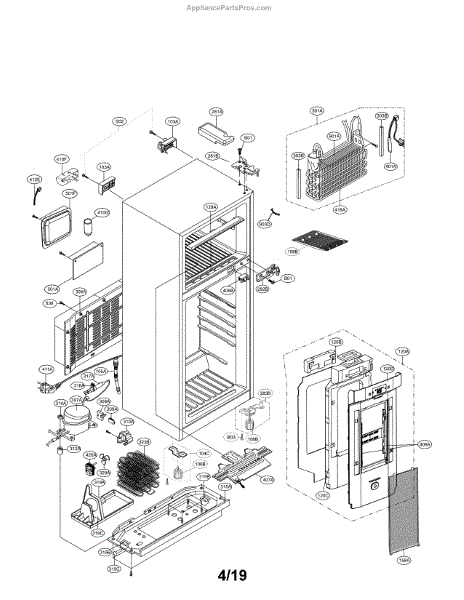

Parts for Lg LTN16385PL/00: Case Parts

This replacement mounting screw secures appliance panels and components to restore proper fit and reduce rattling or loose parts. Simple, direct replacement when a worn or missing screw causes loose panels or intermittent contact. What it does:

• Fastens panels, brackets, or small components to maintain proper alignment and reduce vibration
• Prevents loose trim, covers, or assemblies that can cause noise or improper sealing
• Replaces missing, stripped, or corroded screws that interfere with reliable operation
• Works wherever the OEM screw specification is required for secure mounting

• Use the matching screw hole and tighten until snug; avoid over-torquing to prevent stripping
• Disconnect power to the appliance if accessing electrical or moving parts near the work area
• If multiple screws are missing or panels are damaged, replace all fasteners for even support

The Drain Pipe Assembly is an OEM replacement part for LG refrigerators. It is a plastic tubing system that collects and removes liquid condensation from evaporator coils. Proper drainage is crucial to minimizing frost buildup and ensuring optimal cooling of food storage areas.

Symptoms of a bad drain pipe assembly include:

• Excessive frost or ice accumulation inside the refrigerator
• Puddling or leaks detected near evaporator housing
• Slow draining allowing water to pool versus emptying fully
• Cracks or breaks in the tubing prevent complete fluid removal

Causes are typically mineral sediment clogging drainage paths or deteriorating plastic from constant use. This OEM LG replacement pipe restores reliable condensate removal to maintain peak efficiency.

This OEM LG part is also compatible with Sears/Kenmore.

A replacement vegetable drawer tray that supports the crisper area and provides a stable surface for produce storage. Restores proper fit and function to the lower storage compartment so fruits and vegetables sit level. What it does:

• Replaces a cracked, warped or broken vegetable/crisper tray that no longer holds items securely
• Provides a stable surface so produce doesn't tip, fall or get caught when drawers slide
• Helps the crisper drawer glide properly by restoring correct alignment and spacing
• Keeps moisture contained in the crisper area to help organized storage

• Disconnect power to the appliance before servicing to reduce shock risk
• Remove the crisper drawer before installing; lift and slide the old tray out per diagram
• Align the new tray with the drawer rails and slide into place until it seats fully
• Use caution handling edges; if glass is present, replace only with the exact OEM-design part

This cover assembly replaces a damaged or missing rear housing panel to protect internal TV components and restore the unit's finished appearance. It helps keep circuitry safe from dust and accidental contact while maintaining proper airflow. What it does:

• Replaces a cracked, warped, or broken rear TV housing panel
• Protects internal boards, power components, and connections from dust and impact
• Restores secure mounting points for internal parts and external connectors
• Improves cosmetic appearance and prevents exposed wiring or sharp edges

• Unplug the TV and remove power and signal cables before beginning work
• Use appropriate screwdrivers and keep fasteners organized for reassembly
• Handle the part gently to avoid damaging plastic clips or alignment tabs

This door gasket assembly seals the edge of a refrigerator or freezer door to help maintain proper internal temperature and improve energy efficiency. It replaces a worn, cracked, or misshapen door seal to restore a tight closure. What it does:

• Forms an airtight seal around the door perimeter to reduce cold air loss and cycling
• Helps prevent moisture buildup, frost, and food spoilage linked to a failing seal
• Restores proper door closure if the original gasket is torn, warped, or hardened
• Works with the existing door trim and latch to maintain consistent cooling

• Disconnect power to the appliance before beginning any service
• Remove food and adjustable shelves from the door area for clearance
• Follow OEM diagram for correct alignment; gasket commonly fits into a retainer channel or attaches with clips/screws
• Inspect door frame and mounting channel for damage or debris before installing; warm the gasket slightly to ease installation if needed

This replacement door stopper cushions and limits door movement to protect the hinge and cabinet while reducing noise and wear. It restores proper door closing action and prevents the door from swinging too far. What it does:

• Acts as a bumper between the door and cabinet to absorb impact and reduce slamming
• Helps keep the door aligned and prevents binding or rubbing
• Reduces noise from door contact during opening and closing
• Common symptom: door slams, hangs open, rubs, or makes noise when moved

• Turn off and unplug the appliance before servicing to avoid shock or injury
• Access may require opening the door or removing a trim/inner panel—use appropriate hand tools
• Align the stopper on the hinge/cabinet mounting point and secure per OEM location; do not over-tighten
• If the door or hinge shows excessive wear, inspect related parts and replace as needed

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

This replacement door basket restores usable storage on the refrigerator door, providing a stable shelf for bottles, condiments and small containers. It keeps items organized and prevents them from shifting or falling when the door opens. What it does:

• Replaces a cracked, broken or missing door shelf/bin so items sit securely on the door.
• Restores proper containment for bottles, jars and condiments to prevent spills.
• Helps maintain organized storage and clear access to frequently used items.
• Works with the door trim and retaining clips to stay firmly in place during normal use.

• Empty the door and remove any retained clips or trim pieces before installing.
• Align the bin with the door rails/slots and press firmly until it snaps or seats into place.
• Inspect and replace any broken mounting tabs or retaining clips if the bin does not secure properly.
• For safety, unplug the appliance or disconnect power before working near electrical components; follow OEM service instructions.

The Compressor Start Relay is an OEM part for LG refrigerators, playing a critical role in the starting mechanism of the compressor. This small but crucial component helps to kickstart the compressor, enabling it to begin the refrigeration cycle that cools the interior of the fridge.

Causes of a bad Compressor Start Relay include wear and tear over time, electrical surges that can damage the relay, or overheating of the compressor unit.

Symptoms of a bad Compressor Start Relay include:

• The refrigerator failing to cool properly or maintain the set temperature.
• A noticeable increase in the electric bill due to the refrigerator working harder to maintain temperatures.
• Strange noises, such as clicking sounds from the compressor area
• The compressor not starting at all, leading to a complete lack of cooling within the refrigerator.

This OEM LG part is also compatible with some Kenmore models.

This small stopper installs in the refrigerator to limit the travel of a moving component and keep it securely in place. Replacing a broken or missing stopper prevents over-extension and helps maintain smooth, aligned operation.

• Limits the range of motion for a door, bin, or drawer to prevent over-opening or accidental removal
• Helps keep interior components aligned and operating smoothly
• Replace if cracked, missing, or deformed
• Common symptoms: drawer or bin slides out too far, door swings past normal range, or a broken plastic stop is found

• Disconnect power before servicing; remove or support the affected bin/drawer/door
• Note the old stopper's orientation and location before removal
• Transfer and reuse any original screws or clips if applicable
• Snap or fasten the new stopper in place and test for smooth movement

This is a replacement retaining pin used to secure small moving parts and assemblies in compatible LG appliances. It restores proper alignment and holds components in place so assemblies operate smoothly. What it does:

• Secures and locates components within an assembly to prevent shifting or disengagement
• Helps maintain proper alignment for moving parts that can cause noise or malfunction when loose
• Commonly used where a small, durable metal pin is needed to retain clips, levers, or linkages
• Simple, single-purpose part — replacement when the original is bent, worn, or missing

• One retaining pin

• Unplug the appliance or disconnect power before servicing
• Access the affected assembly per the appliance service instructions; small fasteners or clips may need removal
• Use pliers or appropriate hand tools to remove/install the pin; avoid forcing to prevent damage
• Keep track of orientation and any associated clips or washers during disassembly

The Drier Assembly is an OEM part for LG refrigerators. This part is responsible for removing moisture and contaminants from the refrigerant. This ensures that the refrigerant circulates effectively and efficiently, preventing damage to other components and maintaining the refrigerator's cooling performance.

Causes of a bad Drier Assembly can include contamination from moisture entering the refrigerant lines, blockages from debris or particulates, and general wear and tear over time that reduces its effectiveness.

Symptoms of a bad Drier Assembly include:

• Reduced cooling efficiency or warm refrigerator temperatures
• Unusual noises from the refrigeration system
• The compressor running continuously or cycling frequently
• Frost buildup on the evaporator coils due to improper refrigerant flow

This OEM LG part is also compatible with Sears/Kenmore models.

This holder is a small mounting bracket used to secure internal components in place, helping keep parts aligned and stable for reliable operation. It provides a direct, OEM-compatible replacement to restore proper fit and function. What it does

• Secures and supports nearby components to prevent shifting or vibration.
• Restores proper alignment where a worn or broken holder causes rattling or loose parts.
• Helps maintain normal operation by keeping assemblies seated correctly.
• Works behind panels or inside assemblies where a dedicated bracket is required.

• One holder/mounting bracket as shown.

• Installation generally requires removing the panel or access cover where the holder is located.
• Use proper fasteners shown in your appliance; replace any damaged screws or clips as needed.
• Disconnect power before servicing electrical appliances to reduce shock risk.

A direct-replacement AC motor assembly for compatible LG appliances that restores rotation and airflow so your appliance can tumble, circulate air, or run pumps as designed. Simple swap when the original motor fails. What it does

• Powers the appliance's rotating components to enable drum or fan movement.
• Restores normal airflow and agitation when a worn motor causes weak or no rotation.
• Helps eliminate grinding, squealing, or burning-smell symptoms tied to a failing motor.
• Stops intermittent start/stop or complete non-start conditions caused by motor failure.

• One (1) AC motor assembly as shown.

• Disconnect power before servicing to avoid shock—unplug the appliance or turn off the breaker.
• Partial disassembly of the cabinet or access panels is usually required; follow the service manual for your model.
• Inspect mounting hardware and wiring; replace any damaged fasteners or connectors.

The Damper Motor Support is an OEM part for LG refrigerators. It holds the damper motor in place, ensuring proper air flow between the refrigerator and freezer compartments. This support is essential for maintaining the correct temperature balance within the appliance.

Causes of a bad damper motor support can include wear and tear over time, physical damage from impacts, or exposure to moisture that can weaken the support structure. A faulty support can lead to improper functioning of the damper motor, affecting the refrigerator's cooling efficiency.

Symptoms of a bad Damper Motor Support include:

• Inconsistent temperatures between refrigerator and freezer
• Unusual noises coming from the damper area
• Visible damage or cracks in the support
• Reduced cooling efficiency

This OEM LG part is also compatible with Sears/Kenmore models.

This sheath heater is the protective heating element cover used in electric dryers to help direct heat and protect the element assembly. It restores proper heat delivery and helps prevent direct contact with the element. What it does:

• Protects and surrounds the dryer's heating element assembly to help direct airflow and heat
• Helps prevent shorting or damage from contact with the element
• Commonly replaced when the dryer fails to heat, heats intermittently, or shows scorch marks or visible damage to the heater area
• Works with the dryer's heating system; not a thermal fuse, thermostat, or heating coil by itself

• One sheath heater

• Disconnect power (unplug or turn off breaker) before starting any repair
• Handle with care — sheet metal edges can be sharp
• Verify the heating element and thermostats are in good condition; replace any damaged components

Replacement cooling motor (mechanical) that circulates air through the refrigerator's cooling channels to help maintain even temperatures and prevent overheating. Installs in the fan assembly to restore proper airflow and cooling performance. What it does:

• Drives the appliance fan to move air across the cooling system so compartments stay at the correct temperature.
• Restores airflow when a failed motor causes poor cooling or uneven temperatures.
• Failing motor symptoms can include the refrigerator running warm, frost buildup, or the fan not spinning.
• Can produce loud humming, clicking, or grinding noises when worn or damaged.

• Disconnect power to the appliance before starting work to avoid shock.
• Access may require removing interior or rear panels; retain all mounting hardware.
• Handle electrical connectors gently and secure wiring per original routing; tighten mounting screws snugly but do not overtighten.

This Main PCB Power Control Board Assembly manages power and control signals for the appliance, restoring reliable operation of electronic functions when the original board fails. Replace a faulty board to recover display, control, and power responsiveness. What it does:

• Regulates incoming power and distributes voltage to internal circuits to run the appliance
• Processes user inputs and interfaces with the control panel and sensors
• Helps resolve symptoms like no power or intermittent power, unresponsive controls, and erratic or blank displays
• Works with other control and sensor modules to maintain normal operational logic

• Unplug the appliance and disconnect power before beginning any repair.
• Take photos of connections and label wires before removing the old board to ensure correct reassembly.
• Handle the board carefully to avoid static discharge or damage to components.

The Refrigerator Temperature Sensor is an OEM part for LG refrigerators. This sensor monitors the temperature inside the refrigerator and communicates with the control board to maintain the optimal cooling environment.

Common causes of failure include wear and tear over time, electrical issues, or exposure to moisture. A malfunctioning sensor can lead to inaccurate temperature readings, resulting in improper cooling or freezing.

Symptoms of a bad refrigerator temperature sensor include:

• Inconsistent refrigerator or freezer temperatures
• Food spoiling faster than usual
• Refrigerator running continuously or not running at all
• Error codes displayed on the control panel

This OEM LG part is also compatible with Sears/Kenmore models.
