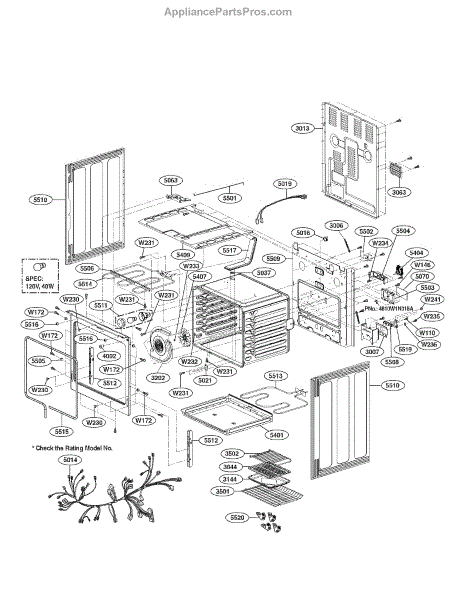

Parts for Lg LRE30451SW/02: Cavity Parts

This truss head tapping screw secures interior panels and small components on compatible appliances, restoring proper fit and stopping rattles or loose trim. It's a direct hardware replacement for a single mounting point. What it does:

• Fastens panels, brackets, and trim where a low-profile truss head is required
• Replaces missing or stripped screws that cause rattling or loose parts
• Provides a secure hold by forming threads in sheet metal during installation
• Useful for repairing cosmetic or functional panel alignment issues

• Disconnect power before working on any appliance to avoid shock or injury
• Use the correct sized Phillips or Torx driver to prevent cam-out or screw damage
• Start straight and thread slowly; do not overtighten to avoid stripping sheet metal
• Replace only with the exact part number for best fit and performance

This customized screw secures appliance components where a standard fastener won't fit, helping keep panels, brackets and small assemblies stable. It's a direct-fit replacement when the original specialized screw is missing or damaged. What it does:

• Fastens and holds appliance panels, brackets or small parts in place
• Prevents rattling, loose trim or misaligned components caused by a missing or stripped screw
• Matches the OEM fit and thread pattern for proper engagement and alignment
• Used in locations that require a non-standard or customized fastener

• Disconnect power and water before servicing the appliance
• Use the correct screwdriver or driver bit to avoid stripping the head
• Tighten securely but do not overtighten; overtightening can strip threads or crack parts
• Keep removed hardware organized so you can reinstall in the original location

The Screw is an OEM component specifically designed for LG ranges. It plays an important mounting and fastening role by securely attaching internal components together.

The screws utilized within the range cabinet ensure sturdy construction and reliable mechanical cohesion. They allow for simple assembly and proper alignment of inner parts.

Causes of bad screws can include wear and tear over time, or damage from overtightening leading to stripped threads or heads.

Symptoms of bad screws include:

• Loose, detached, or misaligned inner parts
• Hardware that does not fit or interface as designed
• Unintended noises or movement during the operation

This OEM LG replacement part is also compatible with Sears/Kenmore and some GE ranges utilizing similar fasteners. Replacement ensures the range remains mechanically sound.


This hardware washer helps distribute fastener load and maintain proper spacing in your LG appliance. Replacing a missing or worn washer restores secure mounting and alignment, reducing vibration and rattling from loose assemblies.

• Distributes the load of a screw or bolt and protects mating surfaces to maintain alignment
• Helps keep components secure and at the correct spacing
• A damaged or missing washer can lead to loosening, vibration, or rattling during operation
• Ensures correct hardware stack-up during reassembly after service

• Disconnect power and shut off water or gas before servicing
• Note the order and orientation of any washers/spacers; take a reference photo
• Use the correct driver or wrench and tighten snugly—do not overtighten
• Replace companion hardware if corroded, stripped, or damaged

The Common Nut is an OEM part for LG ranges. It secures the fan blade to the motor shaft. This nut maintains the fan's stability and preventing it from becoming dislodged during use.

Causes of a bad common nut can include loosening over time due to vibration, improper installation, or damage from impact or mishandling.

Symptoms of a bad common nut include:

• Excessive noise or vibration from the fan assembly
• The fan blade becoming loose or detached, causing poor air circulation
• Potential risk of the fan blade becoming a projectile if completely detached

This OEM LG part is also compatible with some Kenmore models.a

A circular lug designed to join a stripped wire to a threaded terminal for a secure electrical connection. Helps restore reliable contact at terminals and reduces the chance of intermittent power or arcing at connection points. What it does:

• Provides a strong mechanical and electrical connection between a wire and a screw or bolt terminal.
• Helps prevent loose connections that can cause intermittent operation, sparking, or overheating.
• Commonly used where a ring-style termination is required for safe, stable wiring.
• Works with properly sized wire and fasteners to maintain consistent conductivity.

• Always disconnect power to the appliance before inspecting or replacing electrical parts.
• Use the correct lug size and gauge for the wire and terminal; crimp or solder per manufacturer recommendations.
• Tighten terminal hardware to the appliance manufacturer's specified torque; avoid over-tightening which can damage the lug or terminal.
• If wiring insulation or the terminal is damaged or corroded, replace the affected components rather than reusing them.

This small, board-mounted tactile push-button switch is used on the control panel. It registers a momentary press so the control board can accept your selection. Replacing a worn switch restores reliable button response and consistent operation.

• Mounts to the user interface board and provides momentary contact when a button is pressed
• Sends a low-voltage signal to the control, enabling cycle or option selection
• Typical failure symptoms: unresponsive or intermittent buttons, needing extra force to register, stuck/always-on input, or unintended beeps/changes
• Helps restore consistent user-interface input when an individual button switch has failed

• Disconnect power to the appliance before servicing; shut off gas/water if applicable
• Access the control panel to reach the user interface board
• This is a board-level repair; note switch orientation. Replacement may require desoldering/soldering per OEM procedure
• Use ESD precautions and avoid overheating PCB pads; test button function before reassembly

The Magnetron Thermostat is an OEM part for LG microwaves and built-in ranges. Its primary function is to monitor the temperature and ensure that it remains within a safe operating range. If the temperature exceeds the preset limit, the thermostat will interrupt the power supply to the magnetron, preventing overheating and potential damage.

Causes of a faulty magnetron thermostat can include electrical malfunctions, component failures, or physical damage. These factors can result in issues such as erratic heating, microwave not heating properly, or the appliance shutting off unexpectedly.

Symptoms of a bad magnetron thermostat may include:

• Microwave not heating food evenly or at all
• Inconsistent or weak heating performance
• Microwave shutting off or displaying error codes related to temperature issues

This OEM LG part can also be used on Kenmore/Sears appliances.

This single wiring harness connects appliance components to deliver power and signals, restoring reliable electrical continuity and component communication. Use when a damaged or corroded harness causes intermittent operation or complete failure of the connected part. What it does:

• Routes power and signal connections between components to ensure proper operation
• Replaces broken, frayed, or burned wiring that can cause intermittent power or component failure
• Helps stop symptoms like no power to a component, erratic behavior, or intermittent operation
• Maintains correct connector fit to prevent loose connections and arcing

• One single wiring harness as shown

• Disconnect power before servicing to avoid shock or short circuits
• Match connector shapes and terminal positions; do not force connectors
• Inspect mating connectors and terminals for damage or corrosion before installation

The Thermistor is an OEM replacement part for LG gas ranges. It serves as a highly sensitive temperature sensor mounted inside the oven cavity.

Symptoms of a bad thermistor include:

• Inability to select certain cooking modes like bake or convection that involve temperature control
• Fluctuating or inaccurate temperature readouts on oven displays
• Irregular cooking outcomes like hot/cold spots inside the oven
• Repeated error codes regarding temperature sensing issues

Causes can be attributed to prolonged exposures to heat and intermittent combustion byproducts inside the oven. Over a decade of use, these conditions may degrade the thermal and electrical properties of sensor components.

This genuine LG replacement thermistor installs effortlessly. Installing a new thermistor restores temperature monitoring required for reliable gas oven performance.

The PCB Assembly is an OEM component for LG ranges. It is the circuit board responsible for controlling critical range functions such as the oven, cooking elements, and display.

Symptoms of a bad PCB assembly can include:

• Range elements not working properly
• Display malfunctions or failures
• Improper functioning of oven features like bake, broil, and convection modes

Causes of a bad circuit board tend to be normal wear and tear over time from heavy usage and heat exposure during cooking. Occasional power surges or fluctuations can also potentially cause circuit damage.

This OEM LG part is also compatible with Sears/Kenmore.

The MOTOR, AC FAN is an OEM part for LG refrigerators, designed to circulate air efficiently throughout the unit. This vital component ensures that cool air is distributed evenly across the refrigerator and freezer compartments, aiding in maintaining consistent temperatures to keep food fresh and prevent spoilage.

Causes of a bad MOTOR, AC FAN can range from wear and tear over time, dust and debris accumulation impeding the motor's function, to electrical malfunctions preventing the motor from operating.

Symptoms of a bad MOTOR, AC FAN in a refrigerator include:

• Inconsistent or warming temperatures within the refrigerator or freezer compartments
• The refrigerator running longer than normal or working harder to maintain cool temperatures
• Unusual noises suggesting the fan motor is struggling to operate or has failed

This OEM LG part is also compatible with some Kenmore models.

The Bake Element is an OEM part for LG ranges. This part provides the necessary heat for baking by distributing heat evenly from the bottom of the oven cavity.

Causes of a bad bake element can include normal wear and tear over time, exposure to high heat leading to deterioration, or electrical issues causing the element to short out.

Symptoms of a bad bake element include:

• Oven not heating evenly or not reaching the set temperature
• Visible damage such as breaks or blisters on the element
• The element not glowing red when in use
• Longer cooking times than usual

This OEM LG part is also compatible with some Kenmore models.
