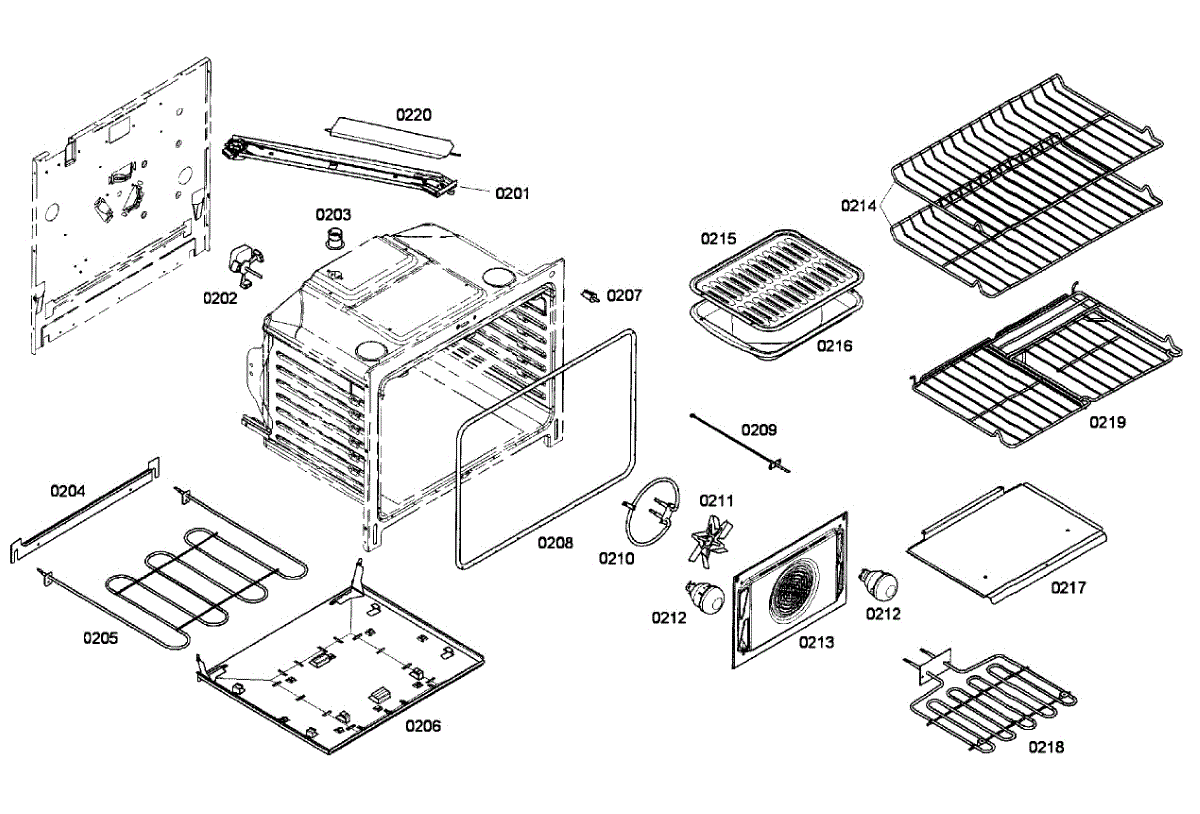

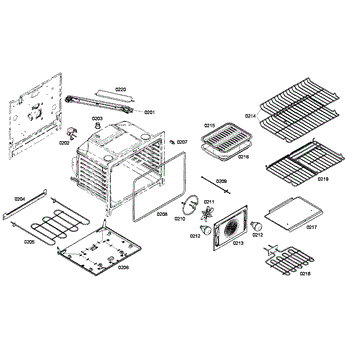

Parts for Bosch HEI7052U/03: Cavity & Shelf Assembly Parts

The Convection Fan Motor is an OEM component specifically designed for Bosch combination and convection steam oven ranges. Located within the oven cavity, it powers the convection fan and circulation of hot air.

Symptoms of a bad convection motor include:

• Failure to achieve even heat distribution within the oven
• Loud grinding noises or vibrations from the fan
• Inability to select convection cooking modes
• Burning smells indicating possible overheating

Causes of failure may involve normal wear over extended use. Blocked ventilation from food debris could overload the motor. Accidental liquid spillage presents corrosion risks.

Replacing with this genuine Bosch motor restores essential airflow. Compatible with 500 series models, it features a permanently lubricated design for durable performance. Backed by Bosch quality, this convection replacement ensures reliable cooking for years to come. It is also compatible with Thermador and Gaggenau ranges.


The Oven Light Switch is an OEM part for Bosch ranges. It engages convenient interior illumination through a single motion, allowing monitoring of baked goods without compromising temps.

Causes of a bad oven light switch can include failures from the natural stresses of constant clicking associated with opening and closing the oven door.

Symptoms of a bad oven light switch include:

• Dim or unresponsive lights even when the door is opened properly
• Inability to turn lights off, leaving them burning needlessly
• Stuck in either the on or off position without toggle functionality
• Potentially hazardous exposed live terminals under switch housings

This OEM Bosch part can also be used on Thermador and Gaggenau appliances.

This door seal restores a tight barrier between the oven door and cavity. Replacing a worn gasket helps your oven reach and hold temperature, reduces heat escaping at the door edges, and supports more consistent baking and roasting results.

• Creates a heat-resistant seal around the oven opening
• Helps the oven preheat and maintain set temperature
• Limits heat, steam, and odors from escaping at the door
• Typical signs it needs replacement: visible tears or flattening, heat felt around the door, longer preheat/cook times, or uneven baking

• Disconnect power at the breaker and let the oven cool completely
• Open the door, pull the old seal from its channel, and clean the groove
• Press the new seal evenly into the channel without stretching; ensure corners seat fully
• Close the door to verify uniform contact all around and adjust as needed

The Sensor is an OEM part for Bosch ovens and ranges. It detects and monitors the actual interior temperature to maintain precise baking and roasting conditions.

Causes of a bad temperature sensor can include wear from prolonged heat exposure within the oven cavity. Physical damage, moisture intrusion or circuitry malfunctions may also lead to sensor failure over time.

Symptoms of a bad oven temperature sensor include:

• Inability to accurately read or achieve set target temperatures
• Fluctuations in readings displayed
• Cooking modes like bake and broil functioning abnormally

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This heating element is the direct-replacement heater assembly that provides the heat source for compatible appliances, restoring proper heating so cycles reach the temperatures needed for effective drying or cleaning. What it does:

• Generates heat for the appliance's thermal system (air or water heating depending on model).
• Replaces a failed or damaged heater element to restore normal temperature rise.
• Common symptoms it may fix: no heat, weak/no drying or cleaning performance, or unusually long cycles.
• Works as part of the appliance's safety and temperature-control circuit (thermostats or sensors may also be involved).

• Always disconnect power (and water, if applicable) before replacing the element.
• Allow the appliance to cool fully and wear protective gloves; heating elements can have sharp edges.
• After installation, restore power and run a short test cycle to check for any error codes.

Restore clear visibility inside your oven with this oven lamp assembly. It replaces a failed or damaged light unit so you can check cooking progress without opening the door and losing heat.

• Illuminates the oven cavity during baking and broiling
• Replaces a cracked lens, burned socket, or damaged lamp housing
• Can help fix a light that won't turn on, flickers, or is intermittent
• Maintains visibility without repeated door openings

• Disconnect power at the breaker and allow the oven to cool completely before service.
• Remove oven racks for working space; access the lamp area per your model's service instructions (from inside the cavity or the rear panel).
• Handle glass components carefully; if transferring a bulb, avoid touching the glass directly.
• Restore power and test the light before reinstalling racks and returning the oven to service.

This grille for pan is a replacement trim piece that restores proper airflow and appearance around the appliance pan. It helps keep the pan area protected and looking finished after repair. What it does:

• Covers and ventilates the pan opening to help direct airflow and prevent debris entry
• Replaces a cracked, warped, or missing grille to restore fit and finish
• Helps eliminate rattling or rubbing caused by a damaged trim piece
• Matches OEM fit so it installs cleanly with the original mounting points

• Install requires removal of the surrounding trim or access panel; follow your appliance manual
• Handle carefully to avoid scratching the finish; use non-marring tools as needed
• Disconnect power to the appliance before working in the service area
• Replace damaged clips or screws with OEM fasteners for secure fit
