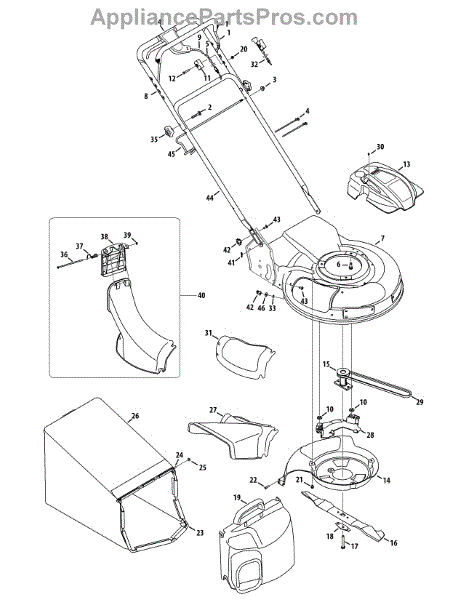

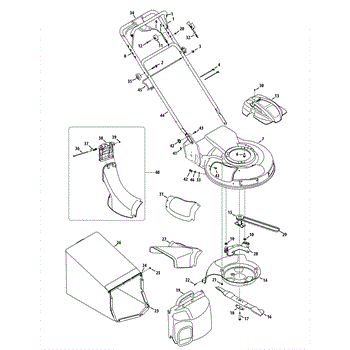

Parts for Cub Cadet Home Maintenance 12A-98M7 / HM 2012: Cc98 General Assembly Parts

This control handle is a genuine MTD part. It is manufactured as a replacement part for self-propelled walk-behind lawn mowers. It is also called the control bar, mower bail, engine stop handle, bail control, or operator presence control bar.The control handle is the part that the user squeezes against the handle in order to operate the mower. It must be held against the main handle while the mower is in use; otherwise, the engine will turn off. For that reason, it must be in good repair to use the mower. It can become broken through normal wear and tear since it is relatively thin and slightly flexible to make it easier to squeeze. It is simple to replace since no disassembly of the mower deck or engine is required. Still, proper precautions should be taken.This control handle is a genuine OEM part sourced directly from the manufacturer, and it is sold individually. It is designed to be compatible with various machines manufactured by Cub Cadet and MTD.

This replacement curved hd. screw is also known as a carriage bolt. The screw can be used on many types of lawn and garden equipment. The purpose of the screw is to hold and support the upper and lower handles of the machine. It works along with the hand knob to help secure the handles, but buyers should know that the knob is sold separately. Owners might need to replace the carriage bolt if it has become corroded or no longer properly secures the handles. If the owner has lost the bolt, they will need to buy a new one before they can use their machine. The replacement for this part is fast and simple. This is an authentic OEM replacement curved hd. screw that is sold individually. It is for use with lawn mowers, tillers, snowblowers, wood chippers, edgers, and leaf blowers. It is compatible with certain models from Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

A flange nut's unique wide flange design distributes the nut's pressure over the part it is securing. In return, it creates an even fastening surface, which reduces part damage and nut loosening. This one-piece all-metal fastener has a lock nut version that features a protruding circular flange. This drastically increases bearing surface, compatibility either for irregular or oversized holes, and surface tension reduction. Flange lock nuts are the preferred type of fastener for many lawnmower models because it can provide better fastening than regular screws, which are known to loosen under extreme vibration. However, it’s important to know that flange lock nuts are susceptible to wear and tear due to constant vibration exposure. It is essential to replace the broken flange lock nut immediately to prevent serious damage to the lawnmower. The MTD 712-04063 Flange Lock Nut OEM replacement can be used with Craftsman, White Outdoor, Yard Machines, MTD, or Columbia lawnmowers. It is a genuine or OEM MTD replacement part that measures 5/16-18. It is threaded and requires the use of a wrench. This replacement flange lock nut is sold individually. An MTD bolt carriage may also be needed and is sold separately.

This is a seven-inch cable tie that is used with different types of lawn and garden equipment. It is most commonly used to secure the cable onto the handle of the lawnmower or tiller so it is secure. The cable tie is made of durable plastic but can be damaged or break. When this happens, the tie will need to be replaced to ensure the cable stays on the handle.If the cable tie needs to be replaced, no tools are needed. In the situation where other parts need to be replaced at the same time, a basic set of tools and a pair of work gloves may be required. Turn off the yard equipment and place it on a stable surface before replacing the broken cable tie. The old tie can be removed so the new one can be installed before further use.This cable tie is an authentic OEM replacement part that is directly sourced from the manufacturer. This product is sold individually. The component is designed to be compatible with lawnmowers, lawn tractors, tillers, and snowblowers manufactured by MTD, Troy-Bilt, Yard-Man, and Yard Machines.

This is a drive control cable for use with lawnmowers. The purpose of the drive control cable is to engage the gear case, which allows the lawnmower to drive. If there is a problem with the cable, the mower will not function properly and will not move forward. The brake will not release. Before using the lawnmower, replace damaged or worn-out cables.These cables are durable and tend to last for a long time. However, they can still have problems as they age. In some cases, they might break. Parts of them might corrode and become damaged, as well. When a problem is noticed, owners will want to replace the cable. Use a pair of pliers to replace the drive control cable. The replacement is relatively easy and should not take long.The control cable is a replacement for certain lawnmower models from MTD, Yard-Man, Cub Cadet, and Troy-Bilt. This cable is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually.

This hex screw and lock washer are commonly used with lawn mowers and other small engines to secure a motor to the housing of the equipment. It is machined in such a way that it binds the manifold and frame permanently. There are occasions when these bolts have to be removed, typically when major repairs are performed on the engine. In those cases, users often find it advisable to replace the hex bolts and washers with new ones. It happens as well that these screws are so tightly fastened that they cannot be unscrewed and must be cut off. In those cases, it is necessary to replace the original screws. These replacement screws and lock washers are genuine OEM certified replacements that are manufactured to be identical to the hardware they are replacing. In addition to mowers, these hex screws are used to secure engines to devices such as log splitters, edgers, shredders, trimmers, and snowblowers. This screw is compatible with devices made by Husky, Yard-Man, Cub Cadet, Troy-Bilt, Ryobi, Bolens, and Yard Machines.

This part is a drive cable that is used on lawnmowers. The drive cable connects the handle drive control level to the lawn mower transmission and is what engages the transmission to move the lawnmower forward.A new drive cable may be needed if the lawnmower will not move forward with the self-propel feature. If any part of the drive cable is cracked, broken, or damaged in any way, it will need to be replaced, especially if it is impeding the operation of the lawnmower. Remember to wear gloves when operating or performing care and maintenance on any outdoor power equipment. Never perform care and maintenance on outdoor power equipment that is powered on.This drive cable is a genuine MTD part. It is sold individually. This specific drive cable is compatible with lawnmowers that are manufactured by MTD, Craftsman, Husky, and Yard Machines.

This part is a replacement flat washer. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. The intended use for this part is to properly replace a defective or lost flat washer in outdoor power equipment.Flat washers are a standard piece of hardware that can be used on many types of equipment. They enable screws or bolts to tightly fix components together by providing a larger bearing surface. Lost or defective washers should be replaced. Always ensure that the equipment is completely powered off and is cooled down before attempting to start the repair process. For more accurate information on installation of this particular flat washer, reference the owner's manual or equipment diagrams for specific instructions and part location. This is an authentic OEM part and as such is sold individually and made from durable and high-quality metal. This flat washer can be used with outdoor power equipment manufactured by Craftsman, MTD, Troy-Bilt, and other brands.

This throttle housing is meant to provide users with a comfortable method of grabbing and controlling the throttle on the several different types of yard equipment machines. The throttle housing is made from plastic, and it is exposed to the elements and other dangers while being used and in storage. The housing could become cracked, broken, or damaged in other ways that would require a repair. The replacement of the throttle control is easy and can be done with only a screwdriver. This is a genuine OEM throttle housing replacement. It is sold individually and does not include the cable, trigger, spring, or screws. The housing can work for models of edger, snowblower, and Lawn Mower. Compatible brands include Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut. Buyers in search of throttle housing should make sure it will work with their make and model.

This is a blade baffle assembly for a lawn mower. Baffles in a lawn mower use air flow to move grass cuttings up and out of a discharge chute to prevent clogging. This keeps grass clippings from clogging up the mower deck and effectively disperses them back out of the machine. It is compatible with Craftsman and Cub Cadet lawn mowers. Baffles can be removed with high-volume grasses, but most precision cutting benefits from the baffle assembly. This is an OEM part sourced directly from the manufacturer and is sold individually. Baffles should be replaced if they are dented or rusted, as the airflow will be restricted and prevent the clippings from properly exiting the machine. This could be a small problem or a large problem depending on the damage to the baffles. To remove a baffle, start by removing the carriage bolts and flange lock nuts that hold the baffle onto the deck. To reinstall, simply replace the old with the new and secure with the same hardware.

This is a blade adapter assembly for a lawn mower. The blade adapter serves as a mount for the blade allowing it to freely rotate. A mounting bolt and blade support hold the blade in place, with the bolt fastening directly into the blade assembly. This is a genuine OEM part and is sold individually. This part is compatible with several brands, including Cub Cadet, Troy-Bilt, Yard Machines, and Yard Man. Blade adapters should be replaced when they are worn or broken. A broken or sheared key in the blade adapter will cause the blade to loosen. To replace the blade adapter, first disengage the engine and weight the mower down. Prop the cutting blade before positioning a ?-inch socket on the bolt. Then use a mallet to strike it and loosen the mounting bolt. Unthread the bolt and remove the blade support and blade. A mallet or gear puller will help to remove the old adapter. The new blade adapter can then be installed by aligning the key with the slot in the crankshaft and pushing it into place. Replace the blade, cutting edge down, align the support, and rethread the bolt. Secure the blade before torquing the bolt to 30 foot-pounds.

This replacement part is an adapter assembly. It is a genuine replacement part made by MTD. This part is usually found in different types of lawnmowers and assists the blades during use. This keeps the appliance running smoothly so that the user is able to operate it effectively. A new adapter assembly might be needed if the user notices the blades are not working up to speed. This can be due to a stripped adapter assembly and it is best to replace this part as soon as possible. Be sure to wear work gloves during this repair as this assembly is situated close to the blades. Refer to the owner's manual for more information.This adapter assembly is a genuine OEM replacement part to ensure long-lasting use. This part is sold individually and is sourced directly from the manufacturer to ensure a proper fit.

A mulching blade has a unique curved or angled design that allows discharging, bagging, and mulching. If its edges are already dull, it can lead to longer mowing time and frayed and torn grass blades. Mulching blade installation is easy. First, unplug the spark plug wire. Then, position the lawnmower on its side. Get a woodblock, preferably 6 x 2 in size, and put it between the old blade and housing deck. Make sure that the wood will prevent the old blade from moving. Take a socket wrench and remove the blade’s nut and washer. Remove the old blade and put the new mulching blade in. Put the nut and washer back and tighten until it is secured. You can use the woodblock to prevent the replacement blade from moving when it is tightened. This mulching blade replacement s an original MTD product. This OEM mulching blade can be used for MTD, Craftsman, Cub Cadet, Murray, Yard-Man, and Bolens lawnmower models. This brand-new mulching blade is sold individually. The support blade and screw hex are sold separately.

This hex screw can be used as a replacement part for the small engine of a lawn mower or a lawn tractor. The hex screw is a fastener with a six-sided head that is responsible for fastening components to one another. A hex screw might be lost or misplaced, which is a frequent occurrence in small engine appliances as a result of long-term usage. Hex screws are easily lost and misplaced as they are small components that do not necessarily cause damage upon unscrewing unless it results in the materials coming loose. If this is the case, or if the hex screw suffers from impact or corrosion to the metal material, the hex screw should be removed and replaced with this genuine OEM replacement for lawn mowers and lawn tractors. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This is an OEM part sourced directly from the manufacturer, MTD. It is sold individually. This hex screw is compatible with the following brands: MTD, Troy-Bilt, Yard Man, and Bolens.

The blade support is found between the blade and the bolt. As its name suggests, it is designed to provide support for the blade to ensure it is secured to the base of the mower deck. It is made of metal and it will need a replacement if it becomes worn or damaged. To replace a blade support or blade spacer, first, the engine needs to be cool. Remove the wire and boot from the spark plug. Tip the mower back on its handle assembly and use a piece of wood or sturdy object to hold the cutting blade in place. Remove the old blade support and blade. When installing the new one, ensure that the blade's sharp edge faces away from the mower deck. Re-thread and torque the bolt between 40 and 50 ft-lbs. This is an original OEM replacement part for lawnmower blade support made by Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Bolens, Yard-Man, MasterCut. It is sold individually.

A flange lock nut, also known as a flange lock or a lock nut, is created to be used in various types of lawn and garden equipment. This flange lock nut holds other parts in place and, when properly threaded, will resist loosening. Over time, a flange lock nut may begin to weaken and may become loose or break. If it appears to be broken or weak, a replacement is required. Flange locks can be adjusted and uninstalled after use. When replacement is required, you may need a socket set, screwdriver, hacksaw, and butane torch. The socket wrench will loosen the bolt it is connected to, while the torch is used to heat the lock nut. A socket wrench may remove the nut, but sometimes cutting it with a hacksaw is required. This flange lock nut is a genuine OEM component directly from the manufacturer and comes in an individual unit. It is made of metal, a gold color, and can be found in various areas of lawn equipment. It works with lawnmowers, trimmers, snowblowers, cultivators, tillers, and leaf blowers by Poulan, MTD, Toro, Cub Cadet, Murray, Troy-Bilt, Bolens, Yard Machines, Craftsman, and Yard-Man.

This replacement part is a screw. It is a genuine replacement part made by MTD. Typically screws are found in many different types of machines. These parts are important in holding different pieces together so that the user is able to operate the appliance effectively. A replacement screw might be needed if some parts of the appliance are loose or missing from place. Screws can become stripped over time with normal equipment use. If this is the case it is recommended that they be replaced as soon as possible. The repair for this screw is simple and will most likely require common household tools as well as pliers if the previous part is lodged in place. This screw is made of durable metal. This part is sold individually and is sourced directly from the manufacturer to ensure proper fit. This is a genuine OEM replacement part.

This is a versatile screw designed with flanged hex head and double-lead threads. It is a high-low self-tapping screw with one thread that is high and the other low for easier penetration. The twin threads also reduce the amount of material displaced when the screw is driven into the material. This type of screw also creates a firmer grip. This screw can also be used to secure a newly installed front cover or grill. This part is available as an individual replacement part. It is a genuine OEM part for use with specific models of snow throwers, lawn tractors, electric mowers, chippers, and log splitters from Bolens, Cub Cadet, Craftsman, Poulan, Ryobi, Toro, MTD, Troy-Bilt, Yard Machines, and Yard-Man.

This v-belt is a genuine MTD part, sold individually. This v-belt can be used as a replacement part for a lawnmower. This v-belt facilitates rotation so that power is directed to the wheels and the mower deck. The v-belt works in conjunction with the small engine to power the lawnmower.Visible signs of damage include punctures, tears, scratches, rips, and erosion to the material that could prevent it from properly facilitating rotation in the lawnmower. If this occurs, the v-belt should be removed and replaced with this genuine OEM replacement part before using the lawnmower again.This is an OEM part sourced directly from the manufacturer. It is sold individually. This v-belt is compatible with the following outdoor appliance brands: MTD, Craftsman, Yard Man, Troy-Bilt, and Cub Cadet.

This hex screw is a genuine MTD part, sold individually. This hex screw can be used as a replacement part in lawn mowers, snowblowers, tillers, leaf blowers, and wood chippers. The purpose of a screw for one of these outdoor appliances is to serve as a fastening component.This hex screw might have to be ordered as a complete replacement in a hex screw that has been lost, misplaced, or stripped as a result of general wear and tear over long-term use or due to an accidental collision with a hard object. If this occurs, the screw should be removed and replaced by this genuine OEM replacement part.This is a genuine OEM replacement part sourced directly from the manufacturer. It is sold individually. This hex screw is compatible with the following outdoor appliance brands: MTD, Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, Huskee, Yard Man, and MasterCut.

This replacement part is a mulch cover and is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. Mulch covers are found on different types of lawn mowers and are able to help protect the main area of the machine as well as the user from mulch and other debris that could fly about during use. A new mulch cover might be needed if the current one is visibly damaged or missing. It is possible that rough debris can come in contact with this part and can cause normal damages. This can include being dented, cracked, or chipped. This cover is made of a durable plastic and should last a long time. This should be a simple repair and not require any additional tools. This replacement part is sold individually and is sourced directly from the manufacture. This part is a genuine OEM replacement part.

A star knob connects the upper and lower handles on an outdoor appliance, and if removed, the upper and lower handles are quick-released. This part is made of black heavy-duty black plastic, and the threads are made of steel. Over time, the threading can become worn out, making the connection loose, and causing the two handles to no longer stay in place. Star knobs are a straightforward repair that can be done in a matter of minutes. Just unscrew the original, damaged knob and screw in the new knob. The knob is designed to be unscrewed by hand, so there is no need for additional tools to make this repair. This genuine OEM replacement part is designed for a variety of outdoor appliances, including lawnmowers, edgers, chippers, tractors, trimmers, and cultivators. This star knob is compatible with Yard Machines, Yard-Man, Cub Cadet, Bolens, Craftsmen, and Ryobi products. This part ships individually.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

This is a genuine wing nut replacement designed for use in select walk-behind lawn mowers. Although some wing nuts are considered standard hardware on lawn mowers and other equipment, this specific wing nut connects to a bolt and secures the front baffle to the deck of the mower. Over time, this plastic wing nut can crack, fall off, or the threads may become damaged. This will result in the mover assembly being affected and the unit may not be able to be used until the nut has been properly replaced. This genuine replacement part will provide the exact fit for compatible mowers. This genuine OEM wing nut is manufactured to exact standards and comes from MTD. It can be used with hundreds of walk-behind lawn mower models from the brand, as well as those from Cub Cadet, Ryobi, Troy-Bilt, Bolens, Yard Man, Yard Machines, and Huskee. This plastic wing nut is sold individually. The carriage bolt that it connects to will need to be purchased separately if that also needs to be replaced. No tools are required for this installation, as it can simply be hand-tightened into place. Wear gloves for hand protection when performing equipment repairs.

Carriage bolts are flat-tipped with round heads, and their function in small engine appliances is to fasten together components and to secure that connection with a nut. There are various reasons that a carriage bolt might have to be removed and replaced, among them misplacement of the small, easily lost part. Other reasons to replace a carriage bolt could include damage or erosion that prevents the bolt from attaching the materials to one another effectively. If a carriage bolt is subject to this kind of damage, it should be replaced before using the small engine appliance. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. This genuine MTD carriage bolt can be used as a replacement part for several different kinds of appliances that require small engines, including lawnmowers, snowblowers, wood-chippers, tillers, string trimmers, leaf blowers, and edgers. The OEM carriage bolt is compatible with the following brands: Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut. This part is sold individually.
