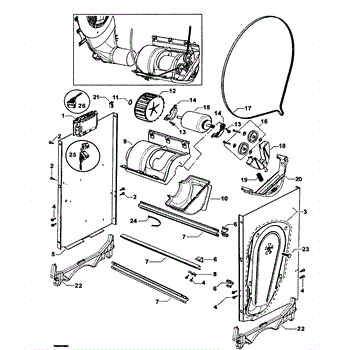

Parts for DG27CW1-96116A: Chassis Compnents / Motor Assy Parts

This panel chassis outlet is the chassis-mounted electrical connector that provides a secure, low-profile connection point on the appliance control panel. It restores reliable power/data routing to the control assembly and related wiring harness. What it does:

• Acts as the panel-mounted mating connector for the appliance control wiring harness
• Provides a secure electrical connection for control signals and power to front-panel components
• Helps stop intermittent connections, control errors, or loss of function caused by damaged or corroded panel connectors
• Matches the OEM fit and mounting style for straightforward replacement of the failed outlet

• One panel chassis outlet (single connector) as described

• Disconnect power to the appliance before servicing to avoid shock or damage
• Access typically requires removing the control panel or console—retain screws and trim for reassembly
• Inspect mating harness and terminals; replace if worn or corroded to ensure a reliable connection

This evaporator fan circulates cold air inside the freezer/refrigerator to maintain even temperatures and proper cooling. Replacing a worn fan restores airflow and helps the appliance reach and hold set temperatures. What it does:

• Circulates cold air across the evaporator coil to distribute cooling throughout the compartment
• Helps prevent frost buildup by maintaining continuous airflow over the coil
• Stops abnormal noise or vibration when the worn motor or blade is replaced
• Restores proper temperature consistency when insufficient airflow is the cause

• Disconnect power to the appliance before beginning any service
• Typical access requires removing interior panels or the evaporator cover; retain fasteners for reassembly
• Handle the fan blade carefully to avoid bending; ensure wiring harnesses are reconnected securely
• If symptoms persist after replacement, inspect the defrost system and temperature controls for related issues

This evaporator fan and motor assembly circulates cold air across the evaporator coil to maintain even refrigerator/freezer cooling and proper temperature performance. It replaces a failed or noisy fan to restore airflow. What it does:

• Spins the evaporator fan blade to move cold air through the cooling compartment
• Helps prevent uneven cooling and temperature fluctuations when operating correctly
• Commonly replaced for symptoms like no airflow, reduced cooling, or loud/grinding fan noise
• Works as the complete fan-forced airflow unit (motor + blade assembly) for DX1 systems

• Disconnect power to the appliance before starting work to avoid shock or injury
• Handle the fan blade and motor gently to avoid bending blades or damaging the motor shaft
• Verify fan orientation and mounting before tightening hardware; use existing screws unless replacements are specified

This jockey pulley kit replaces a worn idler pulley that keeps the dryer belt tensioned so the drum turns smoothly. Restores proper belt tracking and reduces noise from a slipping or misaligned belt. What it does:

• Maintains correct belt tension to help the drum rotate evenly
• Supports the drive belt and prevents slipping or premature wear
• Helps eliminate squealing, grinding, or rubbing noises from the dryer
• Reduces uneven drum movement or stopping caused by a failing pulley

• One jockey pulley kit

• Disconnect power (and gas supply on gas dryers) before beginning any repairs
• Inspect the drive belt and related components; replace any worn parts simultaneously
• Use recommended tools and avoid forcing fasteners; follow OEM torque guidance if available

The Drum Belt is an OEM part for Fisher & Paykel dryers. It is located inside the dryer cabinet and works to rotate the drying drum during operation.

The drum belt transmits power from the dryer motor to the cylindrical drum, spinning it at optimal speeds to tumble and dry wet laundry efficiently. Without a functioning belt, the drum cannot turn.

Causes of a bad belt can include cracks or splits from age and extended use. Improper tension during installation can also lead to premature belt failure.

Symptoms of a bad drum belt include:

• The dryer drum not spinning or turning very slowly
• Loud grinding or squealing noises coming from inside the cabinet
• The belt slipping off the pulleys
