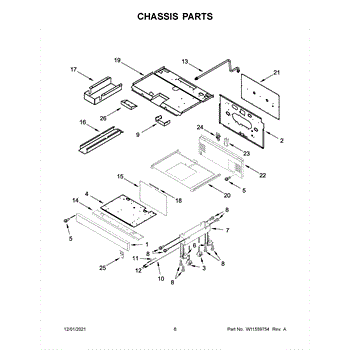

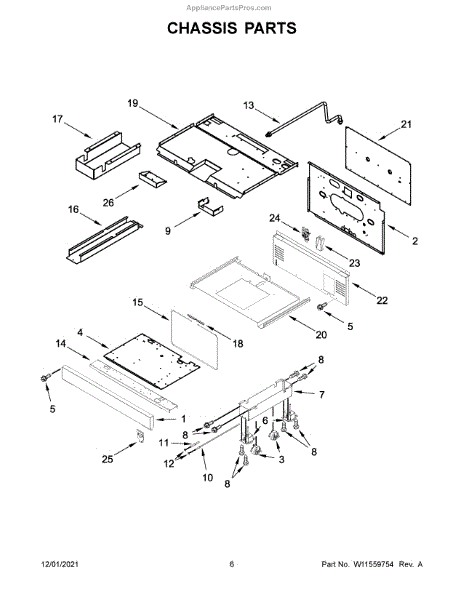

Parts for Jenn-Air JDRP536HM01: Chassis Parts

This replacement plate cover restores the cooktop surface around a range's heating element, helping contain spills and providing a finished appearance. It fits into the element opening to support cookware and protect internal components. What it does:

• Covers the area around a cooktop surface element to help contain spills and debris
• Provides a finished surface that supports cookware and helps prevent direct contact with internal parts
• Helps keep crumbs and liquids from falling into the element cavity, reducing cleanup
• Can reduce visible staining and wear on the underlying cooktop opening

• Disconnect power to the range before servicing to avoid shock or injury.
• Handle gently to avoid chipping or scratching; align and press into place until seated.
• May require removing the element or retaining clips depending on cooktop design.

This replacement roller fits the front or rear position of a slide mechanism, restoring smooth, even movement and reducing noise when a wheel is worn or broken. It helps racks or drawers glide properly and stay aligned. What it does:

• Provides low-friction rolling support for the slide track
• Helps slide-out assemblies move freely without binding or scraping
• Worn or damaged rollers can cause sticking, squeaking, or uneven travel
• Restores proper alignment and smooth operation when replaced

• 1 roller assembly

• Disconnect power and allow the appliance to cool before servicing
• Remove the slide-out assembly; note roller orientation and hardware
• Transfer/reuse existing screws, clips, or retainers as required
• Do not lubricate unless the manufacturer specifies a lubricant

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This ground screw secures the appliance's grounding wire or strap to the chassis or terminal area, creating a reliable bonding point. Replace a missing or damaged screw to restore a proper ground connection during installation or service.

• Provides the designated bonding point for the grounding wire/strap
• Fastens to the frame or terminal area using 8-32 machine threads
• Helps maintain a consistent ground path for safe operation
• Typical reasons to replace: stripped head/threads, corrosion, or a missing screw

• Disconnect power at the breaker or unplug the appliance before servicing
• Route the ground wire/strap to the specified grounding location
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Ensure the ground connection is secure and complies with local electrical codes before restoring power

This oven door gasket restores a tight seal between the door and oven cavity so your appliance can hold set temperatures. Replacing a worn seal helps reduce heat loss for more consistent preheating and baking results.

• Seals the gap between the oven door and frame to keep heat and moisture inside
• Helps maintain accurate oven temperatures and reduce energy loss
• Replace if the gasket is torn, hardened, flattened, frayed, or falling out of its channel
• Common symptoms: heat escaping around the door, long preheat, uneven baking, odors or smoke leaking from the oven

• Disconnect power and allow the oven to cool completely before servicing
• Gently pull the old gasket from the channel or unhook its retainers; note clip locations/orientation
• Press the new gasket evenly into the groove without stretching; align any corner pins/clips to match the original
• Close the door and check for uniform contact around the seal

The Regulator is an OEM replacement part for Whirlpool gas ranges. It regulates the flow of gas from the supply line to the burners, ensuring safe and efficient operation of your range. It maintains a consistent gas pressure, allowing for accurate and controlled heat distribution during cooking.

A bad pressure regulator can occur due to wear and tear, clogging, or damage to the internal components. If you notice symptoms such as uneven flame, difficulty in igniting the burners, or gas leaks, it may be time to replace the pressure regulator.

Symptoms of a bad gas pressure regulator include:

• Uneven flame
• Difficulty in igniting burners
• Gas leaks

This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This small plastic clip secures appliance panels, trim, or wiring to prevent movement and rattling, restoring proper fit and quiet operation. It's a simple, low-cost part that helps keep components held in place. What it does:

• Acts as a retainer to hold panels, trim pieces, or harnesses in position
• Prevents rattling, vibration noise, and loose or misaligned parts
• Helps maintain proper spacing and alignment of adjacent components
• Commonly replaced when clips are broken, cracked, or missing

• One clip/retainer

• Disconnect power (and water if applicable) before beginning any work
• Clip typically snaps into place; may require a flat screwdriver or trim tool to remove/install
• Inspect surrounding mounting points for damage before fastening replacement clip
• Replace all corresponding fasteners for even fit
