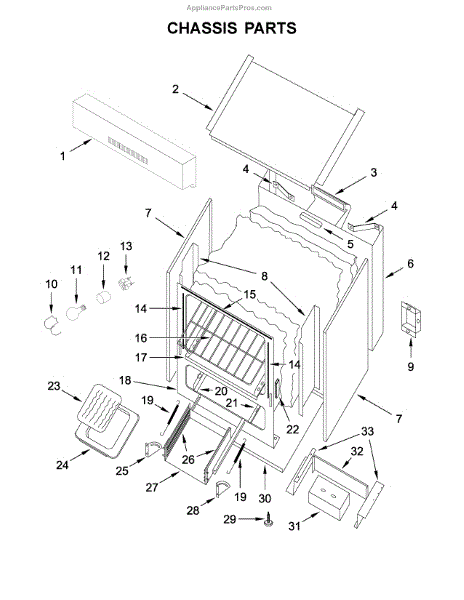

Parts for Whirlpool WFG500M4HS0: Chassis Parts

This backguard is the rear control panel trim that restores the exterior finish and mounting surface behind the cooktop on compatible Whirlpool ranges. It keeps controls and wiring protected while improving the range's appearance. What it does

• Replaces a cracked, dented, rusted or otherwise damaged rear control panel
• Restores a flat mounting surface and trim behind the cooktop and controls
• Helps protect internal wiring and components from spills and debris
• Improves the range's appearance by covering damaged or missing metalwork

• One backguard panel

• Disconnect power at the breaker before starting any service
• Use proper fasteners and avoid overtightening to prevent warping

This replacement bottom box is the lower storage drawer assembly that restores proper storage and access in the appliance. It provides a durable, easy-to-clean compartment for holding items and helps the lower section close and seal correctly. What it does:

• Replaces a cracked, warped, or missing lower storage drawer that prevents full closure
• Restores proper alignment and support for items stored in the appliance's bottom compartment
• Helps maintain an even seal and prevents items from falling into lower cavities
• Stops rattling or scraping noises caused by a damaged drawer or mounting points

• One bottom box (lower storage drawer) assembly as shown

• Disconnect power (or unplug unit) before attempting service to avoid injury
• Remove any contents and slide-out trays/shelves as needed to access the lower drawer area
• Typical replacement requires removing mounting fasteners and snapping the new drawer into the guide rails; keep mounting hardware if the original is reusable
• If retaining clips or rails are damaged, replace those components too for a secure fit

Original Whirlpool light bulb, 40 watt.

Symptoms of needing to replace the light bulb include:

• Dimming or flickering light
• Complete lack of illumination inside the appliance
• Visible signs of damage or burnout on the bulb itself

Causes of a faulty light bulb can include normal burnout over time, electrical issues, or physical damage due to impact or vibrations.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Kenmore, Frigidaire, GE, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore appliances.

This broil pan is the oven tray that holds food while broiling and catches drippings to reduce mess. It helps support food for even exposure to the broil element and makes cleanup simpler. What it does:

• Provides a stable surface and allows heat to reach food for broiling
• Catches grease and juices to help prevent spills and oven smoke
• Helps reduce flare-ups by containing drippings away from the element
• Restores proper broiling performance when a damaged or missing pan causes uneven cooking

• Turn off and cool the oven completely before installing or removing the pan.
• Place the pan on the oven rack with the grid positioned per the oven manual.
• Use oven-safe gloves when handling after use; avoid contact with heating elements.
• Clean with non-abrasive cleaners to preserve finish and fit.
