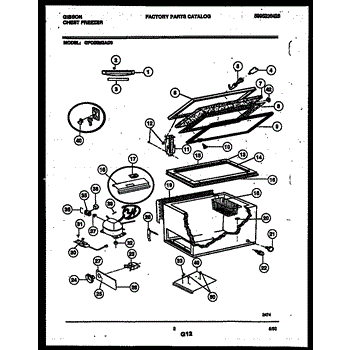

Parts for Frigidaire GFC09M3AD0: 02 - Chest Freezer Parts

This part has been discontinued and is no longer available.

The Freezer Door Key is an OEM replacement part for Frigidaire refrigerators. This small but essential component is designed to securely lock the freezer door, preventing accidental openings or unauthorized access.

Symptoms of needing to replace the freezer door key include:

• Difficulty in locking or unlocking the freezer door
• The key not fitting properly or becoming stuck in the lock
• Visible wear, damage, or breakage of the key itself

Causes of a faulty freezer door key can include normal wear and tear over time, physical damage due to impact or mishandling, or issues with the locking mechanism itself.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.

By Frigidaire. Includes Freezer key 5303310289.

Size: Approximate 2.5 inches thick, 33 inches wide and 70 inches long.

The Gasket is an OEM part for Frigidaire refrigerators. It forms a seal around the refrigerator or freezer door, preventing warm air from entering and cold air from escaping, thus maintaining the optimal internal temperature and ensuring energy efficiency. This gasket measures approximately 40.62" x 21.12".

Common causes of a bad gasket include frequent use, exposure to spills, or wear and tear over time. A compromised gasket can lead to temperature fluctuations and increased energy consumption.

Symptoms of a bad gasket include:

• The door not sealing properly
• Increased frost buildup inside the refrigerator or freezer
• Warmer than usual temperatures inside the appliance
• Higher energy bills due to the refrigerator working harder to maintain cool temperatures

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

Quantity of 1 clip.

Note: See kit# 5303922007 and 5304406520.

The Freezer Basket is an OEM part for Frigidaire freezers. It provides organized storage space within the freezer, allowing for easy access and efficient use of the freezer's capacity by keeping items contained and separated. It measures approximately 18 x 11 inches.

You should replace the freezer basket if it becomes bent, rusted, or damaged. Causes of a bad freezer basket can include overloading with heavy items, prolonged exposure to moisture leading to rust, or damage from accidental impacts during loading or unloading.

Symptoms of a bad freezer basket include:

• Difficulty sliding the basket in and out
• Visible rust or corrosion
• The basket not sitting properly in its tracks
• Bent or broken wires compromising the basket's structure

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This cold control kit replaces the mechanical temperature control thermostat that regulates your refrigerator or freezer's cooling. Restore proper temperature regulation and consistent cycling when the original control sticks, drifts out of calibration, or fails intermittently.

• Senses compartment temperature with a capillary bulb and opens/closes contacts to maintain the set temperature
• Cycles the cooling system on and off for steady, reliable performance
• Common symptoms: too warm or over-cooling/freezing items, unit won't start unless the dial is moved, runs constantly, erratic temperature swings, unresponsive temperature dial
• Helps correct intermittent cooling caused by worn or pitted thermostat contacts

• Disconnect power before servicing; work in a dry area
• Access the control housing, note wire locations, and transfer wires to the new control one at a time
• Route and secure the sensing bulb/capillary exactly as original; do not kink or sharply bend it
• Set to a mid-range setting after installation and allow up to 24 hours for temperatures to stabilize

Includes service line.

This electrical harness connects appliance control components and power circuits so switches, sensors and modules communicate reliably. Replacing a damaged harness restores consistent power and signal paths for normal operation. What it does:

• Routes and joins multiple wires into a single connector assembly for controls and accessories
• Delivers power and signal connections between control boards, switches, sensors and motors
• Failsafe symptoms: intermittent or no power to affected components, controls not responding, or visible melting/charring at connector points
• Helps prevent shorting and erratic operation when intact and correctly routed

• Always disconnect power at the breaker or unplug the appliance before servicing
• Inspect harness and connectors for visible damage, corrosion or melted insulation; do not reuse a compromised harness
• Route harness along original clips/channels and seat all connectors fully to ensure secure connections
• Basic hand tools required; refer to service manual or schematic for routing and connector locations

This rubber compressor mounting grommet cushions and isolates the compressor to reduce vibration and noise that can transfer to the cabinet. It helps maintain stable compressor positioning for quieter, smoother operation. What it does:

• Absorbs compressor vibration to lower noise and rattling
• Dampens movement that can cause abrasion or wear on mounting hardware
• Helps maintain proper alignment of the compressor assembly
• Common symptom: excessive buzzing, vibration, or rattling from the back of the appliance

• Always disconnect power to the appliance before servicing.
• Support the compressor before removing mounts to prevent shifting or damage.
• Inspect surrounding mounts and hardware; replace any worn or damaged pieces.

This part has been discontinued by the manufacturer and is no longer available.

The Compressor Run Capacitor is an OEM replacement part for Frigidaire refrigerators. This electrical component is essential for providing the necessary torque to start and maintain the operation of the compressor motor, which is responsible for cooling the refrigerator.

Symptoms of a failing compressor run capacitor include:

• The refrigerator not running or cooling properly
• The compressor failing to start or running intermittently
• Humming or buzzing noises coming from the compressor area

Causes of needing to replace the compressor run capacitor can include normal wear over time, exposure to high temperatures or electrical surges, or physical damage to the capacitor itself.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore refrigerator models.
