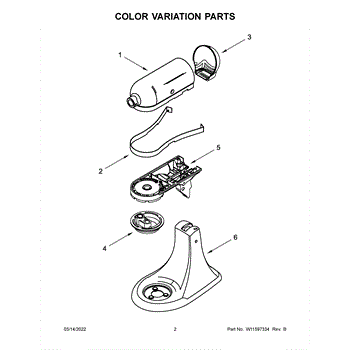

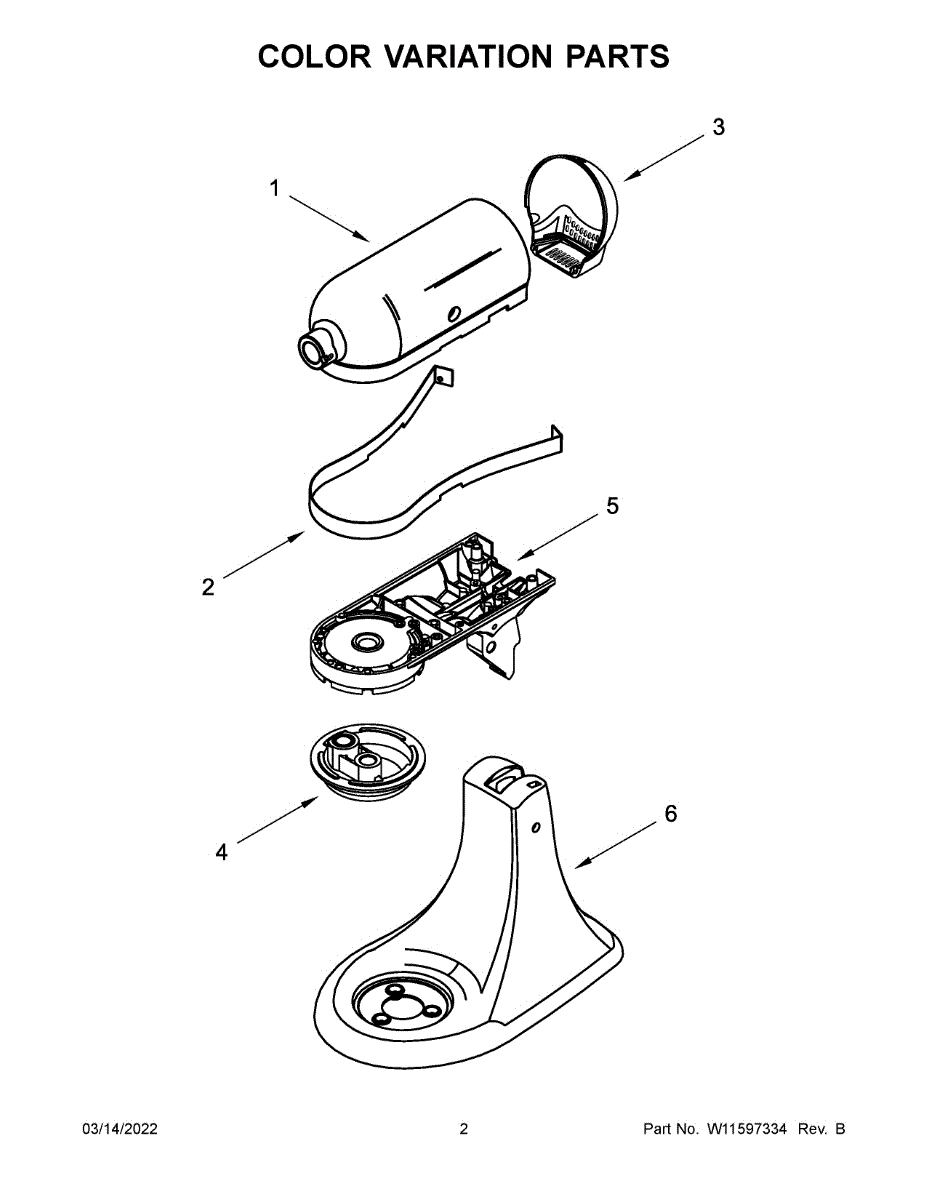

Parts for Kitchenaid KSM192XDVB0: Color Variation Parts

This gearcase housing is the molded enclosure that supports and protects the motor drive gears, keeping them aligned for reliable rotation. It restores proper gear engagement and prevents debris from entering the drive area. What it does:

• Houses and positions the motor drive gears so the drive system turns smoothly
• Protects internal gears from lint, dust, and moisture that can cause wear or jamming
• Helps maintain correct gear alignment to reduce noise, grinding, or slipping during operation
• Supports the motor/gear assembly for consistent power transfer to the drivetrain

• Install with original fasteners and proper torque to maintain alignment
• Inspect gears, seals, and nearby components; replace any worn parts while housing is accessible
• Disconnect power and follow manufacturer safety procedures before attempting service

This motor housing is the outer mounting component that secures and protects the appliance motor, helping keep the motor aligned and reducing vibration for quieter operation. Choose the correct color/finish variant for your unit. What it does:

• Provides a stable mounting point for the motor to prevent misalignment and excessive movement
• Protects the motor from debris and contact with adjacent parts
• Helps reduce motor vibration and related noise during operation
• Used to restore proper motor positioning when worn, cracked, or bent housing causes rubbing or abnormal sounds

• One motor housing (color/finish depends on selected variant)

• Disconnect power before beginning service; follow all safety warnings for your appliance
• Basic disassembly (cabinet/drum removal) is typically required to access and replace the housing
• Inspect mounting hardware and gaskets; replace any damaged fasteners or seals as needed
• If symptoms persist after replacement (noise, rubbing, excessive vibration), check motor mounts, blower, and alignment

This replacement cover protects and secures internal components and wiring, restoring a finished appearance and helping prevent debris intrusion. It's a like-for-like exterior housing piece used on compatible Whirlpool appliances. What it does

• Covers and protects internal electronics, terminals, and wiring from dust and accidental contact
• Restores the appliance's finished exterior where the original cover was missing or damaged
• Helps maintain proper airflow paths and component positioning when installed correctly
• Can reduce vibration-related noise by keeping parts secured and enclosed

• One cover

• Disconnect power (unplug or switch off circuit breaker) before starting any repair
• Removal/installation usually requires removing a few screws and lifting the old cover off; keep fasteners for reassembly
• Handle edges carefully; use gloves to avoid cuts and protect painted surfaces

Color: Onyx black

This cover is a replacement access panel that protects internal components and restores the appliance's exterior appearance. It keeps wiring and controls shielded while maintaining a clean, finished look. What it does:

• Shields control components and wiring from dust, spills, and accidental contact
• Restores damaged or missing exterior panels for a finished appearance
• Helps maintain proper airflow and component clearance by covering openings
• Can reduce rattles or vibration by replacing a loose or broken panel

• One replacement cover

• Disconnect power (and gas or water if applicable) before starting any repair
• Basic hand tools are typically required; follow the appliance's service manual for specific steps
• Handle edges carefully; align tabs/fasteners before securing to avoid damage
• Replace worn fasteners or clips to ensure a secure fit

Color: White

This planetary gear assembly transfers motor torque through the transmission to drive the agitator/drum, restoring proper mechanical motion. Replaces a worn or damaged planetary to reduce grinding, slipping, or no-agitation symptoms and improve drivetrain reliability. What it does:

• Meshes with the transmission sun gear to convert motor rotation into the correct output for the agitator/drum
• Restores normal agitation/rotation when original gears are worn, broken, or skipping
• Helps eliminate grinding, clunking, or intermittent movement caused by damaged internal gears
• Works as a direct-fit replacement when the original planetary gear has failed

• Refer to the appliance's service manual or exploded parts diagram for correct disassembly and reassembly steps
• Disconnect power and water (if applicable) before beginning repairs to avoid shock or injury
• Inspect surrounding gears, bearings, and seals; replace any additional worn components to prevent premature failure
• Use appropriate tools and torque specs;

This replacement planetary assembly restores proper drive alignment and support for rotating components in select laundry appliances, helping reduce noise and vibration while returning smooth drum rotation. What it does:

• Transmits rotational force between the drive system and rotating drum components
• Supports alignment of the rotating assembly to prevent wobble or irregular movement
• Helps eliminate grinding, clunking or unusual noises caused by worn planetary components
• Resolve intermittent or complete loss of rotation when the planetary is worn or damaged

• Disconnect power and follow lock-out/tag-out before starting any repair
• Basic hand tools are typically required; refer to the appliance service manual for exact procedure
• Inspect adjacent parts (gears, bearings, seals) and replace if damaged

This planetary gear assembly drives the washer's agitator/spin mechanism to transfer motor motion into drum movement, restoring smooth agitation and spin action. Designed to fit as the washer's internal gearing component for reliable operation. What it does:

• Converts motor rotation into the agitator/drum motion for effective washing and spinning
• Replaces worn or damaged gears that can cause noisy operation or grinding sounds
• Helps correct slow, intermittent, or no-agitation and no-spin symptoms when gearbox failure is present
• Works as the internal gearset that mates with the transmission/agitator components

• One planetary gear assembly

• Disconnect power and water before beginning any repair
• Requires partial disassembly of the washer cabinet and access to the transmission/agitator area
• Inspect related parts (agitator, drive coupling, transmission) for wear and replace as needed

This planetary gear assembly transfers motor motion to the appliance's drive mechanism, restoring smooth rotation and normal operation. It replaces a worn or damaged planetary component to reduce noise and restore consistent drive performance. What it does:

• Transfers motor torque through the gear train to the driven component for proper operation
• Replaces worn or damaged gears that can cause grinding, clunking, or loss of drive
• Helps stop intermittent or failed agitation/spin caused by stripped or broken gear teeth
• Restores correct gear engagement to reduce excessive noise during operation

• One planetary gear assembly

• Disconnect power and water before starting any repair
• Some disassembly of the gearcase or transmission may be required; follow the OEM service manual
• Inspect surrounding seals, bearings, and fasteners; replace any damaged components
• Use proper tools and torque values

Color: White

This gearcase is the washer transmission assembly that transfers motor power to the agitator and tub, restoring proper agitation and wash action. It replaces worn internal gears to help your washer clean clothes effectively. What it does:

• Converts motor rotation into the oscillating motion needed for agitation and to drive the wash basket
• Replaces stripped, noisy, or slipping gears that cause weak or no agitation
• Stops grinding, knocking, or irregular movement coming from the transmission area
• Restores proper agitation speed and torque for normal wash cycles

• Disconnect power and water supply before starting any repair
• Drain remaining water and remove the washer cabinet or access panel per the service manual
• Follow OEM disassembly steps for the transmission/gearcase; some models require removing the tub or drive components
• If internal seals, bearings, or the motor coupling are damaged, replace them per OEM recommendations

This grille control surface assembly provides the finished front trim for the appliance control area and restores a clean, secure fit and appearance. It replaces a cracked, damaged or loose control-area grille to improve panel alignment and aesthetics. What it does

• Covers and protects the appliance control area while providing the finished exterior appearance
• Restores proper fit and alignment when the original grille is cracked, bent, or broken
• Helps keep moisture and debris away from underlying controls and wiring
• Matches Onyx black finish for a consistent look with the rest of the appliance

• Disconnect power to the appliance before beginning any repair
• Basic hand tools (screwdriver, possibly trim tool) are typically required for removal and reattachment
• Align tabs and screw holes carefully to avoid cracking the trim during installation
• Replace damaged internal fasteners or mounting clips to ensure a secure fit

This direct-drive gearcase converts the washer motor's power into the agitation and spin motions. Replacing a worn gearcase restores normal drive function so the washer can agitate and spin as intended. What it does

• Transfers motor rotation to the agitator and spin basket for wash and spin cycles
• Worn or damaged gear teeth can cause no agitation or no spin
• Damaged gearcase may produce loud grinding, clunking, or unusual noises during operation
• Failure can cause intermittent drive or loss of drive in one or both cycles

• Disconnect power and water before starting any repair to prevent shock or flooding
• Drain the washer and secure the tub/agitator before removing components
• May require removing the cabinet or access panels and supporting the drum during service
