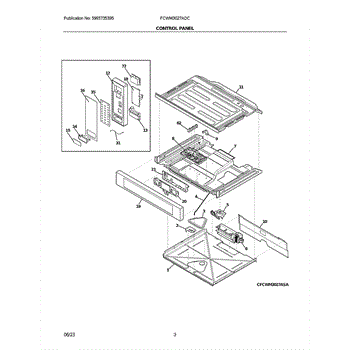

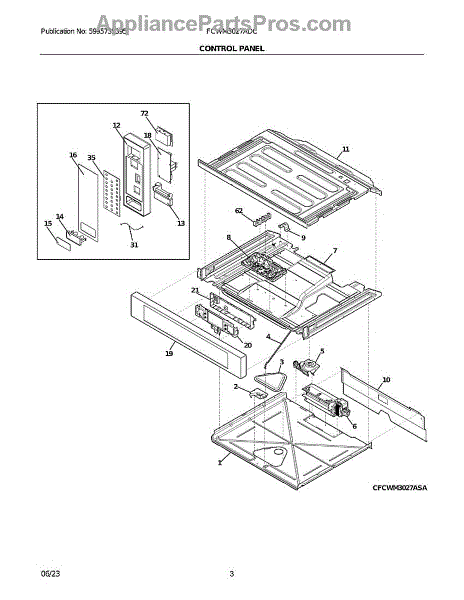

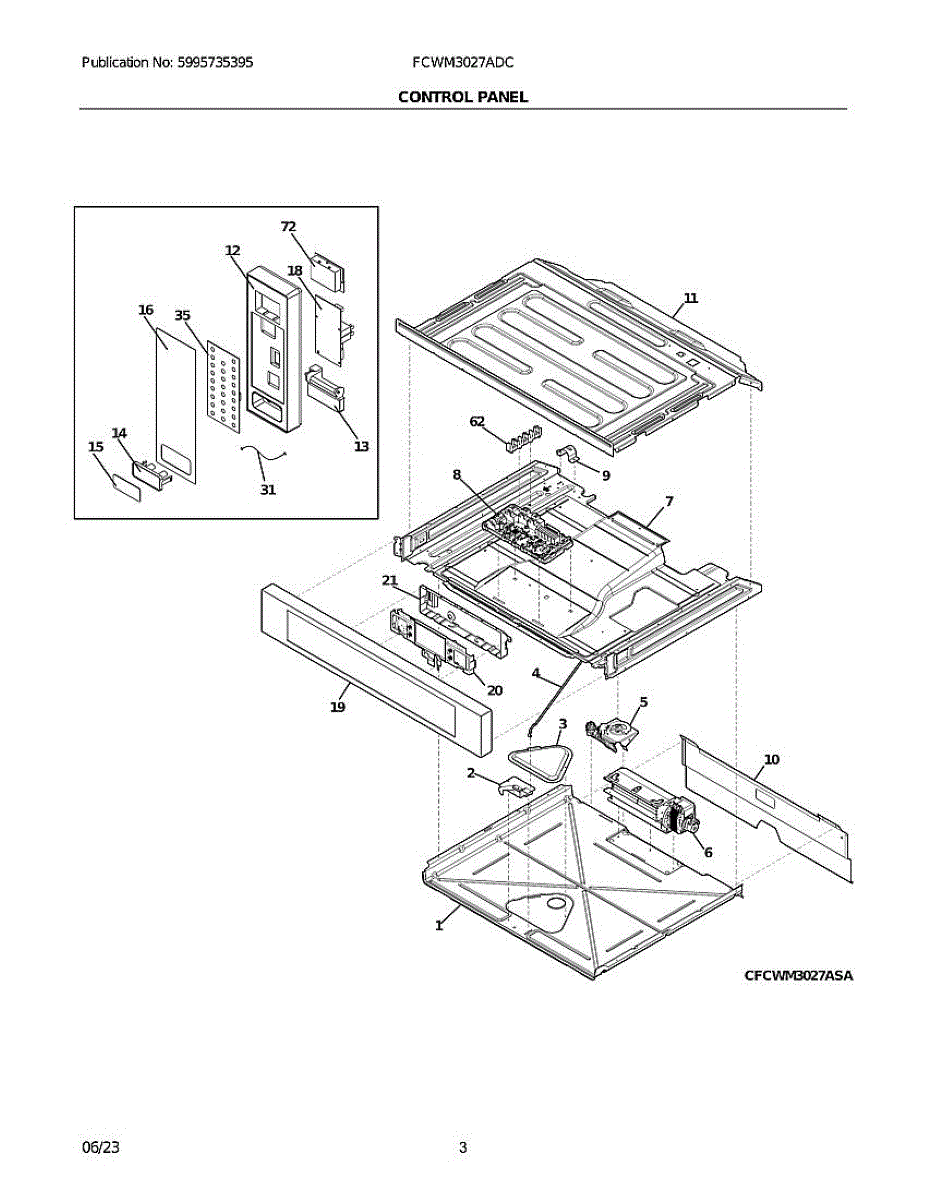

Parts for Frigidaire FCWM3027ADC: Control Panel Parts

This electronic control is the main circuit board that manages your appliance's functions, user inputs, and timed cycles, restoring reliable control of the unit when the original board has failed. It replaces a failed or malfunctioning control board to return normal operation. What it does:

• Receives and processes user inputs from the control panel and touchpads
• Sends signals to start/stop compressors, fans, heaters, and valves
• Manages timed cycles such as defrost and diagnostics
• Can cause symptoms like unresponsive controls, blank or erratic display, no cooling or heating cycles, or failure to advance cycles

• One electronic control board

• Always disconnect power to the appliance before removing or installing the control board
• Handle the board by the edges and avoid touching components; protect against static discharge
• Follow OEM disassembly steps for access; keep track of screws and connectors for reassembly

This terminal block provides the appliance's main wiring connection point, securely joining the incoming power leads to the unit's internal wiring for reliable electrical contact. It restores a solid, safe power feed when the original connector is damaged or worn. What it does

• Holds and secures incoming power conductors to the appliance wiring harness
• Provides firm electrical contact to prevent intermittent power or arcing
• Commonly replaced for loose, melted, or burned terminals or after a short or power-fault
• Helps restore normal power delivery when appliance will not power on due to a failed connection

• One terminal block assembly

• Always disconnect house power at the breaker or unplug the appliance before servicing
• Match wire positions to the appliance wiring diagram and tighten terminals firmly
• Inspect surrounding wiring and strain relief for heat or damage; replace any compromised components

This replacement control panel restores the front user interface and display for your range/oven, letting you select cooking modes, set timers and adjust temperatures. It replaces a cracked, unresponsive, or malfunctioning control surface. What it does:

• Houses the touchpad/buttons and display used to program cooking functions and timers
• Sends user inputs to the oven control board so bake, broil and other modes start correctly
• Common symptom fixer: replaces panels with stuck, non-responsive, or visually damaged buttons
• Resolves intermittent or blank display issues caused by a damaged panel or keypad

• Disconnect power at the breaker before starting any repair
• Handle fragile glass/printed surfaces and ribbon cables with care to avoid damage
• Confirm exact fit to your model using the appliance's parts diagram before installation

This wiring harness supplies electrical connections between components, restoring power and signals for the affected circuit. It replaces a damaged or worn harness to help eliminate intermittent power or connection failures. What it does

• Carries power and signal between appliance components so controls and motors can operate
• Restores secure plug-and-socket connections when original wires or terminals are frayed or broken
• Helps address symptoms such as intermittent operation, blown fuses, or components not receiving power
• Matches OEM connector ends and wire routing to fit into the factory harness path

• Disconnect power (unplug appliance or shut off breaker) before beginning any repair
• Compare new harness to the old one to ensure connectors and wire lengths match before installation
• Route harness along the original path and secure with existing clips or ties to avoid heat and abrasion

This hex flange nut secures components where a broader bearing surface is needed to resist loosening and distribute load. It fits 10-32 threaded studs and is used on fastened assemblies in appliances. What it does:

• Provides a secure threaded connection for 10-32 screws and studs
• Flange spreads clamping force to reduce panel or bracket damage
• Hex shape allows tightening with a wrench for a reliable hold
• Commonly replaces worn or missing nuts that cause loose panels or rattling

• One hex flange nut

• Use the correct 10-32 screw or stud and hand-start threads to avoid cross-threading
• Tighten with an appropriately sized wrench; do not overtighten to prevent thread or part damage
• Disconnect power and follow appliance safety instructions before servicing
• Replace only like-for-like; confirm size and thread match your application

This factory screw secures components in your appliance, restoring a tight, rattle-free fit. Replace missing or damaged hardware to keep panels, brackets, and trim properly fastened and aligned for safe, reliable operation.

• Secures panels, brackets, trim, or internal components to the chassis
• Replaces lost, rusty, stripped, or cross-threaded screws
• Helps eliminate looseness, gaps, and vibration/rattling
• Common signs: loose/misaligned panels or trim, rattling noises, missing or rounded screw heads

• Disconnect power (and shut off gas if applicable); allow the unit to cool completely
• Match to the original location and replace one at a time to maintain alignment
• Hand-start to prevent cross-threading; tighten snugly—do not overtighten
• Use light torque when threading into plastic or thin sheet metal
