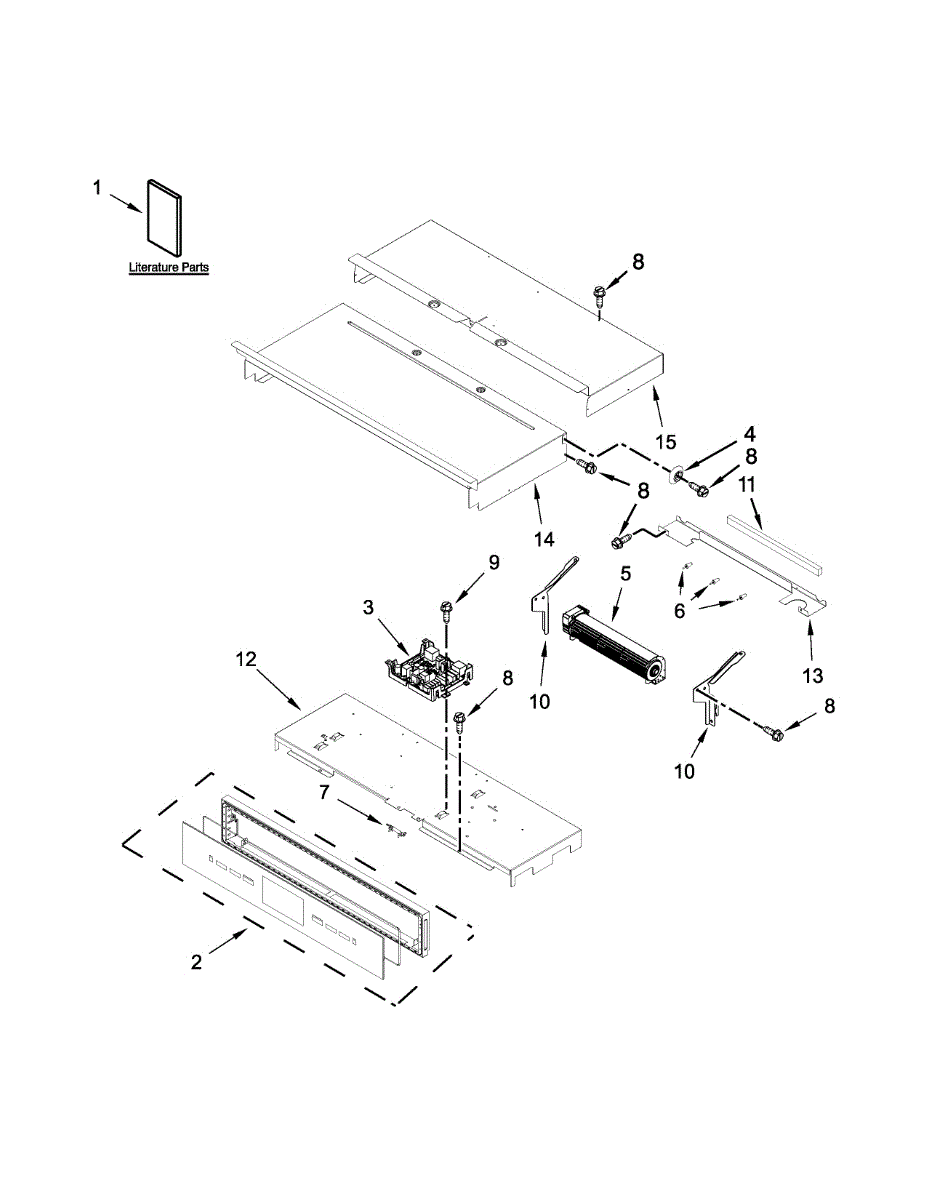

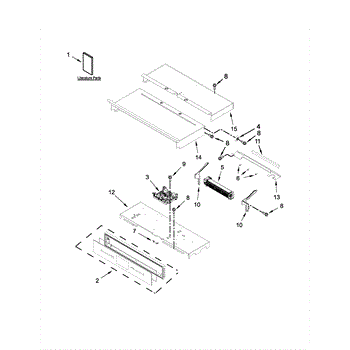

Parts for Jenn-Air JJW3830DB00: Control Panel Parts

This console is the control panel housing that holds and protects your appliance's touchpad, selector knobs, and display components, restoring a secure, factory-fit front interface. What it does

• Provides the structural mounting for the control pad, buttons, and display
• Protects electronic controls from everyday wear, bumps, and spills
• Keeps buttons and knobs aligned for consistent operation
• Restores a snug fit between the top assembly and the rest of the appliance
• Can resolve symptoms like loose or cracked front trim, snagging buttons, or exposed electronics

• Disconnect power (and gas supply if applicable) before starting any repair
• Follow the manufacturer service instructions; some disassembly of the top or front panel may be required
• Handle the console carefully to avoid scratching the finish or damaging the display lens
• Keep screws and small fasteners organized for reassembly

This electronic control board replaces the appliance's main console controller to restore user interface and cycle control. It manages oven/dryer functions so controls, timing, and display respond correctly during operation. What it does:

• Receives input from the touchpad/knobs and sends commands to heating, motor, and timer circuits
• Controls cycle timing, display information, and safety interlocks
• Can resolve symptoms like unresponsive controls, blank or erratic display, or failure to start cycles
• Works with the appliance's sensors and relays to coordinate normal operation

• Disconnect power (unplug or shut off breaker) before starting any work
• Handle the board by its edges and avoid static discharge; use an anti-static strap if available
• Transfer any connectors, mounts, or wire harnesses from the old board exactly as found

The Thermal Fuse is an OEM component specifically designed for Whirlpool ovens. As an important safety device, it is located near heat-producing elements inside the oven cavity.

Causes of a bad thermal fuse include overheating of elements or surrounding components over time, which can eventually blow the fuse.

Symptoms of a faulty thermal fuse include:

• The oven failing to heat or operate heating cycles fully
• Heating elements abruptly shutting off during baking
• An unusual burning smell emanating from the oven

This genuine OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore oven models as well.

This is a replacement 8-18 screw used to secure components in compatible Whirlpool appliances. It provides a reliable, corrosion-resistant fastener to restore proper fit and function for panels and internal parts. What it does:

• Secures panels, brackets, or small internal components where an 8-18 thread is specified
• Restores loose or missing fasteners that cause rattling, misalignment, or improper sealing
• Matches OEM thread size and head profile for a correct fit when listed for your model
• Prevents further wear or damage caused by using the wrong screw size

• One screw as shown

• Turn off and unplug the appliance before starting any repair
• Use the proper screwdriver or driver bit to avoid stripping the head
• Do not overtighten—tighten until snug and components seat without play
• Replace only where the OEM specifies an 8-18 screw to ensure proper fit

This foam seal fits between mating parts to create a tight barrier that helps prevent leaks and rattling. Replacing a worn or missing seal restores proper sealing and helps keep your appliance running quietly. What it does:

• Creates a compliant gasket between components to limit air or moisture passage
• Helps dampen vibration and reduce rattling/buzzing where parts meet
• Helps maintain proper airflow or fluid routing as designed
• Typical symptoms include leaks, condensation/frost near a joint, or new vibration noises

• One foam seal

• Disconnect power; turn off the water supply before service
• Note the original seal's routing/orientation before removal
• Clean and dry all mating surfaces; remove old foam and residue
• Install without stretching or over-compressing; ensure even contact with no gaps

This main wiring harness connects the washer's control and components, restoring reliable electrical pathways for operation and diagnostics. It replaces worn or damaged wiring so the machine can receive power and signal between modules. What it does:

• Transfers power and control signals between the control board and primary components (motors, sensors, valves)
• Replaces frayed, burned, or broken wires that can cause intermittent operation or failure to start
• Helps resolve issues with no power to certain functions or erratic behavior caused by damaged wiring
• Maintains factory routing and connector fit for a secure electrical connection

• One main wiring harness (double-extended) as specified

• Disconnect power before starting and follow the washer's wiring diagram for connector locations
• Match connector shapes and colors; route harness away from moving parts and heat sources
• Inspect connectors for damage and secure all fasteners; do not splice unless certified to appliance wiring standards

This wire harness provides the factory-style electrical connections needed to restore secure, organized wiring in your appliance. Replacing a damaged harness helps re-establish reliable power and signal paths for controls and components. What it does:

• Connects multiple internal components with pre-terminated wiring and color-coded connectors
• Ensures correct signal and power routing between control boards, switches, and motors
• Commonly used to address intermittent power, loss of functions, or components that don't respond
• Keeps wiring bundled and secured to prevent chafing or short circuits

• Disconnect power (unplug or switch off breaker) before starting any repair
• Match connector shapes and wire colors; route and secure harness along the original path
• Inspect connectors and insulation; replace the entire harness if any wire or terminal is damaged

This mounting bracket is a replacement support bracket that secures appliance components and keeps assemblies aligned for reliable operation. It restores proper fit and helps prevent rattling or movement from loose fittings. What it does:

• Secures panels or assemblies to the appliance frame to maintain proper alignment
• Reduces vibration and rattling caused by loose or damaged supports
• Restores mounting points that prevent sagging or separation of connected parts
• Helps ensure stable operation after repairs involving removed or replaced hardware

• Follow the appliance service manual for exact location and fastener torque
• Disconnect power (and gas if applicable) before beginning any repair
• Use appropriate tools and replace any damaged screws or clips with OEM-equivalent fasteners
