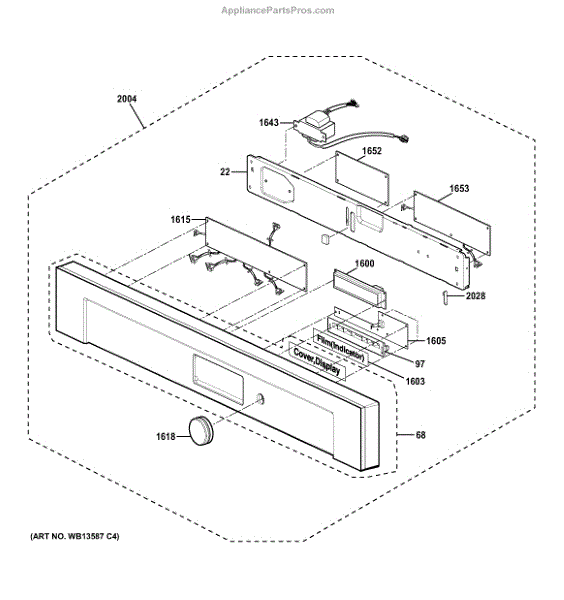

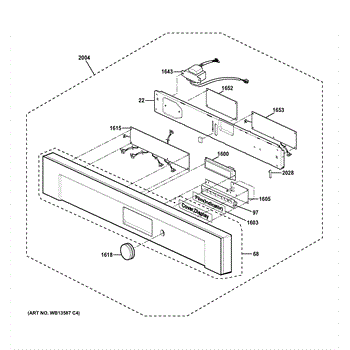

Parts for Ge ZSC1001J2SS: Control Parts

This electronic oven control assembly manages the oven's temperature, bake/ broil cycles, and user interface so your range responds correctly to cooking commands. It restores control when the original board fails. What it does:

• Regulates oven heating elements and temperature control signals for baking and broiling
• Powers and displays the control panel, clock, and timer functions
• Re-establishes proper cycle selection when the original control is unresponsive or shows errors
• Helps stop intermittent operation, incorrect temperatures, or blank/error displays caused by a failed control board

• Disconnect power at the breaker before servicing to avoid electric shock
• Replacement typically requires removing access panels and disconnecting wiring harnesses; label connectors before removal
• Handle the board by its edges and avoid touching components to prevent static damage

The Digitron is an OEM part for GE microwaves. It is an essential component of the microwave's control board, displaying settings, cooking times, and other information on the microwave's digital display.

Over time, the Digitron can fail due to electrical issues, exposure to moisture, or normal wear and tear. If the Digitron is malfunctioning, it can affect the readability of the display or the functionality of the control panel.

Symptoms of a bad Digitron include:

• The display being dim or completely dark
• Inaccurate or incomplete information shown on the screen
• Flickering or intermittent display issues
• Unresponsive control buttons linked to the display

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Microwave Power Supply Board is an OEM replacement part for GE microwaves. As the board that receives power from the outlet and safely distributes it to other electronic systems, it plays an important role in powering microwave functions.

Causes of a bad power supply board include failures in its electronic components over many years of operation. Defects can disrupt or prevent stable power distribution.

Symptoms of a bad power supply board include:

• The microwave not receiving any power and failing to turn on
• Inconsistent or fluctuating power output causing irregular cooking results
• Buzzing or cracking noises emanating from the board

This GE OEM replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This main control board is the appliance's primary electronic control module that manages cycles, user inputs and timed functions so the unit responds correctly to settings and commands. Replacing a failed board restores normal electronic control. What it does:

• Receives input from the user interface and sends control signals to components
• Manages timing, sequencing and safety interlocks for normal operation
• Common symptom: display or controls are unresponsive or the unit won't start
• Common symptom: erratic or incorrect cycle behavior, or intermittent power to functions

• One main control board

• Disconnect power before servicing to avoid shock; verify power is off at the breaker
• Handle the board by its edges and avoid contact with components or connector pins
• Compare new board to the removed board to confirm connector locations before installing
• Transfer any mounting hardware, brackets, or cable retainers from the old board exactly as removed

The Relay Board is an OEM part for GE microwaves. It controls the passage of proper voltage levels for various microwave components during operation.

Installed internally, this board transmits power signals to run the magnetron, fan, and lighting systems as directed by the selected cooking settings. Precise switching of voltages is required for consistent and balanced microwave radiation.

Symptoms of a faulty relay board include:

• Intermittent or unpredictable power level adjustments
• Magnetron fails to turn on or fluctuates excessively
• Light not illuminating properly
• Fan speed irregularities
• Microwaves not properly heating foods

Causes can be damage from liquid intrusion, heavy usage over time stressing the relays, or component failures within the board itself.

Replacing with this genuine OEM GE part restores optimized power routing to maintain consistent microwave functions. Compatible models also include some Hotpoint, RCA, and select Kenmore products.


This grounding bracket secures the appliance ground wire to the chassis, restoring a proper grounding path for safe operation. It's a direct-replacement metal bracket used where the ground wire fastens to the cabinet or frame. What it does:

• Provides a secure attachment point for the appliance ground conductor to the cabinet chassis
• Restores proper grounding when the original bracket is bent, corroded, or broken
• Helps reduce electrical noise and risk of arcing at the ground connection
• Common symptom: loose or missing ground connection, visible corrosion, or intermittent electrical issues

• Disconnect power to the appliance before servicing to avoid shock or injury
• Remove access panels as needed to reach the original bracket location; use appropriate tools for metal fasteners
• Reattach ground wire and tighten fastener securely; ensure metal-to-metal contact and no paint or debris between surfaces
• If corrosion extends to the wire or terminal, replace damaged wiring or terminals per manufacturer guidance
