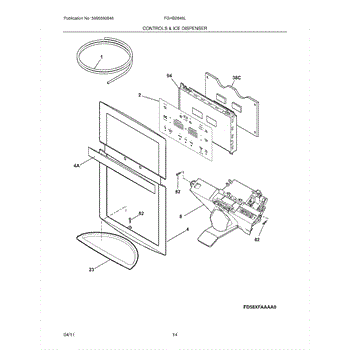

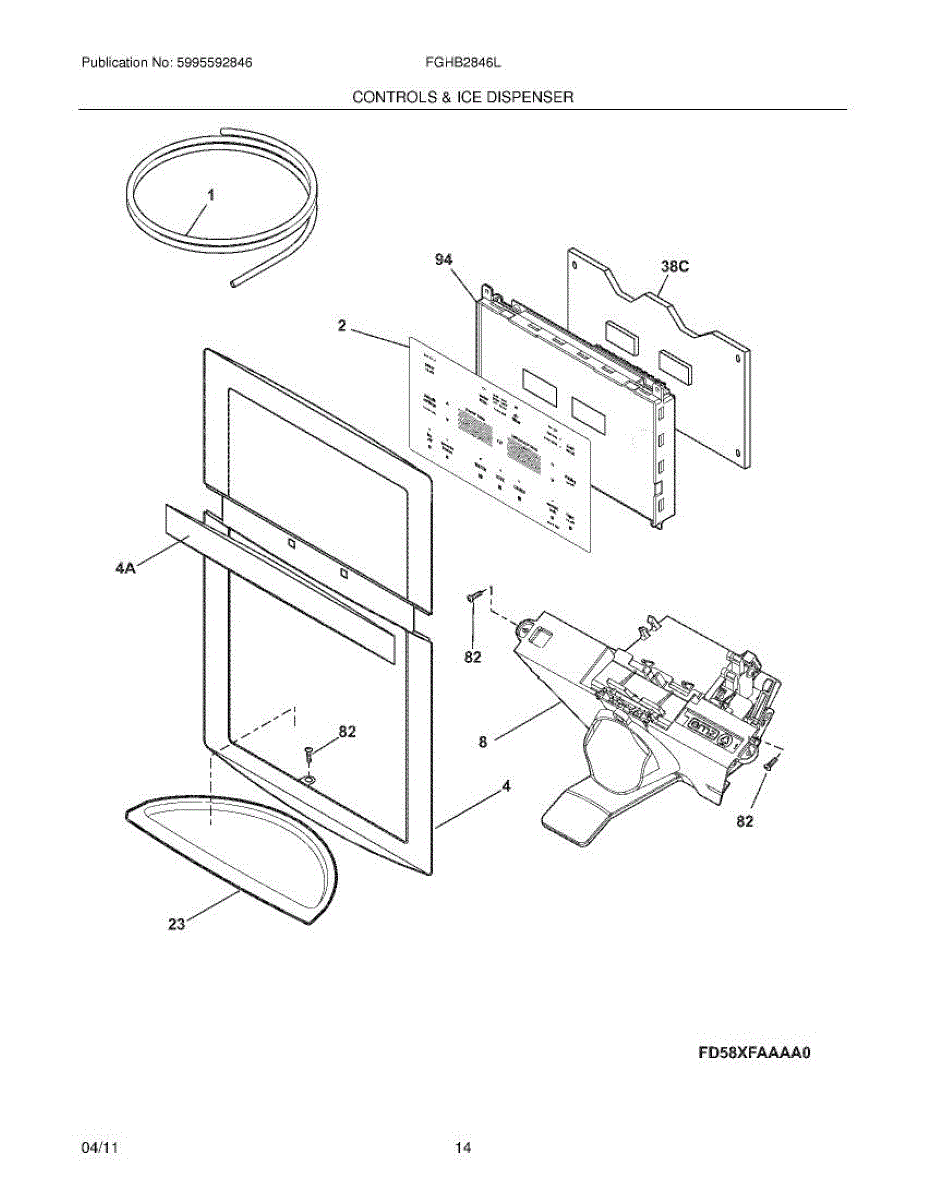

Parts for Frigidaire FGHB2846LF5: 13 - Controls & Ice Dispenser Parts

The Water Filter is an OEM replacement part for Frigidaire refrigerators. This PureSource Ultra Ultrawf Refrigerator Water Filter is designed to provide superior filtration, ensuring that your water and ice are clean and refreshing.

With the Frigidaire Refrigerator Water Filter, you can enjoy up to six months of crystal-clear water and ice. For the filter bypass, order part number 242294402. Get the most out of your Frigidaire appliance with a new OEM water filter, and enjoy clean, refreshing water and ice every time!

Causes of a bad part:

• Overused or expired
• Clogged by excessive impurities

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


This dispenser control board is the electronic module behind the refrigerator's ice/water dispenser panel. It reads button inputs and powers dispenser functions to help restore reliable dispensing and front-panel control when the original board fails. What it does

• Processes user selections for water, cubed/crushed ice, and dispenser light (model-dependent)
• Sends power to the water inlet valve and auger/dispenser motor as commanded
• Manages dispenser lock and status/display indicators (if equipped)
• Failure symptoms include unresponsive or intermittent controls, no water or ice dispensing, or an inoperative dispenser light

• Includes 1 dispenser control module (electronic board)

• Disconnect power before servicing; use ESD protection and handle the board by its edges
• Remove the dispenser escutcheon/cover to access the module; release locking tabs or screws as needed
• Transfer wire connectors one at a time to the new board, confirming orientation and full seating
• Reassemble, restore power, and test all dispenser functions

This replacement screw secures appliance components in place. Use it to replace a missing, stripped, or rusted fastener so shelves, handles, panels, or brackets stay properly mounted and the unit operates without unwanted movement.

• Fastens components to the cabinet, door, liner, or frame
• Restores a solid fit when the original screw is worn or lost
• Helps eliminate looseness, rattling, or misalignment
• Matches the original hardware for correct fit and thread engagement

• Disconnect power before servicing; for refrigerators, also turn off the water supply
• Align parts and start the screw by hand to avoid cross-threading
• Tighten with the correct driver; do not overtighten, especially into plastic
• If receiving threads are damaged, repair or replace the mating clip/bracket before installing

This nylon flat washer cushions and spaces fasteners and rotating parts to prevent metal-on-metal wear and ensure smooth operation. It's a simple replacement that restores proper alignment and reduces friction where plastic or metal parts meet. What it does:

• Provides spacing and insulation between mating parts to prevent wear and abrasion
• Absorbs shock and reduces vibration where bolted or rotating components contact
• Helps maintain proper alignment to prevent noisy or uneven operation
• Commonly replaced when worn, cracked, or missing

• Disconnect power and water to the appliance before starting any repair
• Replace with the same orientation and thickness as the original part
• Inspect surrounding hardware (screws, shafts, bushings) for wear and replace if damaged

This dispenser heater kit warms the dispenser area to help prevent ice build-up and keep the water/ice dispenser operating reliably. Replaces a failed heater assembly to restore proper dispenser function. What it does:

• Heats the dispenser chute/valve area to reduce frost and ice clogging
• Helps restore reliable water or ice dispensing when the dispenser intermittently freezes
• Prevents repeated thaw cycles that can cause leaks or inconsistent dispense flow
• Works as the direct replacement heater component used in the dispenser assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing the dispenser housing or control panel
• Handle electrical connections carefully and secure wiring per OEM routing

This dispenser wiring harness connects the dispenser controls and components in the refrigerator door, restoring electrical continuity for the dispenser functions and simplifying replacement of a damaged or faulty harness. What it does:

• Carries power and signals between the dispenser switches, valve/solenoid, and indicator lights
• Replaces frayed, pinched, or damaged wiring that can cause intermittent or no dispenser operation
• Addresses symptoms like non-working water/ice dispenser, no dispenser lights, or unresponsive dispenser switches
• Provides factory-style connectors for a direct, plug-and-play replacement

• One dispenser wiring harness

• Disconnect power to the appliance before beginning any work to avoid shock
• Remove the inner door panel or dispenser bezel per your model's service instructions to access the harness
• Match connectors and routing to the original harness; avoid stretching or pinching wires when reinstalling
• Test dispenser functions after installation and reassemble panels securely

The Fill Tube Kit is an OEM part for Frigidaire refrigerators. It contains the tubes used to direct water from the water supply line into the refrigerator's water dispenser and ice maker. As these tubes can degrade over time due to mineral buildup or cracking, this kit provides a like-new replacement to ensure optimal water flow.

Causes of a bad fill tube include mineral or limescale deposits restricting water flow, cracks or leaks developing from general wear and tear, or accidental damage from installation or maintenance issues.

Symptoms of a bad fill tube are:

• Slow or inconsistent water flow from the dispenser
• Dripping or leaks from the fill tube connection points
• Ice maker not working or producing small or misshapen ice cubes
• Water backing up or overflowing in the refrigerator

This OEM Frigidaire part is also compatible with Electrolux, Gibson, Kelvinator and some Kenmore models.

This replacement chute guides output through the appliance's passageway so it reaches the correct area. Replacing a cracked or warped chute restores smooth, consistent flow and helps prevent blockages, spills, and misdirected dispensing.

• Directs flow through the intended path between components
• Helps maintain alignment and sealing with adjoining parts
• Restores consistent dispensing/throughput when the original is damaged
• Common symptoms: visible cracks, obstructions, misalignment, or output missing the opening

• Disconnect power; turn off water supply if applicable
• Access the chute by removing the relevant cover or panel
• Transfer any reusable gasket/seal or mounting hardware from the old chute
• Seat and align the new chute fully; reassemble and test operation
