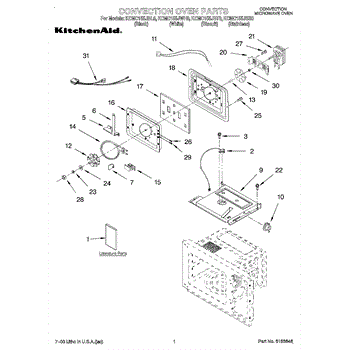

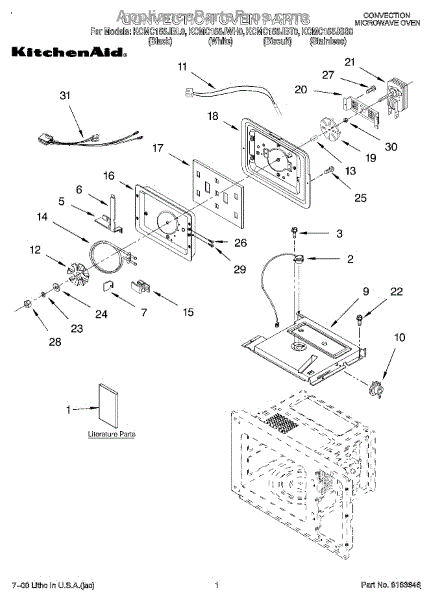

Parts for Kitchenaid KCMC155JBL0: 01 - Convection Oven, Literature Parts

This bracket secures the convection (fan) motor assembly inside the oven so the fan stays aligned and stable during operation. It helps ensure proper airflow for even cooking and prevents motor movement or rubbing. What it does:

• Anchors the convection/fan motor to the oven cavity to maintain correct alignment
• Prevents motor vibration and contact with surrounding panels that can cause noise
• Supports consistent fan rotation for proper heat circulation and even baking
• Common symptom: noisy fan, fan wobble, or reduced airflow in convection mode

• One convection motor mounting bracket

• Disconnect power to the appliance before beginning any work
• Remove oven back/inner panel and access the fan housing to reach the bracket
• Keep existing fasteners if reusable; replace any stripped screws with OEM-equivalent hardware
• If the motor or fan shows damage, inspect and replace those parts as needed for safe operation

The Screw is an OEM part for Whirlpool microwaves. It is responsible for securing various parts of the microwave together. This screw ensures a tight and secure fit for parts and helps maintain the structural integrity of the microwave, preventing any loose or rattling parts.

A bad microwave screw can occur due to wear and tear, accidental damage, or misplacement during maintenance or repairs. If you notice symptoms such as loose or wobbly components, difficulty in opening or closing the microwave door, or abnormal noises while the microwave is in use, it may be time to replace this part.

Symptoms of a bad microwave screw include:

• Loose or wobbly components
• Difficulty in opening or closing the microwave door
• Abnormal noises during operation

Restore your Whirlpool microwave by replacing the faulty or missing microwave screw with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This helical spring lock washer secures machine screws and bolts in your appliance, maintaining clamping force under vibration and thermal cycling. Use it to keep fasteners tight and assemblies stable for reliable operation.

• Provides spring tension to resist loosening from vibration and movement
• Helps maintain secure mounting and alignment of brackets, motors, and panels
• Common symptoms of a missing or fatigued washer: screws backing out, rattling/vibration noises, or a loose fit after tightening

• Unplug the appliance; shut off water supply if applicable
• Install between the fastener head (or nut) and the mating surface
• Use a matching screw size; replace any stripped or corroded hardware
• Tighten snugly without over-tightening

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

The Screw is an OEM part for Whirlpool microwaves. It is responsible for securing various parts of the microwave together. This screw ensures a tight and secure fit for parts and helps maintain the structural integrity of the microwave, preventing any loose or rattling parts.

A bad microwave screw can occur due to wear and tear, accidental damage, or misplacement during maintenance or repairs. If you notice symptoms such as loose or wobbly components, difficulty in opening or closing the microwave door, or abnormal noises while the microwave is in use, it may be time to replace this part.

Symptoms of a bad microwave screw include:

• Loose or wobbly components
• Difficulty in opening or closing the microwave door
• Abnormal noises during operation

Restore your Whirlpool microwave by replacing the faulty or missing microwave screw with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
